What Are Interface Types?

Interface types refer to the communication protocols and physical connections a scanning module supports, such as USB, TTL-232, RS232, RS485, or Ethernet. The right interface ensures seamless connection to different host systems—from POS terminals and industrial PLCs to embedded motherboards and payment kiosks .

XTIOT Barcode Scanner Products with Multi-Interface Options

XTIOT offers scanning modules with diverse interface options to accommodate various host systems and application requirements.

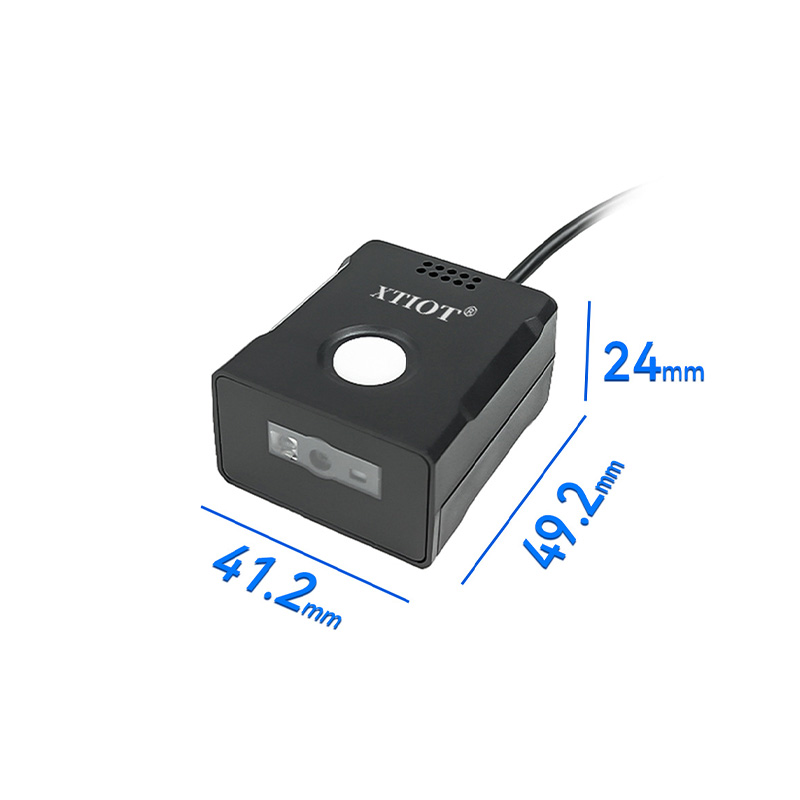

XT2010 Fixed-Mount Barcode Scanner Module

The XT2010 supports multiple interface options including USB HID, USB VCOM, TTL 232, and RS232 . Default interface is USB, with RS232 and TTL available as optional configurations . Under USB, it supports both USB-keyboard (keyboard emulation) and USB-virtual serial port modes for flexible integration . Baud rate is adjustable from 9600 to 115200 using the user manual .

Perfect for:

• Logistics sorting stations – RS232 connection to conveyor control systems

• Ordering kiosks – USB plug-and-play for quick deployment

• Pharmaceutical packaging lines – TTL interface for embedded motherboard integration

XT206M1 Mini Barcode Scanner Engine

The XT206M1 offers flexible interface support including USB, TTL, and RS232 options . Its ultra-compact design and versatile connectivity make it ideal for integration into OEM devices where space is limited . Custom cable length and PIN assignments are available to match specific host board layouts .

Perfect for:

• Smart shopping cart tablets – USB interface connects to tablet motherboard

• Payment terminals – TTL interface for direct embedded connection

• 3D printer accessories – RS232 for industrial controller integration

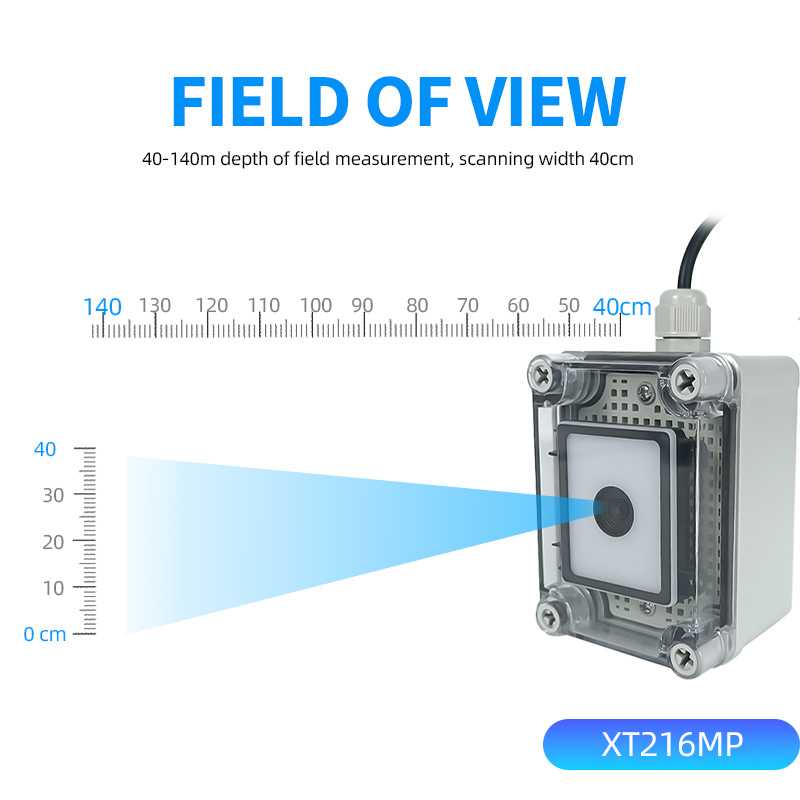

XT216MP Waterproof Barcode Scanner Module

The XT216MP supports common interfaces including USB, serial port (RS-232), and TTL . Its rugged waterproof design combined with flexible connectivity makes it suitable for outdoor and industrial applications where reliable communication is essential .

Perfect for:

• Parking lot automatic toll collection – RS232 connection to gate control systems

• Industrial vehicle management – TTL interface for embedded controllers

• Outdoor self-service terminals – USB for plug-and-play installation

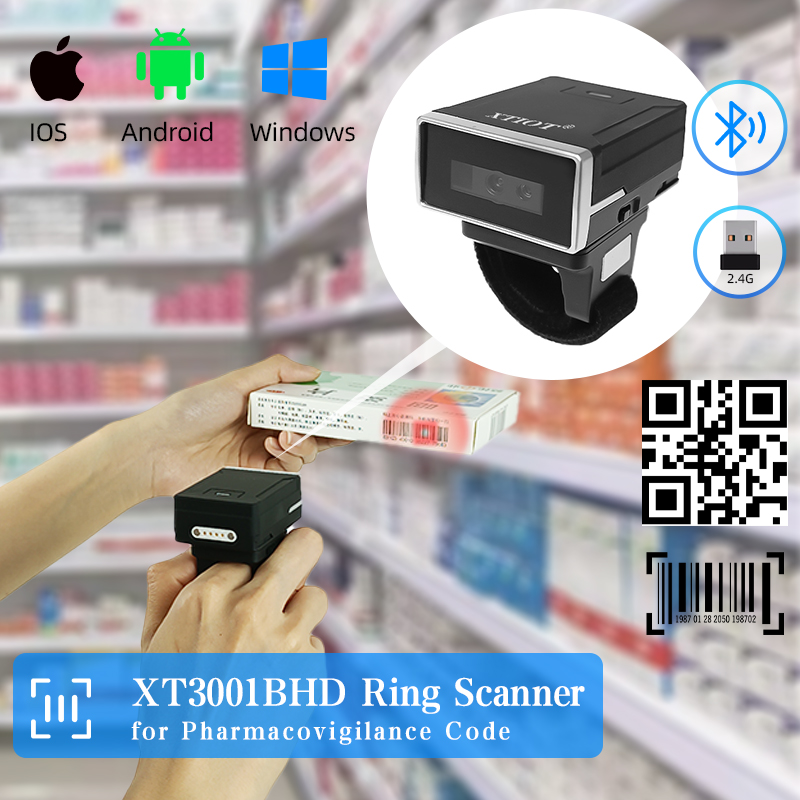

XT3001BHD Wearable Ring Barcode Scanner

The XT3001BHD features Bluetooth Classic SPP serial port connectivity for wireless operation, with 2.4G wireless and USB/RS232 options . It supports Bluetooth HID, SPP, and BLE protocols, making it compatible with Android, iOS, Windows, and Linux systems . Batch scanning capability with built-in storage for over 130,000 barcodes ensures offline operation when needed .

Perfect for:

• Tobacco distribution centers – Bluetooth SPP connection to distribution management systems

• Warehouse inventory management – 2.4G wireless for cordless operation

• Retail store counting – USB interface for quick data upload

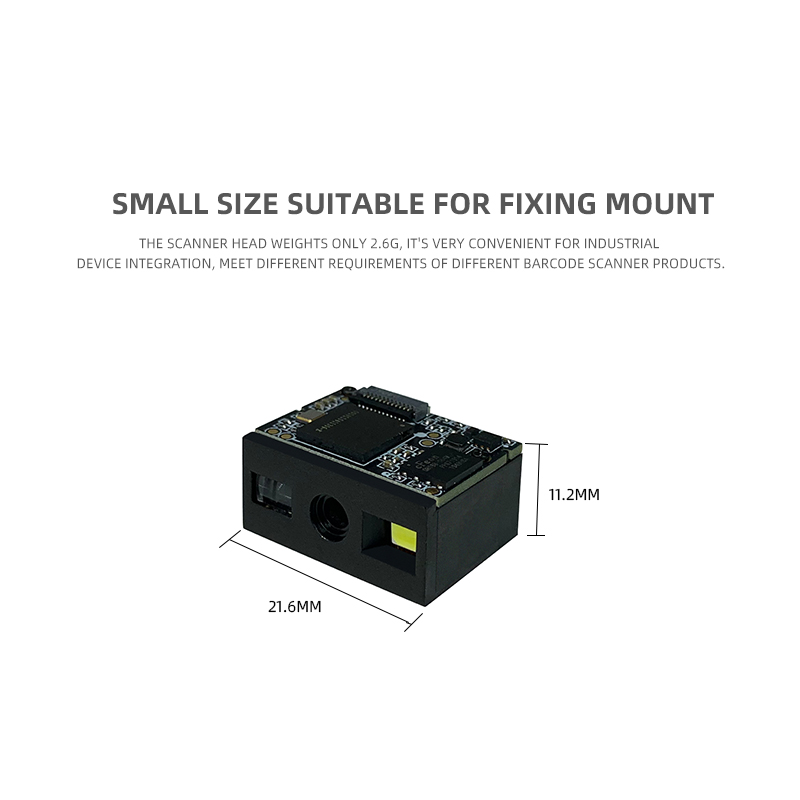

XT736M Embedded Barcode Scanner Module

The XT736M is equipped with USB, Serial TTL, and RS232 port output interfaces, ensuring seamless integration with various systems for both commercial and industrial applications . It supports TTL, USB, and COM interface types with adjustable interface parameters to meet specific connectivity needs . The Pro model includes both USB and COM interfaces for superior integration flexibility .

Perfect for:

• Robotics and automation – TTL interface for embedded system integration

• Industrial equipment – RS232 for PLC communication

• Self-service kiosks – USB for quick deployment

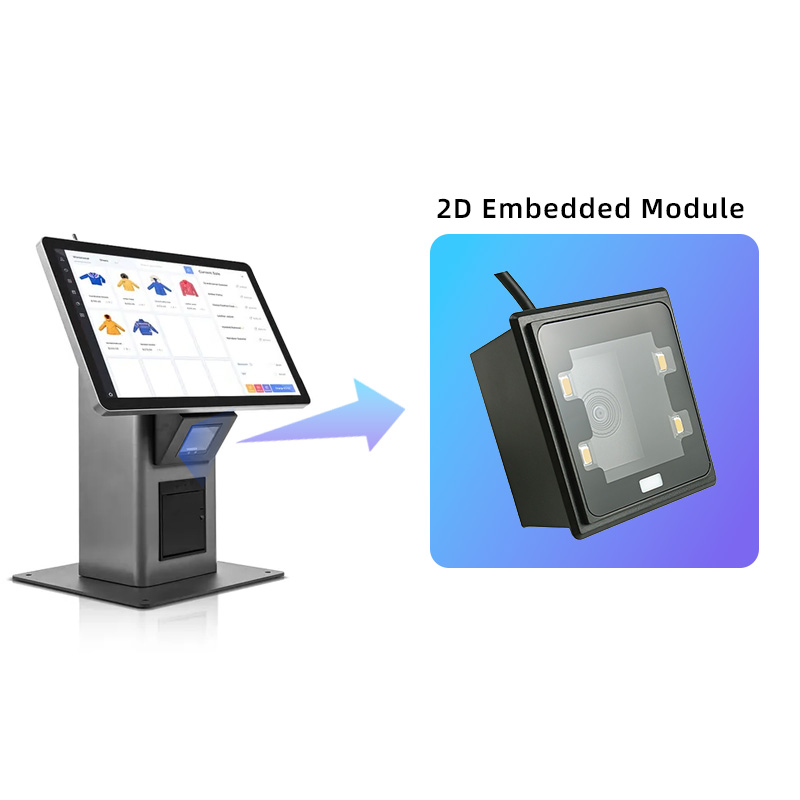

XT2003C / XT2003D Fixed-Mount Scanners

The XT2003C and XT2003D series supports USB, RS232, and TTL interfaces . These fixed-mount scanners are designed for production lines, logistics systems, and pharmaceutical traceability applications where reliable communication with host systems is critical . Custom cable length and PIN assignments are available .

Perfect for:

• Pharmaceutical traceability systems – RS232 connection to MES

• Tobacco and alcohol production lines – USB interface for data logging

• Automated sorting systems – TTL for embedded controller integration

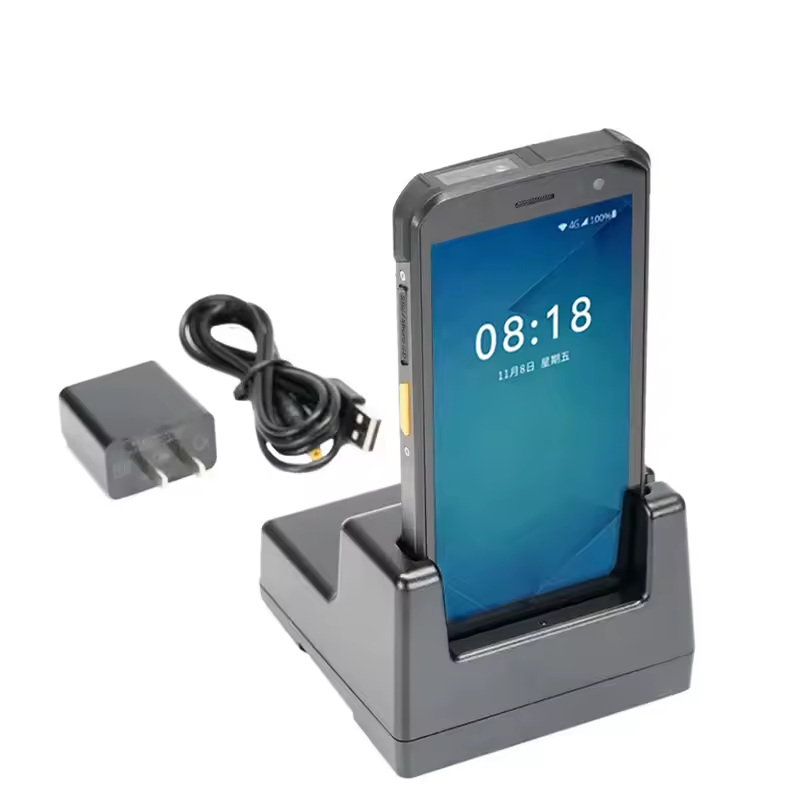

XT8002 Android PDA

The XT8002 features USB interface type for easy connectivity with various systems . As a handheld Android PDA, it combines scanning capability with mobile computing power, making it ideal for field operations where data needs to be captured and transmitted wirelessly .

Perfect for:

• Warehouse inventory – USB sync for data upload

• Field service operations – Wireless connectivity with backend systems

• Logistics delivery – Real-time data transmission via 4G/Wi-Fi

Interface Type Overview

Critical Applications by Interface Type

Why Interface Flexibility Matters

Different host systems require different communication protocols. XTIOT's multi-interface support enables:

• Plug-and-play simplicity – USB HID mode works with any application without drivers

• Industrial reliability – RS232 and RS485 provide stable long-distance communication

• Embedded integration – TTL interfaces connect directly to custom motherboards

• Wireless freedom – Bluetooth and 2.4G enable cordless operation in mobile environments

• Future-proof design – Multiple options ensure compatibility with evolving systems

Choose the right interface for your host system. Contact XTIOT today for integration support and custom interface configurations.
