What Are Installation Space Requirements?
Installation space requirements refer to the additional clearance needed around a scanning module beyond its physical dimensions—including areas for heat dissipation, cable bending radius, and maintenance access. Understanding these requirements ensures the module fits not just physically but also functionally within the device, preventing overheating, cable damage, and service difficulties.
XTIOT Barcode Scanner Products with Clear Installation Guidelines
XTIOT offers scanning modules with compact footprints and practical installation guidance to simplify integration.
XT206M1 Mini Barcode Scanner Engine

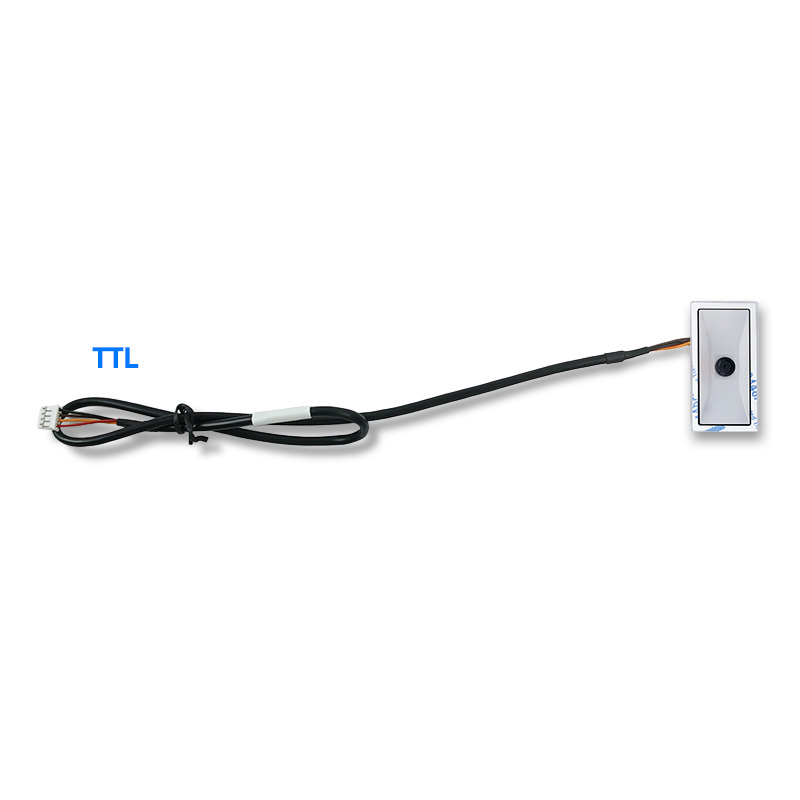

The XT206M1 measures approximately 40 × 20 × 11 mm, making it ideal for embedding into tight device spaces . Its ultra-compact footprint requires minimal surrounding clearance for installation. The flexible FPC interface supports custom cable lengths, allowing engineers to route connections without requiring large bending radii . Operating temperature range of 0°C to +50°C means moderate airflow is sufficient for thermal management .
Perfect for:
Smart shopping cart tablets – tight tablet housings require minimal clearance around the scanning engine
Payment terminals – slim handheld devices need modules that fit without extra space for cooling
3D printer accessories – add-on modules must not interfere with printer mechanics
XT206M3 Fixed-Mount Barcode Scanner

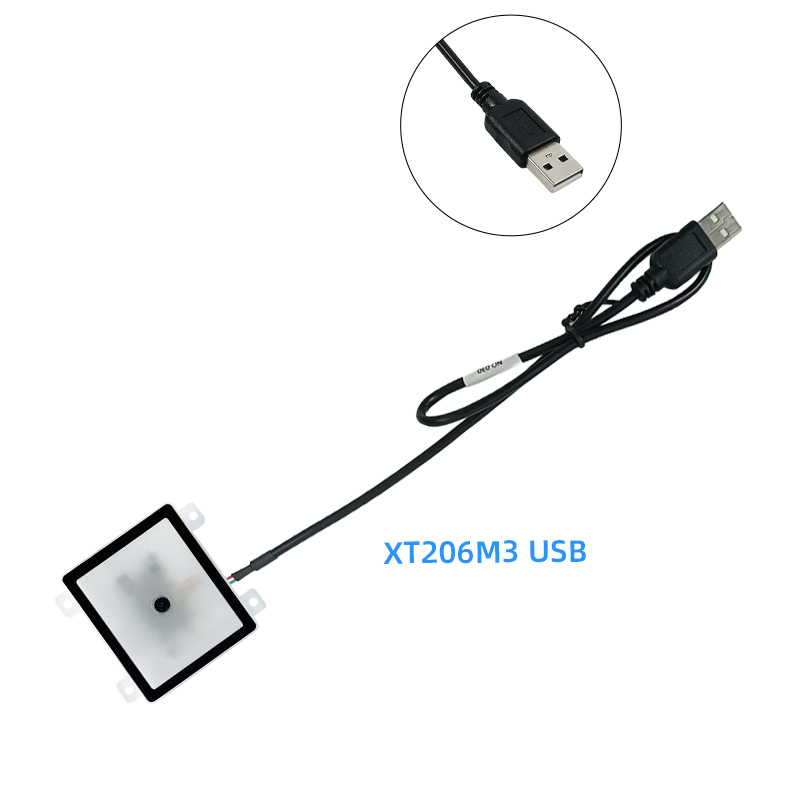

The XT206M3 has dimensions of 61 × 65 × 11 mm and is designed for fixed installation in kiosks, vending machines, and POS devices . Its thin profile (11mm) allows installation in shallow panels. With an operating temperature range of 0°C to +50°C and 160mA standby current, heat dissipation requirements are modest . The USB and TTL interfaces use standard connectors that require typical cable bending space.
Perfect for:
Self-checkout kiosks – installs behind thin panels without protruding into customer space
Vending machines – fits into door-mounted positions with limited depth
Hospital pharmacy stations – countertop integration with simple cable routing
XT2010 Fixed-Mount Barcode Scanner Module

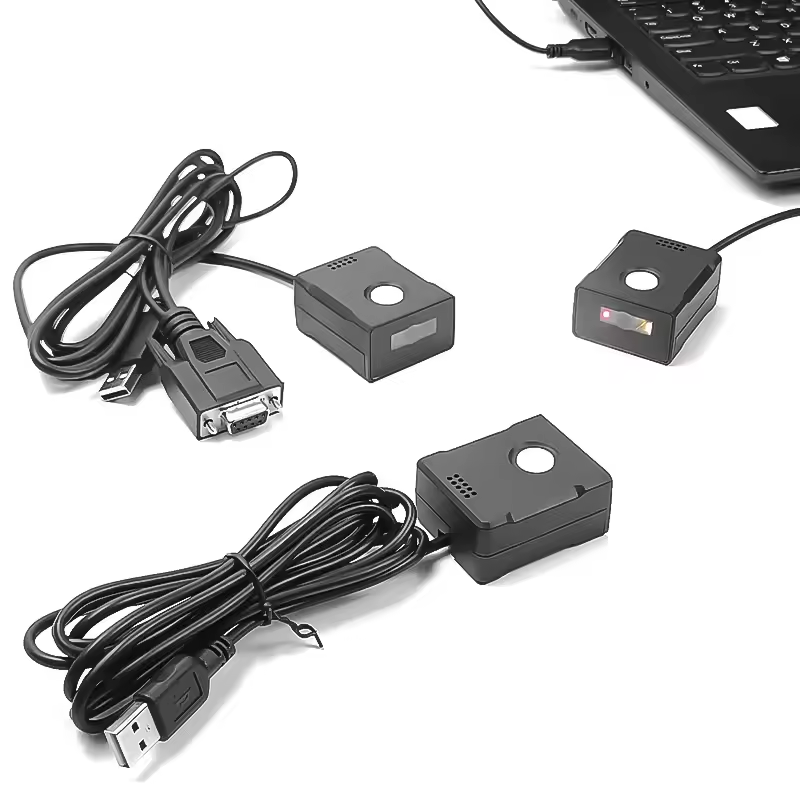

The XT2010 measures 41.2 × 49.2 × 24 mm and weighs 68g . Its compact design allows flexible placement in logistics stations and production lines. Operating temperature range of -20°C to +60°C enables installation in environments where thermal management may be limited . With working current of 218mA and standby current of 70mA, power dissipation is minimal .
Perfect for:
Logistics sorting stations – conveyor-side mounting with minimal clearance
Production line tracking – installs between machinery without requiring additional cooling
Automated sorting systems – fits into existing control cabinets
XT738M Compact Scan Module

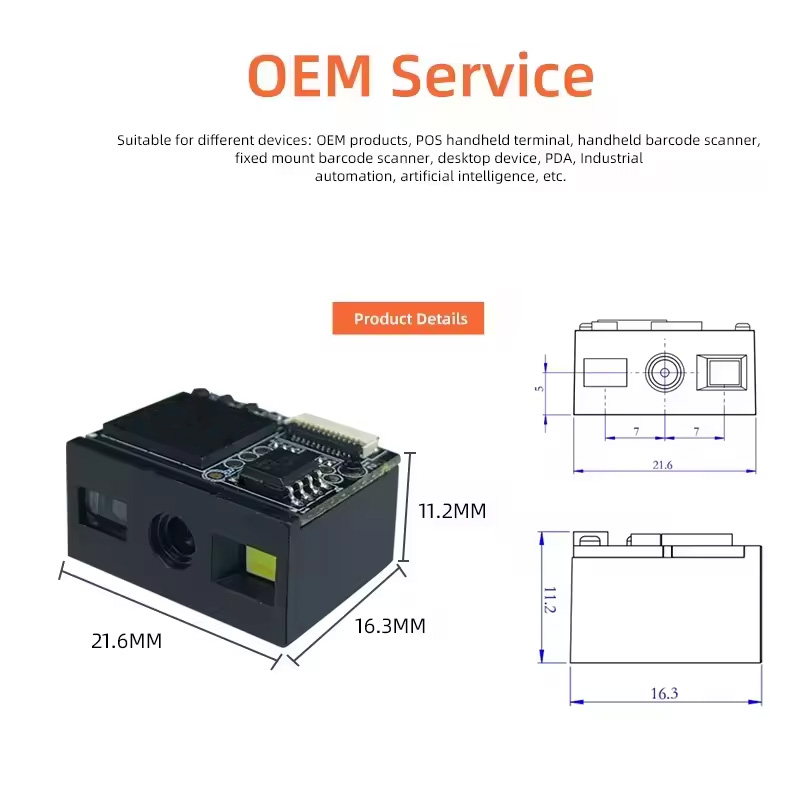

The XT738M weighs only 3.2g with compact dimensions suited for space-constrained OEM projects . Operating temperature range of -10°C to +50°C and storage temperature of -40°C to +70°C indicate broad environmental tolerance . The module supports custom cable length to optimize cable routing and minimize bending radius issues .
Perfect for:
PIN terminals and medical devices – extremely tight internal spaces require minimal clearance
Embedded OEM systems – integrates without requiring extra service access
Portable verification devices – lightweight design reduces mounting stress
XT7308D Desktop Barcode Scanning Platform

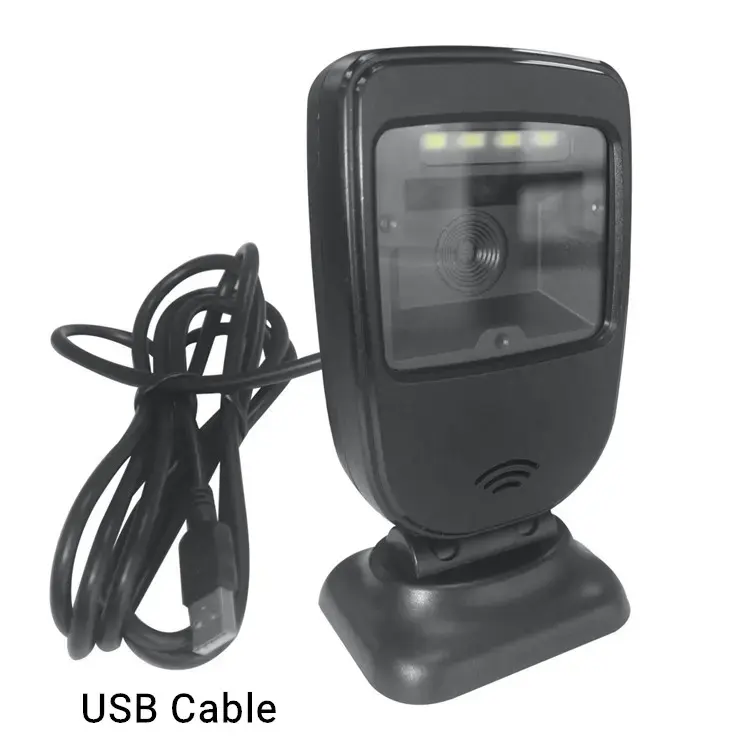

The XT7308D is a desktop barcode scanning platform designed for countertop installation . With a large scan window and omnidirectional reading capability, it sits freely on surfaces without complex mounting requirements . Its self-contained design requires only rear cable clearance for USB or RS232 connections, making it easy to place and reposition .
Perfect for:
Supermarket checkout counters – sits freely without mounting constraints
Hospital registration desks – easily repositioned as needed
Customer service desks – simple placement with adequate cable routing space
Key Installation Space Considerations
| Consideration | Description | XTIOT Solution |
|---|---|---|
| Physical Clearance | Space around module for airflow and assembly | Compact designs as thin as 11mm |
| Cable Bend Radius | Space needed for cable to curve without stress | Custom cable lengths available |
| Heat Dissipation | Airflow for thermal management | Low power consumption (70-250mA) minimizes heat |
| Maintenance Access | Space for servicing or replacement | Desktop models easily accessed; embedded modules use simple mounting |
| Mounting Surface | Panel thickness and material requirements | Compatible with standard panel mounting |
Critical Applications Requiring Space Planning
| Application | Space Challenge | XTIOT Solution |
|---|---|---|
| Smart Shopping Cart Tablets | Extremely limited internal space | XT206M1 at 40×20×11mm fits in tablet housings |
| Self-Checkout Kiosks | Thin panels, minimal internal volume | XT206M3 at 11mm thickness mounts flush |
| Medical PIN Terminals | Dense component layout | XT738M at 3.2g with custom cable routing |
| Conveyor Sortation | Space between moving parts | XT2010 compact footprint |
| Retail Countertops | Cable management behind unit | XT7308D with rear cable exit |
How XTIOT Supports Space-Efficient Installation
Compact Form Factors
Modules like XT206M1 (40×20×11mm) and XT738M (3.2g) minimize physical footprint, requiring less surrounding clearance .
Custom Cable Lengths
XTIOT supports custom cable lengths and PIN assignments, allowing engineers to route cables optimally without excess slack or sharp bends .
Low Power Consumption
Working currents from 70mA to 250mA mean minimal heat generation, reducing cooling requirements and allowing installation in sealed or poorly ventilated spaces .
Wide Operating Temperature
Modules operate reliably from -20°C to +60°C, enabling installation in environments where thermal management is limited .
2D/3D Drawings Available
XTIOT provides dimensional drawings and 3D files for all modules, allowing engineers to verify clearance and routing before physical installation .
Why Installation Space Matters for Barcode Scanners
Inadequate space planning leads to:
Overheating – insufficient airflow shortens component life
Cable stress – tight bends cause connection failures
Service difficulty – no access for cleaning or replacement
Assembly problems – modules don't fit after design finalization
XTIOT delivers this capability with compact form factors, low power consumption, custom cabling options, and comprehensive dimensional documentation that enable precise space planning before production.
Ensure your barcode scanner installation fits perfectly. Contact XTIOT today for 2D drawings, 3D files, and integration support tailored to your device layout.
