What Is Scan Window Size?
Scan window size refers to the dimensions of the barcode scanner module's optical aperture and its corresponding field of view. A sufficiently large scan window with a wide field of view allows users to present barcodes from various angles without precise aiming, significantly improving scanning convenience and user experience in high-traffic environments.
XTIOT Barcode Scanner Products with Wide Scan Window Design
XTIOT offers barcode scanner modules designed with generous scan windows and wide field of view angles to maximize scanning convenience.

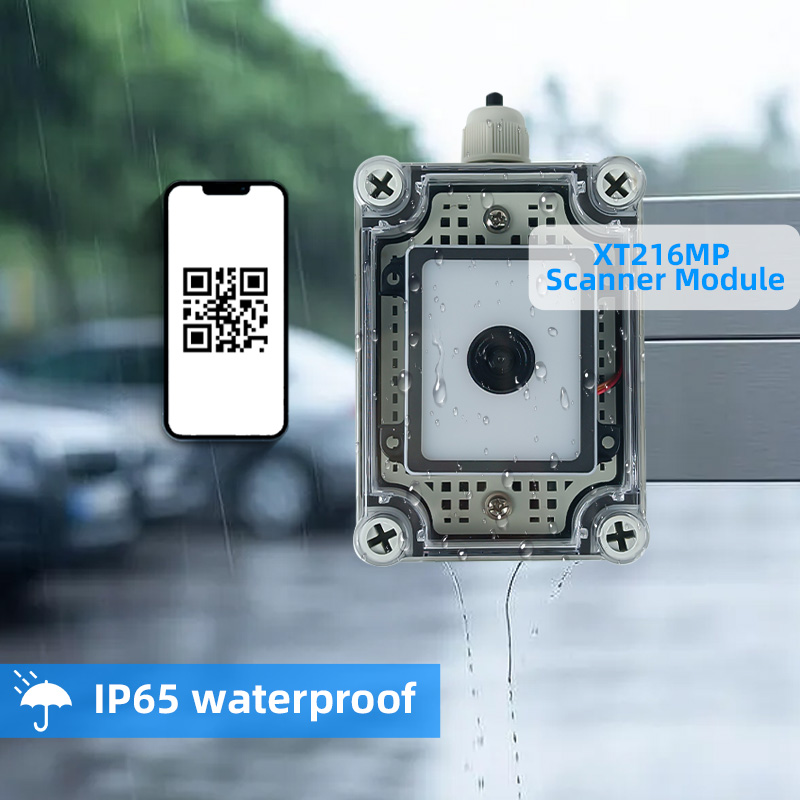

XT216MP Waterproof Barcode Scanner Module
The XT216MP barcode scanner features a wide field of view with Horizontal 66.4°, Vertical 49.8°, and Diagonal 83° . This expansive scanning range allows users to present barcodes without precise alignment. With 360° rotation, ±65° tilt, and ±55° deflection, it provides exceptional flexibility in outdoor self-service terminals and parking toll systems.
Perfect for:
Parking lot automatic toll collection – drivers can present parking tickets without precise positioning
Industrial vehicle management – quick scanning at park entrances without stopping
Outdoor self-service terminals – wide window accommodates different user heights and angles
XT206M3 Fixed-Mount Barcode Scanner
The XT206M3 barcode scanner offers a wide field of view with Horizontal 66.4°, Vertical 49.8°, and Diagonal 83° . It supports 360° rotation, ±65° tilt, and ±55° deflection, making it ideal for self-checkout kiosks and pharmacy prescription processing where users approach from various angles.
Perfect for:
Retail store self-checkout systems – customers can scan items naturally without aligning barcodes
Hospital pharmacy prescription processing – staff scan quickly without adjusting wrist angle
Vending machines – wide window accommodates different user heights
XT206M1 Mini Barcode Scanner Engine
The XT206M1 barcode scanner engine is designed with an optimized scan window specifically for smart shopping cart tablets. Its wide scanning range allows users to scan items directly into the cart without removing them or precisely aligning barcodes . This hands-free convenience significantly improves the shopping experience.
Perfect for:
Smart shopping cart self-service tablets – scan items directly into cart while shopping
Mobile payment terminals – quick scanning from various angles
Embedded device integration – wide window fits slim device panels

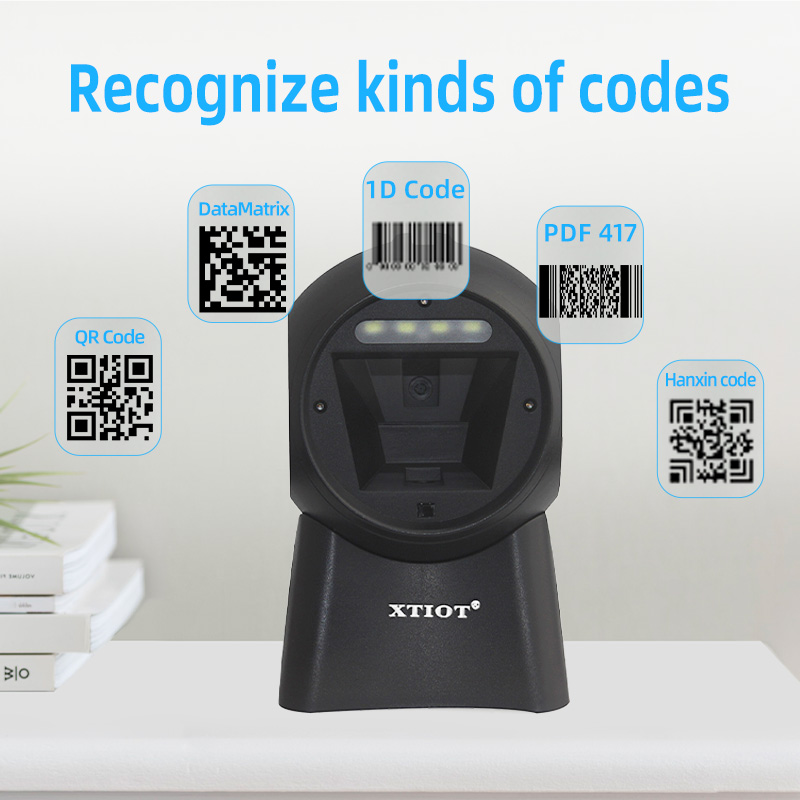

XT7301P AI-Powered Desktop Barcode Scanner
The XT7301P barcode scanner features a large scan window with wide field of view combined with AI-powered omnidirectional scanning that supports Roll 360°, Pitch ±50°, and Skew ±60° . The generous window size and wide scanning angles make it ideal for high-volume retail environments.
Perfect for:
Supermarket checkout counters – cashiers scan without rotating items
Garment stores – customers scan price tags without precise aiming
Hospital registration desks – quick scanning of patient wristbands
XT7308D Desktop Barcode Scanning Platform
The XT7308D barcode scanner features an extra-large scan window designed for fast and convenient barcode presentation. Its wide aperture captures codes from various angles, making it perfect for customer-facing applications where users have different heights and scanning habits.
Perfect for:
Customer service desks – easy scanning of membership cards and coupons
Ticket verification windows – fast entry for event attendees
Libraries – patrons scan books without precise alignment
Key Scan Window Specifications for XTIOT Barcode Scanners
| Model | Field of View (H×V) | Tilt/Pitch | Rotation | Best Application |
|---|---|---|---|---|
| XT216MP | 66.4°×49.8° | ±65° tilt, ±55° deflection | 360° | Outdoor terminals, parking systems |
| XT206M3 | 66.4°×49.8° | ±65° tilt, ±55° deflection | 360° | Self-checkout, vending machines |
| XT7301P | 44°×33.2° | ±50° pitch, ±60° skew | 360° | Retail checkout, hospital registration |
| XT738M | 40°×29° | Not specified | 360° | Medicine scanning, PIN terminals |
| XT750MB | 35°×27° | ±60° tilt, ±60° deflection | 360° | Core sensor systems |
| XT7308D | Wide aperture | Omnidirectional | 360° | Customer service, ticket verification |
Critical Applications Requiring Wide Scan Windows for Barcode Scanning
| Application | User Convenience Benefit | XTIOT Barcode Scanner Solution |
|---|---|---|
| Self-Checkout Kiosks | Customers scan without precise aiming | XT206M3 with 66.4° horizontal FOV |
| Parking Toll Systems | Drivers present tickets from vehicle windows | XT216MP with 83° diagonal FOV |
| Smart Shopping Carts | Scan items directly into cart | XT206M1 with optimized window |
| Retail Checkout Counters | Cashiers work faster without rotating items | XT7301P with omnidirectional scanning |
| Hospital Registration | Staff scan wristbands from any angle | XT7308D with large window |
How Scan Window Size Affects Barcode Scanning User Experience
Without a sufficiently large scan window:
Users must carefully align barcodes with a small target area
Scanning fails when codes are presented at slight angles
Multiple attempts required for successful reads
Increased frustration and longer transaction times
With XTIOT wide scan window barcode scanner modules:
Intuitive operation – users present barcodes naturally
Higher first-pass read rates – fewer failed scans
Faster transaction times – reduced waiting in lines
Accommodates different user heights – wide vertical field of view
Why Scan Window Size Matters for Barcode Scanners
In customer-facing applications where users have varying heights, scanning habits, and presentation angles, a wide scan window with generous field of view is essential. XTIOT barcode scanners deliver this capability with modules featuring fields of view up to 66.4° horizontally and 83° diagonally, combined with 360° rotation and wide tilt angles to ensure successful reads from virtually any presentation angle.
