Why Small Scan Windows Reduce QR Code Reading Performance

Many retail price checkers installed years ago were designed for reading:

• Product barcodes on packaging

• Shelf labels

• Membership cards

At that time, mobile QR code scanning was not part of the design requirement.

Today, customers often use:

• Mobile loyalty cards

• Digital membership QR codes

• Mobile coupons

• Promotional QR codes

Because the scan window is physically small, customers instinctively move their phones closer and closer to the scanner, making it difficult for the camera to acquire the complete QR code image.

Typical symptoms include:

• Multiple scan attempts

• Slow recognition

• Customers repeatedly adjusting the phone position

• Long queues during busy shopping hours

Enlarging the Scan Window Usually Means Redesigning the Housing

One possible solution is to enlarge the scan window.

However, this often requires:

• New front panel tooling

• Modified plastic molds

• Updated waterproof structure

• New production fixtures

• Additional certification and validation

For thousands of deployed retail price checkers, replacing the enclosure is usually neither practical nor cost-effective.

A Better Upgrade Strategy Is to Improve the Scan Engine

Instead of modifying the enclosure, many OEM manufacturers choose to upgrade the embedded scanner inside the existing housing.

A modern imaging engine can significantly improve reading performance even when the scan window remains unchanged.

Benefits include:

• Faster QR code acquisition through compact scan windows

• Improved decoding of smartphone screen barcodes

• Better tolerance to different phone positions

• Higher first-pass reading success

• Reduced customer waiting time

This approach minimizes engineering changes while extending the service life of existing equipment.

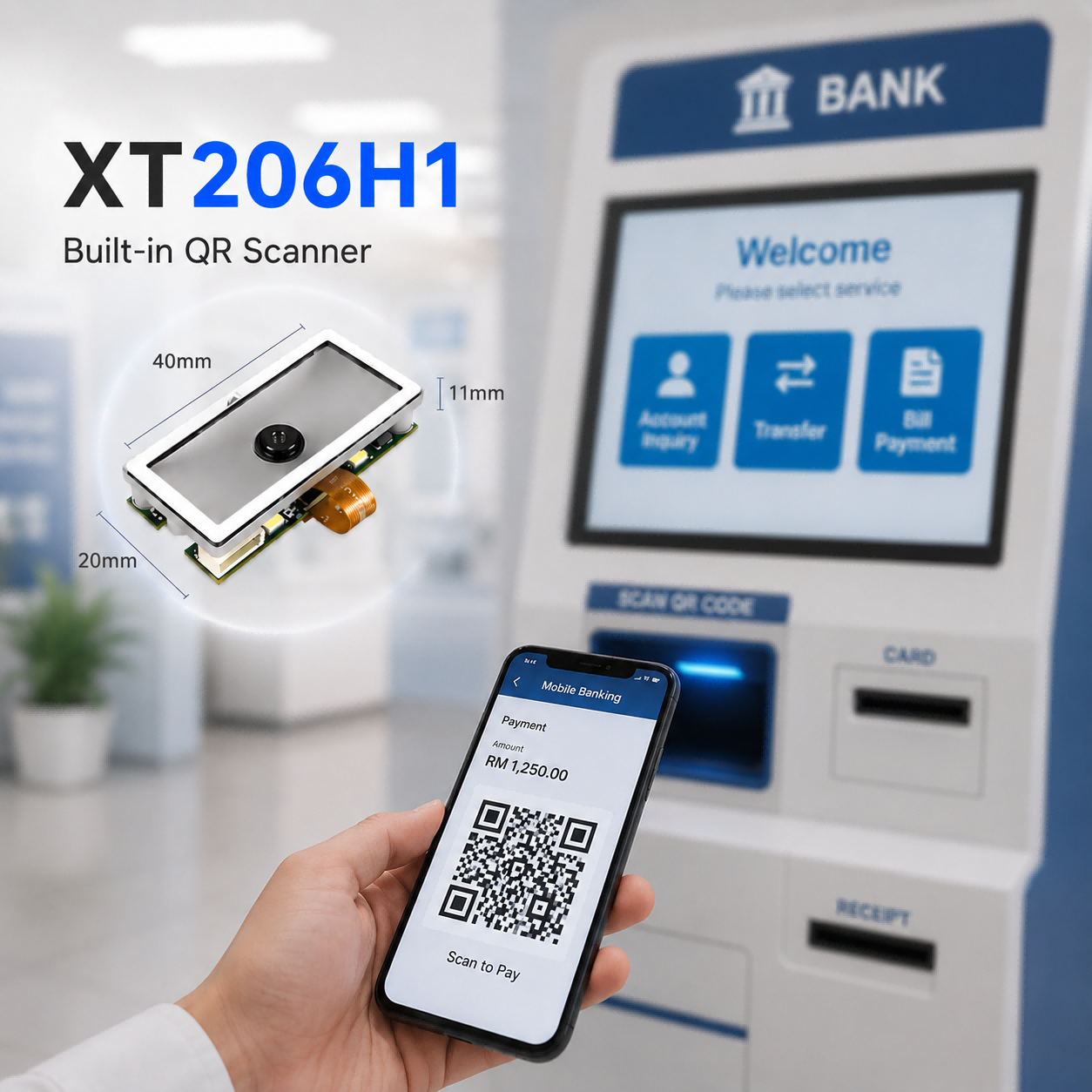

Recommended Model: XT206H1 Embedded Barcode Scanner Module

For retail price checker upgrades, the XT206H1 provides an easy-to-integrate solution without requiring enclosure modifications.

Key features include:

• 1280 x 800 CMOS image sensor for reliable mobile QR code decoding

• Excellent performance when reading smartphone screens through compact scan windows

• Automatic sensing for fast customer interaction

• Built-in fill light for stores with varying lighting conditions

• USB, TTL, and RS232 interfaces for OEM integration

• Factory-applied double-sided adhesive around the scan window for quick installation without additional brackets

• Ultra-compact design suitable for space-limited retail terminals

The XT206H1 enables retailers to upgrade existing price checkers while keeping the original enclosure and mechanical structure unchanged.

Conclusion

As retail price checkers evolve from simple barcode readers to interactive self-service terminals, the size of the existing scan window can become a hidden limitation for mobile QR code scanning.

Rather than redesigning the enclosure, upgrading the embedded scan engine is often the fastest and most economical solution.

With the XT206H1 embedded barcode scanner module, OEM manufacturers and retail system integrators can improve first-pass scanning performance, support modern mobile QR code applications, and extend the lifespan of existing price checker equipment without costly mechanical redesign.
