Why DPM Scanning Is Hard
Direct Part Marking (DPM) codes are laser-etched, dot-peened, or chemically etched directly onto metal, plastic, and glass surfaces. Unlike paper labels, DPM codes have low contrast, high reflectivity, and tiny sizes (sometimes just 2mm).
Standard barcode scanners fail on DPM. You need specialized industrial readers designed for these challenging marks.
XTIOT DPM Scanners – Best Picks

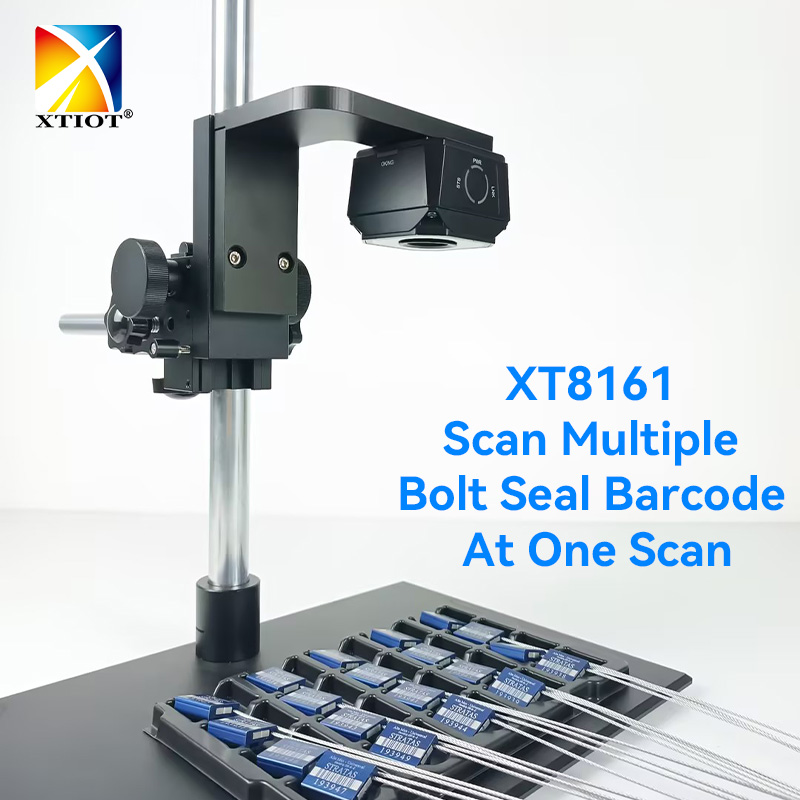

🔹 XT8161 – Best for Micro DPM & 3C Electronics
The XT8161 is specifically designed for reading laser-etched, dot-peened, and perforated codes on metal, glass, and plastic .
| Feature | Specification |
|---|---|
| Sensor | 1.6MP |
| Focus | Full auto software focus |
| Reads | Laser-etched, dot-peened, perforated DPM |
| Housing | IP67 aluminum alloy |
| I/O | 3 inputs + 3 outputs (programmable) |
| Cable | 3M industrial — Ethernet + USB + serial |
| Temp range | -20°C to +60°C |
Best for: PCB circuit boards, semiconductor chips, automotive engine parts, medical device UDI marks .
Real efficiency gain: Over 99% recognition success rate on tiny DPM codes. Replaces manual inspection that took hours .
🔹 XTMZ40 – Best for Batch DPM Scanning (200 at Once)
The XTMZ40 is a 40MP industrial area‑array reader designed for high‑density batch scanning .
| Feature | Specification |
|---|---|
| Resolution | 40MP |
| Batch scan | Up to 200 codes per trigger |
| Coverage | 0.5m² in one capture |
| AI decoding | Deep learning for low‑contrast/reflective codes |
| Multi‑spectrum illumination | Handles glossy or dark surfaces |
| Symbologies | 38 types (Data Matrix, QR, 1D) |
| Durability | Aluminum alloy, industrial‑grade |
Best for: PCB panels, LED aluminum boards, semiconductor trays, electronic component reels .
Real efficiency gain: Single line efficiency increased by over 300% . One worker scans a whole tray in 2 seconds versus minutes of manual scanning.
🔹 XT8601B – Best for High‑Speed Conveyor DPM
The XT8601B is a 6MP industrial reader with deep learning AI, built for high‑speed production lines .
| Feature | Specification |
|---|---|
| Sensor | 6MP |
| Scan speed | 90 codes per second |
| Batch scan | Up to 100 codes per trigger |
| Decoding | Deep learning AI for damaged/low‑contrast codes |
| Quality grading | ISO15415, ISO15416, ISO29158 |
| Protection | IP67, all‑metal |
| Protocols | PROFINET, Ethernet/IP, ModBus, TCP/IP |
Best for: Pharmaceutical packaging, beverage lines, high‑speed conveyor scanning, Russia Chestny ZNAK compliance .
Real efficiency gain: 27 days of manual scanning → 50 minutes with XT8601B (7776x faster) .
🔹 XT2010 – Entry Fixed Scanner for Basic DPM
The XT2010 is a compact fixed‑mount scanner for general DPM reading on production lines .
| Feature | Specification |
|---|---|
| Sensor | 640×480 global shutter CMOS |
| Accuracy | ≥3mil |
| Read distance | 0–400px (depending on code size) |
| Interfaces | USB, RS232, TTL |
Best for: Budget‑friendly DPM reading, smaller production lines, workstations.
Quick Comparison Table
| Model | Best For | Sensor | Batch Scan | Key Feature |
|---|---|---|---|---|
| XT8161 | Micro DPM on metal | 1.6MP | No | Auto focus, IP67 |
| XTMZ40 | Batch tray scanning | 40MP | 200 codes | 0.5m² coverage |
| XT8601B | High‑speed conveyor | 6MP | 100 codes | 90/sec, deep learning |
| XT2060 | Moving codes | 1.2MP | No | Motion tolerant |
| XT2010 | Basic DPM entry | 0.3MP | No | Budget friendly |
What DPM Codes Can XTIOT Scanners Read?
| Marking Type | Description | Supported By |
|---|---|---|
| Laser etching | High‑precision marks on metal | ✓ XT8161, XTMZ40 |
| Dot peening | Impact marks on metal parts | ✓ XT8161 |
| Chemical etching | Corrosion‑based marking | ✓ XT8601B, XT8161 |
| Inkjet marking | Printed on components | ✓ All models |
| Laser engraving | Deep marks on plastic/metal | ✓ XT8161, XT8601B |
Why XTIOT for DPM Scanning
13+ years in industrial barcode scanning
90+ patents in decoding technology
Manufacturer direct – private molds, OEM support
IP67 rated – survives factory dust, moisture, washdowns
Wide temp range -20°C to +60°C
PLC integration ready – PROFINET, Ethernet/IP, ModBus
SDK & API support – easy MES/ERP integration
Application Use Cases
| Industry | Application | Recommended Scanner |
|---|---|---|
| 3C Electronics | PCB laser codes, chip DPM | XT8161 or XTMZ40 |
| Automotive | Engine parts, VIN codes | XT8601B or XT8161 |
| Medical Devices | UDI codes on implants | XT8161 |
| Semiconductor | Tiny wafer codes | XTMZ40 (200 at once) |
| Pharmaceutical | Serialized Data Matrix | XT8601B |
Efficiency Gains – Real Data
| Before (Manual) | After XTIOT Scanner | Improvement |
|---|---|---|
| 27 days scanning 1M items | 50 minutes | 7776x faster |
| 300% slower batch scanning | Batch up to 200 codes | 300%+ efficiency |
| Missed DPM codes on metal | >99% recognition | Zero rework |
Need a DPM scanner for your laser‑marked codes? Contact XTIOT for the right recommendation.
