Why Switch from Manual to Automated Scanning?
A single worker scanning one barcode per second needs 27 days to scan 1 million products . Manual scanning is slow, error-prone, and expensive.
One XT8601B industrial scanner does the same job in 50 minutes .
| Comparison | Manual Scanning | XT8601B Automated Scanner |
|---|---|---|
| Time for 1 million scans | 27 days | 50 minutes |
| Workers needed | 30 people | 1 machine |
| Error rate | Human errors common | 99.7% accuracy |
| 24/7 operation | No (shifts, breaks) | Yes |
XTIOT Industrial Scan Module Lineup

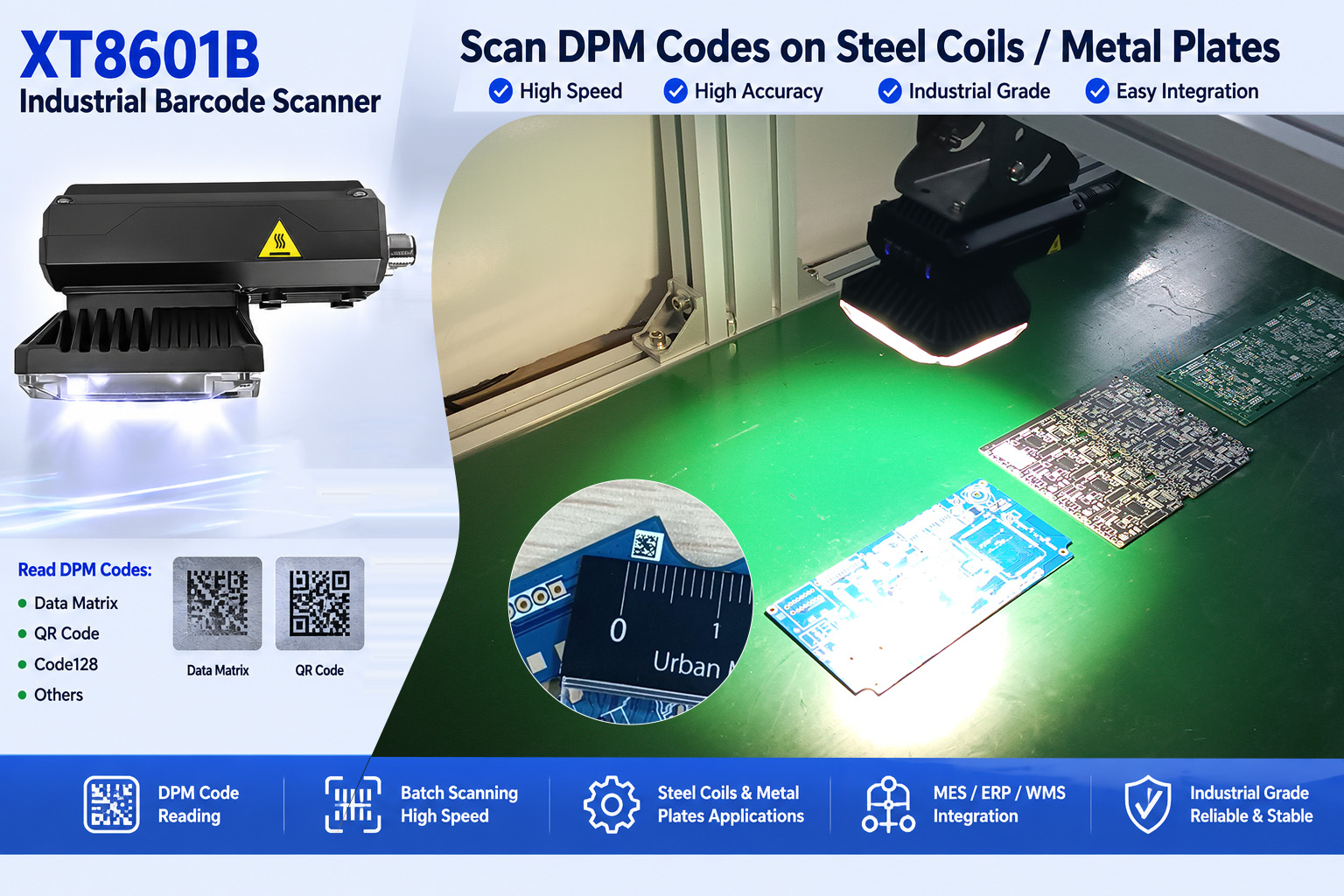

XT8601B – High-Volume Batch Scanner
The XT8601B is an industrial fixed mount scanner designed for high-speed production lines and warehouses .
| Feature | Specification |
|---|---|
| Scan speed | 90 codes per second |
| Batch scan | Up to 100 codes per trigger |
| Trigger rate | 200 times per minute |
| Protection | IP67 dustproof and waterproof |
| Housing | All-metal body |
| Accuracy | 99.7% at 5 codes per square cm |
| Temp range | -20°C to +50°C |
| Protocols | PROFINET, Ethernet/IP, ModBus, TCP/IP |
Perfect for: Conveyor lines, pallet scanning, bulk receiving, high-speed production.
XT8131A – Conveyor Belt Fixed Scanner
The XT8131A is a high-speed industrial scanning module designed specifically for conveyor belt applications .
| Feature | Specification |
|---|---|
| Use case | Fixed position on conveyor belt |
| Scanning | High-speed and high-accuracy |
| Durability | Continuous operation in harsh environments |
| Integration | Works with MES, WMS, ERP systems |
Perfect for: Beverage production, dairy lines, cigarette production, high-speed sorting .
XT8161 – Multi-Code Industrial Scanner
The XT8161 industrial QR code module features high-resolution imaging .
| Feature | Specification |
|---|---|
| Resolution | 1280×1024 pixels (1.3MP) |
| Read speed | 82 codes per second |
| Multi-code | Reads multiple barcodes on same surface at once |
| Protection | IP67 aluminum housing |
| Functions | Takes pictures, records video, uploads data |
Perfect for: Automated sorting, traceability, DPM code reading on parts .
XT2010 – Factory MES Scanner Module
The XT2010 is a compact QR code scanning module for factory MES systems .
| Feature | Specification |
|---|---|
| Size | 41×24×49mm |
| Weight | 72g |
| Sensor | 640×480 CMOS |
| Decoding | 1D, 2D, laser etched, inkjet, dot matrix codes |
| Interfaces | USB, RS232, TTL |
Perfect for: Production line traceability, process optimization.
XT2003C – Workstation Scanner
The XT2003C is a workstation barcode scanner module for digital factory control points .
| Feature | Specification |
|---|---|
| Size | 79×68×53mm |
| Sensor | 640×480 CMOS global shutter |
| Motion tolerance | Up to 2 meters per second |
| Interfaces | USB, RS232, RS485, TTL |
| Auto‑dimming | Adjusts brightness based on object distance |
Perfect for: Workstation nodes, assembly line checkpoints, employee job scanning .
How Industrial Scanners Save Labor
Real data from automotive parts manufacturer after XT8601B deployment :
| Metric | Before | After |
|---|---|---|
| Production line scanning efficiency | Baseline | +90% |
| Inventory counting cycle | 7 days | 2 hours |
| Workers needed | 30 skilled workers | 1 machine |
77.76x efficiency gain — from 27 days of manual scanning to 50 minutes .
XTS03-2 – Enterprise Verification System
For multi‑workstation production lines, the XTS03-2 is a networked barcode verification system .
| Feature | What It Does |
|---|---|
| Multi‑workstation | 1 master terminal connects to N secondary workstations |
| Real‑time sync | LAN and cloud connection |
| Central storage | All scan records and logs on server |
| Error prevention | Barcode matching, anti‑error alarm, anti‑duplicate |
| Export | Custom data export, quality statistics, reports |
| Integration | Connects to MES, ERP, WMS |
Perfect for: Medium and large‑scale batch production lines, automated assembly workshops, full‑process quality traceability .
Which XTIOT Scanner Should You Choose?
| Your Application | Recommended Module |
|---|---|
| High-speed conveyor, pallet scanning, bulk receiving | XT8601B |
| Beverage/dairy/cigarette production line | XT8131A |
| Automated sorting, DPM code reading | XT816 |
| Factory MES traceability, compact spaces | XT2010 |
| Workstation node, employee job scanning | XT2003C |
| Multi‑workstation enterprise verification | XTS03‑2 |
Get Started with XTIOT
XTIOT is a national high-tech enterprise with 13+ years of experience. All products include 1-year warranty and lifetime technical support.
