XT206M1: 40×20×11mm ultra‑compact scan module. Embed into kiosks, ticket machines, parcel lockers. No driver. No SDK. 300 scans/sec. Saves $25,000+ per year in labor vs a staffed counter.
Why Embed a Scanner Instead of Using a Handheld?
| Handheld Scanner | Embedded OEM Module |
|---|---|
| Worker must pick up and scan | Customer uses it directly |
| Battery charging, lost devices | Always powered, fixed in place |
| One scan at a time | Auto‑sensing, always ready |
| Requires training | No training needed |
| $500‑1000 per device | $20‑60 per module |
How Embedded Scanners Save Labor Costs
Replace a staff‑assisted service counter with self‑service kiosks:
| Scenario | Staffed Counter | Self‑Service Kiosk (Embedded Scanner) | Annual Savings |
|---|---|---|---|
| Airport check‑in | 3 agents × $35k/year | 6 kiosks + 1 agent | $70,000 |
| Hotel check‑in | 2 front desk × $30k/year | 4 kiosks | $60,000 |
| Cinema ticketing | 2 cashiers × $25k/year | 3 kiosks | $50,000 |
| Pharmacy pickup | 1 tech × $40k/year | 2 kiosks | $40,000 |
One kiosk replaces 0.5‑1 full‑time employee. ROI typically under 6 months.
XTIOT Embedded OEM Scanner Lineup
| Model | Size | Best For | Key Feature |
|---|---|---|---|
| XT206M1 | 40×20×11mm | Tight spaces, 3D printers, payment terminals | Ultra‑compact, 1.2g weight |
| XT206M3 | 61×65×11mm | Kiosks, vending machines, POS | Auto‑sensing, 185mA |
| XT2010 | 41.2×49.2×24mm | Parcel lockers, conveyor lines | 300 scans/sec, RS232 |
| XT205M5 | Small | Vending machines, access control | 9g, multiple interfaces |
Detailed Specs

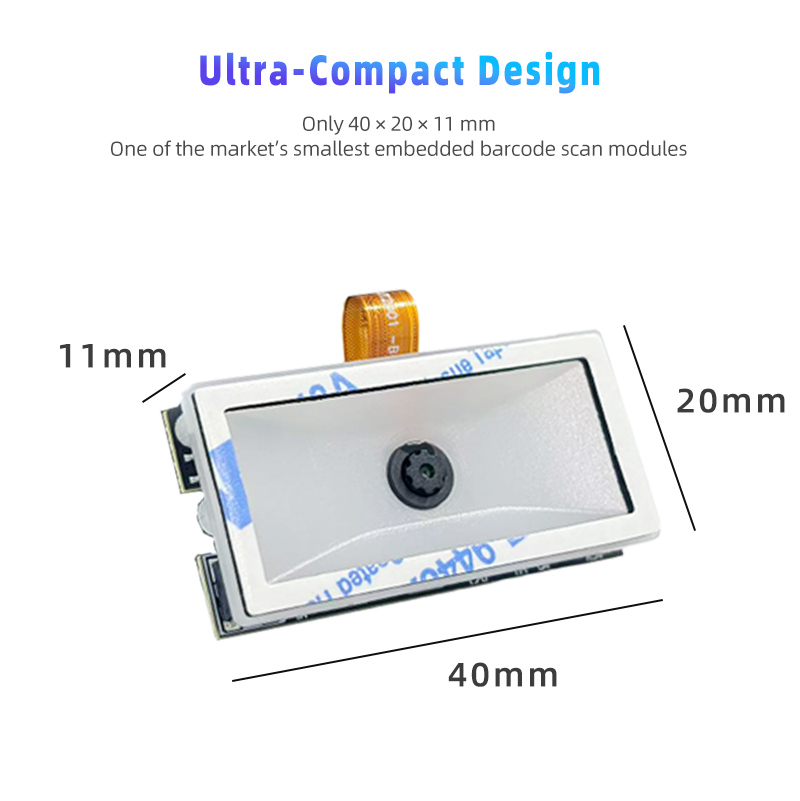

XT206M1 – Ultra‑Compact (Most Popular for OEM)
| Feature | Specification |
|---|---|
| Size | 40×20×11mm |
| Weight | ~3.2g |
| Sensor | 640×480 CMOS |
| Scan Speed | - |
| Interfaces | USB‑HID, USB‑VCOM, TTL, RS232 |
| OEM Customization | Logo, cable length, pin assignment |
| Best For | Payment terminals, 3D printers, smart lockers |
XT206M3 – Auto‑Sensing for High Traffic
| Feature | Specification |
|---|---|
| Field of View | 66.4°H × 49.8°V |
| Read Modes | Auto‑sensing, trigger, continuous, command |
| Interfaces | USB KBW, USB CDC, TTL, RS232 |
| Power | 185mA working, 160mA standby |
| Best For | Kiosks, vending machines, POS |

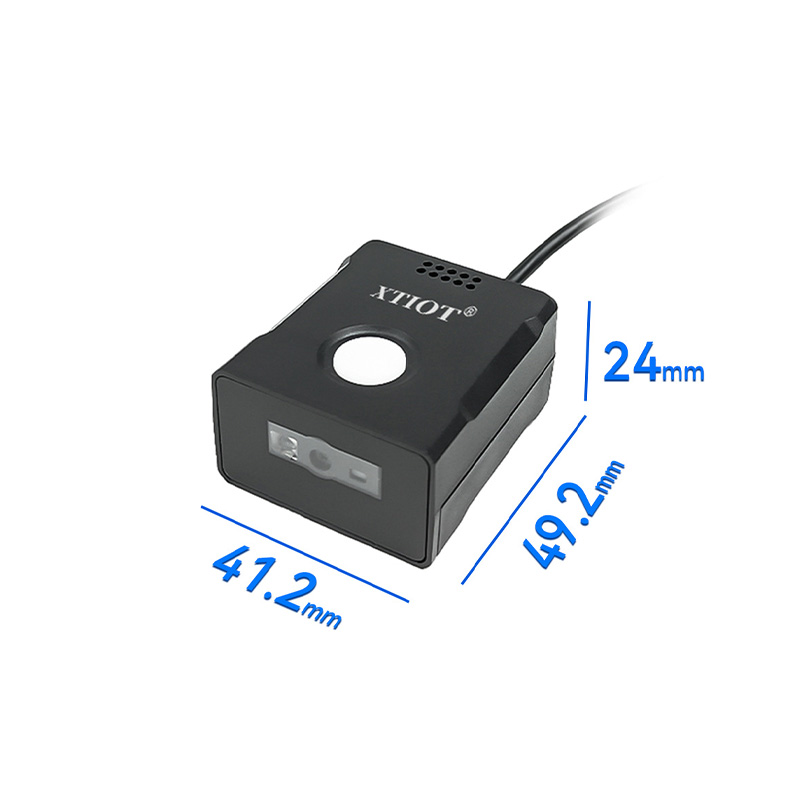

XT2010 – Fixed Mount for High Volume
| Feature | Specification |
|---|---|
| Size | 41.2×24×49.2mm |
| Sensor | 640×480 global shutter |
| Decoding | 1D, 2D, DPM, damaged codes, phone screens |
| Interfaces | USB, TTL, RS232 |
| Best For | Parcel lockers, conveyor lines |
XT205M5 – Lightweight for Retrofits
| Feature | Specification |
|---|---|
| Weight | 9g |
| Field of View | 66.4°H × 49.8°V |
| Interfaces | USB, TTL, RS232 |
| Trigger | Manual or auto‑induction |
| Best For | Vending machines, access control, ticketing |
Where Embedded Scanners Are Used
Self‑Checkout Kiosks (Retail)
XT206M3 integrated into POS terminal. Customer scans items → pays → leaves. No cashier needed.
Result: 300 scans/sec. Checkout time under 30 seconds.
Parcel Lockers (Logistics)
XT2010 embedded in locker door. Courier scans package barcode → system opens empty compartment. Recipient scans pickup QR → system opens correct door.
Result: 24/7 operation. No staff needed.
Hospital Self‑Service Kiosks
XT2003C embedded in report printing kiosk. Patient scans test barcode → system prints results.
Result: Eliminates 1‑2 front desk staff.
Ticketing & Events
XT205M5 in cinema or train station kiosk. Customer scans e‑ticket QR → ticket printed or gate opens.
Result: 300 tickets per hour.
Automated Payment Kiosks
Car wash, EV charging, parking payment. Customer scans QR code → payment processed → service starts.
Result: Unattended 24/7 revenue.
OEM Customization Options
XTIOT provides private mold support for OEM customers :
| Customization | MOQ | Details |
|---|---|---|
| Logo / Label | 1,000 pieces | Silkscreen on module |
| Packaging | 2,000 pieces | Custom branded boxes |
| Cable Length | Any | Tailored to device layout |
| PIN Assignments | Any | Match your motherboard |
| Firmware | Contact sales | Pre‑configured settings |
Why Kiosk Manufacturers Choose XTIOT
Ultra‑compact – Fits into slim kiosk designs
No SDK needed – USB‑HID keyboard emulation, works instantly
Auto‑sensing – No trigger button, better user experience
Industrial durability – Metal housing, wide temperature range
Multiple interfaces – USB, TTL, RS232 for any controller
Private mold – Your branding, not generic
1‑year warranty + lifetime support
Quick Selection Guide
| Your Device | Recommended Module |
|---|---|
| Payment terminal, 3D printer | XT206M1 (smallest) |
| Kiosk, vending machine, POS | XT206M3 (auto‑sensing) |
| Parcel locker, conveyor | XT2010 (RS232, global shutter) |
| Access control, ticketing | XT205M5 (lightweight) |
Get Started
XTIOT is a direct manufacturer with 13+ years of experience. Request samples, 2D/3D drawings, and SDK documentation for your OEM project.
