The Traceability Challenge
Retailers and distribution centers need to track every box. Which batch? Which expiration date? Which store did it go to?
Without traceability:
Operator types batch number by hand. Slow. Error prone.
Wrong number on box = wrong product traced
Recall? No idea which boxes went where
Manual typing is the weakest link in traceability.
How Scan-and-Print Solves Traceability
Add a small embedded barcode scanner to the handheld inkjet printer. Operator scans a QR code on the work order. The scanner reads the batch number and expiration date. The printer prints it on the box.
One scan captures all traceability data. No typing. No errors.
How It Works
Work order arrives with QR code
QR code contains batch number, expiration date, SKU
Operator scans QR code with printer
Scanner reads all data in 1 second
Operator prints batch number and expiration date on box
Box is traceable from warehouse to customer
Scan once. Print every box. Full traceability.
XTIOT Scan Engines for Retail and Distribution
XTIOT offers ultra compact scan modules designed to fit inside handheld inkjet printers.

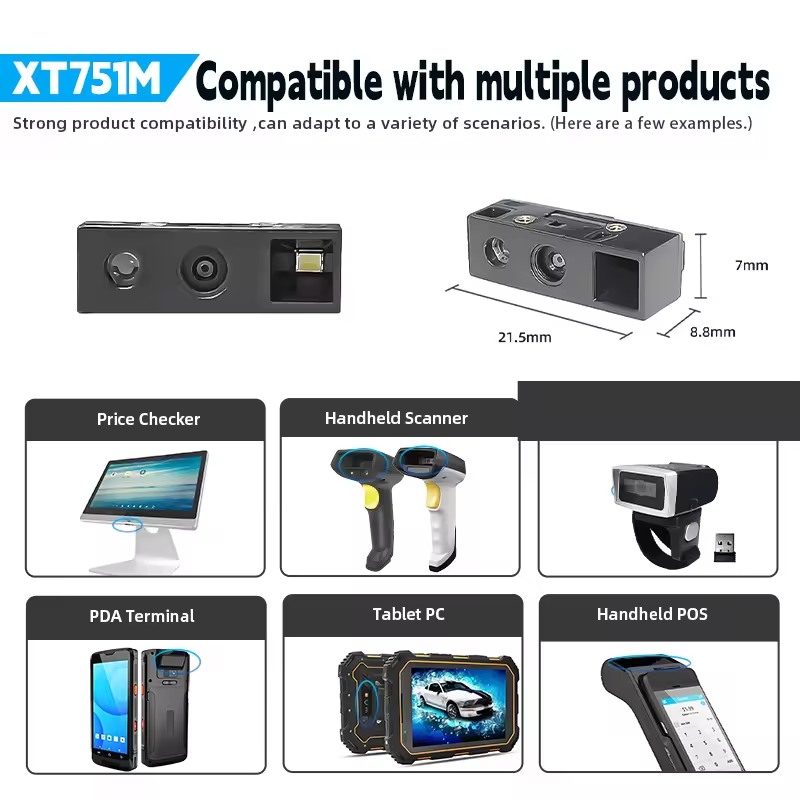

XT751M – Ultra Light Standard Model
| Feature | Specification |
|---|---|
| Weight | 1.2g |
| Resolution | 640×480 CMOS |
| Scan Speed | 300 scans per second |
| Best For | Clean QR codes on paper work orders |

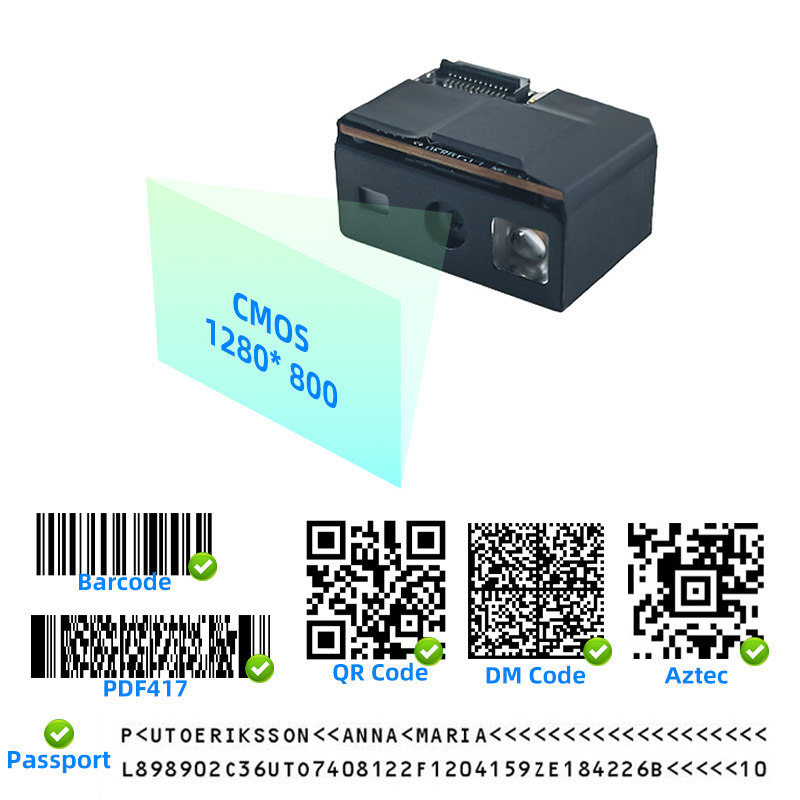

XT6996M – Premium High Resolution Model
| Feature | Specification |
|---|---|
| Weight | 3.9g |
| Resolution | 1280×800 CMOS |
| Scan Speed | 300 scans per second |
| Best For | Phone screen work orders, tiny codes, damaged labels |
Retail and Distribution Use Cases
| Scenario | What Gets Scanned | What Gets Printed |
|---|---|---|
| Warehouse receiving | QR code on packing list | Receiving date, batch number |
| Order picking | QR code on pick list | Order number, store destination |
| Expiration tracking | QR code on batch sheet | Expiration date, lot number |
| Returns processing | QR code on return label | Return date, RMA number |
| Store transfer | QR code on transfer order | Transfer date, destination store |
Traceability Workflow Example
Distribution center receiving 500 boxes of yogurt:
Work order QR code contains: batch number B2405, expiration date 2026 12 31, SKU 12345
Operator scans QR code once with printer
Scanner reads all data
Operator prints "B2405 EXP 2026 12 31" on each box
All 500 boxes have correct traceability information
Time: 2 minutes for setup. 1 second per box. Zero errors.
Why Retailers Need Scan-and-Print
| Problem | Without Scanner | With XTIOT Scanner |
|---|---|---|
| Wrong batch number on box | Customer complaint, recall | QR code captures exact batch |
| Expired products on shelf | Health risk, fines | Expiration date printed clearly |
| Can't trace returns | Accept return, lose money | Scan box, see original batch |
| Manual typing errors | Wrong number on hundreds of boxes | Zero errors |
| Slow receiving | Labor cost high | 10x faster |
Which Model Should You Choose
| If you scan... | Choose |
|---|---|
| Paper work orders, clean QR codes | XT751M |
| Phone screens, tiny codes, damaged labels | XT6996M |
Benefits for Distribution Centers
| Without Scan-and-Print | With XTIOT Scan-and-Print |
|---|---|
| Type batch number on each box | Scan once, print many |
| 10 seconds per box | 1 second per box |
| Typing errors common | Zero errors |
| Expiration date easily misread | Printed clearly on every box |
| Hard to trace returns | Scan box, see full history |
Integration for Printer Manufacturers
Adding a scan engine to your handheld inkjet printer is simple:
Module fits inside existing printer housing
Simple wiring (USB, TTL, or RS232)
Basic integration with printer controller
XTIOT provides:
2D and 3D drawings for mechanical fit
SDK and API documentation
Engineering support for OEM customers
Call to Action
Improve traceability in your retail or distribution operation.
Add XTIOT scan engine to your handheld inkjet printer. Scan the work order. Print on every box. Every package traceable.
Contact us for sample modules and integration support.
