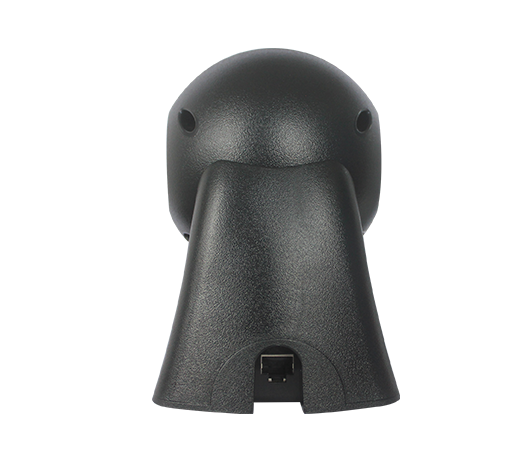

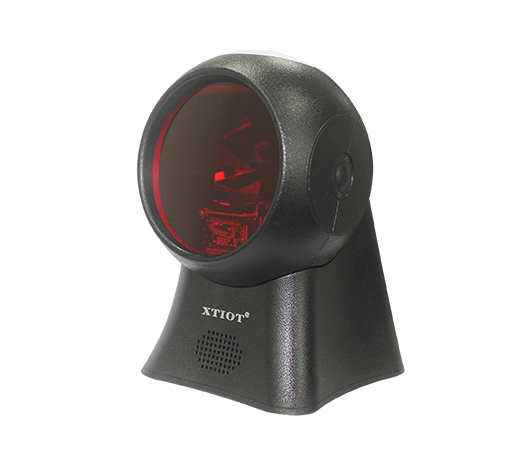

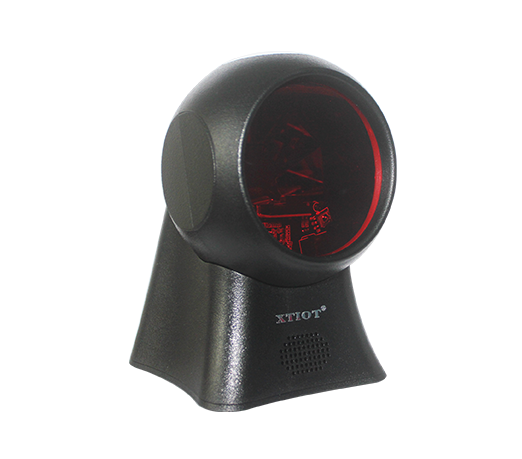

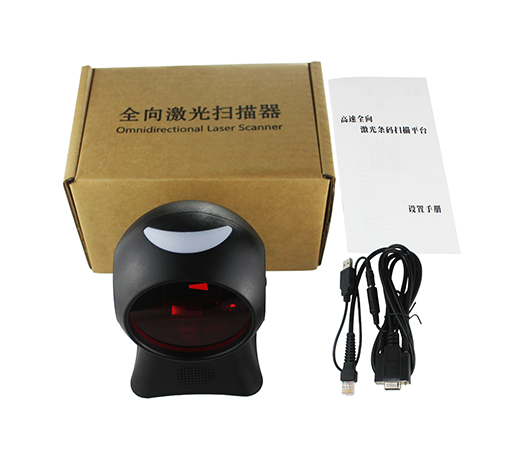

XT7124 24 Lines Laser Omnidirectional Barcode Scanner (Discontinued)

XT7124 24 Lines Laser Omnidirectional Barcode Scanner (Discontinued)

Place of Origin:     Guangdong, China (Mainland)

Brand Name:     XTIOT

Model Number:     XT7124

Interface:     USB,RS 232

Barcode Type:     1D barcode

Product color:     black,white, or customized colors

Light source:     650nm High intensity laser diode

Depth of Field:     0~200mm@(UPC/EAN 100%,PCS=90%)

Product Name:     Low cost laser 24 lines price barcode scanner

Scanning patterns:     all-orientation space scanning

Scan Angle:     Angle of dip 45° elevation 45°

Error rate:     less than 1/5000000

Dimensions (W x D x H):     106mm*111mm*155mm


0.00
0.00

商品描述

Place of Origin:     Guangdong, China (Mainland)

Brand Name:     XTIOT

Model Number:     XT7124

Interface:     USB,RS 232

Barcode Type:     1D barcode

Product color:     black,white, or customized colors

Light source:     650nm High intensity laser diode

Depth of Field:     0~200mm@(UPC/EAN 100%,PCS=90%)

Product Name:     Low cost laser 24 lines price barcode scanner

Scanning patterns:     all-orientation space scanning

Scan Angle:     Angle of dip 45° elevation 45°

Error rate:     less than 1/5000000

Dimensions (W x D x H):     106mm*111mm*155mm


Low cost laser 24 lines price barcode scanner

Sound

stereo speakers

 Scan Angle

Angle of dip 45°   elevation 45°

 LED indicator lightboot: full color; standby: green; decoding: red; set state: blue; edit state: purple.
Reading Code System

1D UPC-A,UPC-E,EAN-13,EAN-8,CODE39,Interleaved 2 of 5 ,industrial 2 of 5,Matrix 2 of 5,CODEBAR,CDOE128,CODE93,CODE11,MSI,China Post Code

Weight

350g

Input voltage  DC 5V ±10%
Current@5VDCOperating:265mA;standby:255mA
Operating Temperature

 0℃~+50℃

Relative humidity5%~95% (non-condensing)
Storage Temperature

-20℃~+60℃

Ambient Light 0~4,000Lux(fluorescence),0~100,000Lux(sunlight)
Electrical safety

CE EN55022 Class B,EN55024 Class B,FCC Part 15 , Class B

Laser safety

IEC 60825-1:Class 1
