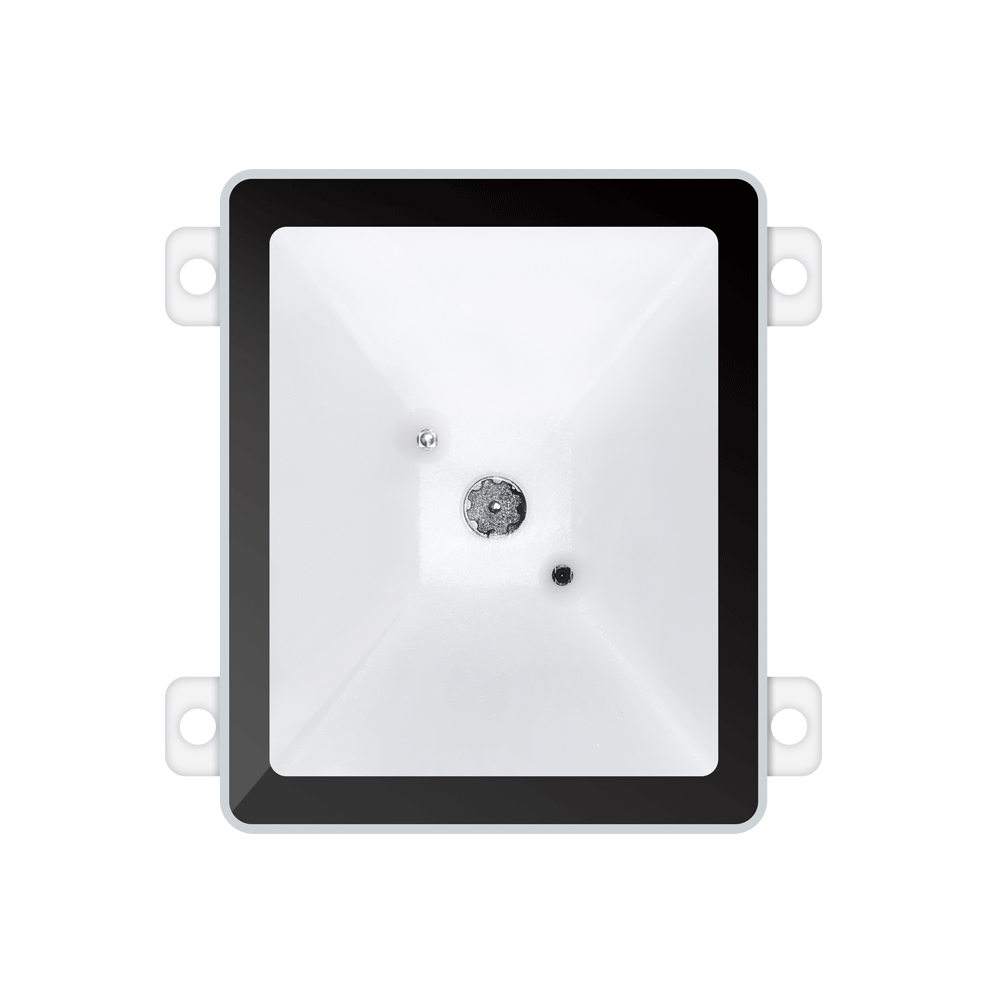

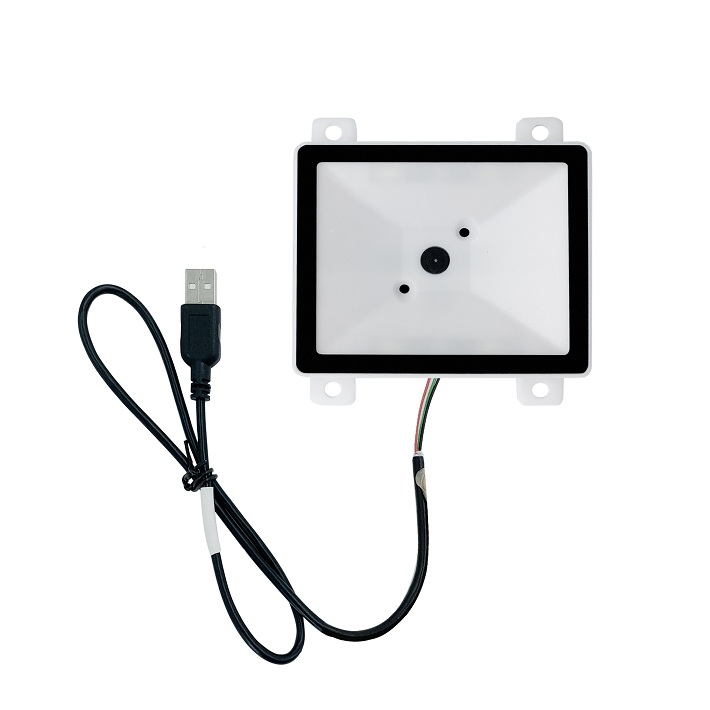

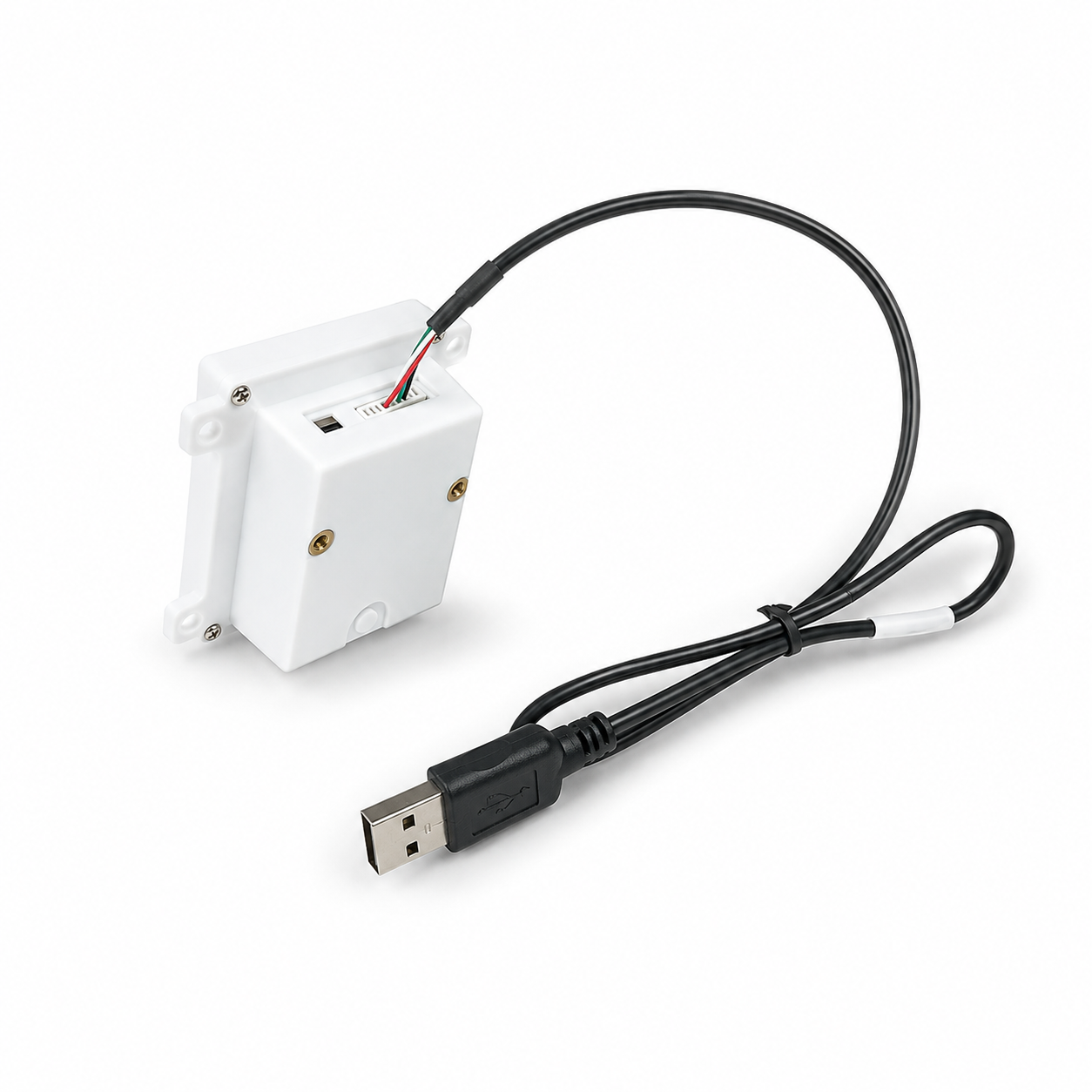

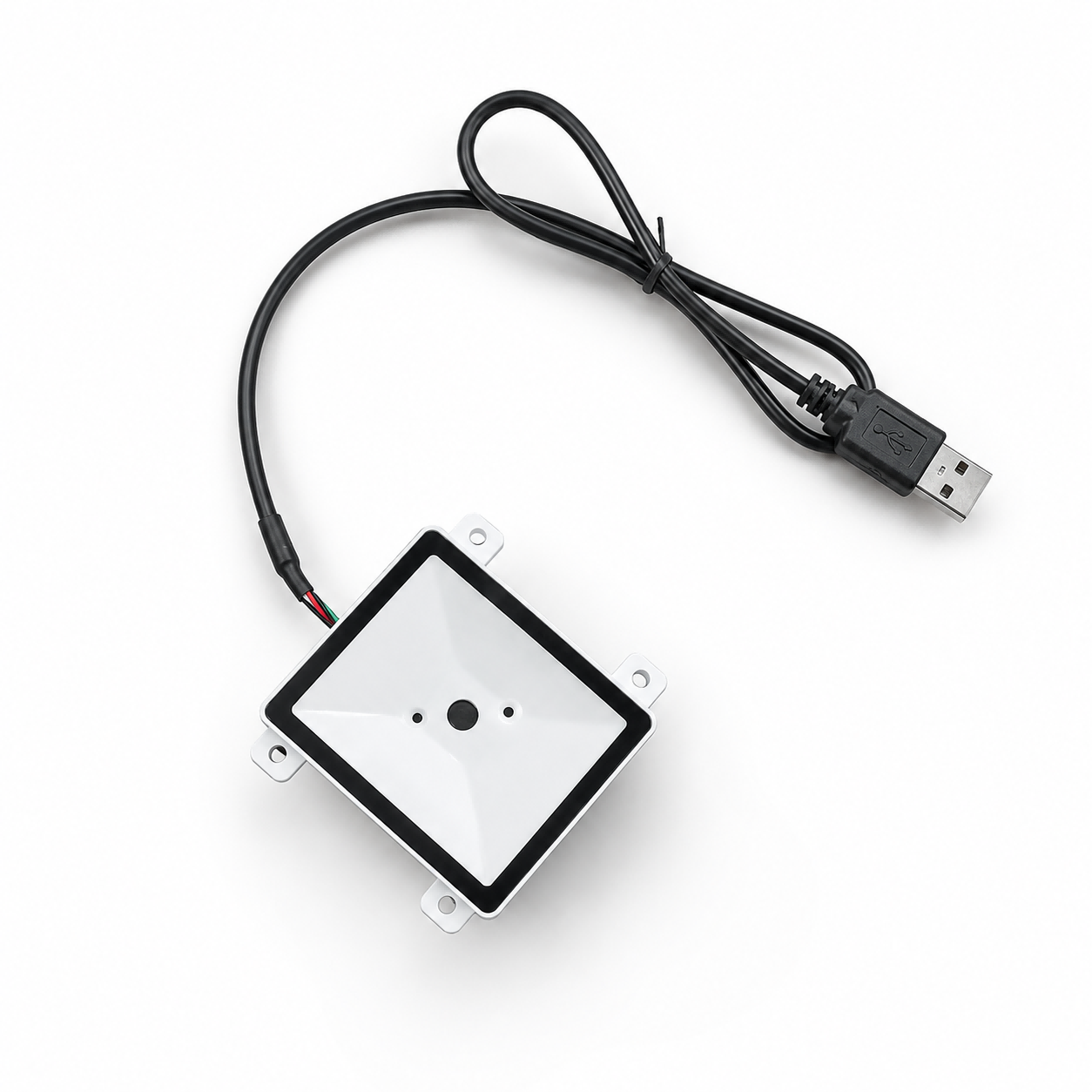

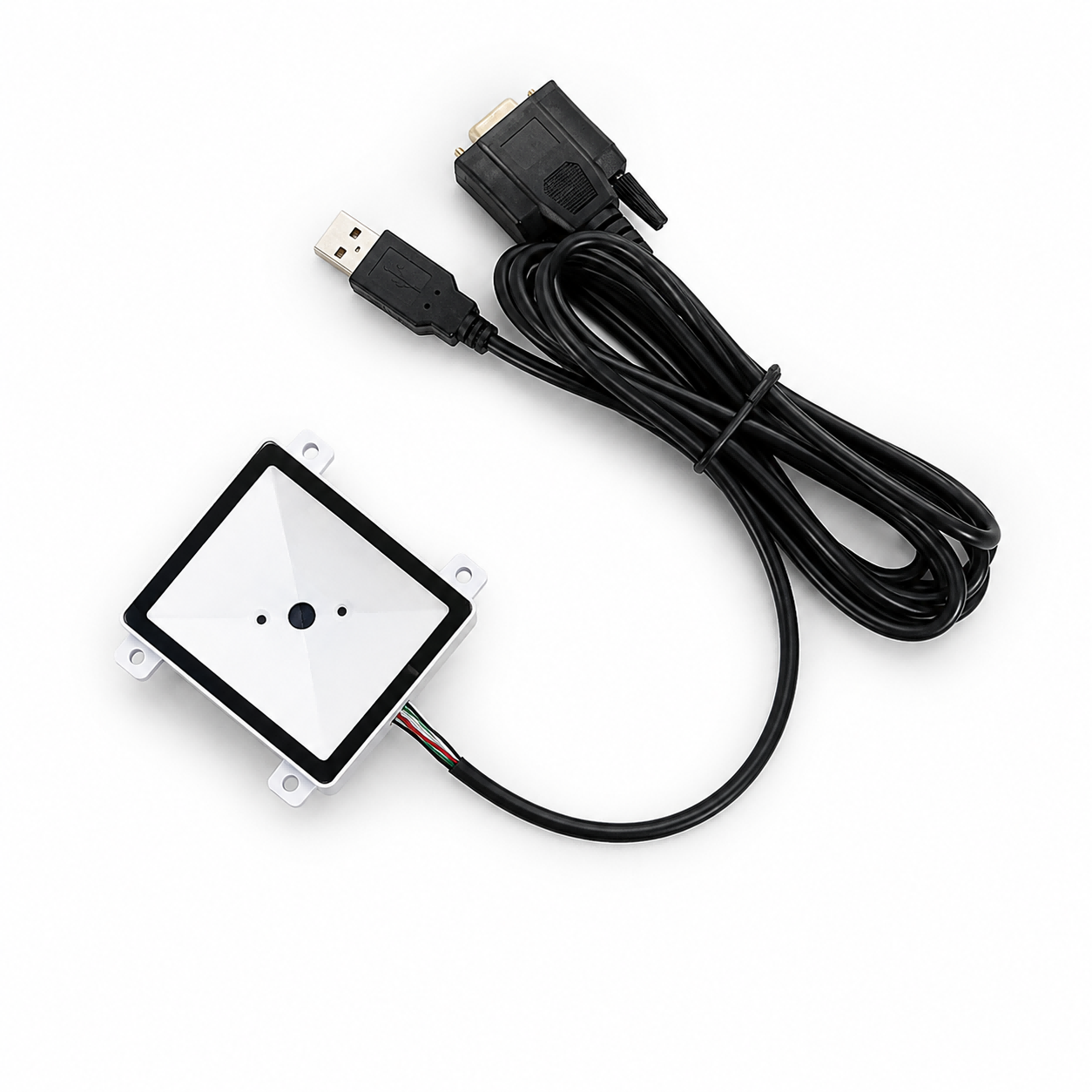

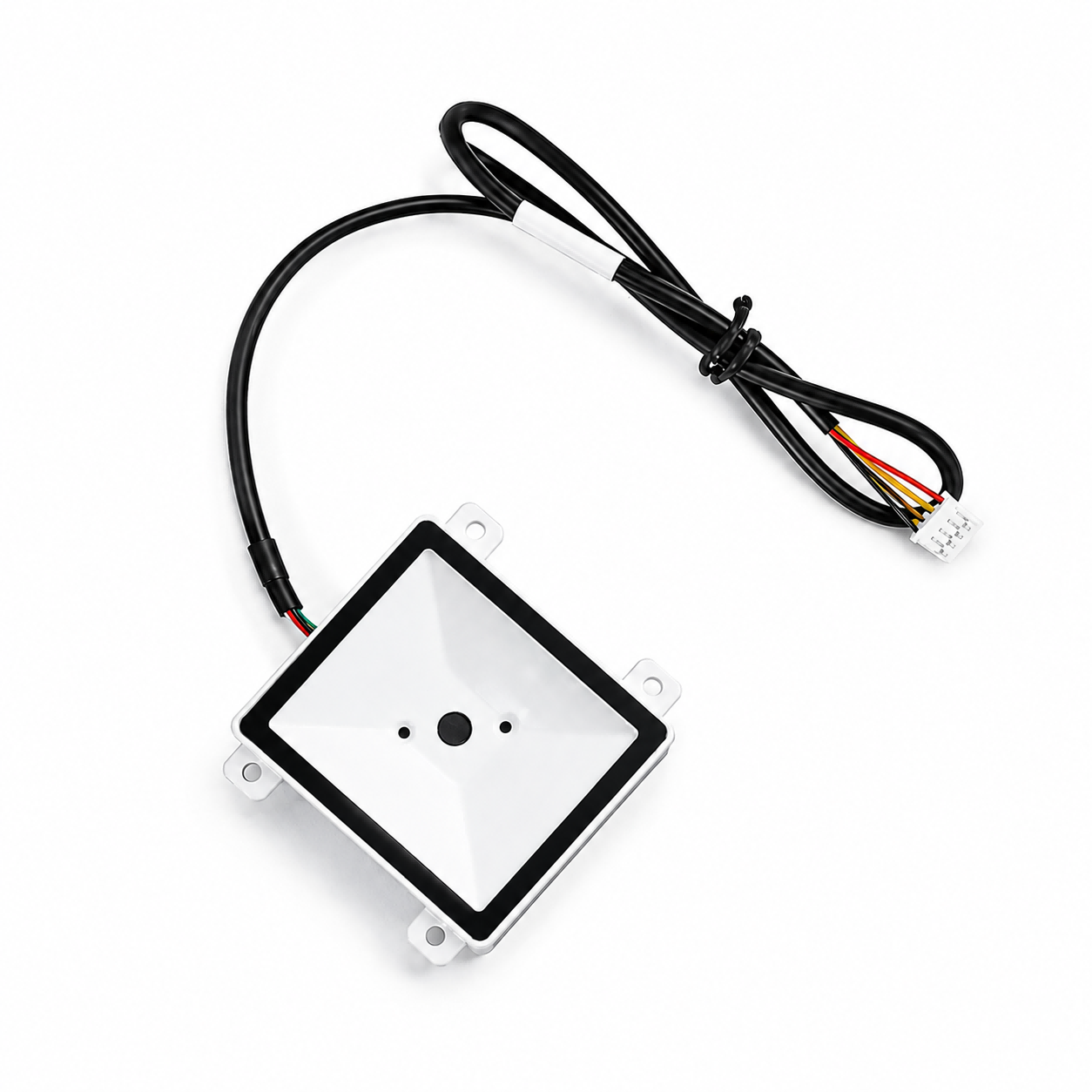

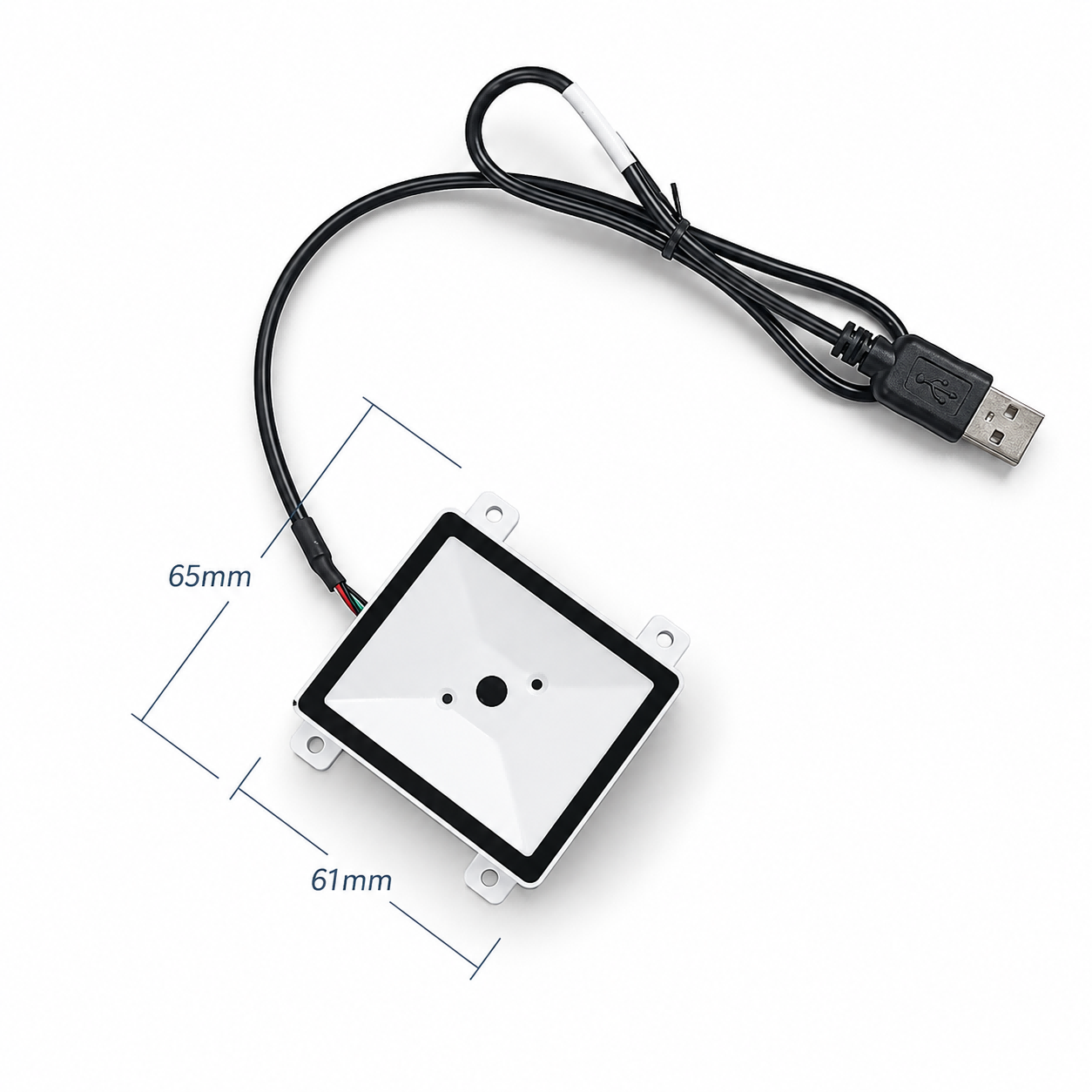

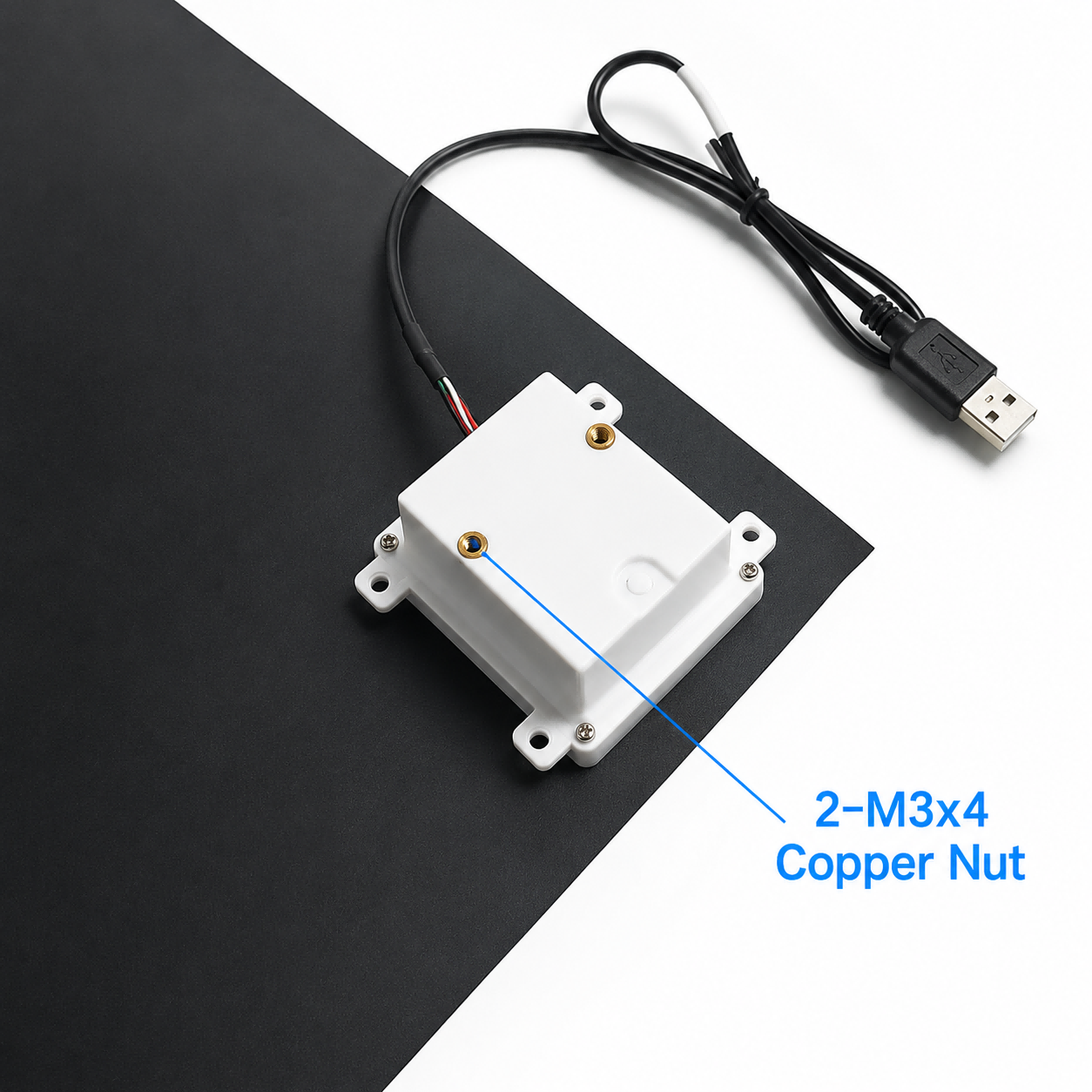

XT205M5 Fixed Mount Barcode Scanner

Fixed Mount Barcode Scanner

XT205M5 is fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control

Get in touch with us to learn more.

市场价： 0.00

价格： 0.00

商品描述

Fixed Mount Barcode Scanner

XT205M5 is fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.

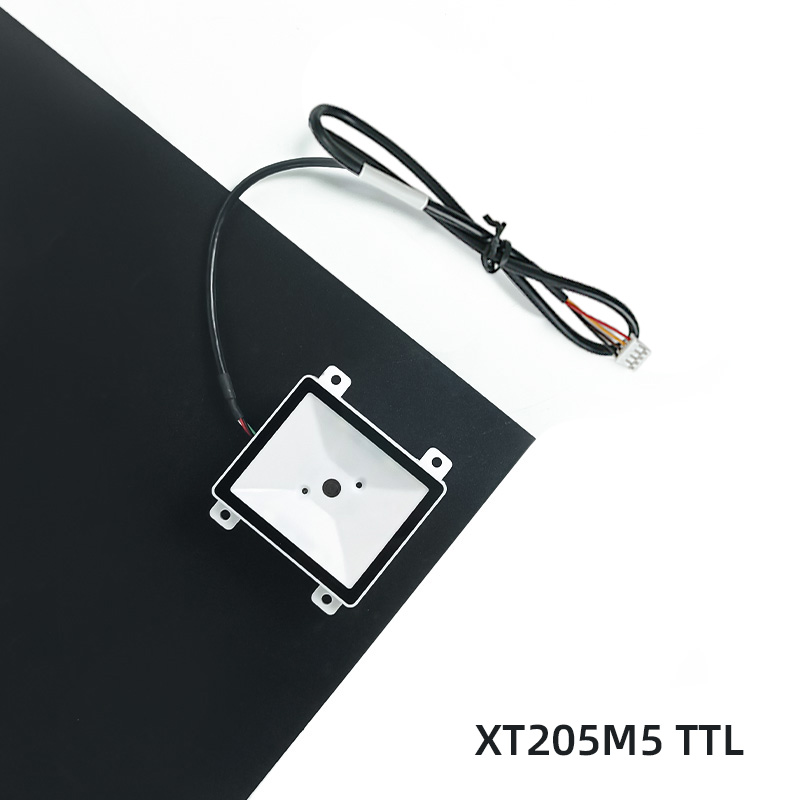

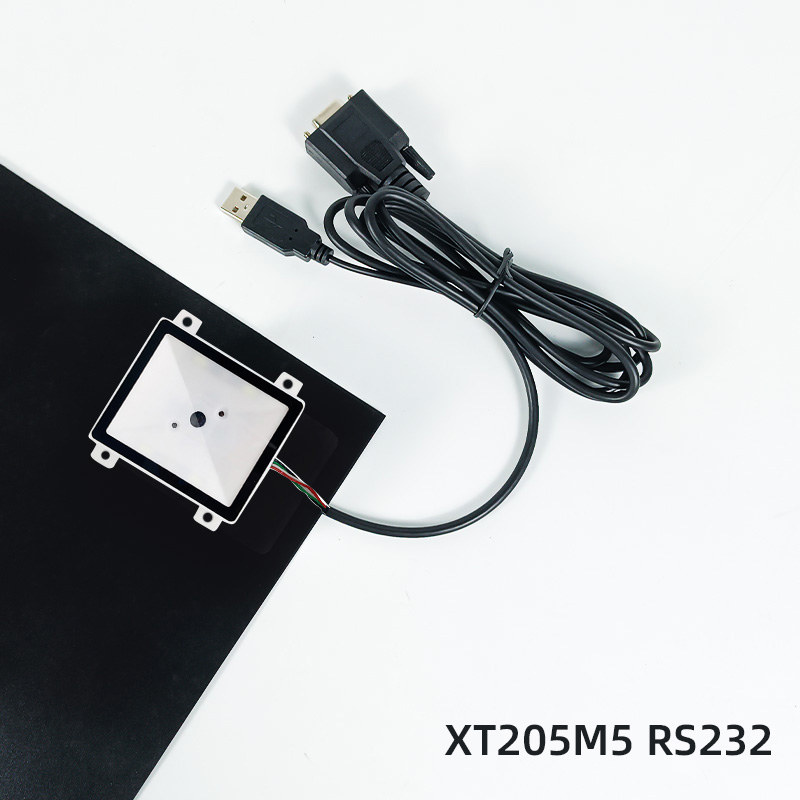

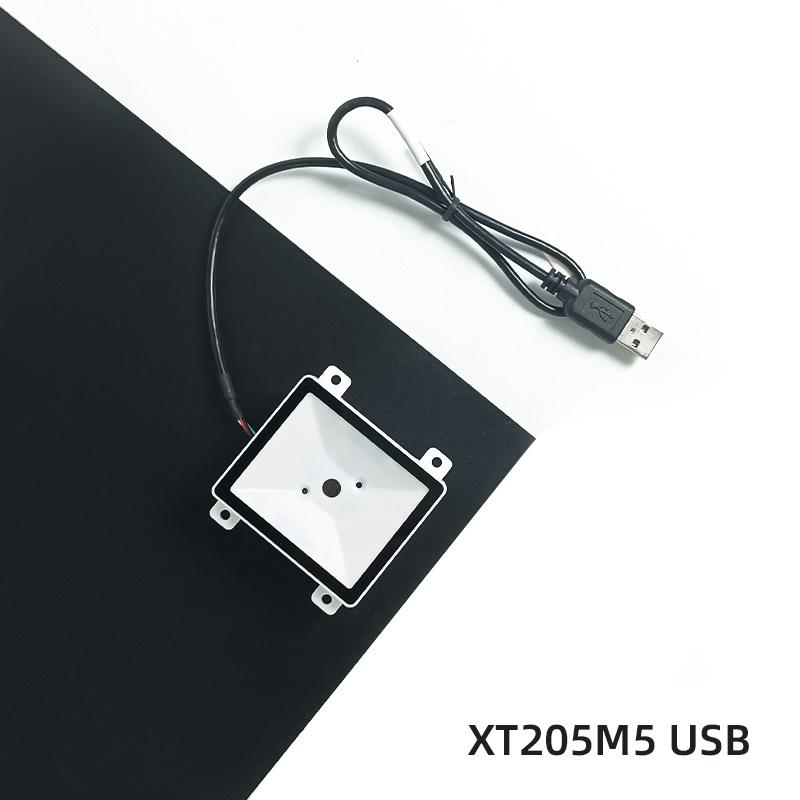

Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control

Get in touch with us to learn more.

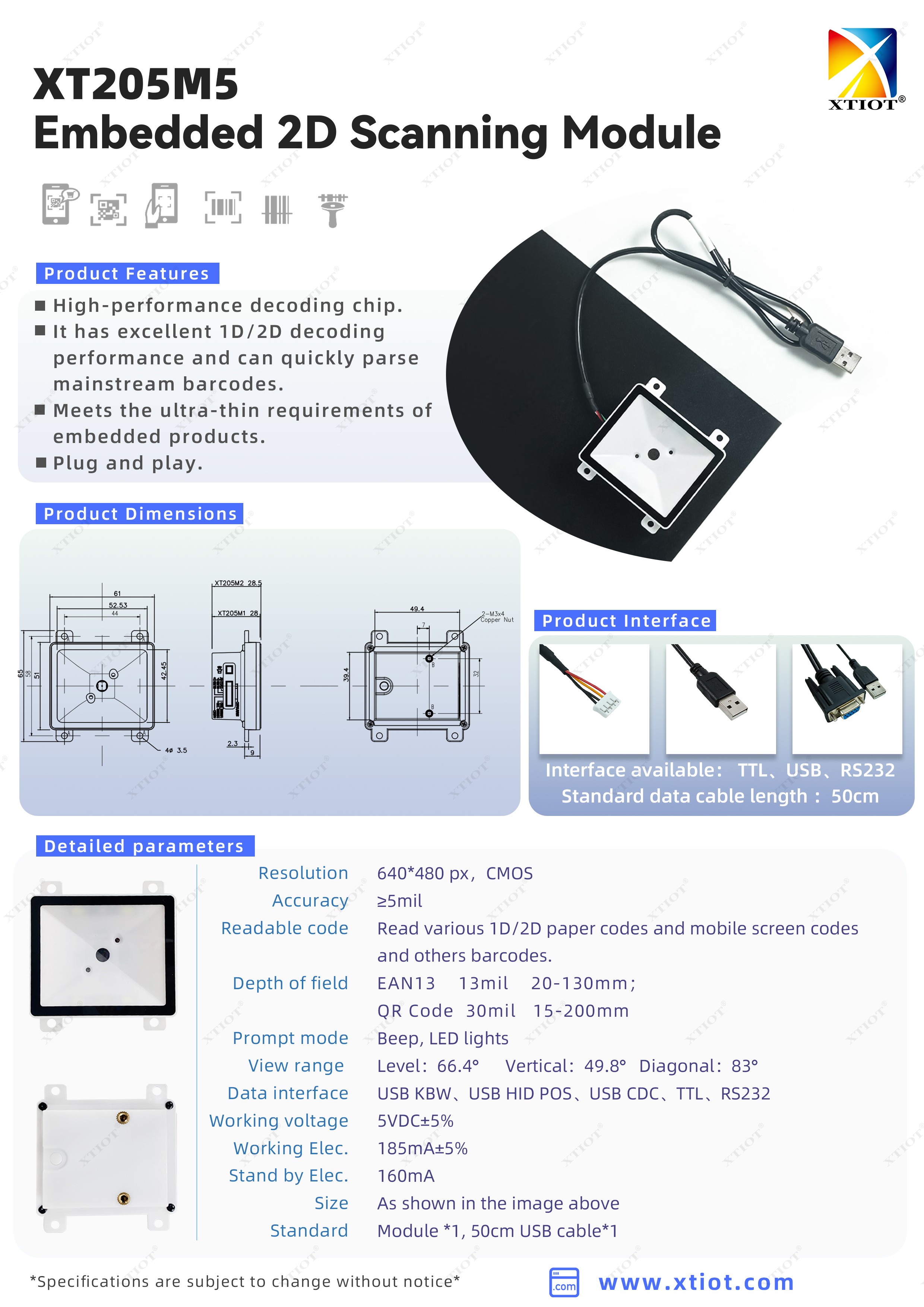

Technical Specifications

Image sensor	CMOS
DPI(W*H)	640px*480px
1D	Code128/AIM128/EAN128/NL128, UPC/EAN/ISSN/ISBN, Codabar, Code 39, Code 39,Code 93, Code 11, ITF-25/ITF-14/ITF-6/ Deutsche12/ Deutsche14, Industrial 25, Matrix 25, Japan Matrix 25/NEC 25, Standard 25, DataLogic 25, MSI-Plessey, Plessey, RSS-EXP /RSS_14/GS1 Data, Telepen
2D	AZTEC,Data Matrix, MaxiCode, PDF417, Micro PDF, QR Code, Micro QR, Hanxin code, OCR, DOTCODE
Accuracy	≥5mil
Contrast Ratio	≥20%
1D：EAN-13	(5mil) 30-60mm (13mil) 20-130mm
2D：QR Code	(15mil) 15-110mm (30mil) 15-200mm
Tilt	±65°
Rotate	360°
Deflection	±55°
Field of View Angle	Horizontal: 66.4° Vertical: 49.8° Diagonal: 83°
Data Interface	USB KBW、USB HID POS、USB CDC、TTL、RS232
Working Voltage	5VDC±5%
Working Electric Current	185mA±10%
Standby Electric Current	160mA
Working Temperature	0℃~+50℃
Storage Temperature	-20℃~+60℃
Relative Humidity	5%~95% (No condensation)

Specification PDF Download

User Manual Download
