XT6201MRZ Passport OCR QR Code Scanner

XT6201MRZ Passport OCR QR Code Scanner

Megapixel Industrial Barcode Scanner

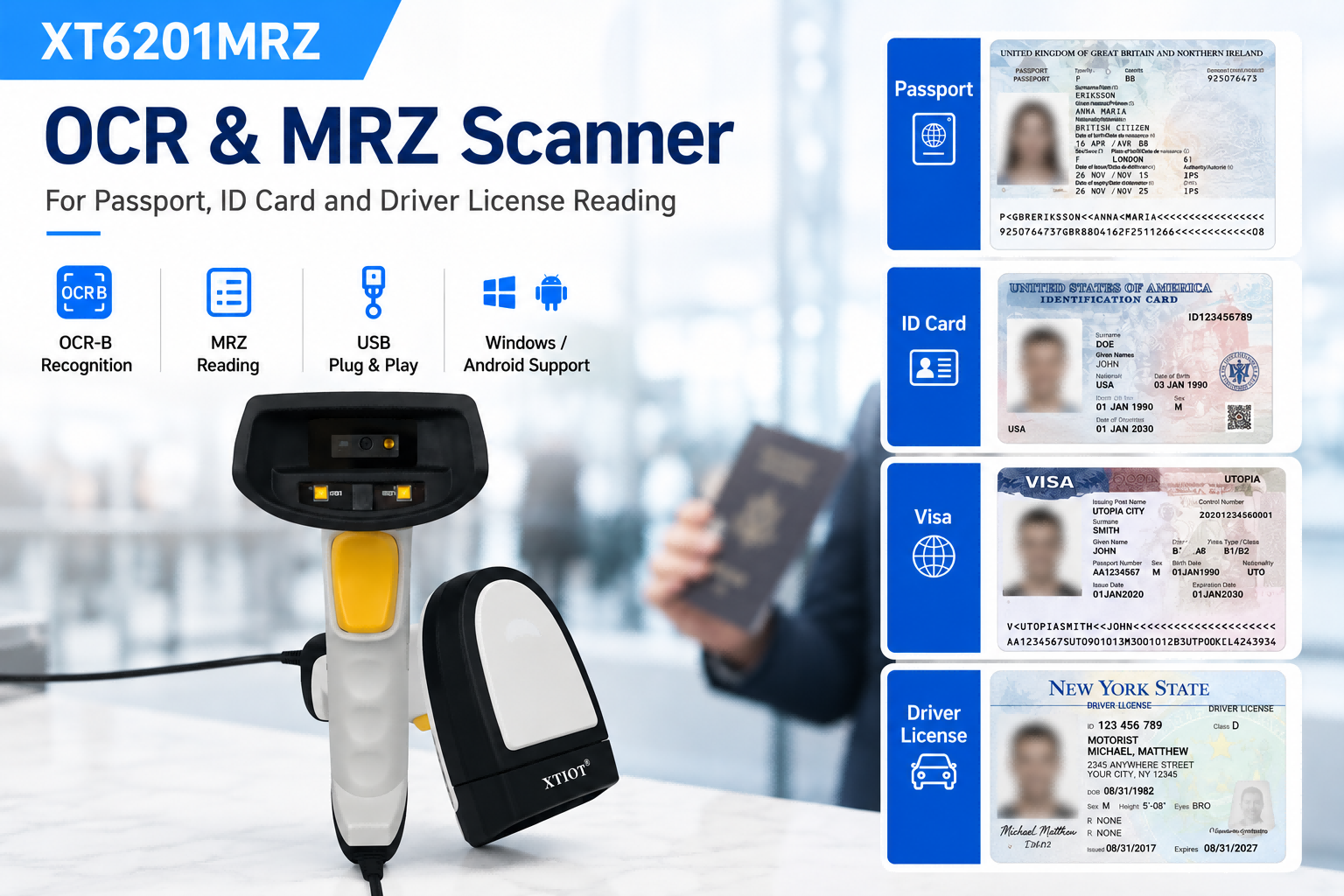

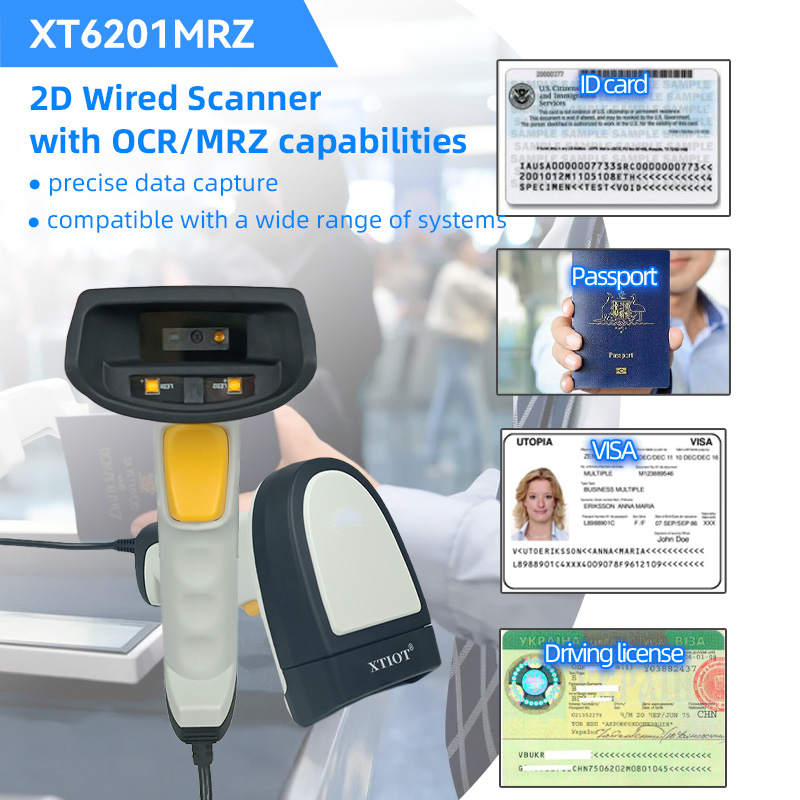

XT6201MRZ is 1280*800 megapixel 2D barcode scanner which is industrial degree, it can read passport OCR code, Datamatrix DPM code, Aztec, QR code, etc.
Suitable for airport, abroad customs, smart factory, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil
Support: serial commands control

Get in touch with us to learn more.


0.00
0.00

商品描述

Megapixel Industrial Barcode Scanner

XT6201MRZ is 1280*800 megapixel 2D barcode scanner which is industrial degree, it can read passport OCR code, Datamatrix DPM code, Aztec, QR code, etc.
Suitable for airport, abroad customs, smart factory, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil
Support: serial commands control

Get in touch with us to learn more.


Technical Specifications


Image SensorCMOS
DPI(W*H)1280px*800px
IlluminationWhite LED
Aiming Light650nm Laser
1DEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
PostalUSPS Postnet, Royal Mail, KIX Post, Australian Postal, etc.
2DPDF417, QR Code, Data Matrix, Aztec, Maxicode, OCR, etc.
Accuracy≥3mil
Lowest Contrast≥25%
1D EAN135mil   40-140mm
Code 395mil   110-250mm
2D QR Code15mil  70-280mm
Data Matrix10mil  100-250mm
Tilt±50°
Rotate360°
Deflection±50°
Field of View Angle

Horizonal: 40.5°

Vertical: 30.4°

Motion Tolerance2m/s
Prompt ModeBEEP, LED
Read ModeLevel trigger mode, Induction mode, Continuous reading mode, Batch reading mode
Data EditingSupport
Data InterfaceUSB KBW, USB CDC, USB HID POS, RS232, TTL232
Working Voltage5V±3%
Working Electric Current266mA
Standby Electric Current109mA
Working Temperature-20℃ ~ +60℃
Storage Temperature-40℃ ~ +70℃
Relative Humidity5% ~ 95%(RH)
