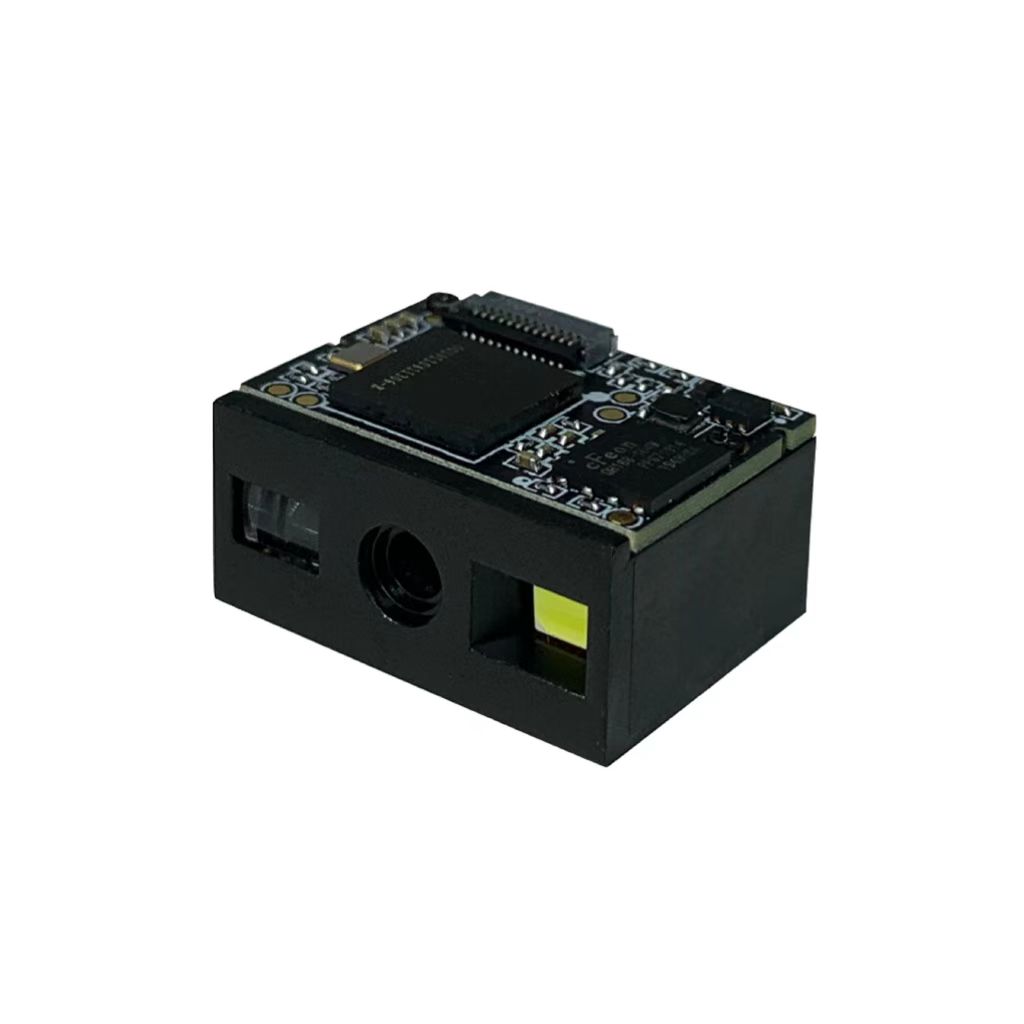

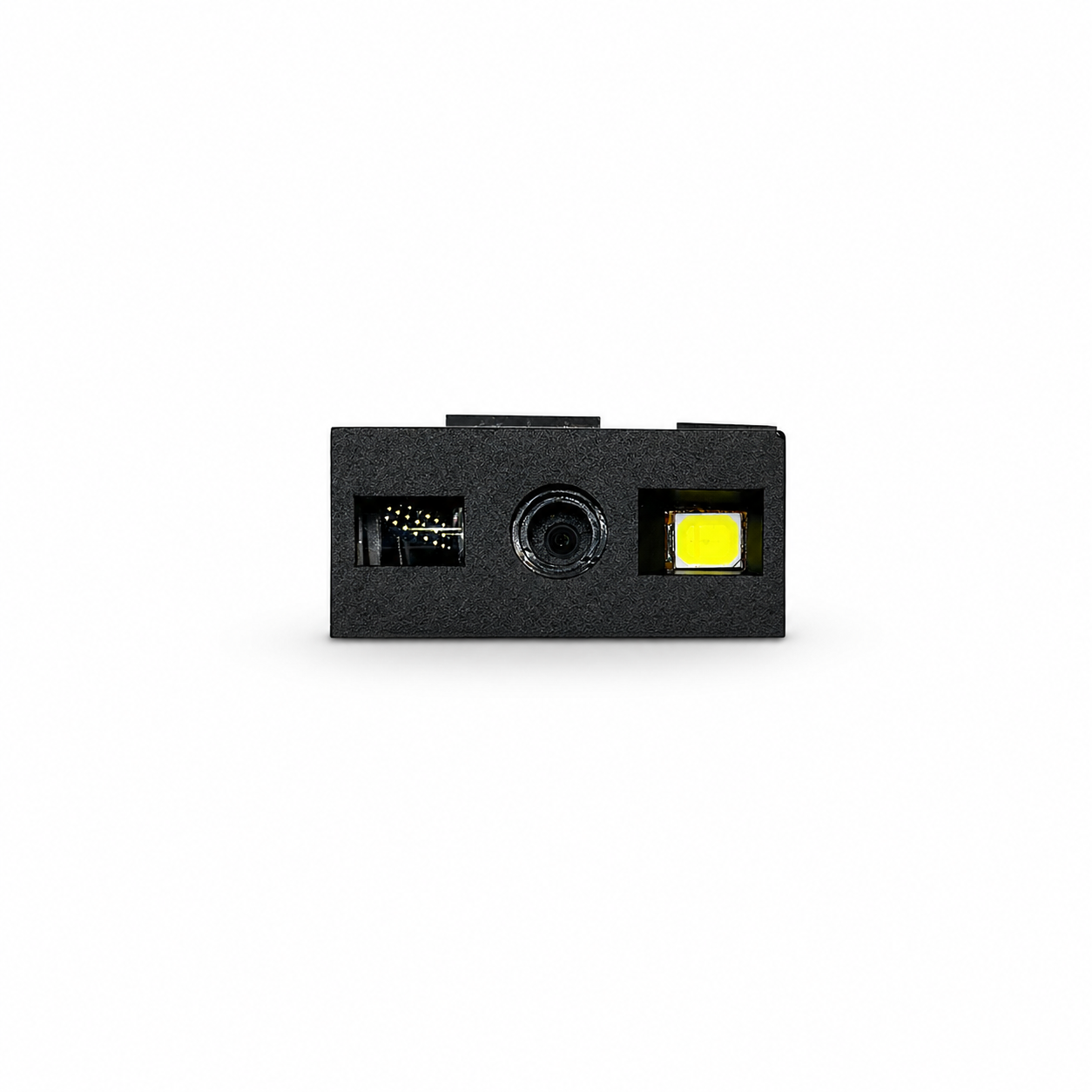

XT736M 3.3V
OEM Barcode Scanner Module
XT736M is 1280*800 megapixel OEM barcode scanner module fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil
Support: serial commands control
Get in touch with us to learn more.
OEM Barcode Scanner Module
XT736M is 1280*800 megapixel OEM barcode scanner module fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil
Support: serial commands control
Get in touch with us to learn more.
Technical Specifications
| Image Sensor | CMOS |
| DPI(W*H) | 1280px * 800px |
| Floodlight | White LED |

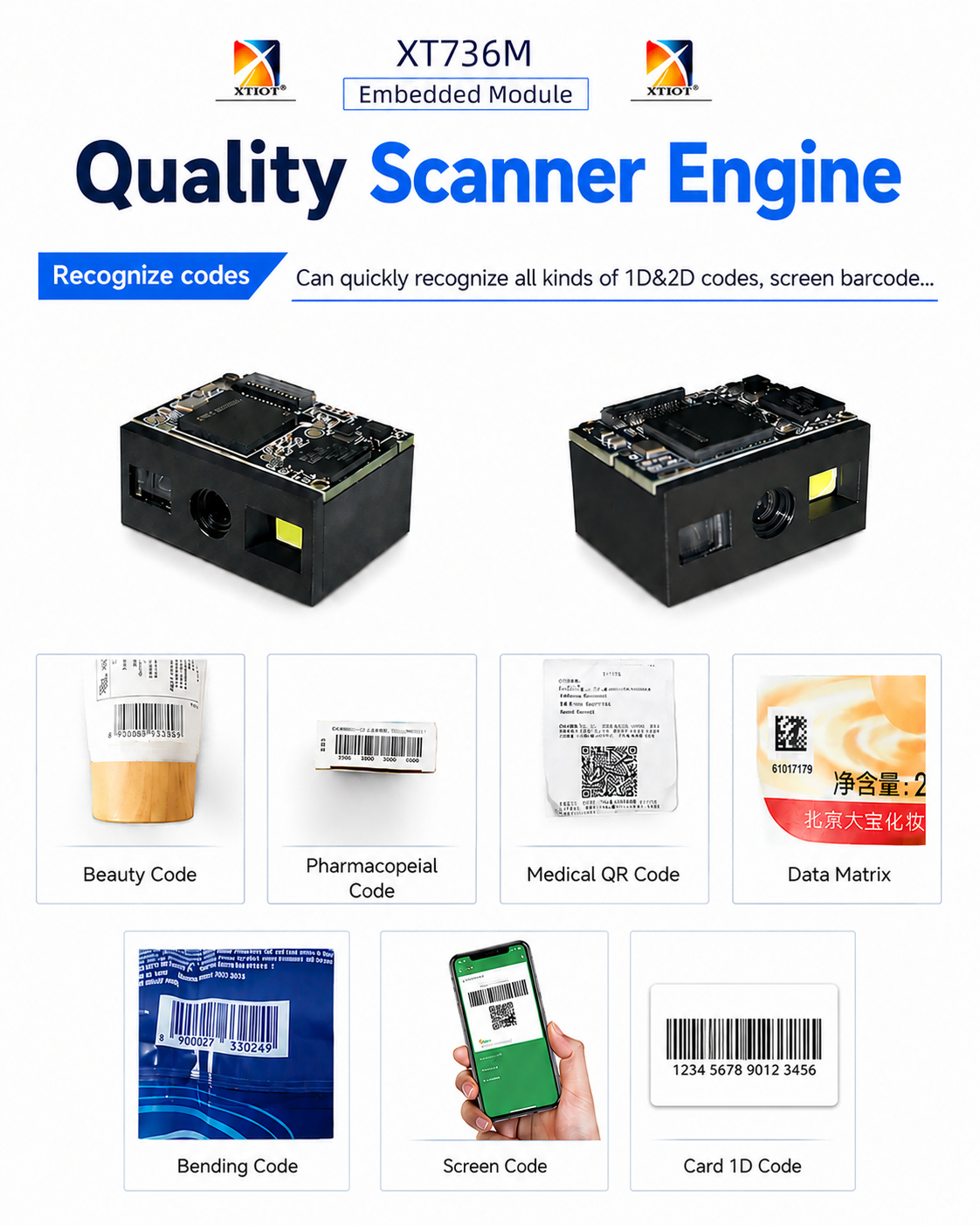

| 1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc |
| 2D | QR, MicroQR, PDF417, MicroPDF, DataMatrix, Aztex, Maxicode, hanxin, etc. |
| Accuracy | ≥5 mil |
| Contrast Ratio | ≥30% |
| Tilt | ±50° |
| Rotation | 360° |
| Deflection | ±50° |
| Field of View Angle | Horizontal: 56.7° Vertical: 42.5° Diagonal: 70.8° |

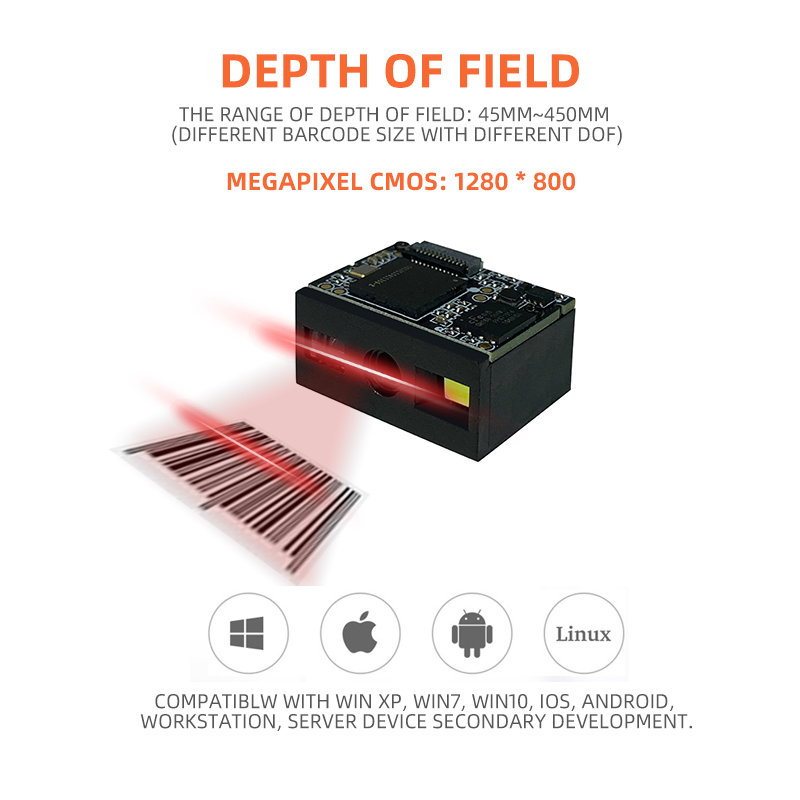

| Depth of Field | 1D (EAN 13) 5mil 65-140mm 13mil 45-320mm 2D (QR Code 10bit) 15mil(9*9mm） 55-240mm 30mil(16*16mm) 60-450mm |

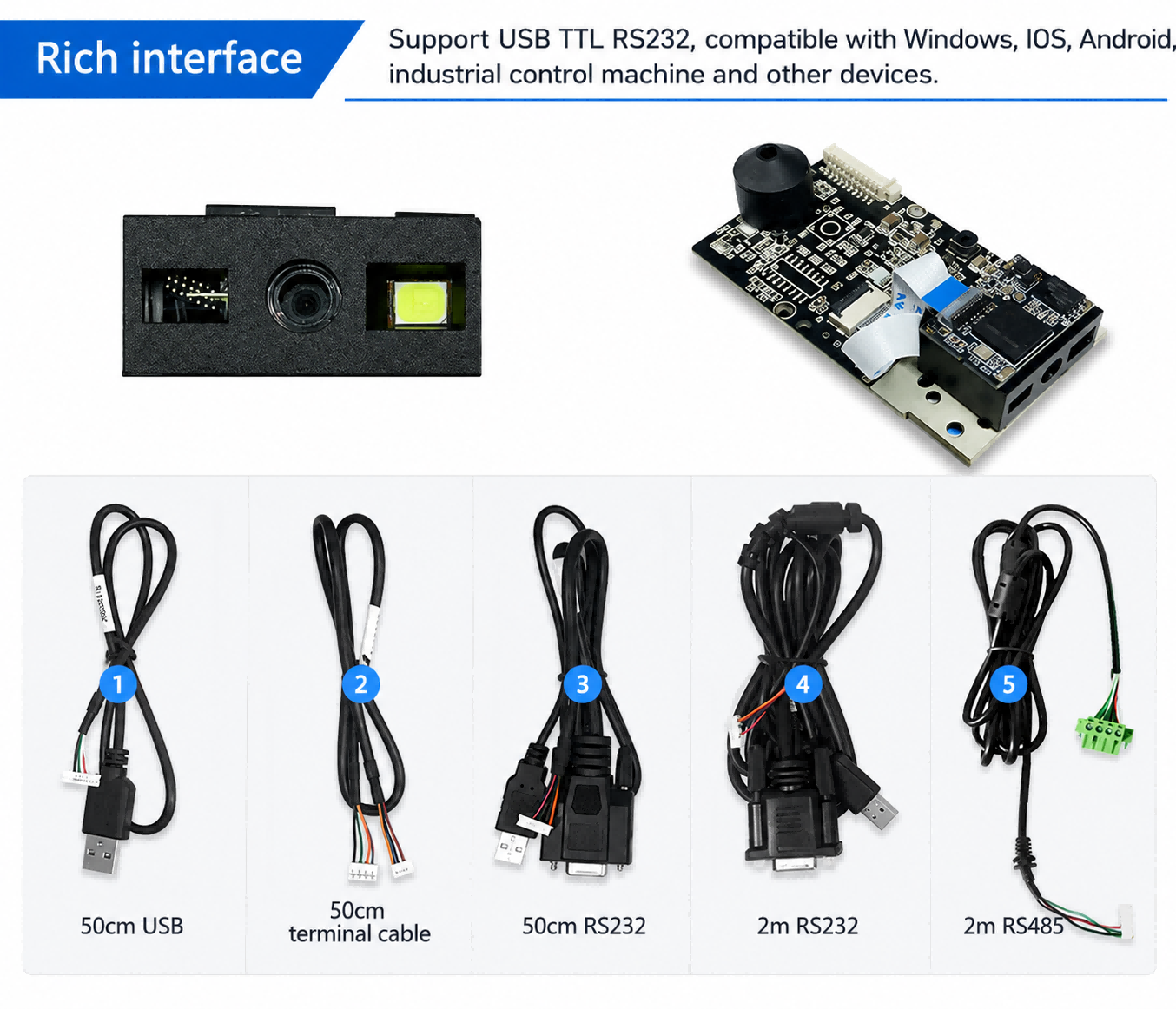

| Data Interface | USB KBW, USB CDC, USB HID POS, TTL 232 |
| Working Voltage | 3.3VDC±10% |
| Working Current | 280mA (Typical) |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -40℃ ~ +60℃ |
| Relative Humidity | 5% ~ 95% (RH) |
| Ambient Lighting | 0~100,000Lux |
| Communication Port | USB, TTL |

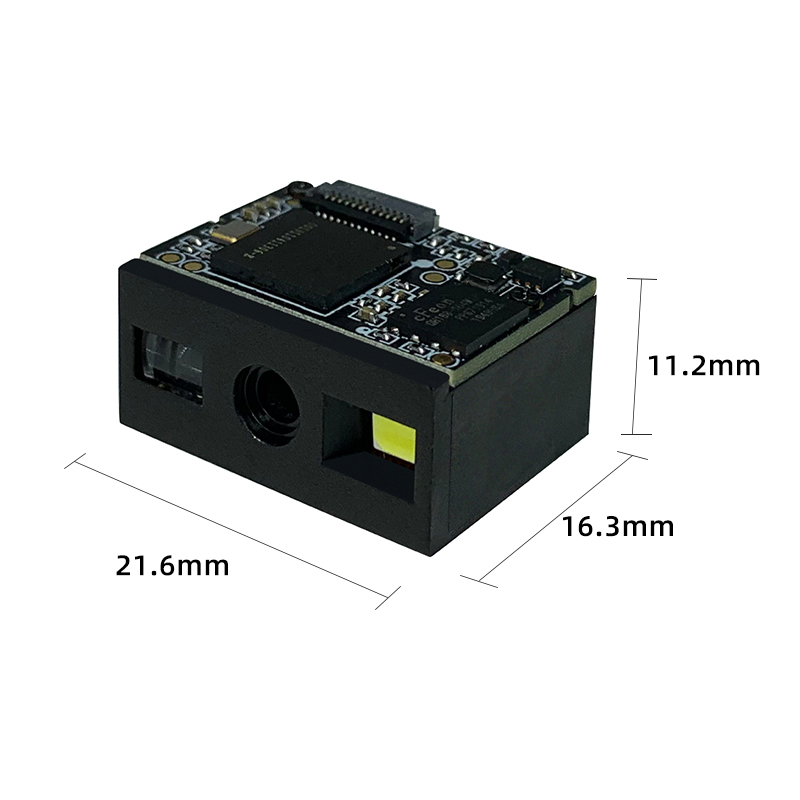

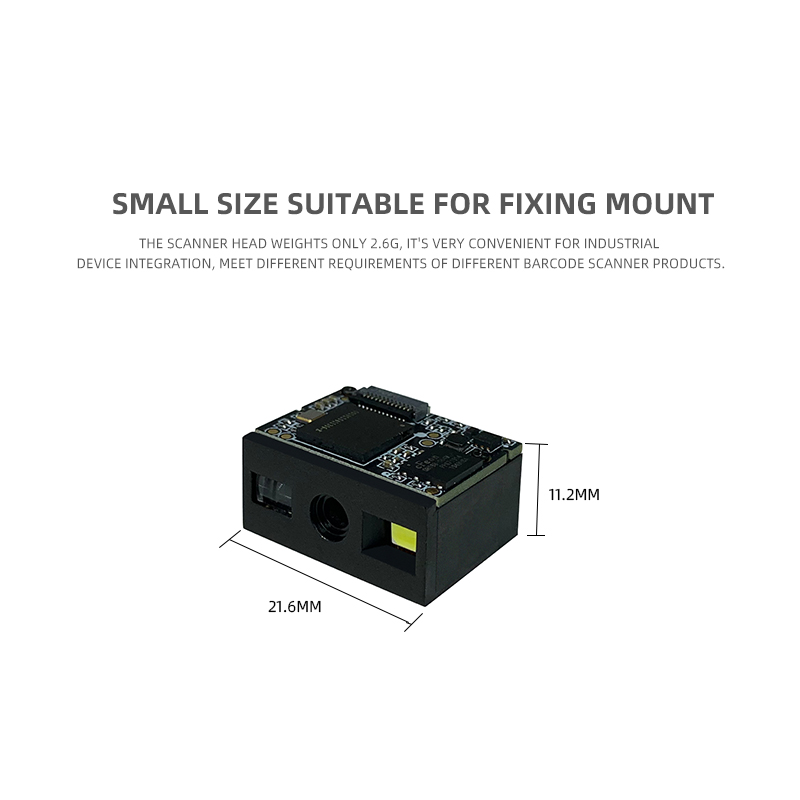

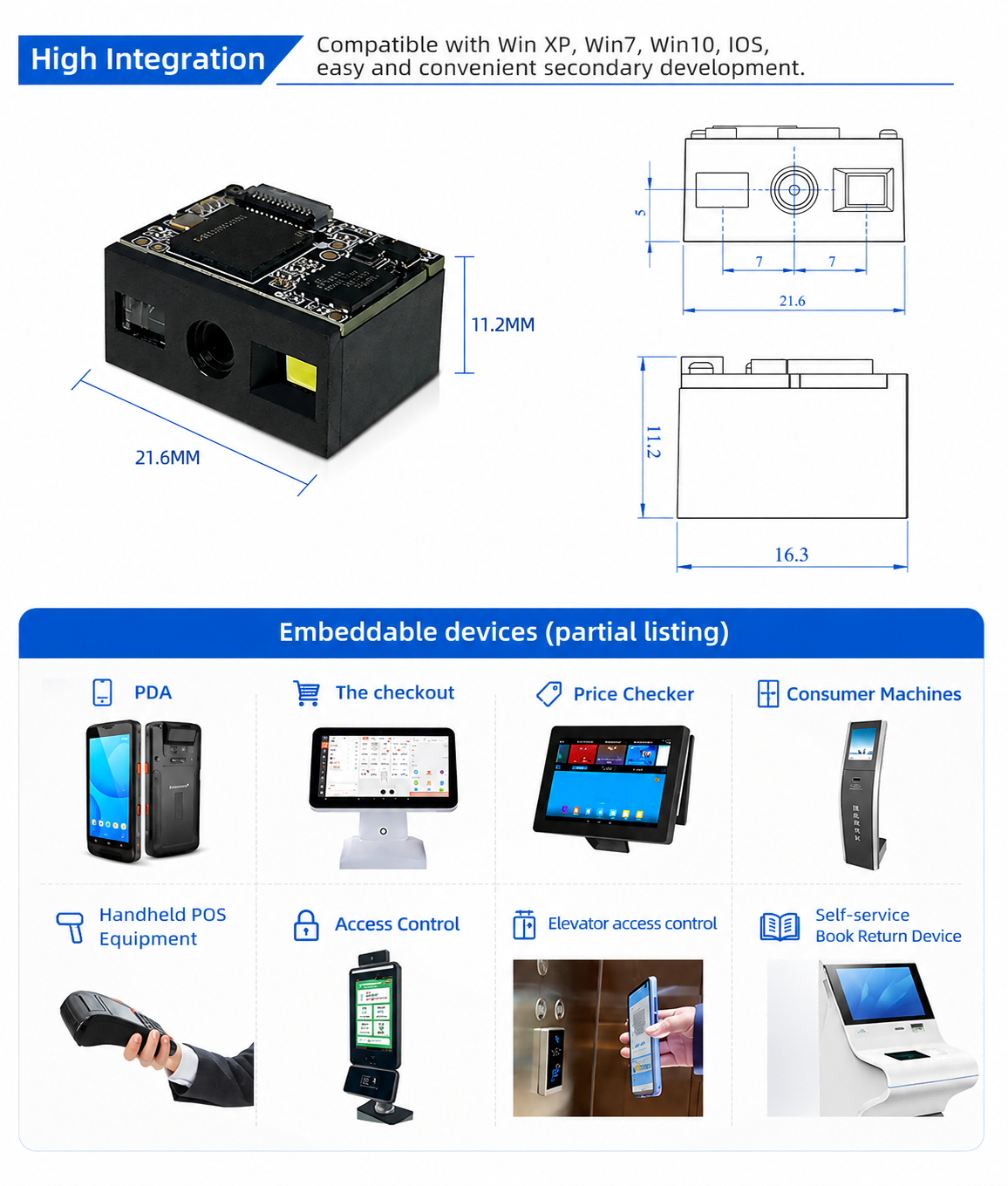

| Product Size | 21.6*16.3*11.2 mm |
