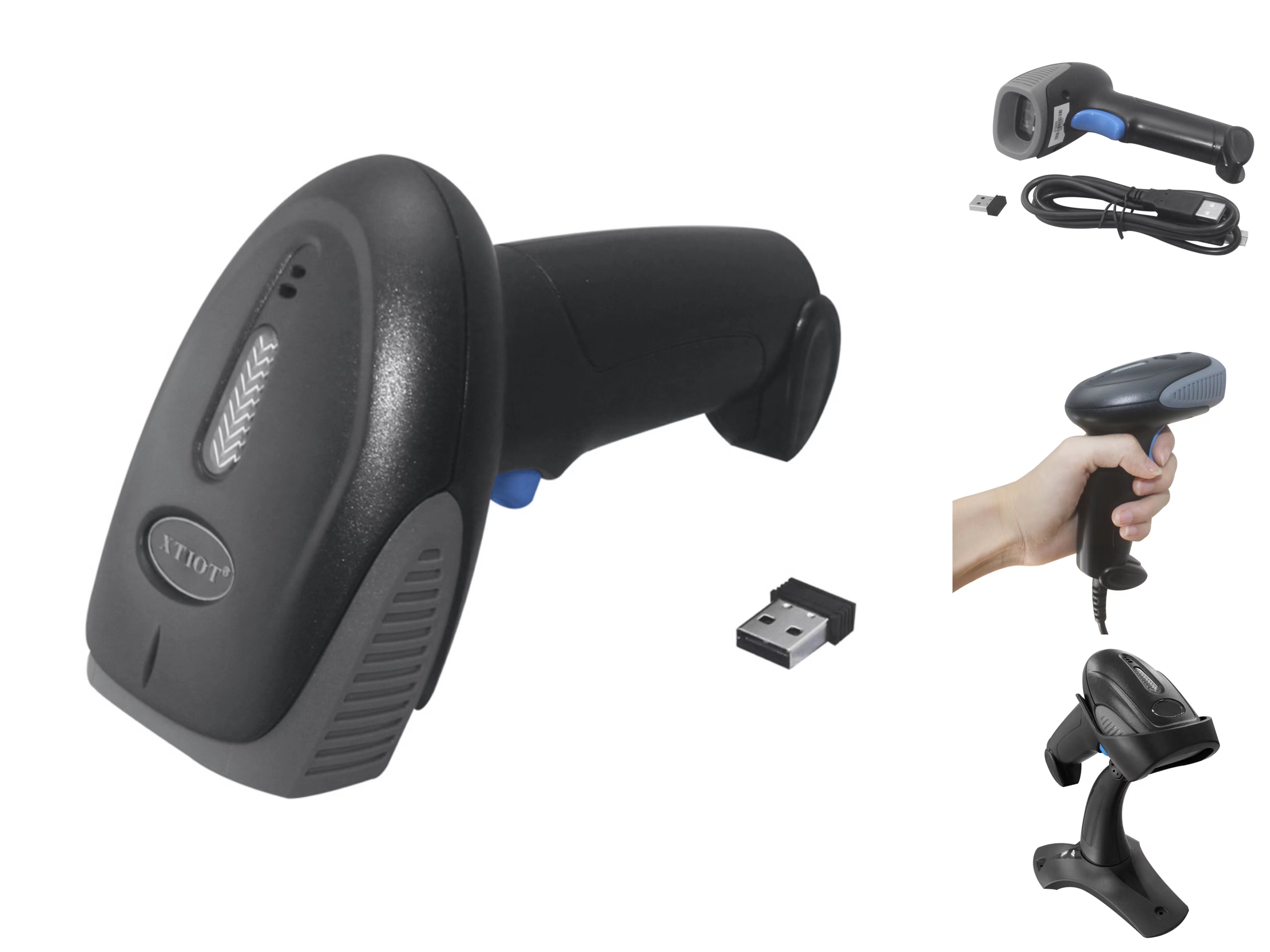

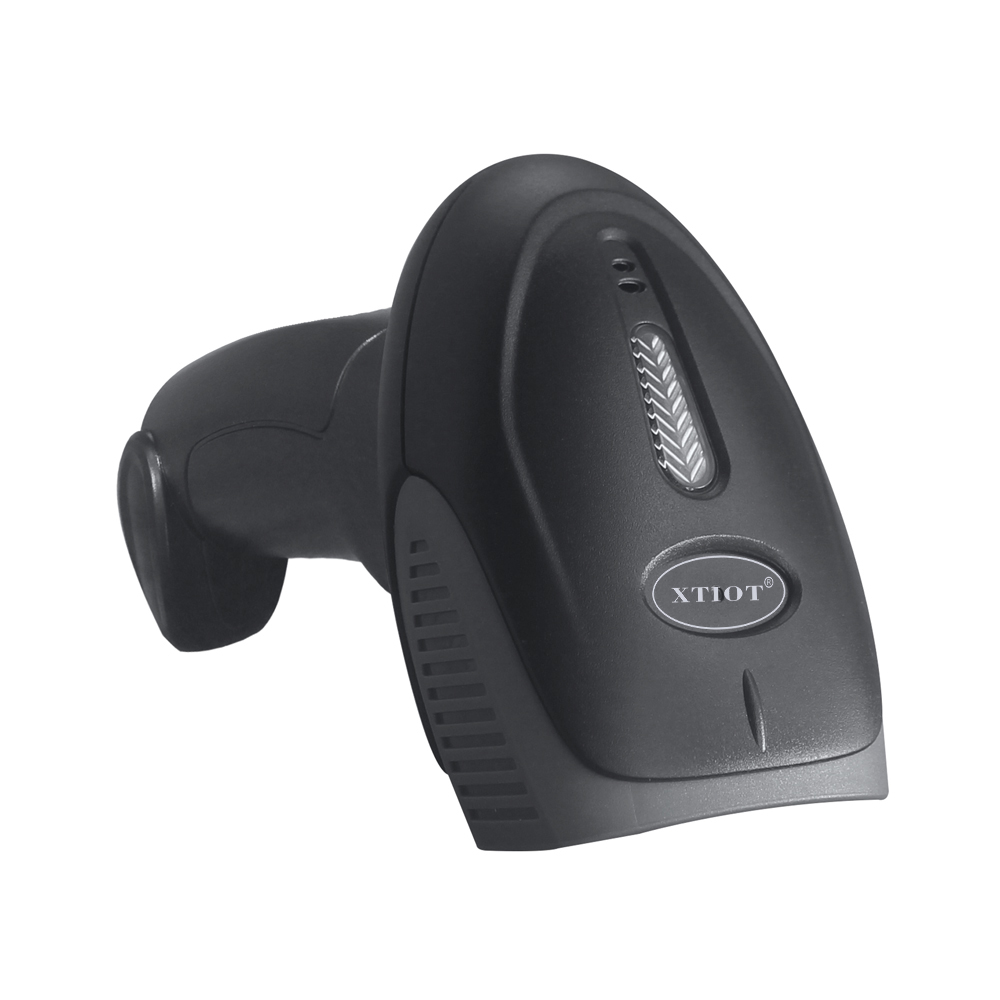

XT6400C
Bluetooth Wireless Barcode Scanner
XT6400C is bluetooth wireless 2D barcode scanner which can read passport MRZ code and ID card MRZ code.
It can work with tablet PC, phone, computer, laptop, etc.
Communication: Bluetooth HID, Bluetooth SPP, Bluetooth BLE, 2.4G, USB-HID, USB-CDC
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 rolling shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Get in touch with us to learn more.
Bluetooth Wireless Barcode Scanner
XT6400C is bluetooth wireless 2D barcode scanner which can read passport MRZ code and ID card MRZ code.
It can work with tablet PC, phone, computer, laptop, etc.
Communication: Bluetooth HID, Bluetooth SPP, Bluetooth BLE, 2.4G, USB-HID, USB-CDC
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 rolling shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Get in touch with us to learn more.
Three methods of data transmission switch freely
The scanner can work in three modes: ① 2.4G USB Wireless mode, ② Bluetooth mode, ③ wire mode, ④ RS232 mode
① 2.4G USB Wireless mode: Simply connect the stand to your PC or other devices (keep the dongle connected to the stand), then the read data will output directly in the device, it’s plug and play.
② Bluetooth mode: we can pair the scanner with any Bluetooth terminals.
③ Wire mode: any time, if we connect the USB cable with the scanner directly, then the scanner comes to a common wire scanner, and the cable will also automatically charges for the scanner simultaneously.
④ RS232 mode: Same with 2.4G USB wireless mode
Technical Specifications
| Image Sensor | CMOS |
| DPI(W*H) | 1280px*800px |
| Floodlight | White LED |
| Focusing lamp | 625nm Red LED |
| 1D | EAN-8, EAN-13, UPC-E, UPC-A,ISBN, ISSN, Code128, UCC/EAN-128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, MSI-Plessey, GS1-DataBar |
| 2D | PDF417, Data Matrix, QR, Micro QR |
| Accuracy | ≥5mil |
| Lowest Contrast | ≥25% |
| 1D EAN13 | 5mil 30-100mm 13mil 50-220mm |
| 2D QR Code | 15mil 30-100mm 30mil 50-200mm |
| Field of View Angle | Horizontal: 45° Vertical: 31° Diagonal: 52° |
| Prompt Mode | 1: BEEP 2: LED indicator red, green and blue. Charging: RGB; Pairing: flicker; Successful connection: the blue light is always on; Decoded successfully: green |
| Reading Mode | Manual trigger, induction mode, continuous mode, storage inventory mode |
| Data Editing | Support |
| Communication | Wireless:2.4G Bluetooth: Bluetooth HID / Bluetooth SPP /Bluetooth BLE |
| Transmission Distance | In open space: wireless 2.4g 100m, Bluetooth 50m |
| Storage Capacity | ≥130000pieces (EAN13) |
| Working voltage | 5V±3% |
| Working | <200mA |
| Standby | 54mA |
| Working Temperature | -20℃ ~ +60℃ |
| Full Charge | >80000 times (continuous mode) |
| Normal Working Hours | >8h |
| Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95%(RH) |
