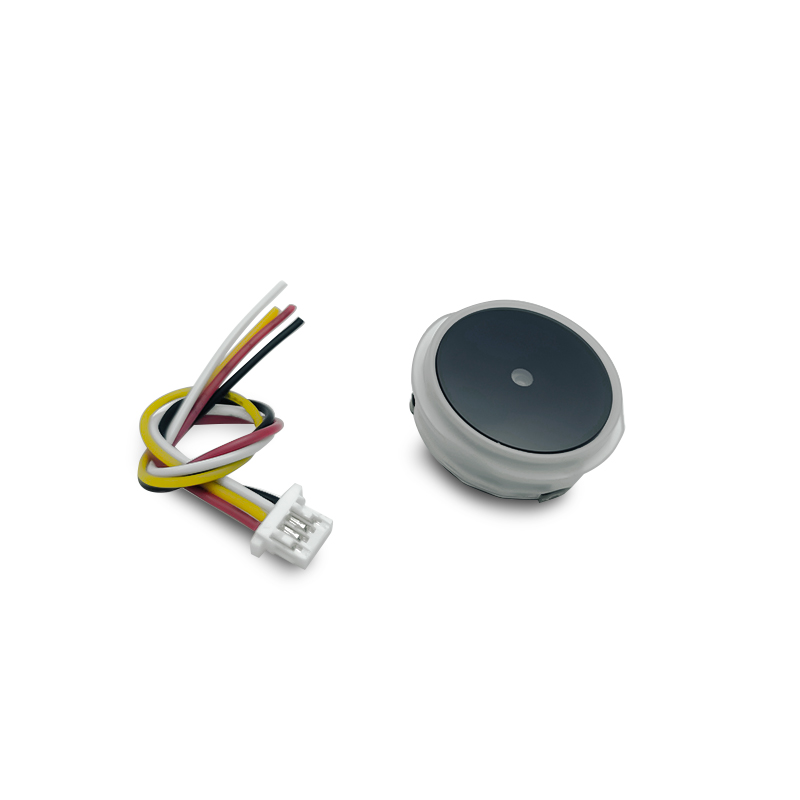

XT207M Round Barcode Engine

QR Code Round Barcode Engine

XT207M is barcode scanner engine which suitable for KIOSK, access control lock, wash machine, POS device, etc.
Communication: 3.3V TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Barcode Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control

Get in touch with us to learn more.



0.00
0.00

商品描述

QR Code Round Barcode Engine

XT207M is barcode scanner engine which suitable for KIOSK, access control lock, wash machine, POS device, etc.
Communication: 3.3V TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Barcode Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control

Get in touch with us to learn more.




Technical Specifications



Image SensorCMOS
DPI(W*H)640px*480px
1D

EAN13,UPC,Code 39,Code 93,Code 128,UCC/EAN 128

2D

QR Code, Data Matrix, PDF417

Accuracy≥5mil
Contrast Ratio≥25%
1D: EAN-13

(5mil)     30-60mm

(13mil)   20-130mm

2D: QR Code

(15mil)   15-110mm

(30mil)   15-200mm

Tilt±65°
Rotate360°
Deflection±55°
Field of View Angle

Horizontal: 69°

Vertical: 56°

Diagonal: 88.8°

Data InterfaceTTL
Working Voltage3.3V
Electric Current Work＜100mA
Stand by-
Working Temperature-20℃~+60℃
Storage Temperature-40℃~+80℃
Relative Humidity5%~95% (No condensation)

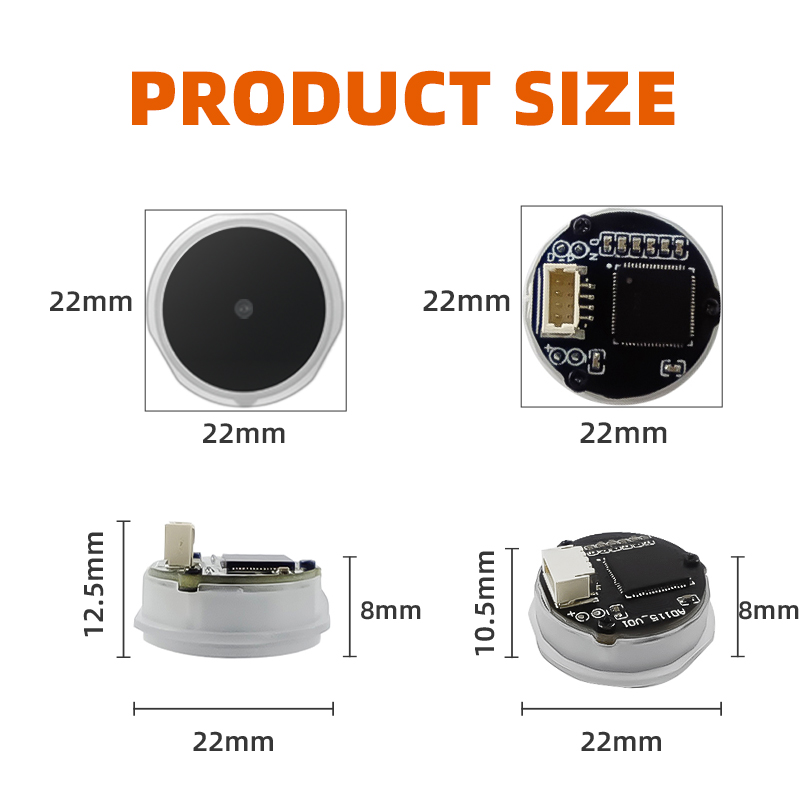

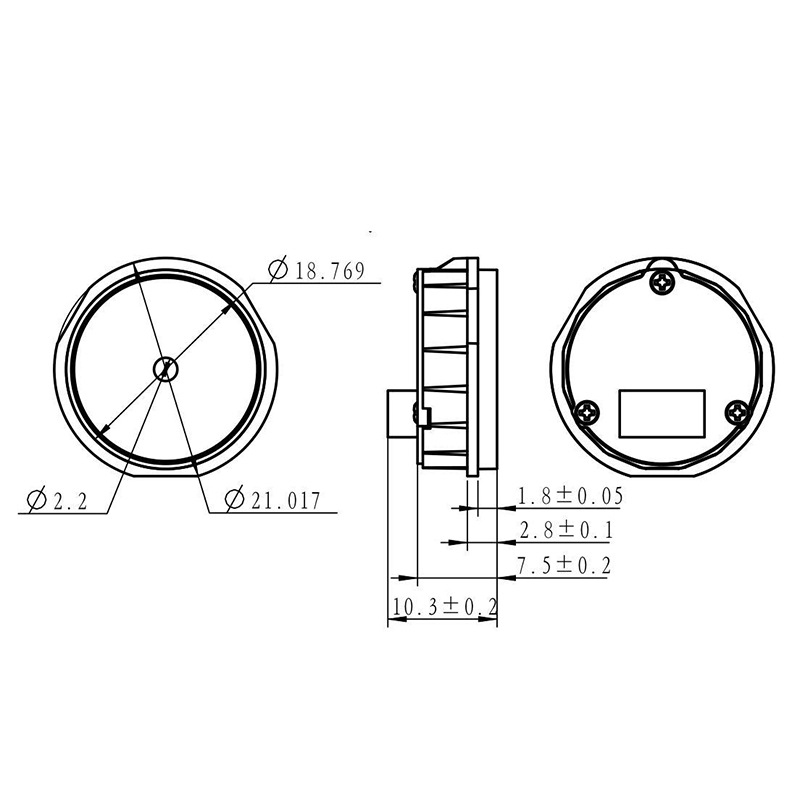

Product Size

21(L) * 21(W) * 10.3(H)mm
