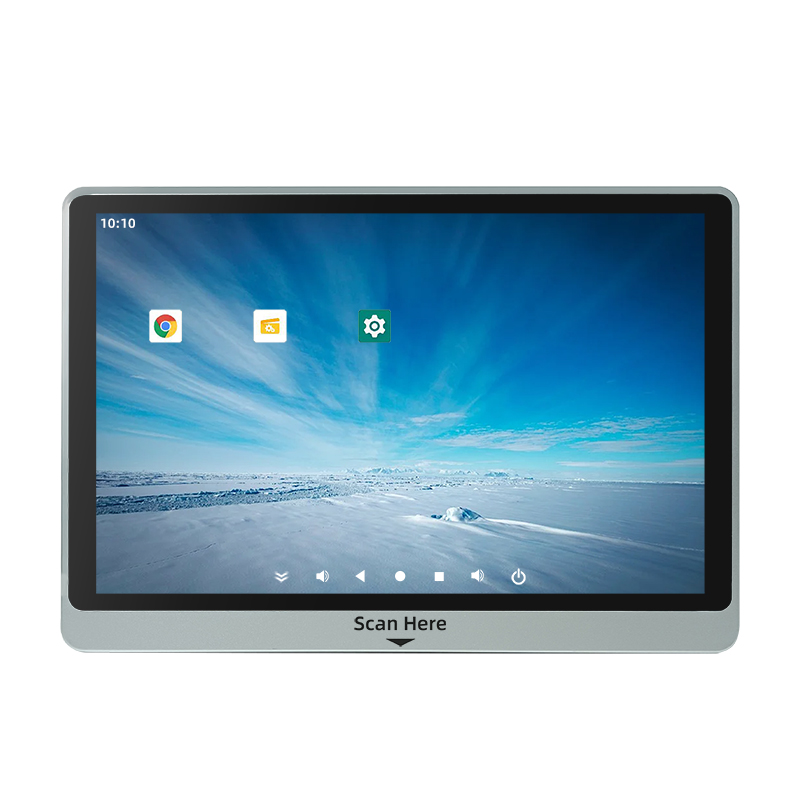

XT802E is 10'' wall-mounted price checker which can install Android operating system or Linux operating system.
CPU: RK3566
OS: Android 11 / Linux 4.19 / Linux Ubuntu
Screen: 10'' HD
Storage: 4G+64G
Network: WiFi, Ethernet LAN
Bluetooth: Bluetooth 4.0
Barcode Scanner: 2D
USB: USB port * 4
POE: 48V POE port * 1 (optional)
Youtube Video: https://youtu.be/_hc_JlvgAtQ
Contact us for more details
XT802E is 10'' wall-mounted price checker which can install Android operating system or Linux operating system.
CPU: RK3566
OS: Android 11 / Linux 4.19 / Linux Ubuntu
Screen: 10'' HD
Storage: 4G+64G
Network: WiFi, Ethernet LAN
Bluetooth: Bluetooth 4.0
Barcode Scanner: 2D
USB: USB port * 4
POE: 48V POE port * 1 (optional)
Youtube Video: https://youtu.be/_hc_JlvgAtQ
Contact us for more details

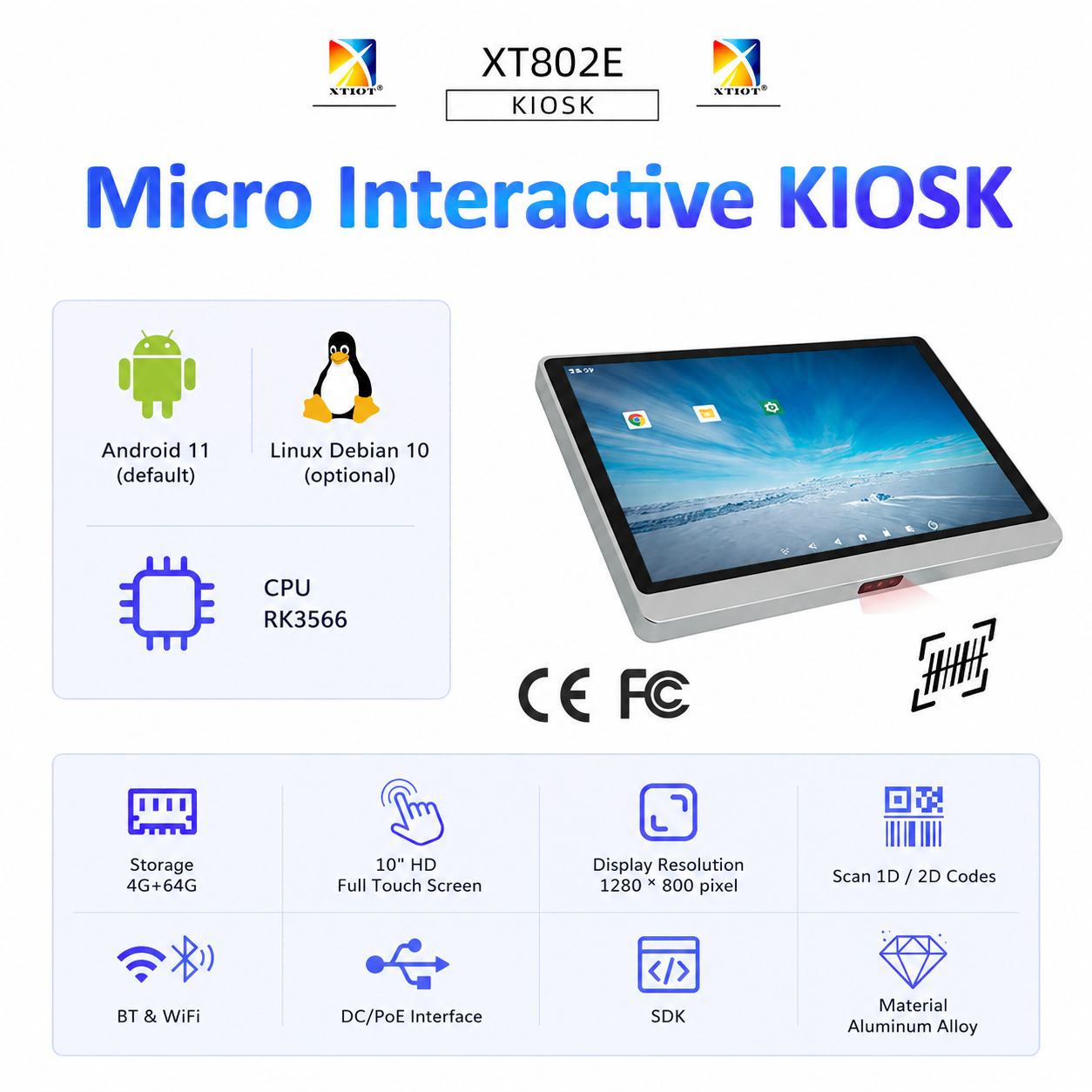

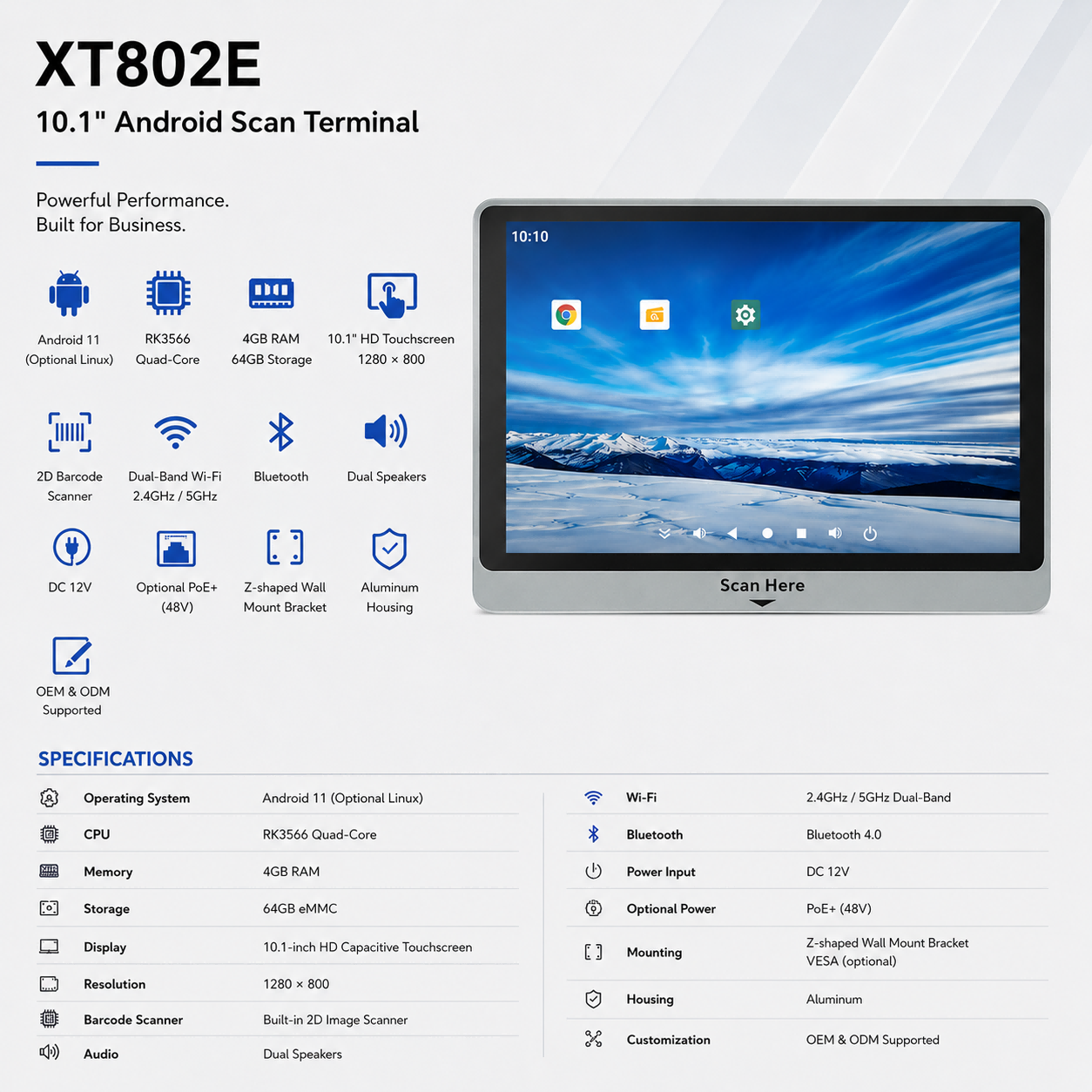

| Model | XT802E |
| CPU | RK3566 |
| Operate System | Android 11 (default) |
| Linux Debian 10 (optional) | |
| Storage | 4G+64G |
| Screen | 10.1'' HD full touch screen |
| Display Resolution | 1280 * 800 pixel |

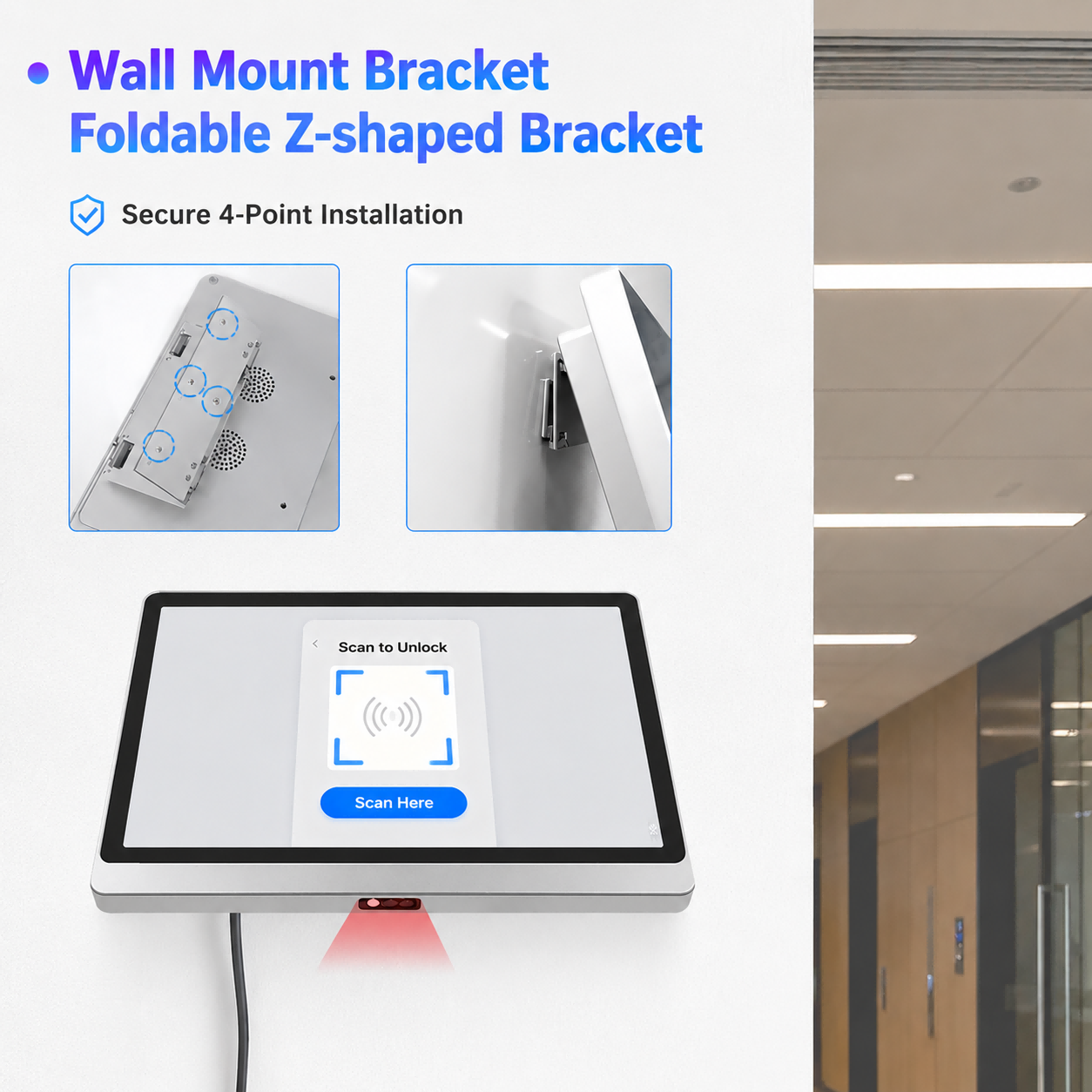

| Wall Mount Bracket | Folding Z-shaped bracket |

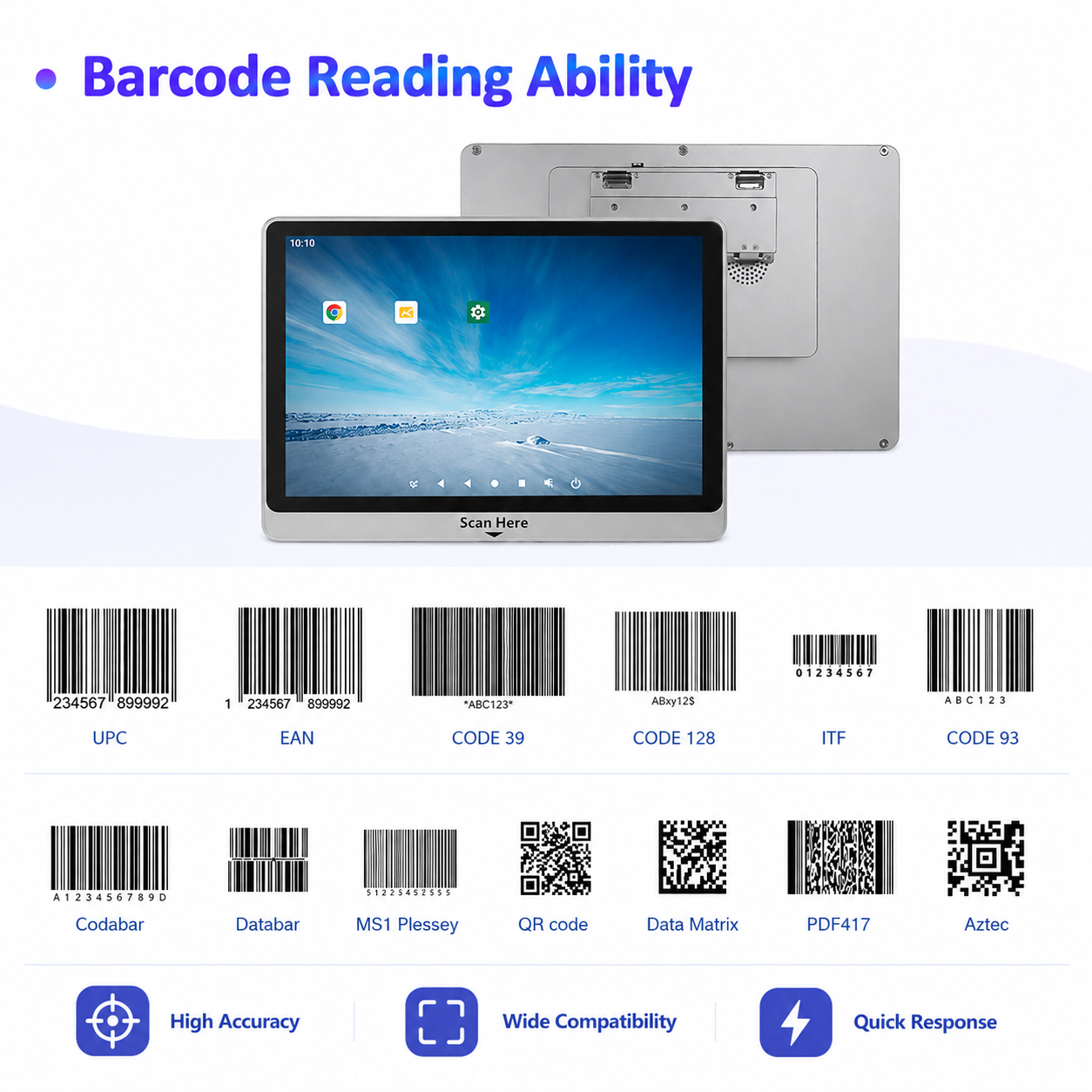

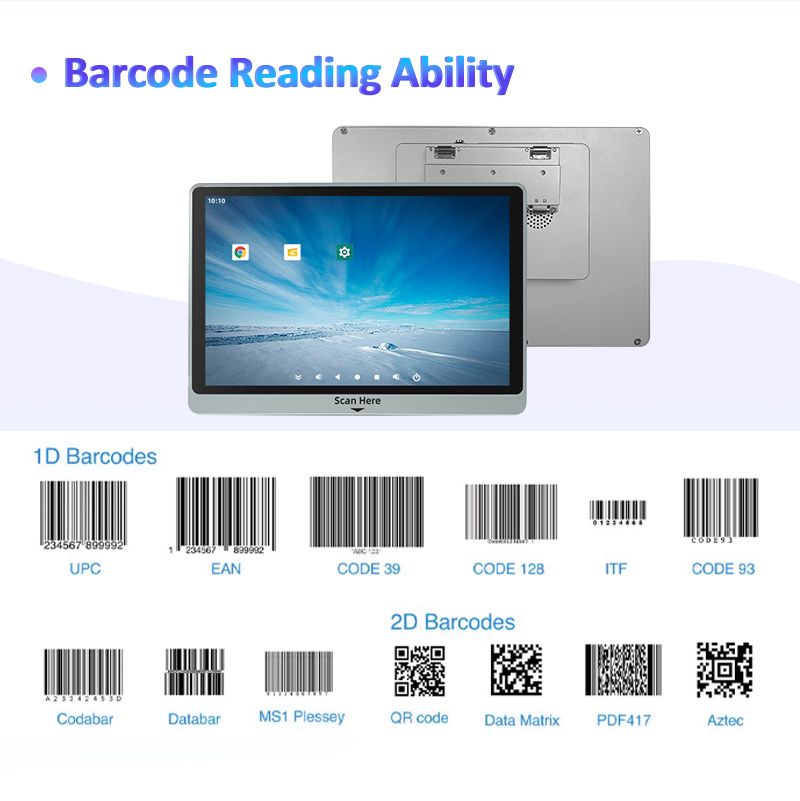

| Barcode Reading Ability | 1D: Code 128, EAN 13, EAN 8, Code 32, Code 39, UPC-A, UPC-E, GS1 Codabar, etc. |
| 2D: QR code, Data Matrix, PDF417, Aztec, etc. | |
| SDK | Yes, for barcode scanner |
| Speaker | 2PCS |
| WiFi | Yes |
| Bluetooth | Yes |
| Ethernet | Yes |

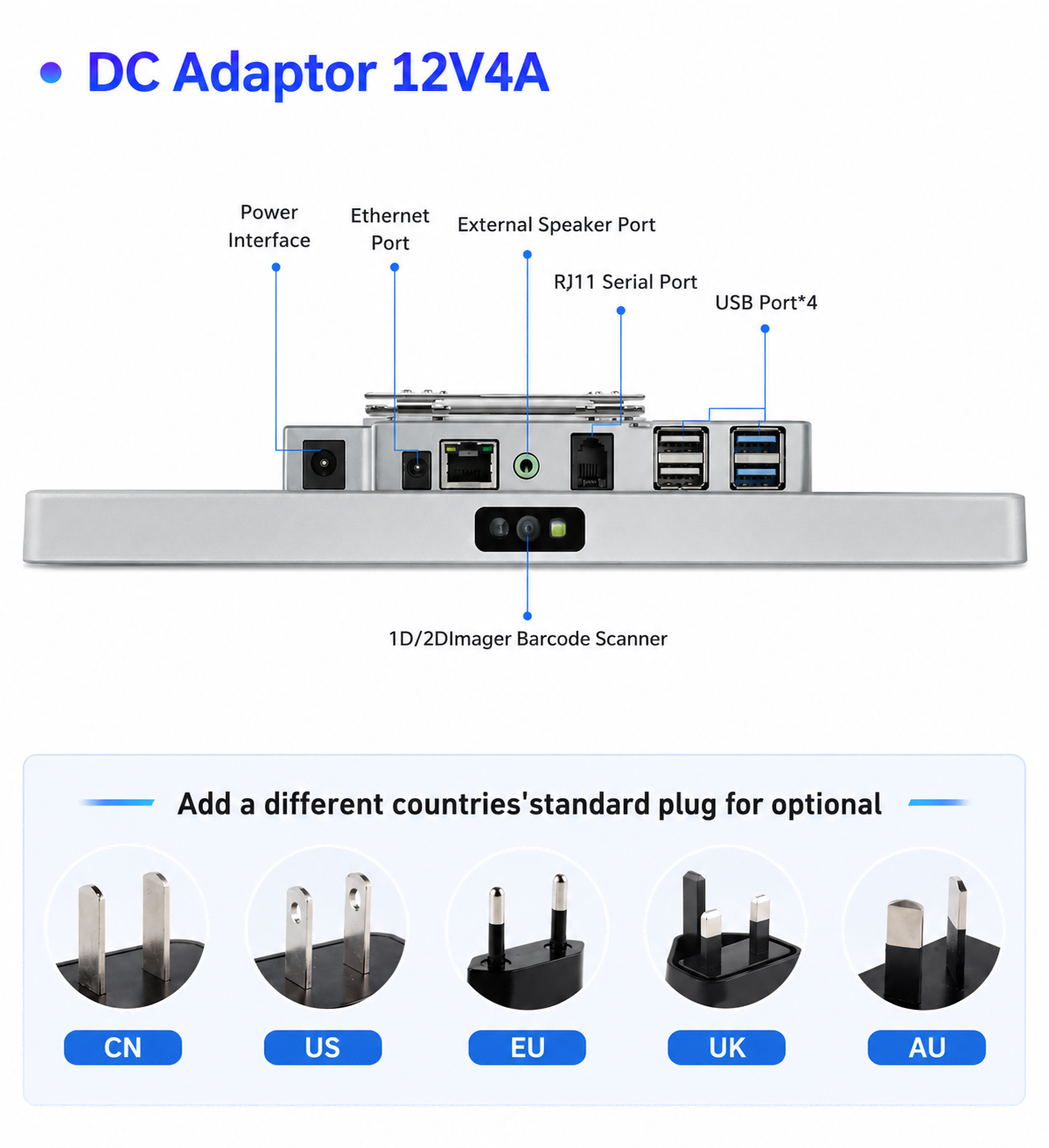

| DC Adaptor | 12V4A (US/UK/AU/CN/EU/JP standard, etc.) |

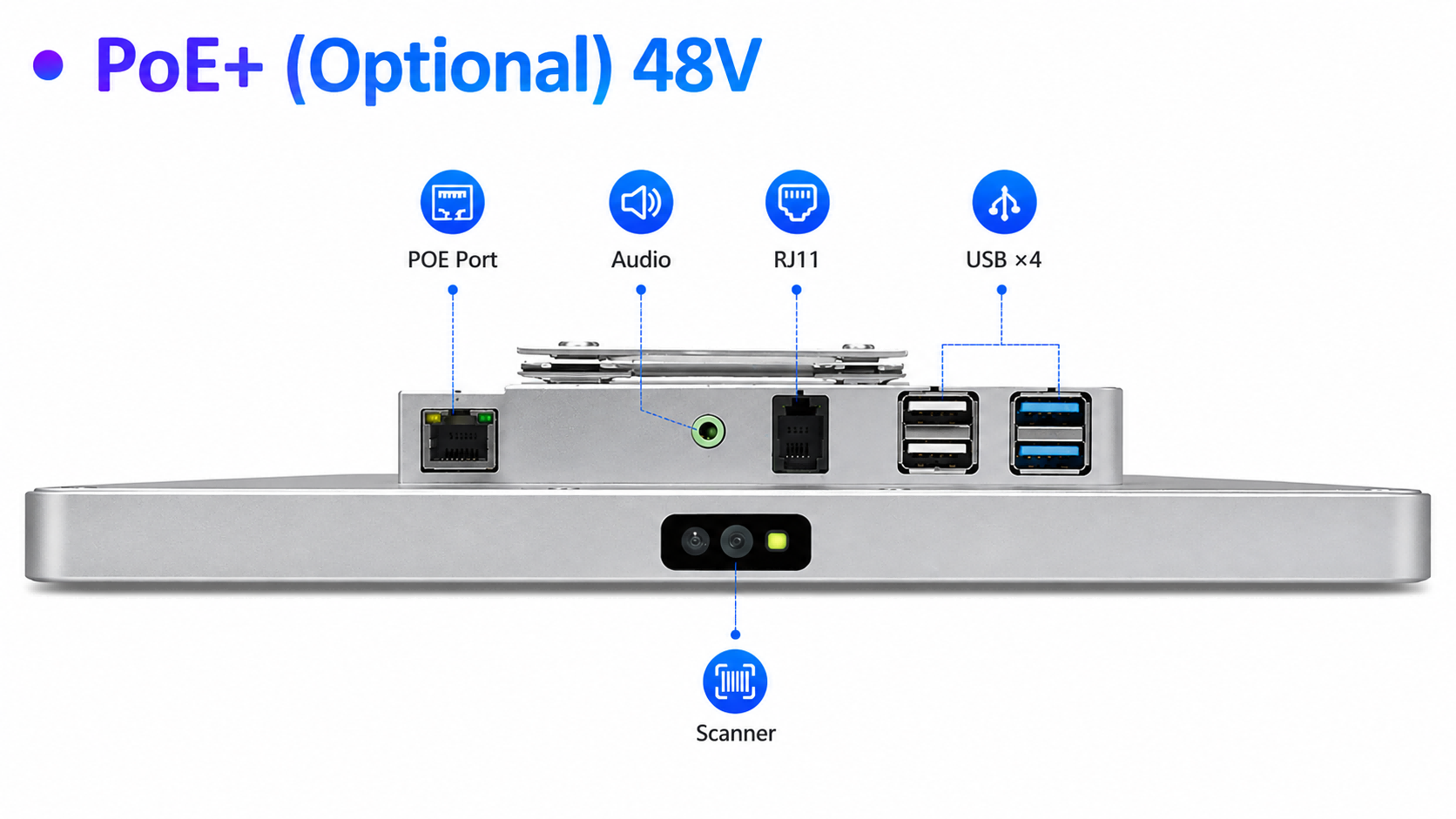

| PoE+ (Optional) | 48V |
| Material | Aluminum Alloy |
| Logo | OEM service |
| Color | Silver (default) / |
| Black, red, blue, orange, green, etc. (optional) | |
| Warranty | 1 Year |
| Certificate | CE, FCC |
| More Details | Please contact our Sales |
Advantages:

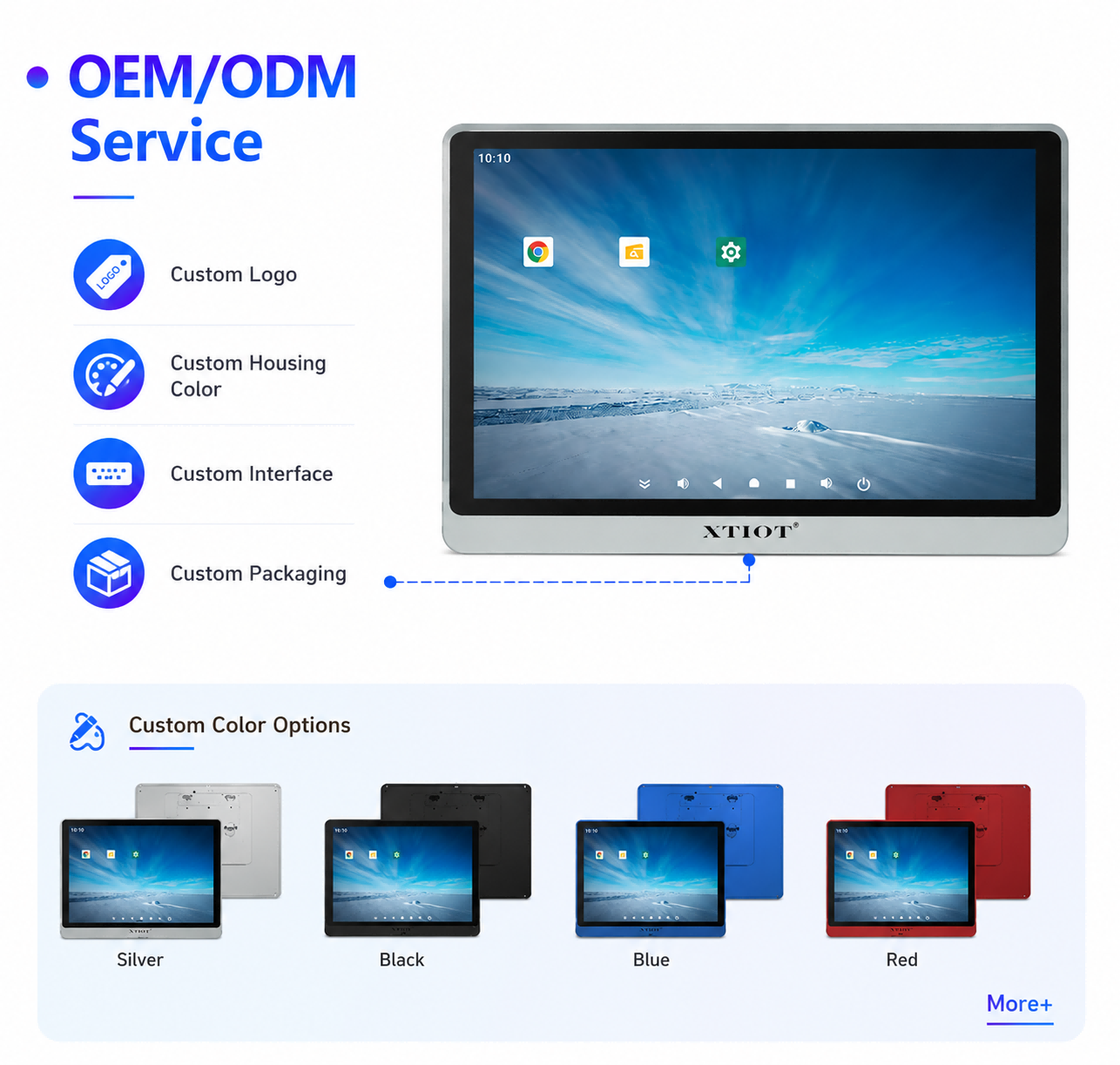

Flexible OEM / ODM customization
XT802E supports customized logo, housing color, packaging, and hardware configuration to meet different project requirements.
Multi-industry application support
The device can be used as a price checker, self-service kiosk, visitor registration terminal, POS terminal, or workstation for retail and industrial environments.
Global deployment support
The product is designed for international markets and can be deployed in supermarkets, malls, grocery stores, and commercial environments worldwide.
Fast project deployment
With standard interfaces and SDK support, developers can quickly integrate applications and build customized kiosk solutions.
After-sales technical support
Provides installation guidance, technical consultation, and system integration support for customers.
XT802E uses processors such as RK3566, providing stable performance for kiosk and POS applications.
Integrated 2D barcode scanning engine
Supports fast reading of QR codes, Data Matrix, and common 1D barcodes, enabling efficient product lookup and data capture.

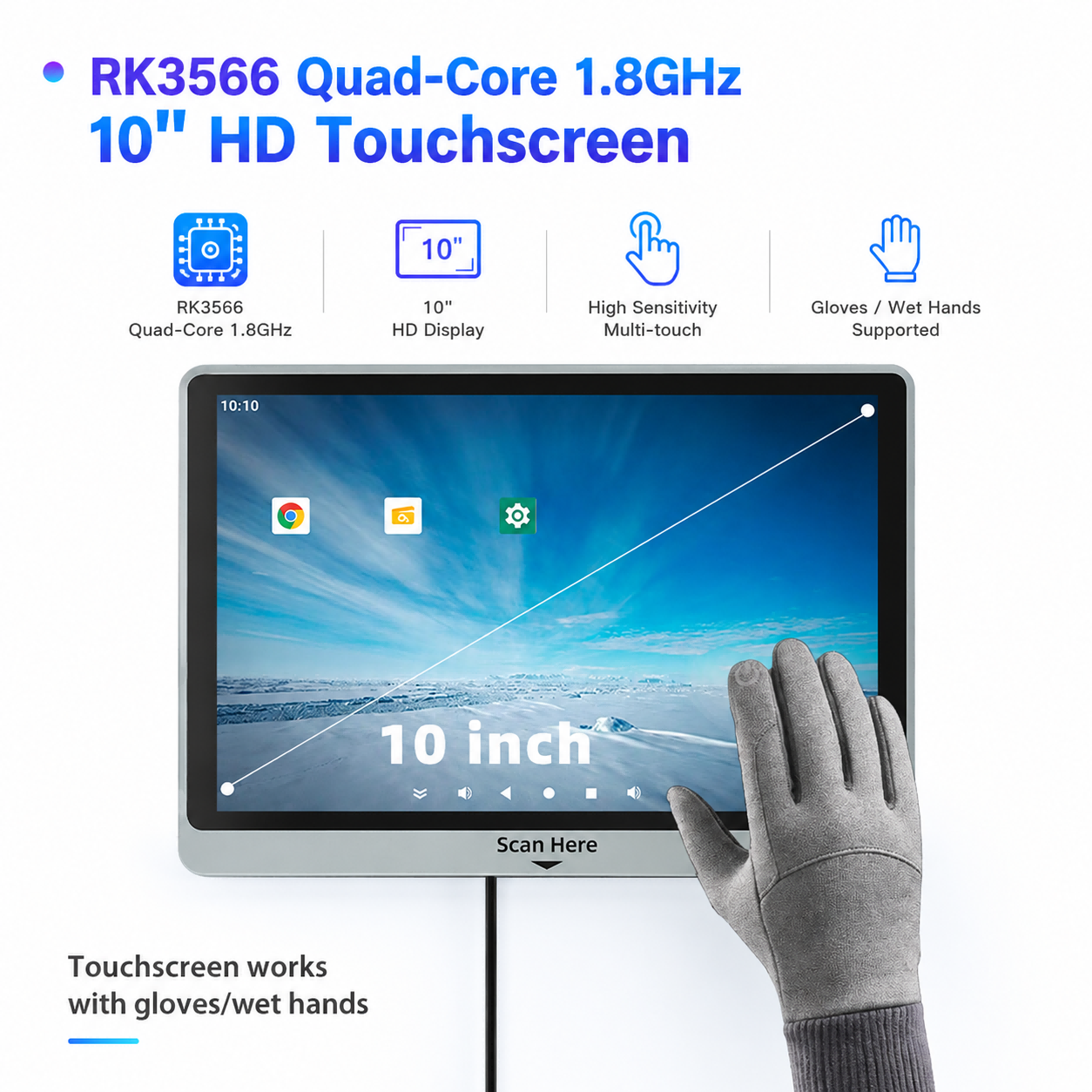

Large touchscreen display
Equipped with a 10.1-inch capacitive touchscreen, providing smooth and intuitive user interaction.
Multiple operating systems
Supports Windows, Android, and Linux, making it suitable for different software environments and applications.
Rich connectivity options

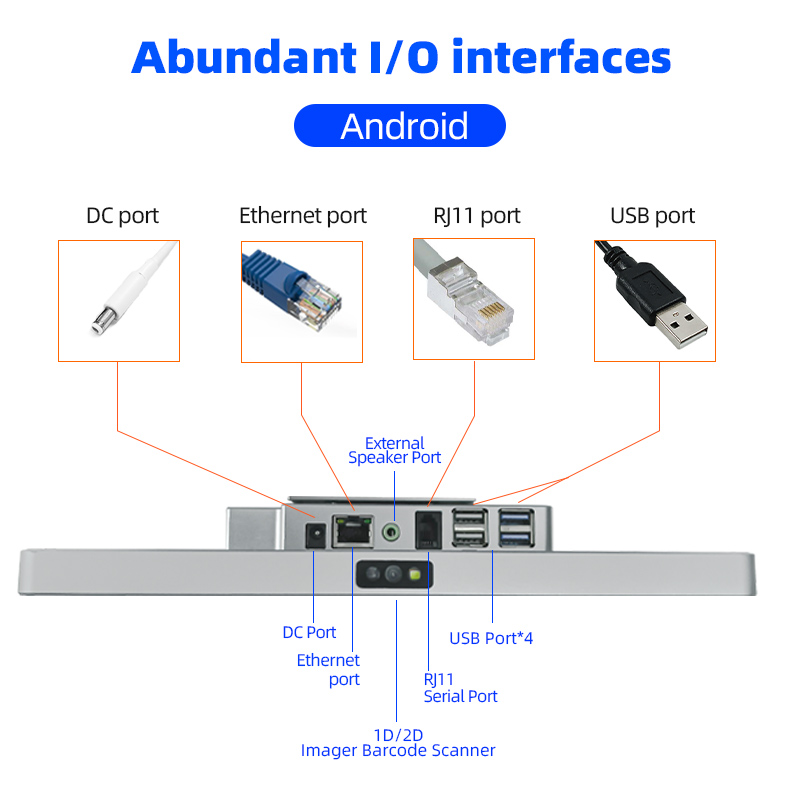

Includes WiFi, Bluetooth, Ethernet, USB, HDMI, and serial ports, allowing connection to various peripherals and systems.
Wall-mounted compact design

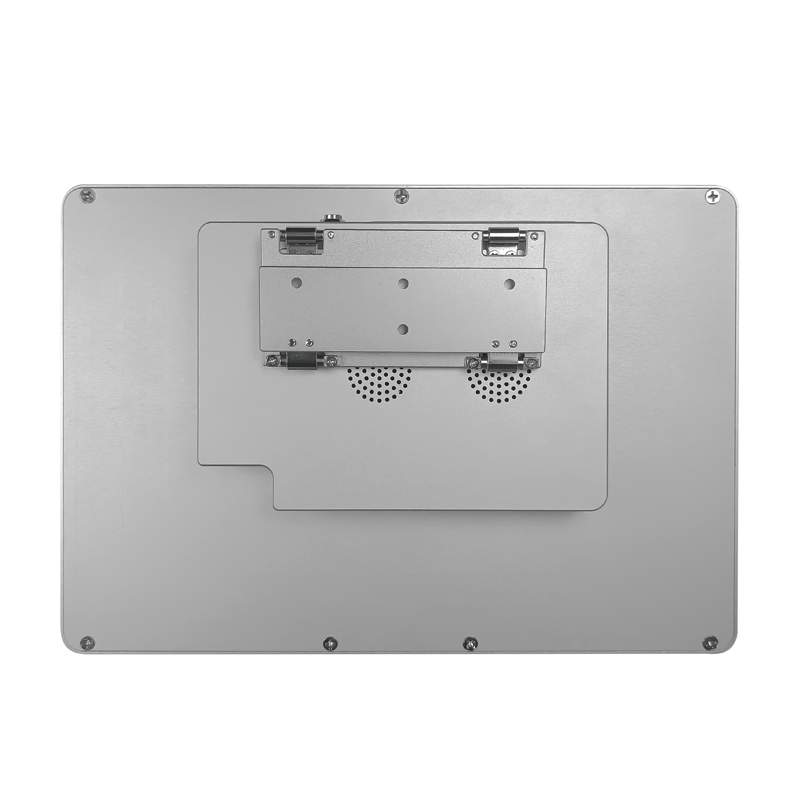

The device supports wall mounting with a Z-shaped bracket or VESA mounting, saving space in retail environments.
Industrial-grade stability
Designed for continuous operation with reliable power supply and durable aluminum alloy housing.
Wide barcode compatibility
Supports multiple symbologies including QR Code, Data Matrix, PDF417, Code128, EAN-13, and UPC.
