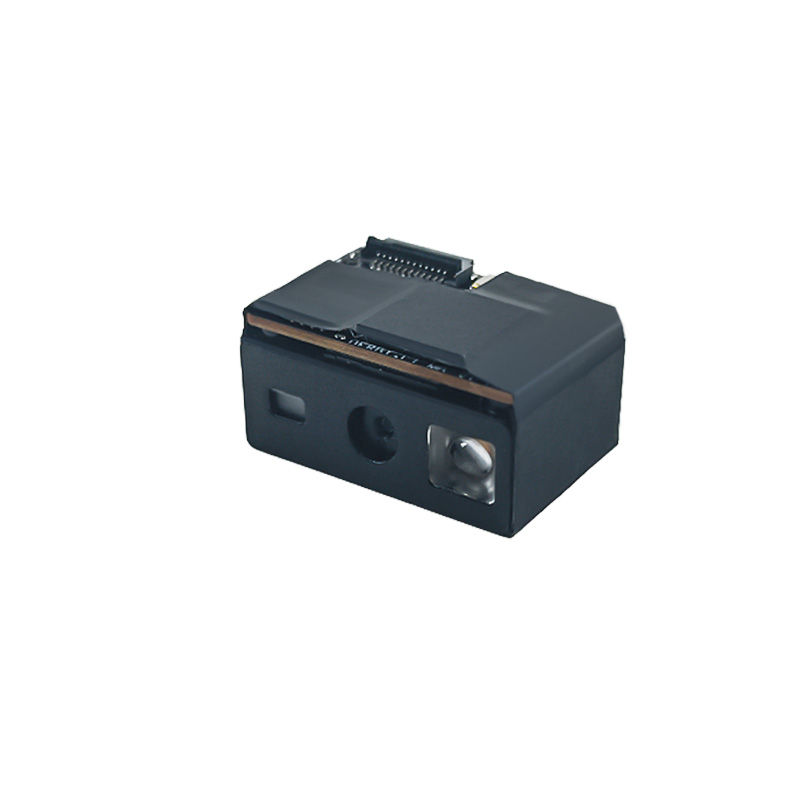

XT6996M TTL USB Passport ID Card Code OEM Engine

XT6996M TTL USB Passport ID Card Code OEM Engine

OEM Barcode Scanner Engine

XT6996M is 1280*800 megapixel OEM barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, etc.
It can read passport ocr code, QR code, PDF417, etc.
Communication: USB, TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.

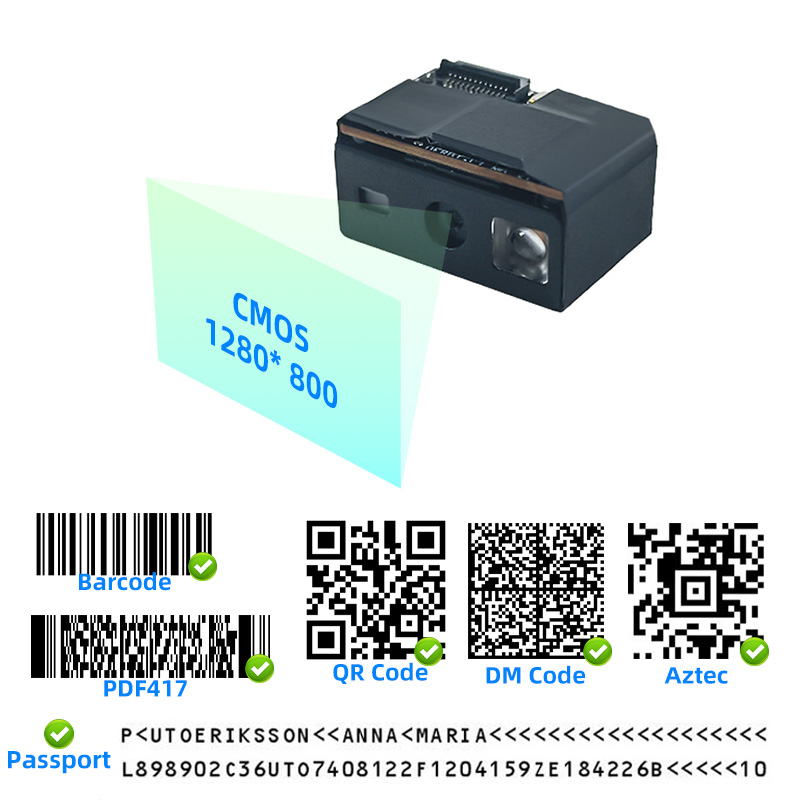

Technology: CMOS, 1280x800 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil

Get in touch with us to learn more.


0.00
0.00

商品描述

OEM Barcode Scanner Engine

XT6996M is 1280*800 megapixel OEM barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, etc.
It can read passport ocr code, QR code, PDF417, etc.
Communication: USB, TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil

Get in touch with us to learn more.




Technical Specifications


Image SensorCMOS
DPI(W*H)1280px*800px
FloodlightWhite LED
Focusing Lamp650nm laser
2DPDF417, Micro PDF417, QR/ Micro QR, Data Matrix,Aztec, Chinese Sensible Code, MaxiCode, GridMatrix, Code One, DotCode
1DEAN, UPC, Coupon, GS1 Composite, CodaBar,Interleaved 25/ITF-14/ ITF6, Matrix 25, Industrial 25, COOP 25, Standard 25, China post 25, Code 39, Code 93 / Code 93i, Code 128 series,Plessey, MSI Plessey, Code11, RSS, Code 49, Code 16K
PostalUSPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX, Australian Postal, Japanese Post
OCRPassport OCR, Passport Visa, TD1, TD2, etc.
Accuracy≥3mil
Contrast Ratio≥25%
1D EAN1313mil  70-500mm
Code 395mil    90-265mm
2D QR Code15mil  40-295mm
Data Matrix15mil  65-215mm
Tilt±60°
Rotate360°
Deflection±60°
Field of View Angle

Horizontal：42°

Vertical：28°

Prompt ModeBEEP, LED
Data InterfaceUSB KBW, USB CDC, USB HID POS, TTL 232
Working Voltage3.3V±5%
Working Electric Current269mA
Standby Electric Current70mA
Sleeping Electric Current1mA
Working Temperature-20℃ ~ +60℃
Storage Temperature-40℃ ~ +70℃
Relative Humidity5% ~ 95%(RH)
Environmental Light0-100,000LUX
Product Size21.2*14.5*11.4 mm


Specification PDF Download

 User Manual Download

Integration Manual Download
