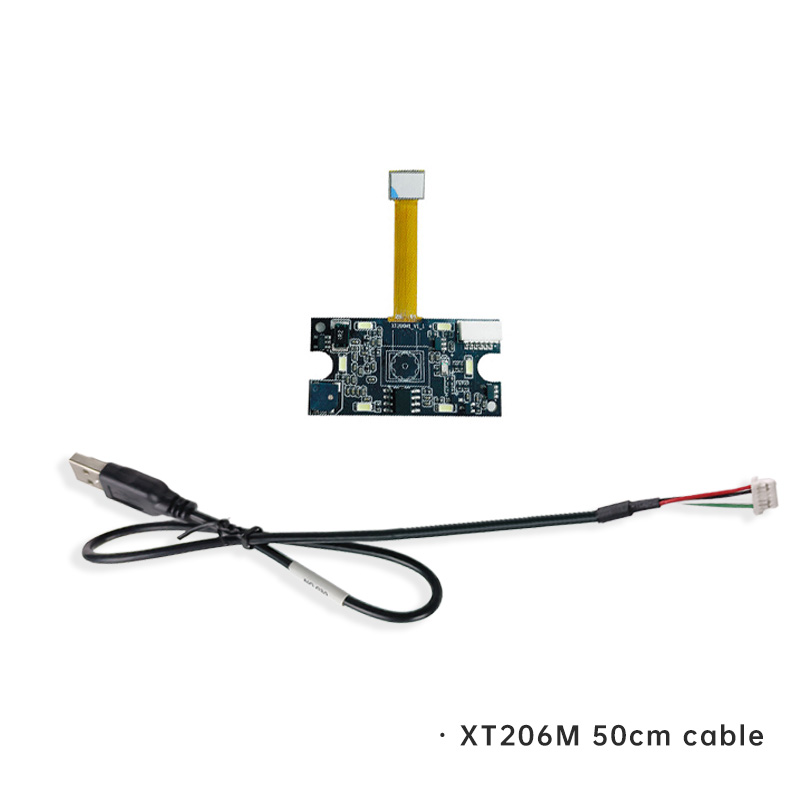

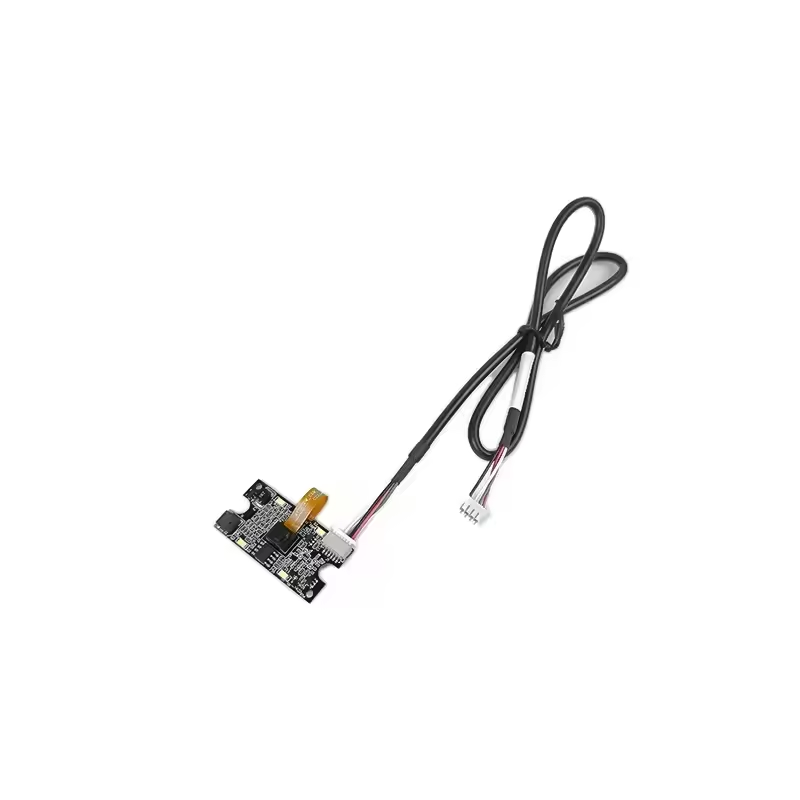

XT206M TTL USB OEM Scanner Engine
Fixed Mount Barcode Scanner

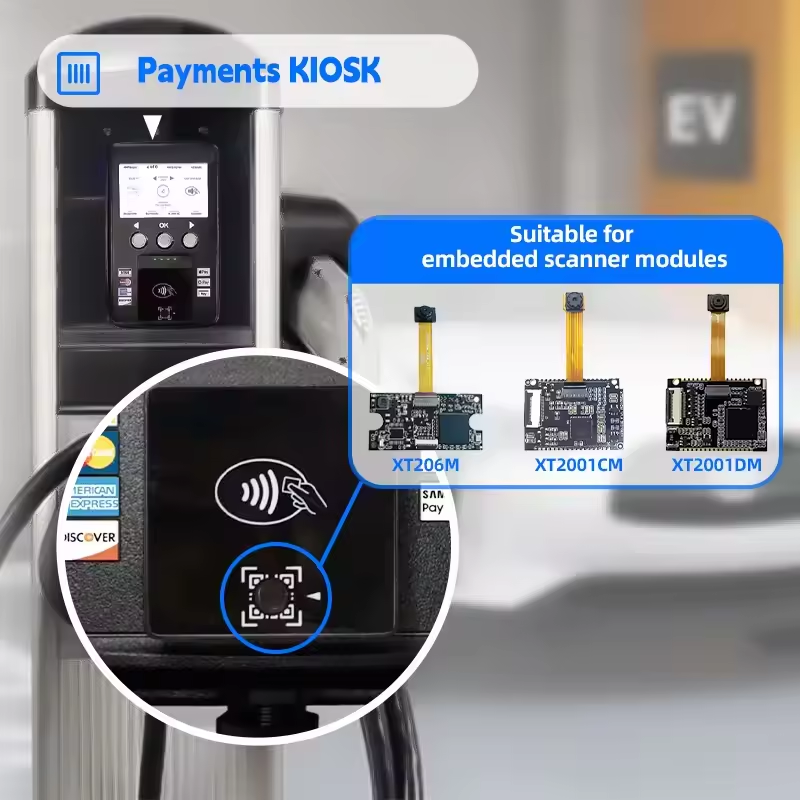

XT206M is barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, etc.

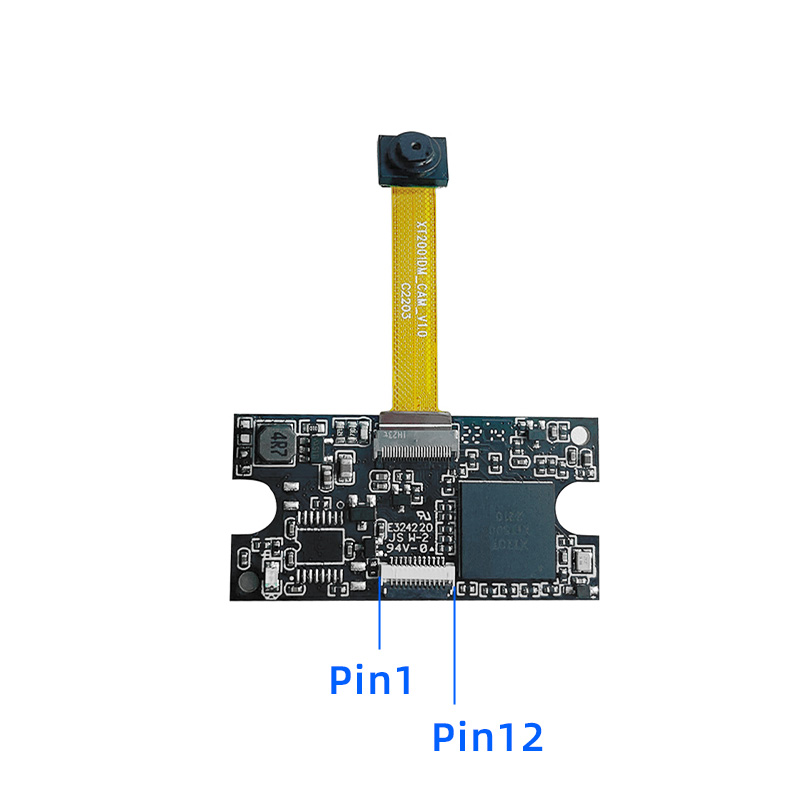

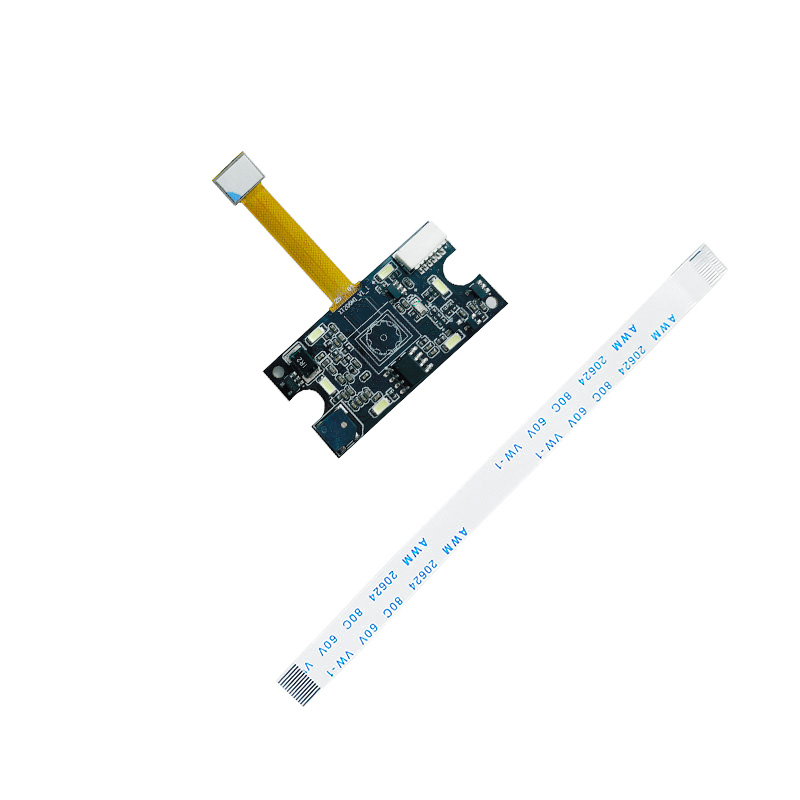

Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL/3.3V FPC
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Barcode Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control
Get in touch with us to learn more.
Fixed Mount Barcode Scanner
XT206M is barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL/3.3V FPC
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Barcode Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control
Get in touch with us to learn more.
Technical Specifications
| Image Sensor | CMOS |
| DPI(W*H) | 640px*480px |
| 1D | Code128/AIM128/EAN128/NL128, UPC/EAN/ISSN/ISBN, Codabar, Code 39, Code 39,Code 93, Code 11, ITF-25/ITF-14/ITF-6/ Deutsche12/ Deutsche14, Industrial 25, Matrix 25, Japan Matrix 25/NEC 25, Standard 25, DataLogic 25, MSI-Plessey, Plessey, RSS-EXP /RSS_14/GS1 Data, Telepen |
| 2D | AZTEC,Data Matrix, MaxiCode, PDF417, Micro PDF, QR Code, Micro QR, Hanxin code, DOTCODE |
| Accuracy | ≥5mil |
| Contrast Ratio | ≥20% |
| 1D: EAN-13 | (5mil) 30-60mm (13mil) 20-130mm |
| 2D: QR Code | (15mil) 15-110mm (30mil) 15-200mm |
| Tilt | ±65° |
| Rotate | 360° |
| Deflection | ±55° |
| Field of View Angle | Horizontal: 66.4° Vertical: 49.8° Diagonal: 83° |
| Data Interface | USB KBW, USB HID POS, USB CDC, TTL, RS232 |
| Working Voltage | 5VDC±5% |
| Electric Current Work | 185mA±10% |
| Stand by | 160mA |
| Working Temperature | 0℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Relative Humidity | 5%~95% (No condensation) |

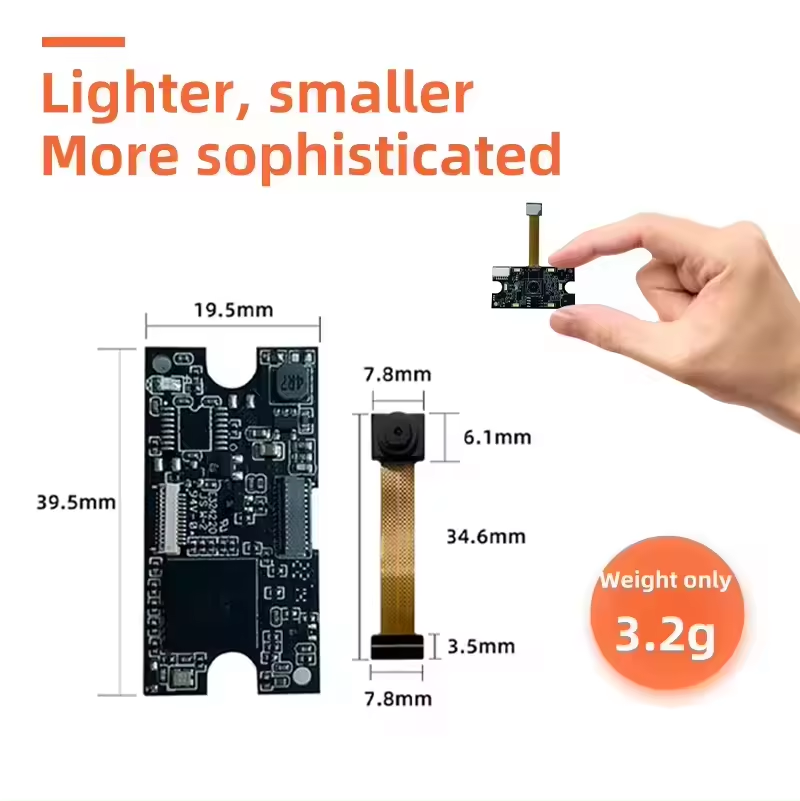

| Product Size | PCB: 39.5*19.5*7.2mm Lens: 7.8*34.6*3.3mm |
