XT206M POS QR Code Reader Cashless Payment 2D QR Barcode Scanner

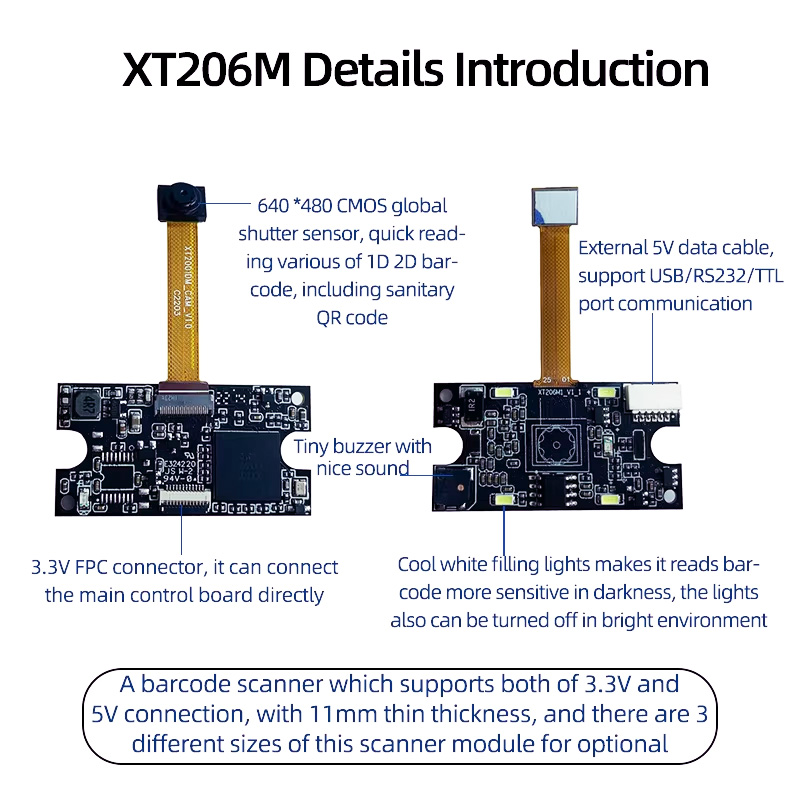

XT206M POS QR Code Reader Cashless Payment 2D QR Barcode Scanner

OEM 2D Embedded Barcode Scanner Engine

This type of module is usually used in IoT devices that need to integrate barcode scanning functions, such as handheld terminals, self-service terminals, mobile data terminals, etc.

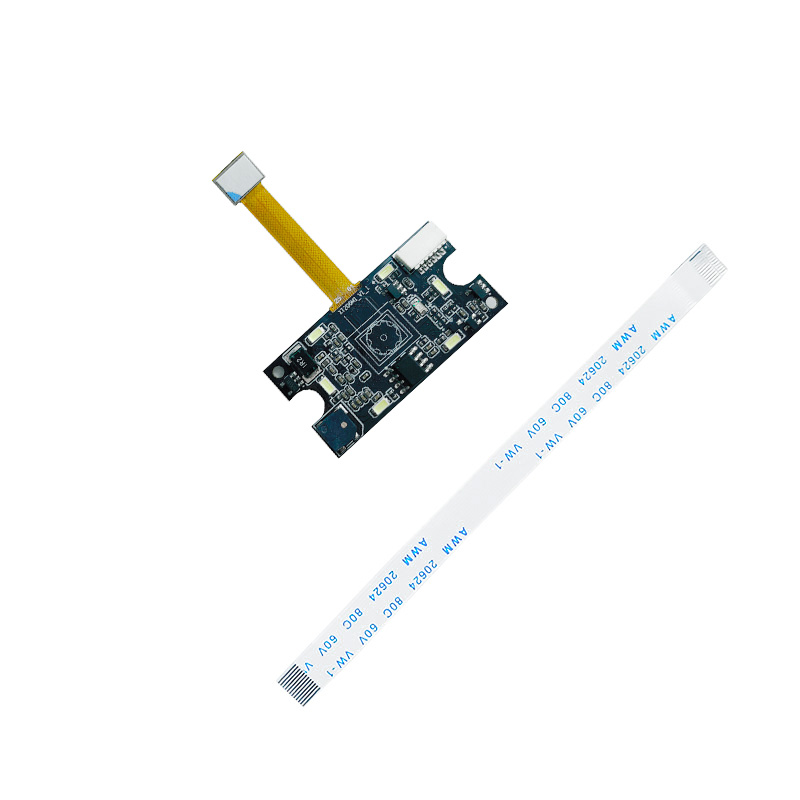

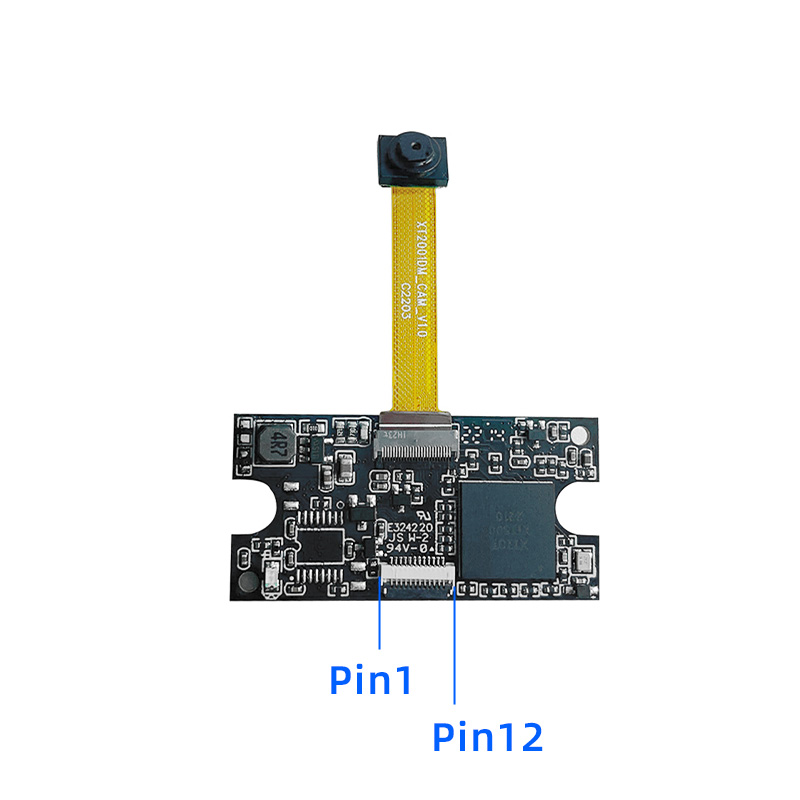

Communicate: USB, TTL, RS232, 3.3V 12Pin
Sensor: CMOS
Pixel: 640*480



0.00
0.00

商品描述

OEM 2D Embedded Barcode Scanner Engine

This type of module is usually used in IoT devices that need to integrate barcode scanning functions, such as handheld terminals, self-service terminals, mobile data terminals, etc.
Communicate: USB, TTL, RS232, 3.3V 12Pin
Sensor: CMOS
Pixel: 640*480




Technical Specifications



Image SensorCMOS
DPI(W*H)640px*480px
1DCode128/AIM128/EAN128/NL128, UPC/EAN/ISSN/ISBN, Codabar, Code 39, Code 39,Code 93, Code 11, ITF-25/ITF-14/ITF-6/ Deutsche12/ Deutsche14, Industrial 25, Matrix 25, Japan Matrix 25/NEC 25, Standard 25, DataLogic 25, MSI-Plessey, Plessey, RSS-EXP /RSS_14/GS1 Data, Telepen
2DAZTEC,Data Matrix, MaxiCode, PDF417, Micro PDF, QR Code, Micro QR, Hanxin code, DOTCODE
Accuracy≥5mil
Contrast Ratio≥20%
1D: EAN-13

(5mil)     30-60mm

(13mil)   20-130mm

2D: QR Code

(15mil)   15-110mm

(30mil)   15-200mm

Tilt±65°
Rotate360°
Deflection±55°
Field of View Angle

Horizontal: 66.4°

Vertical: 49.8°

Diagonal: 83°

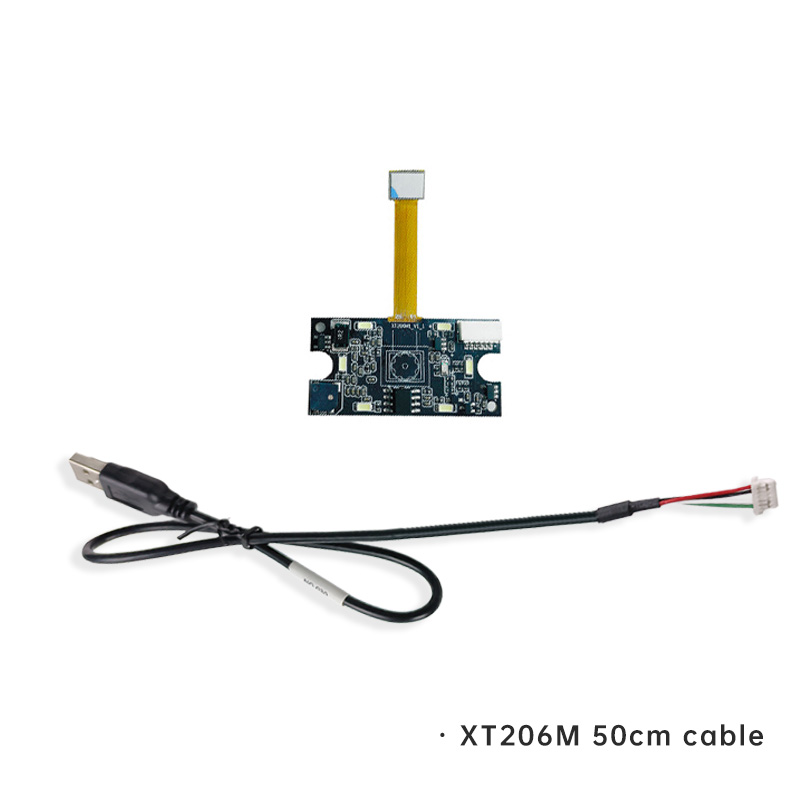

Data InterfaceUSB KBW, USB HID POS, USB CDC, TTL, RS232
Working Voltage5VDC±5%
Electric Current Work185mA±10%
Stand by160mA
Working Temperature0℃~+50℃
Storage Temperature-20℃~+60℃
Relative Humidity5%~95% (No condensation)
Product Size

PCB: 39.5*19.5*7.2mm

Lens: 7.8*34.6*3.3mm
