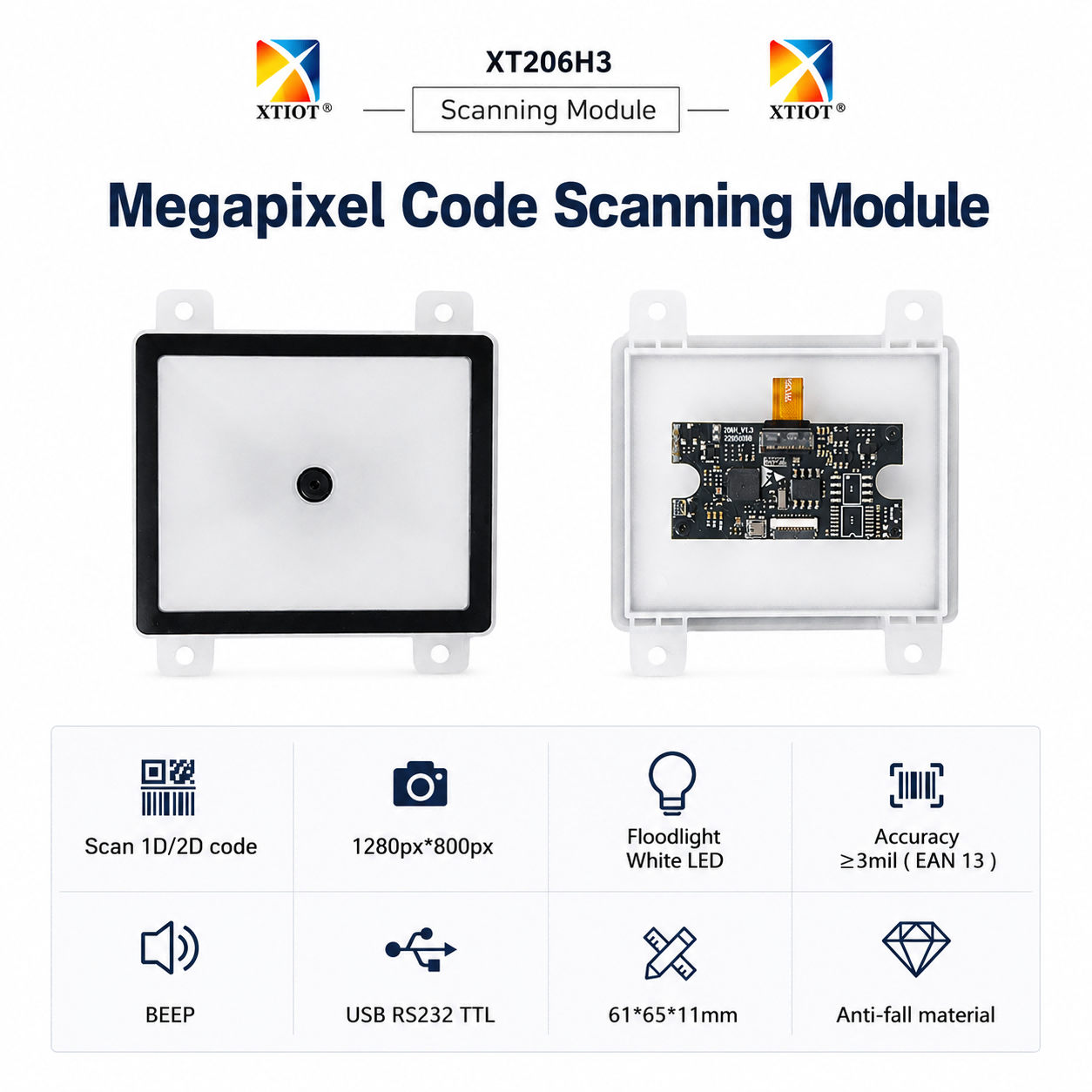

XT206H3 1200*800px Barcode QR Scanner Module

XT206H3 1200*800px Barcode QR Scanner Module

XT206H3 is megapixel barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, door access control, etc.

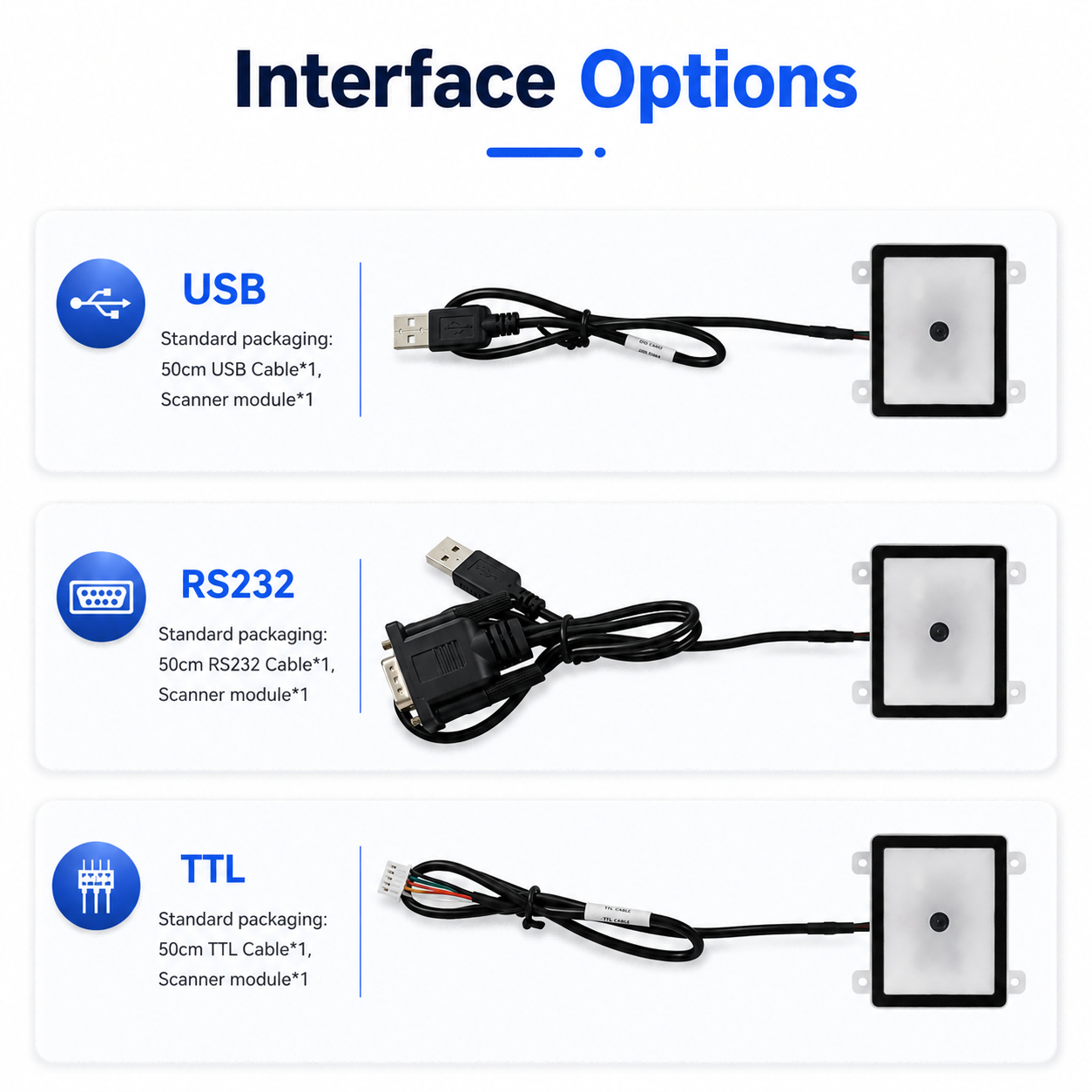

Communication:
 5V USB: USB-HID, USB VCOM, USB-HID POS
UART: RS232/TTL
 3.3V: 12PIN Connetor
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280*800px
Barcode Decoding Ability: 1D and 2D (Code128, EAN13, EAN8, UPCA, UPCE, QR Code, Data Matrix, PDF417, etc.)
Resolution: ≥3mil
Support: serial commands control

Get in touch with us to learn more.


0.00
0.00

商品描述

XT206H3 is megapixel barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, door access control, etc.
Communication:
 5V USB: USB-HID, USB VCOM, USB-HID POS
UART: RS232/TTL
 3.3V: 12PIN Connetor
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280*800px
Barcode Decoding Ability: 1D and 2D (Code128, EAN13, EAN8, UPCA, UPCE, QR Code, Data Matrix, PDF417, etc.)
Resolution: ≥3mil
Support: serial commands control

Get in touch with us to learn more.

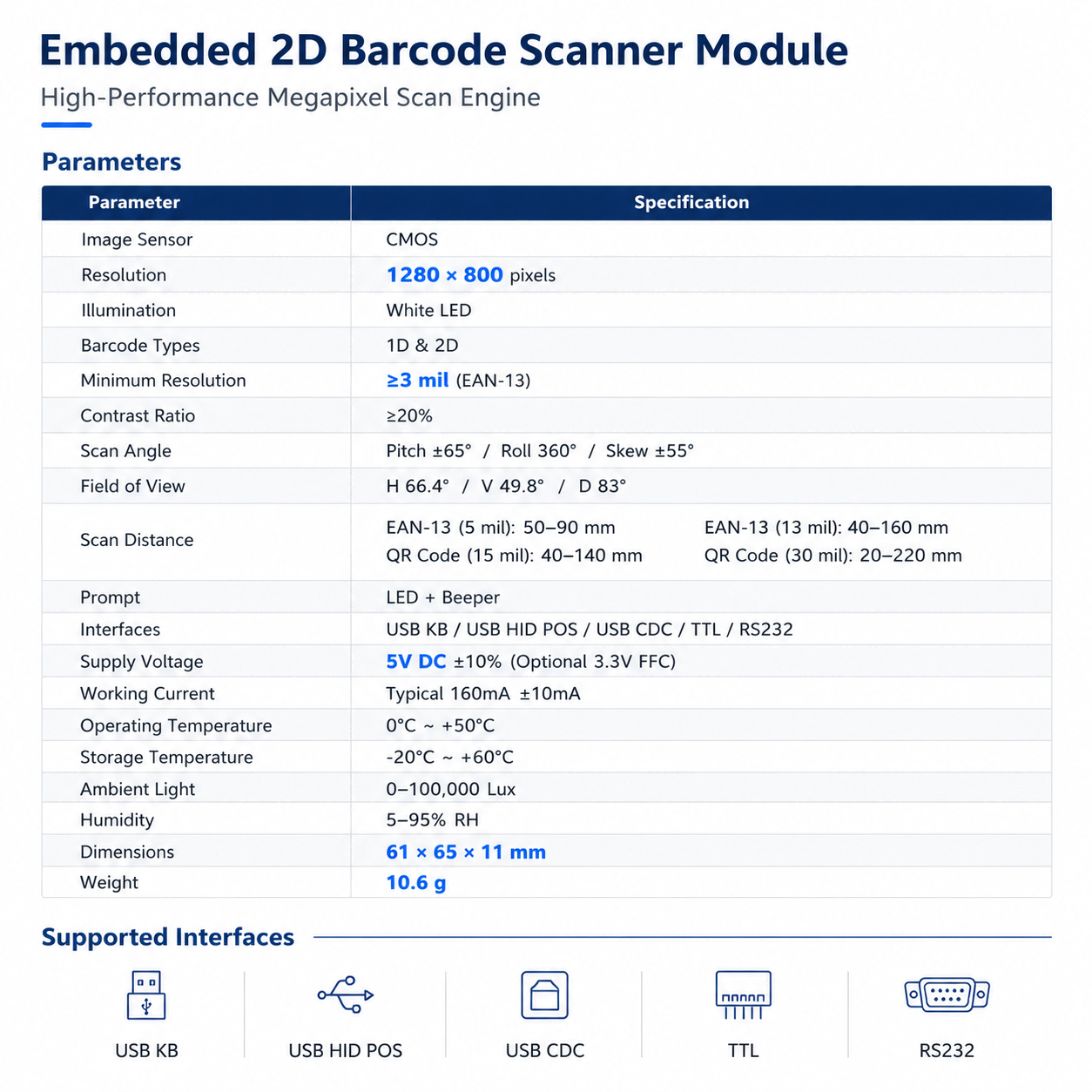

Technical Specifications



Image SensorCMOS
DPI(W*H)1280*800px
1DCode128/AIM128/EAN128/NL128, UPC/EAN/ISSN/ISBN, Codabar, Code 39, Code 39,Code 93, Code 11, ITF-25/ITF-14/ITF-6/ Deutsche12/ Deutsche14, Industrial 25, Matrix 25, Japan Matrix 25/NEC 25, Standard 25, DataLogic 25, MSI-Plessey, Plessey, RSS-EXP /RSS_14/GS1 Data, Telepen
2DAZTEC,Data Matrix, MaxiCode, PDF417, Micro PDF, QR Code, Micro QR, Hanxin code, DOTCODE
Accuracy≥3mil
Contrast Ratio≥20%
