XT6603BM 5V

XT6603BM 5V

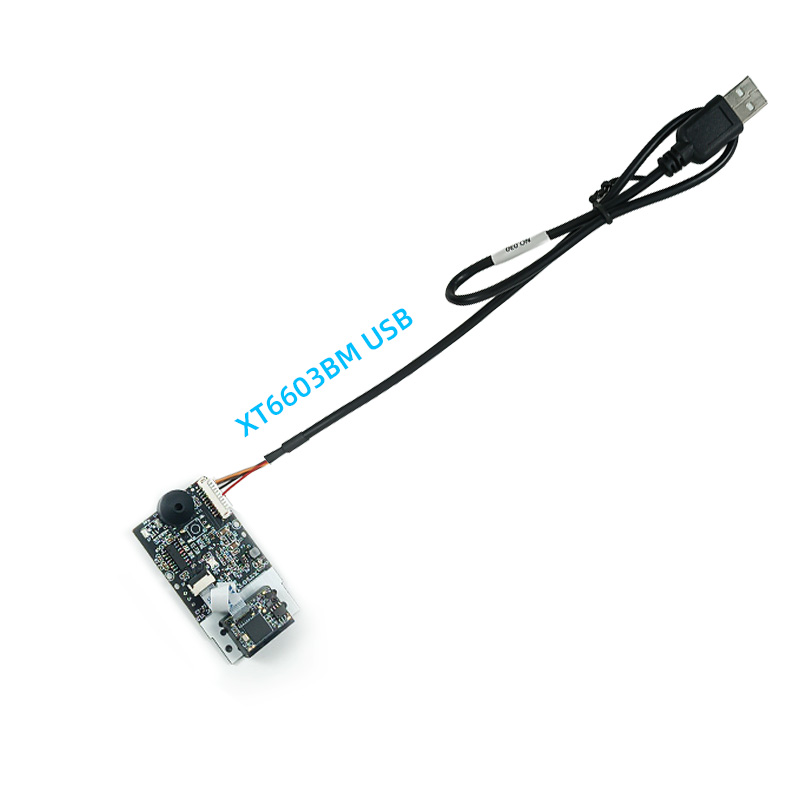

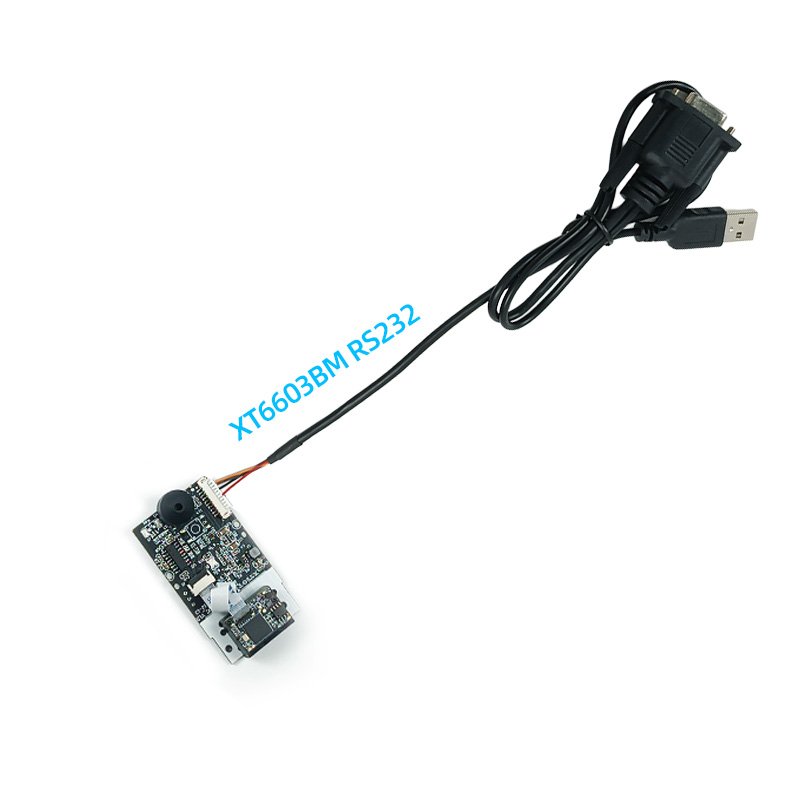

XT6603BM is fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.

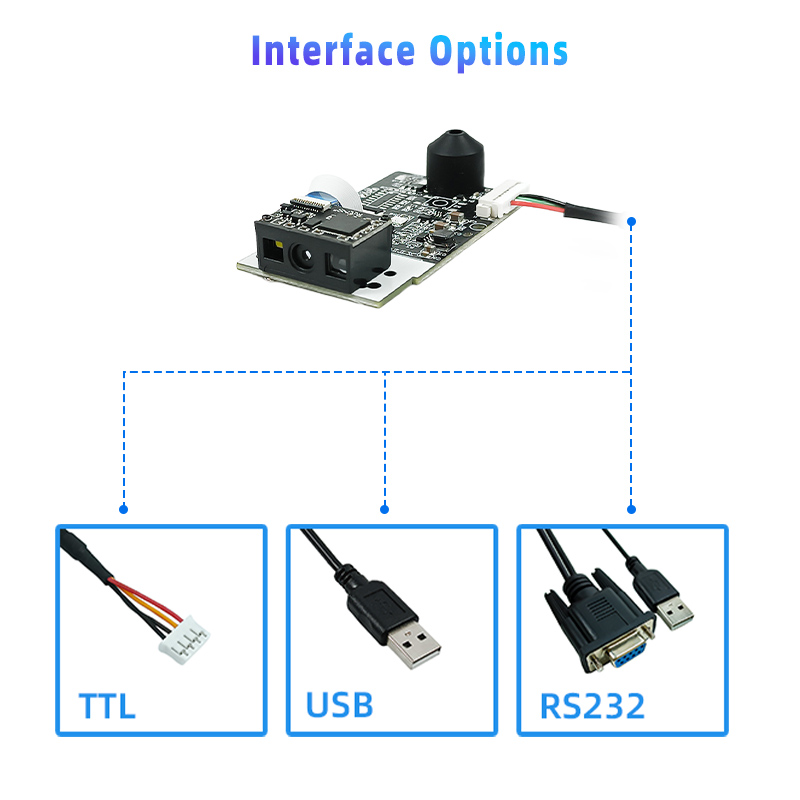

Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil

Get in touch with us to learn more.


0.00
0.00

商品描述

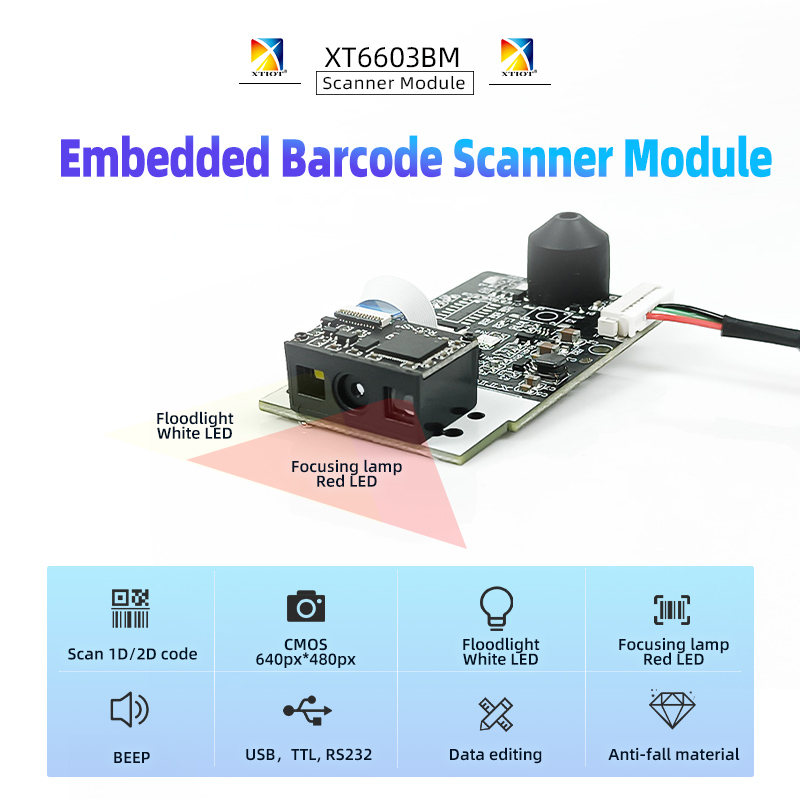

XT6603BM is fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil

Get in touch with us to learn more.




Technical Specifications


Image sensorCMOS
DPI(W*H)680px*480px
FloodlightWhite LED
Focusing LampRed LED

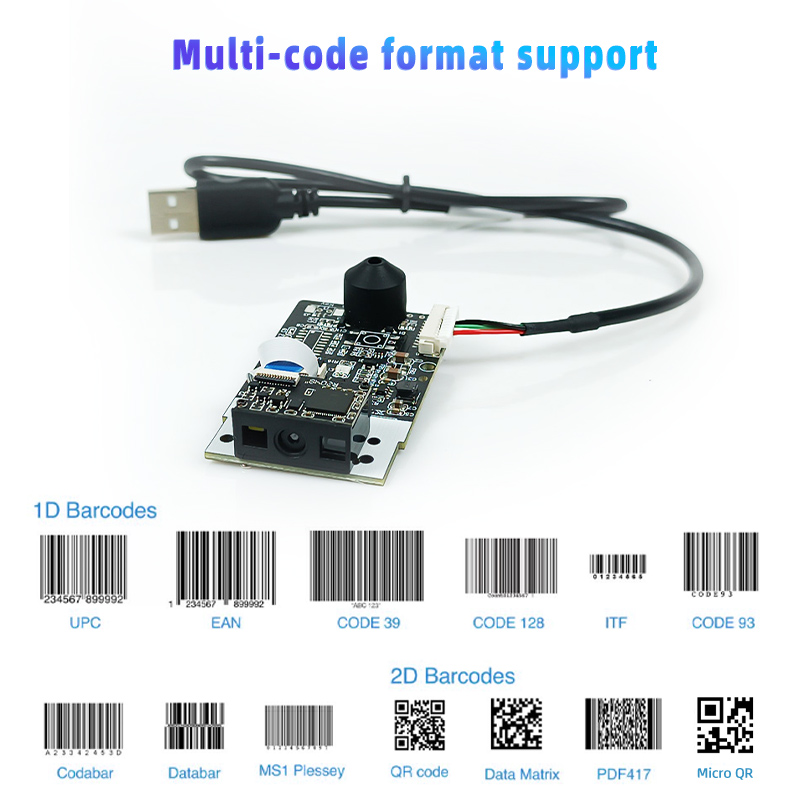

1DEAN-8, EAN-13, UPC-E, UPC-A,ISBN, ISSN, Code128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Plessey, MSI-Plessey
2DQR Code, Micro QR, Data Matrix, PDF417
Accuracy≥5mil
Contrast Ratio≥20%
1D EAN13

5mil    45-130mm

13mil  45-230mm

2D QR Code

15mil  30-100mm

30mil  30-260mm

Field of View Angle

Horizontal: 36°

Vertical: 27°

Prompt ModeBEEP, LED
Data interfaceUSB HID KBW, USB HID CDC, TTL 232
Working voltage5V±3%
Working Electric Current150mA
Working Temperature0℃ ~ +60℃
