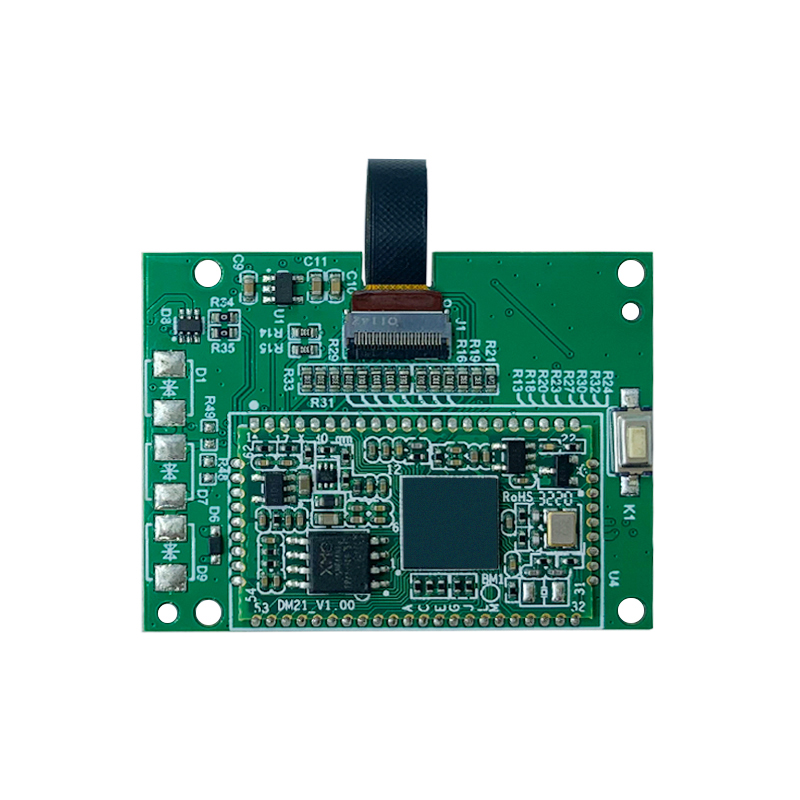

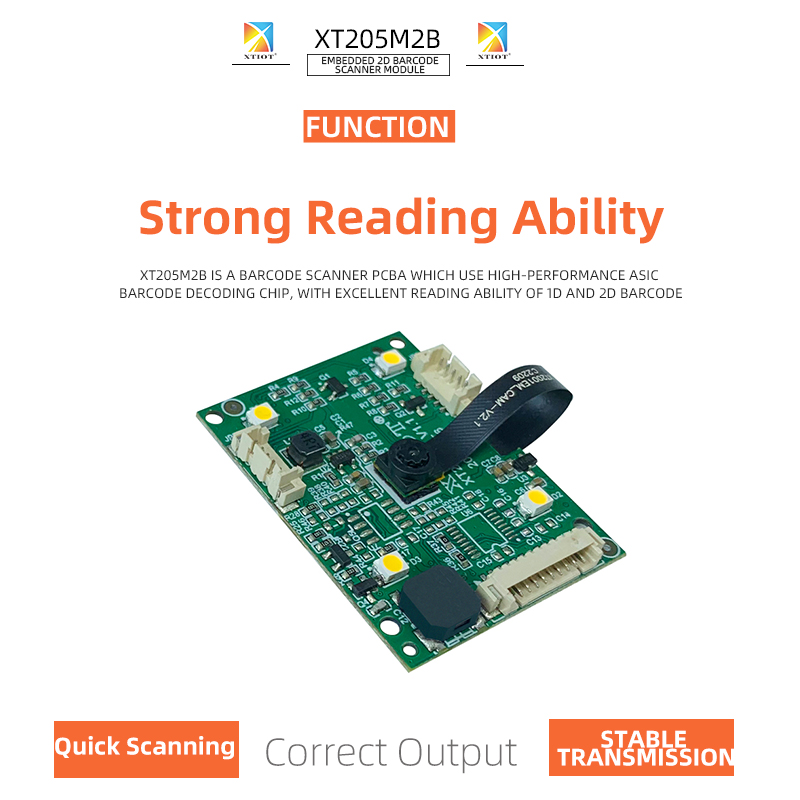

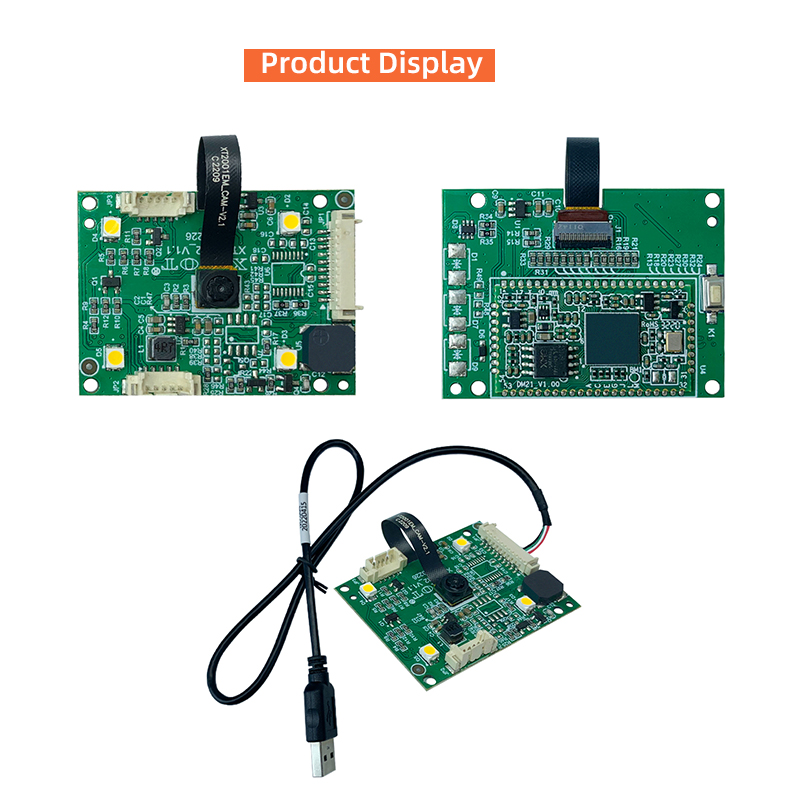

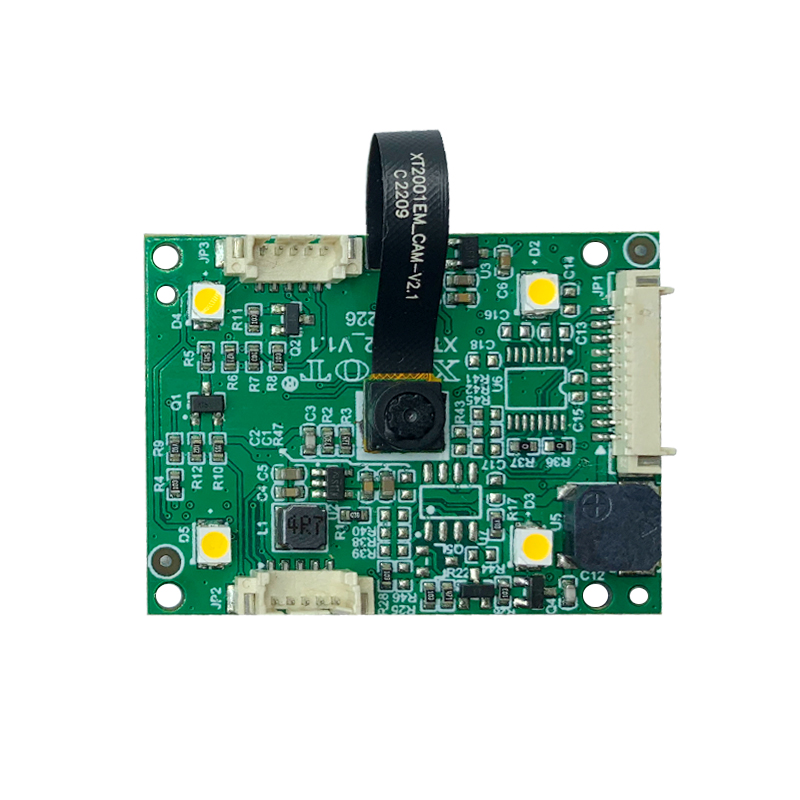

XT205M2B TTL USB OEM Scanner Engine

Fixed Mount Barcode Scanner

XT205M2B is fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL/RS485
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control

Get in touch with us to learn more.

市场价： 0.00

价格： 0.00

商品描述

Fixed Mount Barcode Scanner

XT205M2B is fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL/RS485
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control

Get in touch with us to learn more.

Technical Specifications

Image Sensor	CMOS
DPI(W*H)	640px*480px
Floodlight	White LED
1D	EAN-8, EAN-13, UPC-E, UPC-A, ISBN, ISSN, Code128, UCC/EAN-128, AIM-128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS- Limited,RSS-Expand)
2D	PDF417, Data Matrix, QR, Micro QR
Accuracy	≥3mil
Contrast Ratio	≥20%
1D：EAN-13	(13mil) 25-110mm
2D：QR Code	(15mil) 0-90mm
PDF 417	(6.7mil) 35-45mm
Data Matrix	(10mil) 30-50mm
Tilt	±60°@ 0°Roll and 0°Skew
Rotate	360°@ 0°Pitch and 0° Skew
Deflection	±60°@ 0°Roll and 0° Pitch
Field of View Angle	Horizontal: 68° Vertical: 51° Diagonal: 84.8°

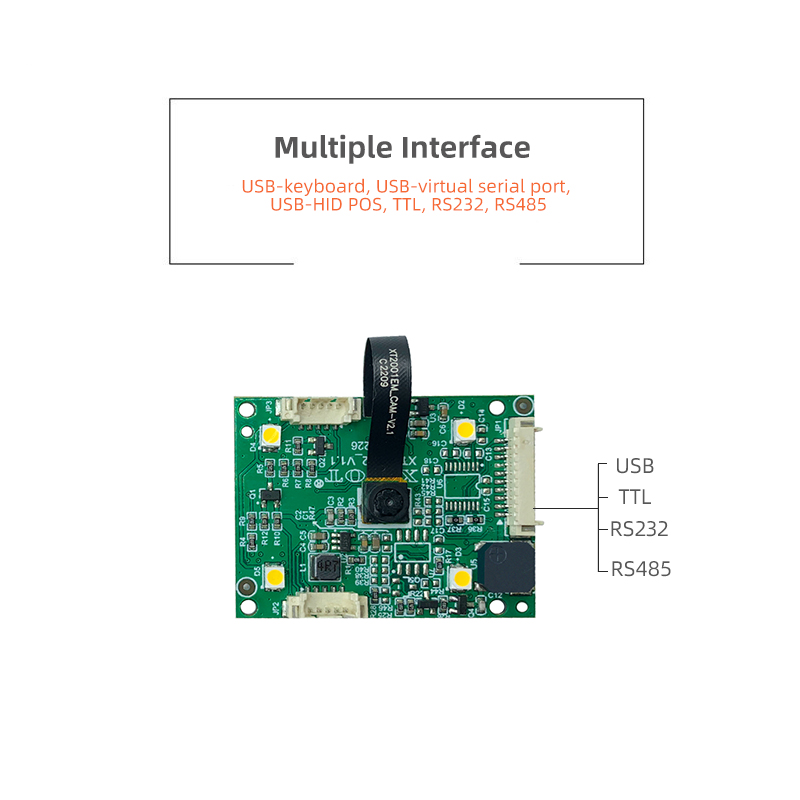

Data Interface	USB KBW, USB HID-POS, USB CDCTTL, RS 232, RS 485
Working Voltage	5VDC±5%
Working Electric Current	90mA±15mA
Standby Electric Current	230mA
Working Temperature	-20℃~+60℃
Storage Temperature	-40℃~+70℃
Relative Humidity	5%~95%（No condensation）

Specification PDF Download

User Manual Download
