XT6607

XT6607

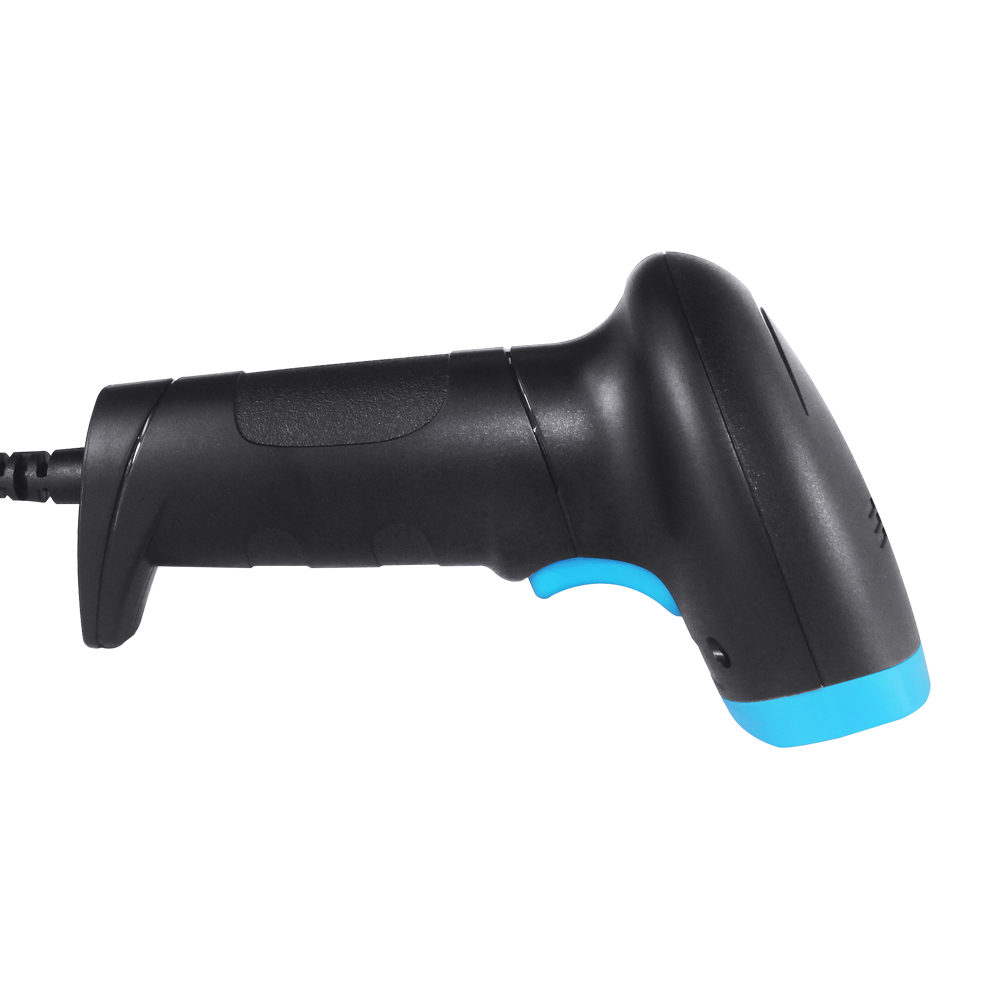

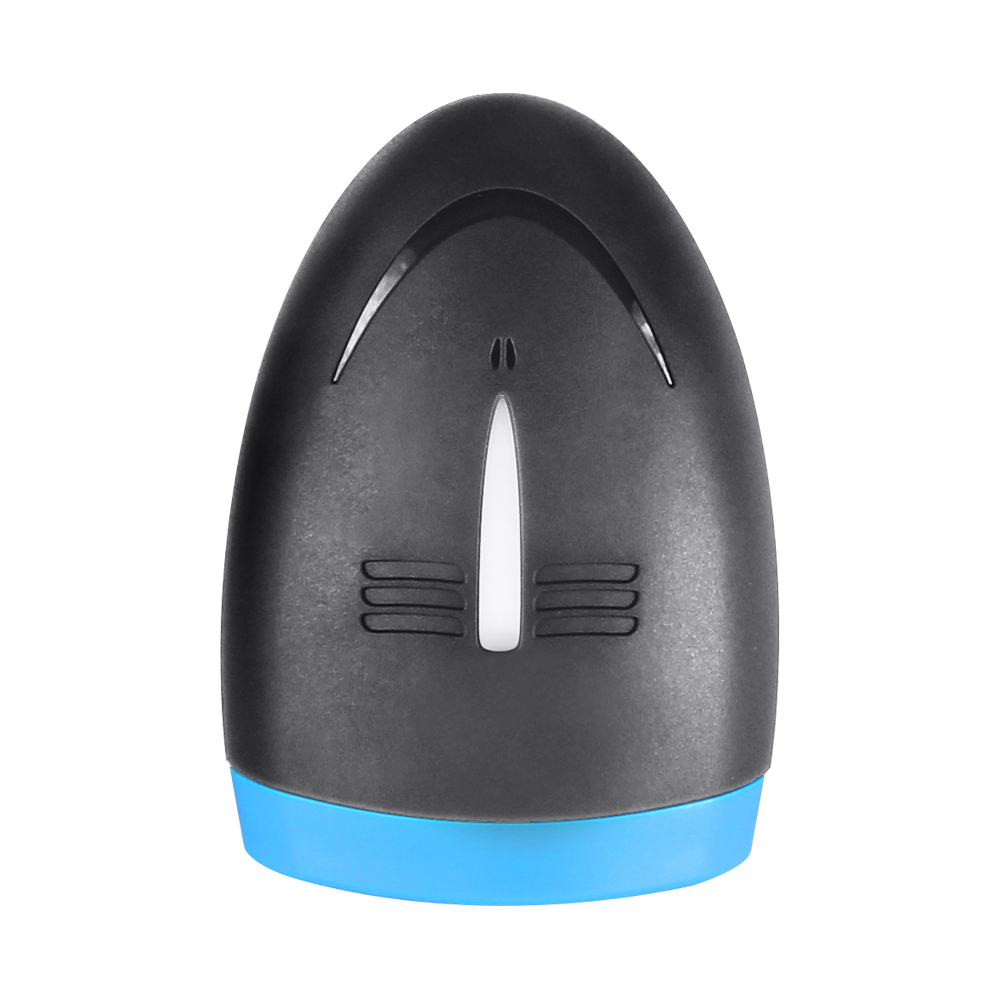

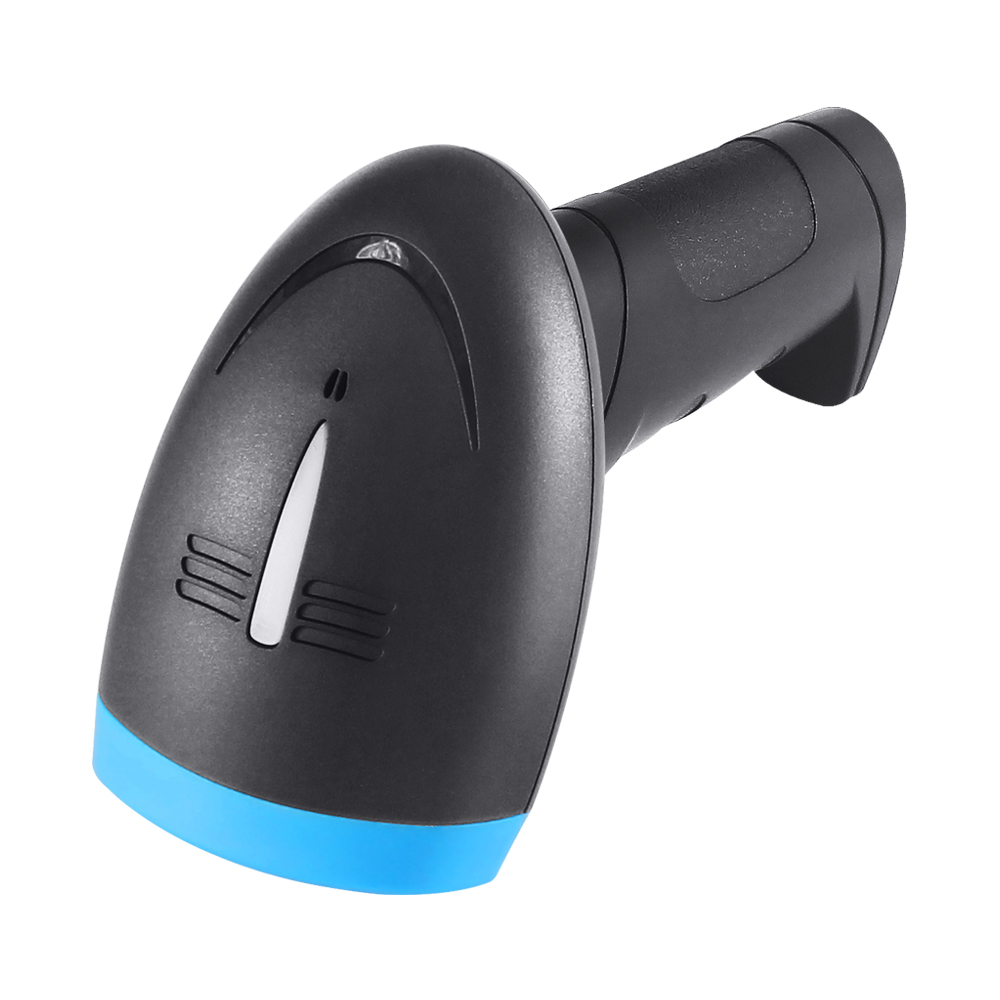

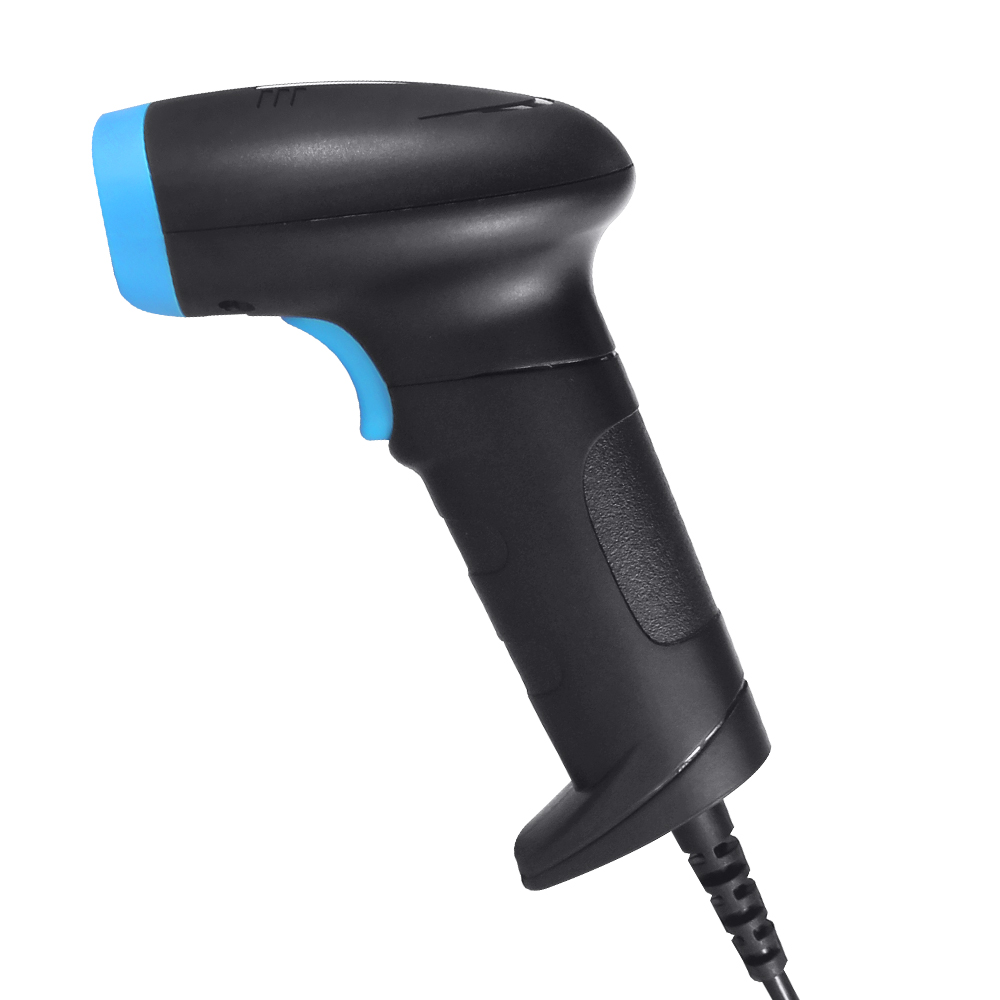

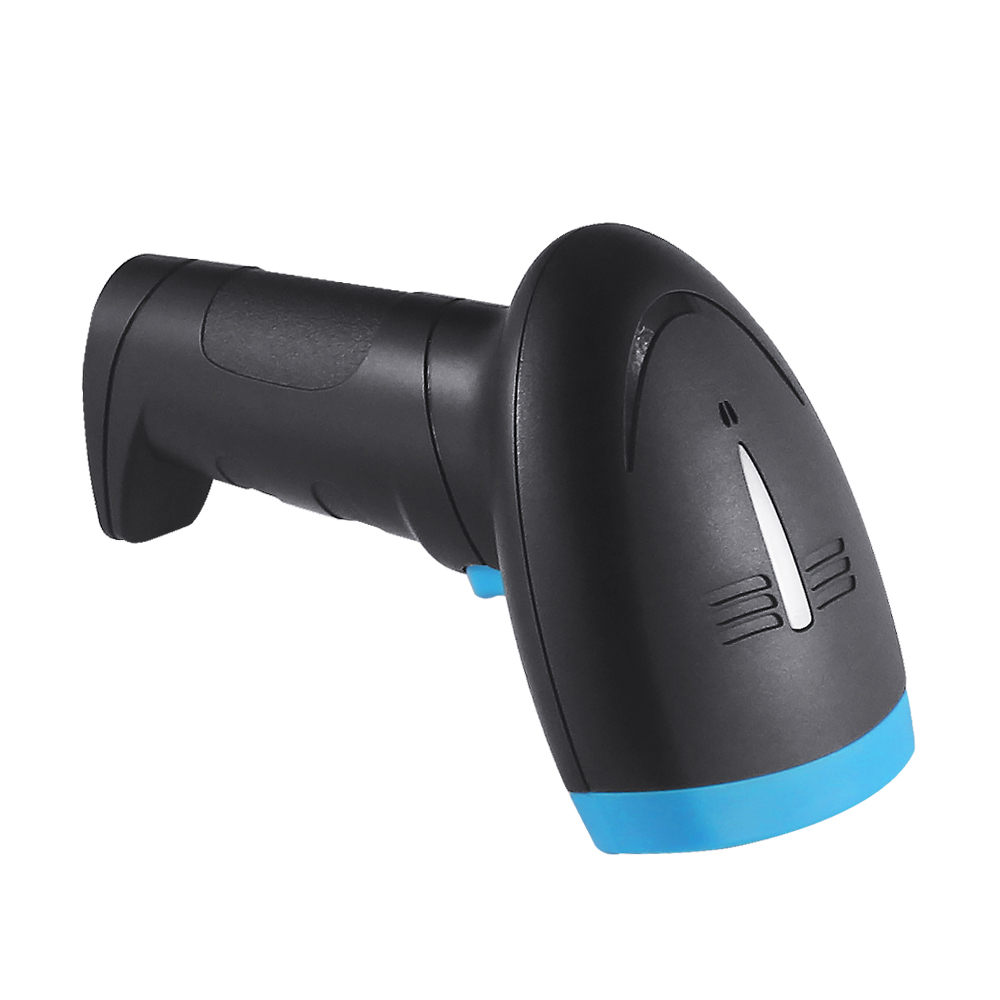

2D Wired Barcode Scanner

XT6607 is 640*480 2D barcode scanner which use global shutter CMOS, it can read EAN-13, Code 32, Datamatrix DPM code, QR code, etc.
Suitable for manufacturing, shopping mall, supermarkets, smart factory, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥4mil
Support: serial commands control

Get in touch with us to learn more.


0.00
0.00

商品描述

2D Wired Barcode Scanner

XT6607 is 640*480 2D barcode scanner which use global shutter CMOS, it can read EAN-13, Code 32, Datamatrix DPM code, QR code, etc.
Suitable for manufacturing, shopping mall, supermarkets, smart factory, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥4mil
Support: serial commands control

Get in touch with us to learn more.




Technical Specifications


Image SensorCMOS
DPI(W*H)1280px*960px
IlluminationWhite LED
Aiming Light650nm Laser
1DEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
PostalUSPS Postnet, Royal Mail, KIX Post, Australian Postal, etc.
2DPDF417, QR Code, Data Matrix, Aztec, Maxicode, OCR, etc.
Accuracy≥3mil
Lowest Contrast≥25%
1D EAN135mil   40-140mm
Code 395mil   110-250mm
2D QR Code15mil  70-280mm
Data Matrix10mil  100-250mm
Tilt±50°
Rotate360°
Deflection±50°
Field of View Angle

Horizonal: 40.5°

Vertical: 30.4°

Motion Tolerance2m/s
Prompt ModeBEEP, LED
Read ModeLevel trigger mode, Induction mode, Continuous reading mode, Batch reading mode
Data EditingSupport
Data InterfaceUSB KBW, USB CDC, USB HID POS, RS232, TTL232
Working Voltage5V±3%
Working Electric Current266mA
Standby Electric Current109mA
Working Temperature-20℃ ~ +60℃
Storage Temperature-40℃ ~ +70℃
Relative Humidity5% ~ 95%(RH)
