What Is Adjustable Baud Rate?

Adjustable baud rate refers to the ability to configure the serial communication speed of a scanning module—typically ranging from 9600 to 115200 bps (bits per second) . This adjustability ensures the scanner can match the communication requirements of different host devices, including industrial PLCs, embedded systems, legacy equipment, and custom controllers. Proper baud rate matching is essential for reliable data transmission without errors or data loss.

XTIOT Barcode Scanner Products with Adjustable Baud Rate

XTIOT offers scanning modules with configurable serial communication parameters across multiple product series.

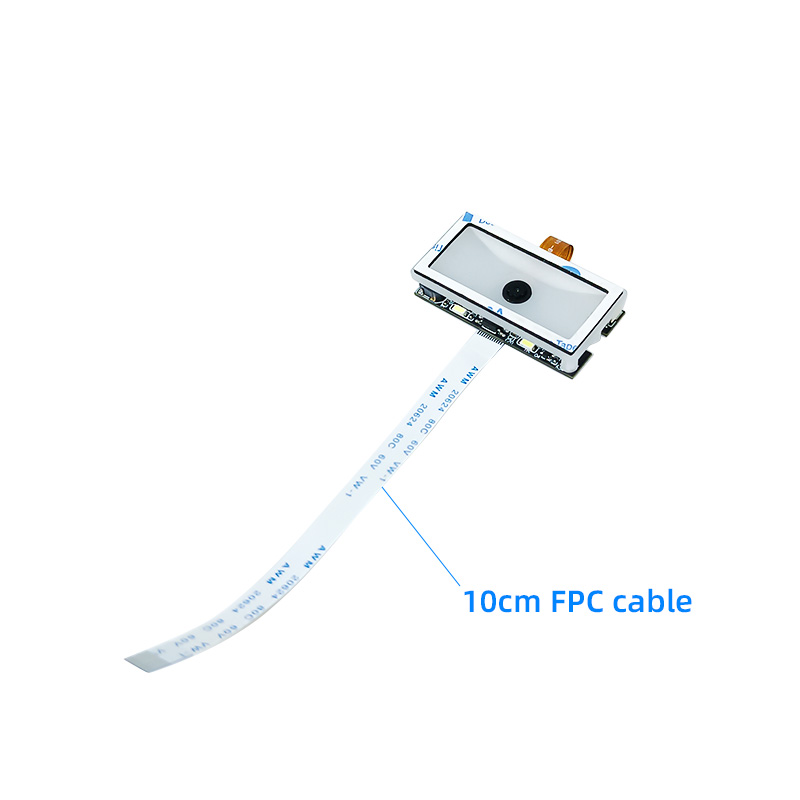

XT206H2 Ultra-Thin Embedded Module

The XT206H2 supports TTL, USB, and RS232 interfaces with adjustable baud rate for flexible integration into ultra-thin devices . With dimensions as thin as 11mm, it is designed for space-constrained applications such as hospital self-service kiosks, smart parcel lockers, and access control terminals. The adjustable serial parameters enable seamless communication with various host systems.

Perfect for:

• Hospital self-service kiosks – match baud rate to medical information systems

• Smart parcel lockers – configure for locker controller communication

• Access control turnstiles – adjust to match gate controller settings

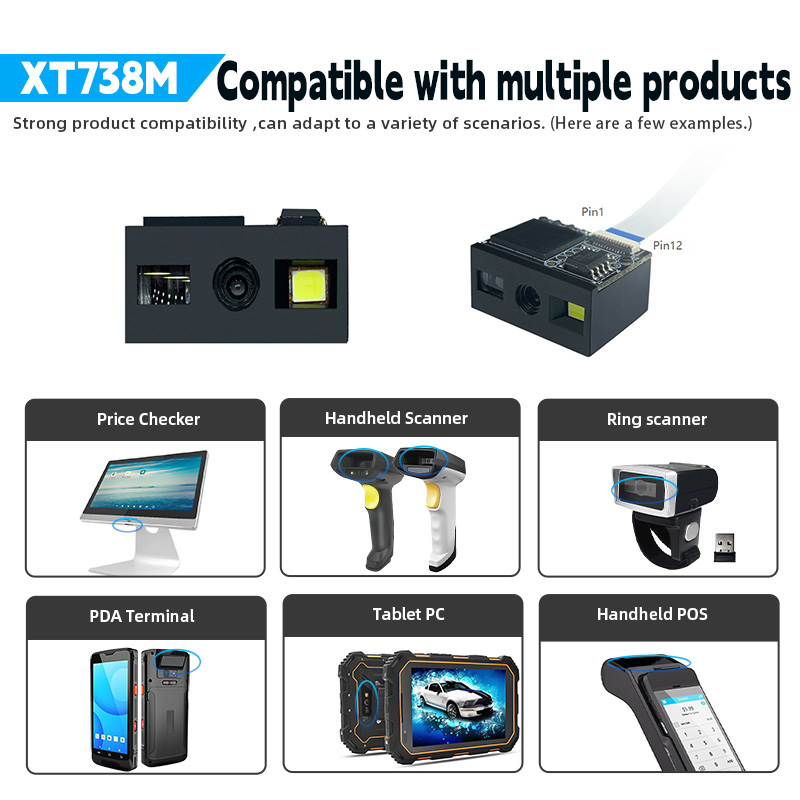

XT738M Compact Scan Module

The XT738M features TTL and RS232 interfaces with adjustable baud rate settings . Its ultra-compact design (3.2g) and configurable communication parameters make it suitable for space-constrained OEM applications. The module supports manual scan commands and multiple read modes for flexible deployment in PIN terminals, medical devices, and access control systems.

Perfect for:

• PIN terminals – match baud rate to secure transaction processors

• Medical diagnostic equipment – configure for hospital network integration

• Access control systems – adjust to match gate controller communication

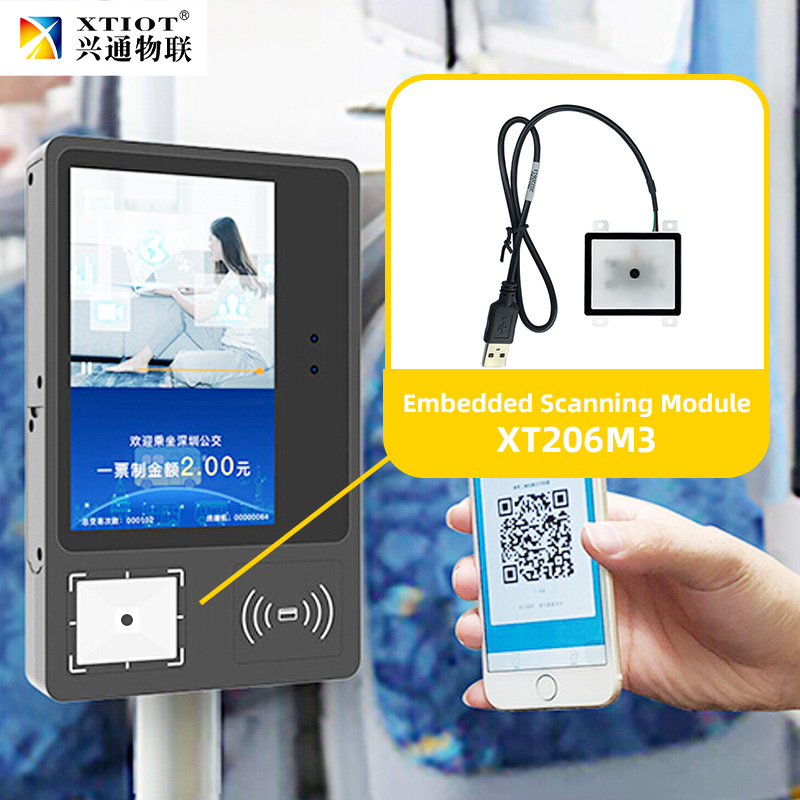

XT206M3 Fixed-Mount Barcode Scanner

The XT206M3 supports USB, TTL, and RS232 interfaces with adjustable baud rate for fixed-mount applications . With 66.4° horizontal field of view, 360° rotation, and 200 scans/sec speed, it is ideal for self-checkout kiosks, pharmacy prescription processing, and vending machines. Users can configure baud rate using programming barcodes to match host device specifications.

Perfect for:

• Self-checkout kiosks – match baud rate to POS terminal communication

• Pharmacy prescription processing – configure for hospital system integration

• Vending machines – adjust to match control board settings

XT206M1 Mini Barcode Scanner Engine

The XT206M1 supports USB, TTL, and RS232 interfaces with adjustable baud rate for embedded applications . Its ultra-compact size (40×20×11mm) and corrosion-resistant metal body make it ideal for smart shopping cart tablets, payment terminals, and OEM device manufacturing. Adjustable serial parameters ensure compatibility with various host systems.

Perfect for:

• Smart shopping cart tablets – match baud rate to tablet mainboard communication

• Mobile payment terminals – configure for payment processor integration

• 3D printer accessories – adjust for embedded controller settings

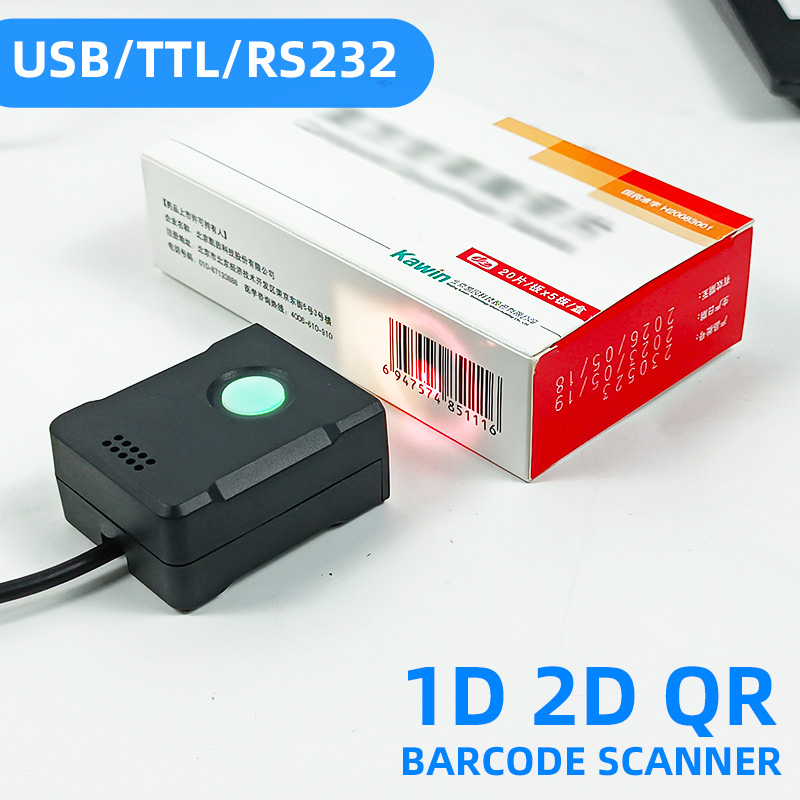

XT2010 Fixed-Mount Barcode Scanner Module

The XT2010 supports USB HID, USB VCOM, TTL 232, and RS232 interfaces with adjustable baud rate from 9600 to 115200 . With 300 scans/sec speed and 640×480 CMOS sensor, it is designed for logistics sorting stations, ordering kiosks, and pharmaceutical packaging lines. Users can configure baud rate using programming barcodes in the user manual.

Perfect for:

• Logistics sorting stations – match baud rate to conveyor control systems

• Ordering kiosks – configure for mainboard communication

• Pharmaceutical packaging lines – adjust for legacy PLC equipment

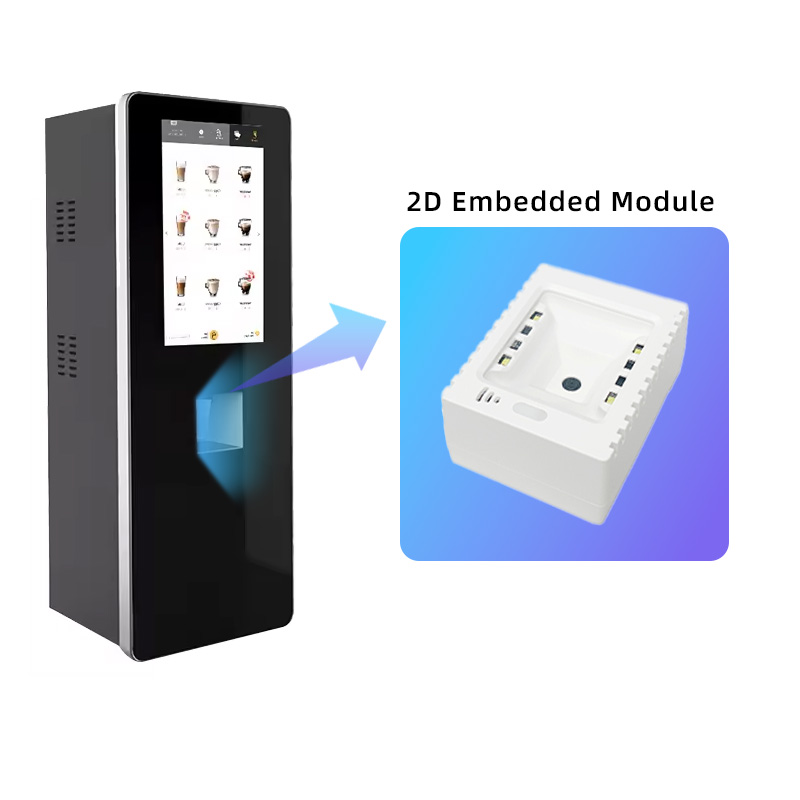

XT2002D Payment Scanner Module

The XT2002D supports RS232, COM, and USB interfaces with adjustable baud rates for POS systems and payment terminals . With 300 scans/sec speed and excellent mobile screen code reading, it is ideal for retail checkout systems, vending machines, and self-service payment kiosks. Users can configure baud rate using programming barcodes to match host device specifications.

Perfect for:

• Retail checkout systems – match baud rate to POS terminal communication

• Vending machines – configure for control board settings

• Self-service payment kiosks – adjust for compatibility with secure transaction processors

Baud Rate Configuration Overview

How XTIOT Supports Baud Rate Configuration

Programming Barcodes

XTIOT scanners include programming barcodes in the user manual that allow users to set baud rate by simply scanning the corresponding code—no software or special tools required.

Serial Communication Tools

For advanced configuration, XTIOT provides serial communication software that enables precise baud rate setting and testing.

Parameter Matching

Proper configuration includes setting data bits, stop bits, and parity in addition to baud rate to ensure complete communication compatibility.

Wide Host Compatibility

Adjustable baud rates ensure XTIOT scanners work with:

• Industrial PLCs (Siemens, Mitsubishi, Allen-Bradley)

• Embedded controllers (ARM, Arduino, Raspberry Pi)

• Legacy systems requiring slower 9600 baud communication

• Modern high-speed systems utilizing 115200 baud

Critical Applications Requiring Adjustable Baud Rate

Why Adjustable Baud Rate Matters

Without adjustable baud rate, engineers face:

• Incompatibility issues – scanner may not communicate with host system

• Data errors – baud rate mismatch causes corrupted transmission

• Integration delays – need for external converters or custom software

• Limited deployment – scanner locked to single communication speed

XTIOT delivers this capability with scanners supporting adjustable baud rates from 9600 to 115200, enabling seamless integration with diverse host systems—from legacy industrial PLCs to modern high-speed embedded controllers.

Configure the perfect baud rate for your host system. Contact XTIOT today for programming barcode guides and integration support.
