What Are I/O Control Interfaces?

I/O control interfaces refer to digital input and output pins on a scanning module that enable direct connection to PLCs (Programmable Logic Controllers), sensors, actuators, and automation equipment. Inputs receive trigger signals from the production line, while outputs send status feedback—such as successful read, failed read, or scan complete. This capability enables seamless integration with industrial automation systems without requiring intermediate computers .

XTIOT Barcode Scanner Products with I/O Control Interface

XTIOT offers scanning modules engineered with digital I/O capabilities for direct integration with PLCs and automation equipment.

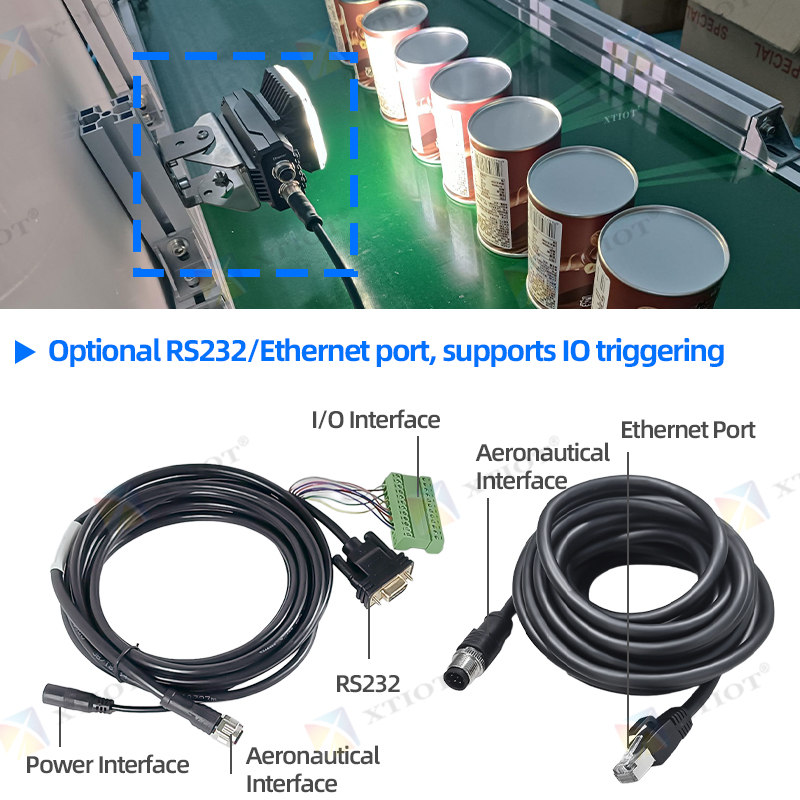

XT8601B Industrial Batch Scanner

The XT8601B features 3 digital inputs and 3 digital outputs for direct connection to PLCs and automation equipment . This I/O configuration enables:

• External trigger signals – Inputs receive scan triggers from sensors or line controllers

• Status feedback – Outputs send pass/fail signals to sorters, alarms, or next-stage equipment

• Synchronization – Coordinates scanning with conveyor systems and material handling

With 99.7% recognition accuracy and the ability to read up to 100 Data Matrix codes in a single scan, it integrates directly with PROFINET, Ethernet/IP, ModBus, and TCP/IP for comprehensive industrial control .

Perfect for:

• Automotive assembly lines – PLC triggers scanner when parts arrive; output sends verification to robot arm

• Pharmaceutical packaging – input from conveyor sensor triggers batch scanning; output signals reject gate for failed reads

• Lithium battery production – synchronized scanning with manufacturing cell controllers

• Semiconductor manufacturing – direct I/O connection to wafer handling equipment

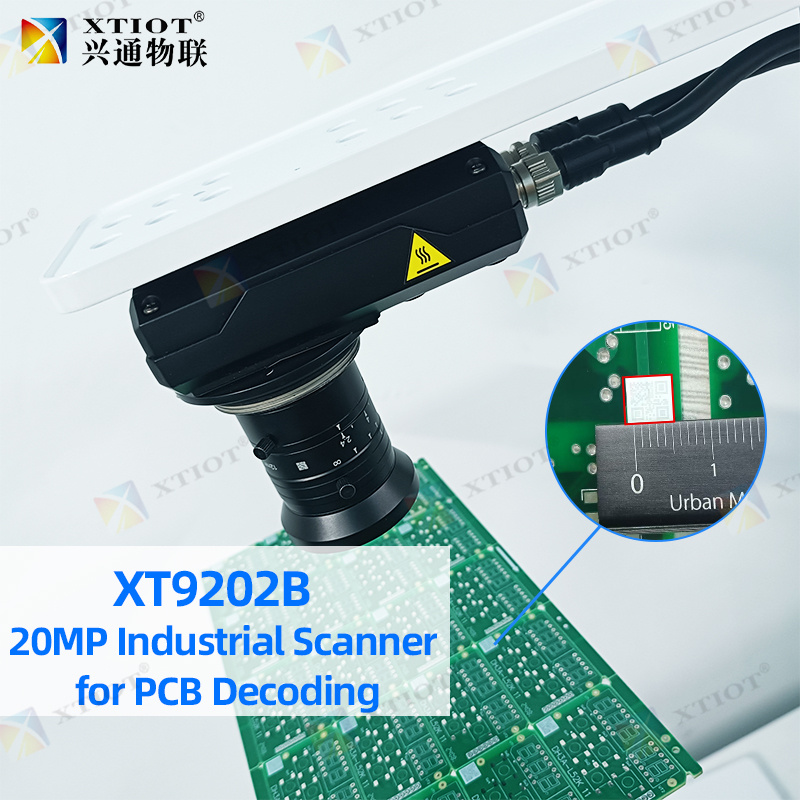

XT9202B Industrial Fixed-Mount Scanner

The XT9202B supports RS-232, Gigabit Ethernet, and digital I/O for direct connection to PLCs and automation systems . It integrates with PROFINET, Ethernet/IP, and ModBus protocols, enabling comprehensive communication with factory control networks. The scanner can identify up to 100 barcodes simultaneously for high-volume applications.

Perfect for:

• Conveyor sorting systems – input triggers scanner as packages pass; output signals diverter for sorting

• Automated logistics hubs – I/O synchronization with warehouse control systems

• Electronics assembly – direct connection to pick-and-place machine controllers

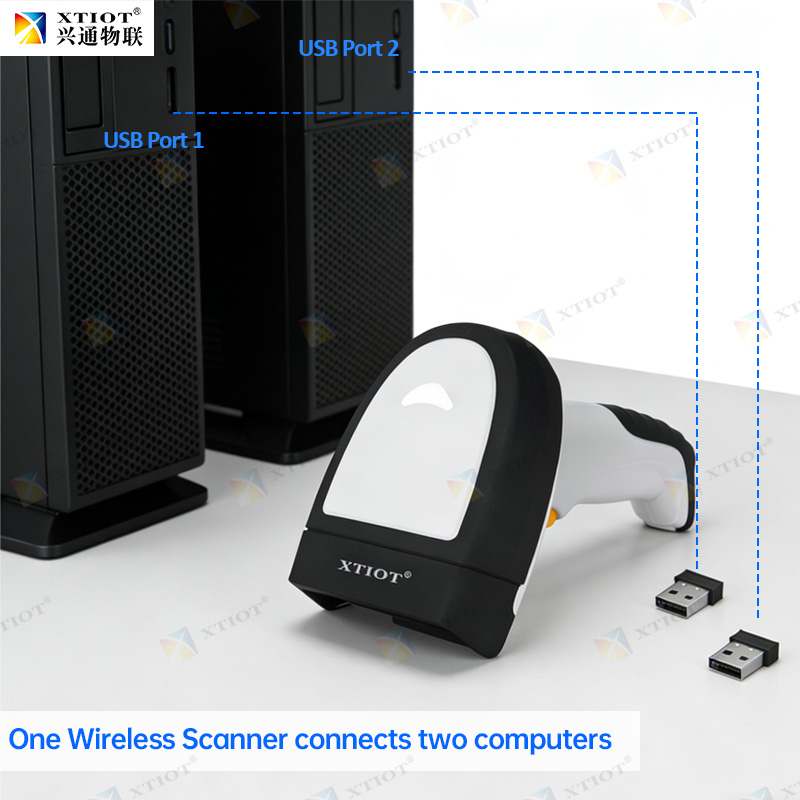

XT6202-2 Wireless Dual-Receiver Scanner

The XT6202-2 addresses a unique application scenario—transmitting data from one scanner to two PLCs or computers simultaneously . Using two 2.4G USB mini receivers, it splits data to two different receiving devices, enabling multi-terminal collaboration such as simultaneous recording to quality inspection and logistics systems .

Perfect for:

• Quality control stations – send scan data to both QC system and production tracking simultaneously

• Dual-system operations – simultaneous logging to MES and ERP databases

• Cross-department verification – data shared between manufacturing and logistics without duplication

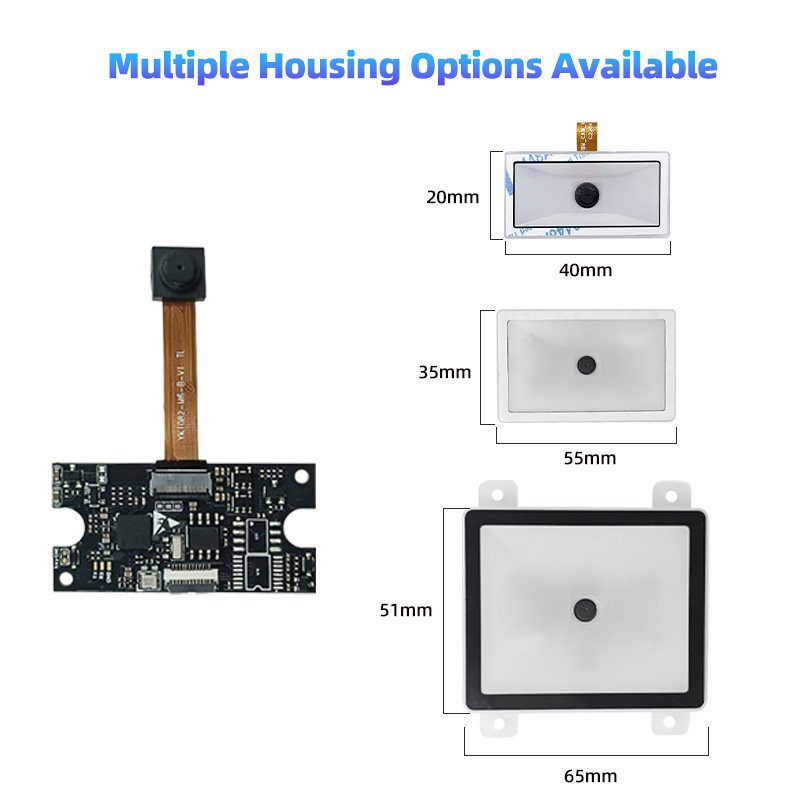

XT2002D / XT206M Series

The XT2002D and XT206M series offer multiple interface options including RS232, TTL, and USB for integration with industrial equipment . While primarily designed for data transmission, their serial interfaces can be configured to work with PLCs and industrial controllers through standard communication protocols .

Perfect for:

• Vending machine controls – trigger scanning when product is selected

• Access control systems – I/O integration with turnstile and gate controllers

• Self-service kiosks – interface with touchscreen controllers

I/O Control Capabilities Overview

Critical Applications Requiring I/O Control

How XTIOT Supports I/O Control Integration

Direct PLC Triggering

XTIOT scanners with digital inputs can be triggered directly by PLCs or line sensors, eliminating the need for manual button presses or software polling.

Status Feedback for Automation

Digital outputs provide real-time status signals—successful reads trigger next-stage equipment; failed reads activate alarms or reject mechanisms.

Dual-System Data Distribution

The XT6202-2 uniquely enables one scan, two systems, allowing data to flow simultaneously to quality control and logistics platforms without duplication.

Industrial Protocol Integration

Combining I/O with PROFINET, Ethernet/IP, and ModBus enables comprehensive control—scanners become active participants in the automation network.

Why I/O Control Matters for Automation

Without I/O control interfaces, integration requires:

• Software polling – slower response to scanning events

• Manual triggers – operators press buttons for each scan

• Separate feedback systems – additional hardware for pass/fail indication

• Data duplication – manual re-entry to multiple systems

XTIOT delivers this capability with scanners featuring dedicated I/O pins that enable direct, real-time communication between barcode reading and production line control systems.

Integrate XTIOT scanners directly into your automation line. Contact XTIOT today for I/O configuration and PLC integration support.
