What makes the XT206M1 a strong choice for OEM projects

Here are the standout features:

• Ultra-compact dimensions: The module measures approximately 40 × 20 × 11 mm (as specified) which is ideal for embedding into tight device spaces.

• 1D + 2D scanning support: It supports a wide range of 1D symbologies (Code128, EAN, UPC, Codabar etc) and 2D codes (QR, MicroQR, PDF417, DataMatrix, Aztec).

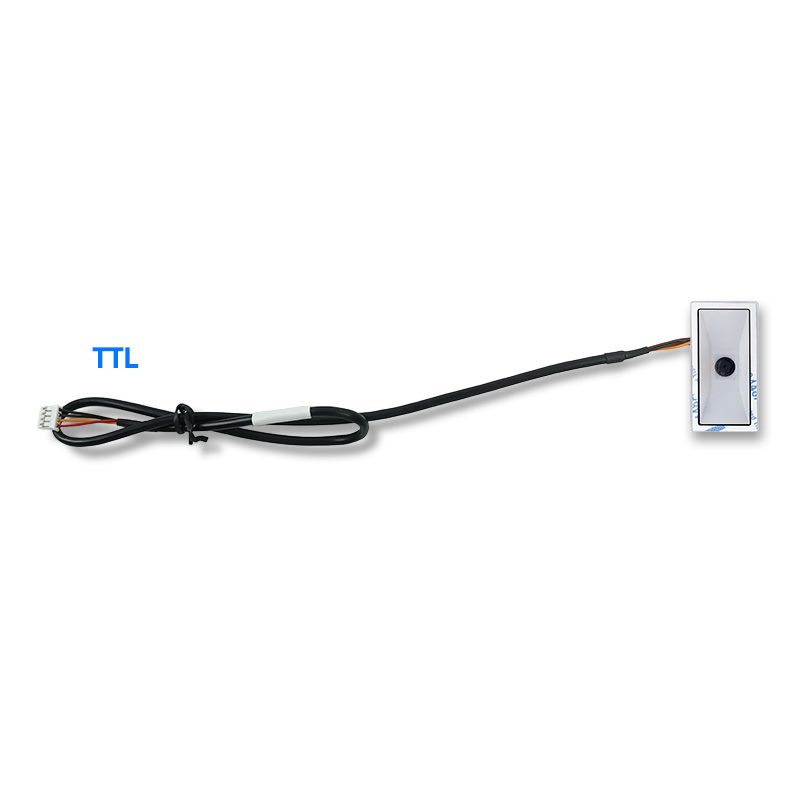

• Multiple interface options: Interfaces include USB (HID/Virtual COM), TTL, RS232 — giving flexibility for integration into various control boards, kiosks, embedded systems.

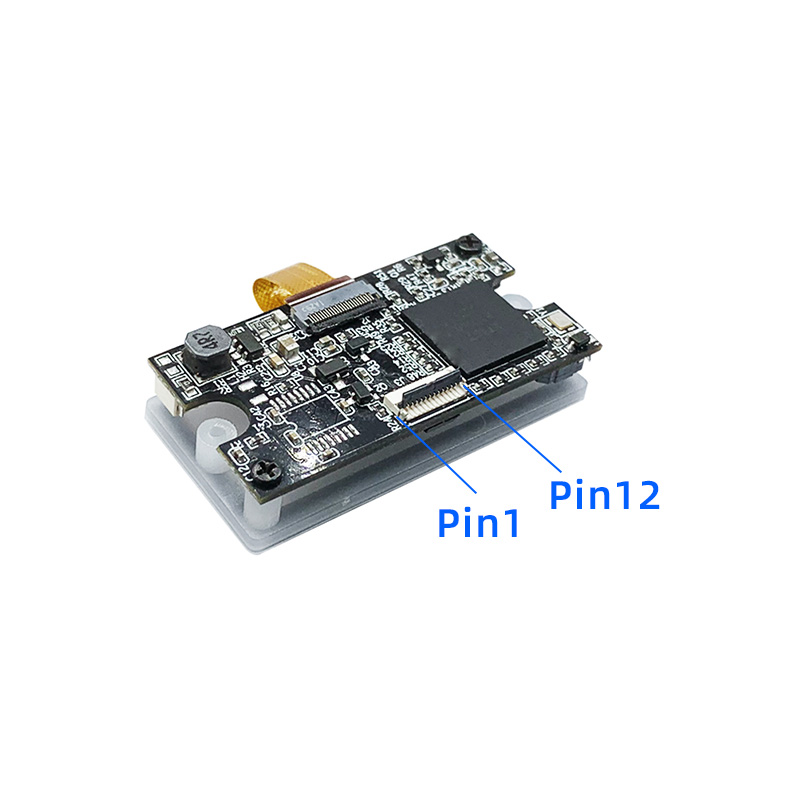

• OEM/ODM friendly: The manufacturer provides customization options for OEM logo, packing, cable lengths, pin-assignments which is key for product branding and integration.

• High performance optics: Example specs – image sensor CMOS, 640×480dpi, accuracy ~5 mil, field of view ~66.4° horizontal.

• Wide application environment: While bearing in mind it's not necessarily sealed for harsh outdoor use (some caution), it's designed for embedding in devices like payment terminals, kiosks, 3D-printer accessory modules and more.






Ideal Use-Cases in OEM Projects

Here are some typical scenarios where XT206M1 shines:

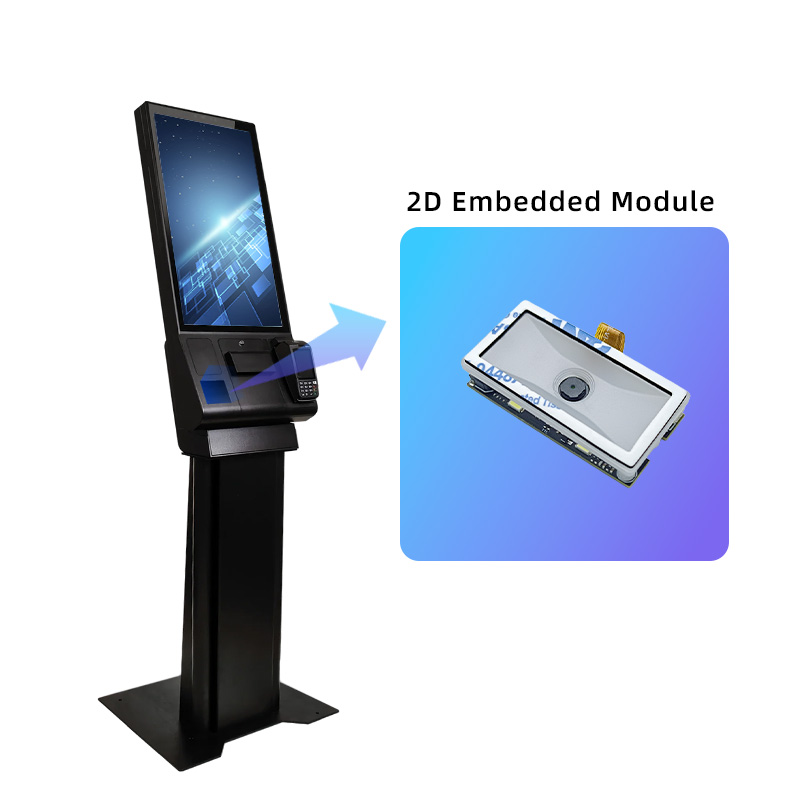

• Self-service kiosks & vending machines: You need a tiny, reliable scanner engine embedded into the kiosk frame for users to scan QR/barcodes. XT206M1 provides the scanning core without a bulky shell.

• Embedded in 3D-printers / smart machines: For machines that need to read barcoded labels, parts or job-tickets; the compact size means minimal redesign.

• Payment terminals or bus/ticketing devices: When you need to embed a code scanner into a payment or ticketing hardware, this module gives you flexibility and performance.

• OEM device branding: If you’re manufacturing your own brand of device (POS, medical equipment, industrial device) and need a barcode engine you can brand and integrate — XT206M1 fits.






Why choose XT206M1 over a full-handheld scanner?

• Space & cost efficiency: You skip the housing, trigger, battery, full casing — just get the engine you need and integrate it your way.

• Customization freedom: With OEM support you can tailor mounting, cable length, interface and branding exactly for your device.

• Integration ease: With supported interfaces like TTL/RS232/USB you can plug in to many micro-controllers or embedded systems without major extra hardware.

• Compact footprint: Enables slimmer, sleeker device designs rather than accommodating a full handheld scanner module.

Technical Snapshot (from public specs)

• Model: XT206M1

• Supported symbologies: 1D (Code128/AIM128 etc), 2D (QR, PDF417, DataMatrix)

• Interface: USB HID / USB VCOM / TTL / RS232

• Image sensor: CMOS 640×480 dpi

• Size: ~40×20×11 mm

• Operating temp: 0°C to +50°C (some specs)

• OEM support: Yes – customization for cable, logo, packing etc.
