For XTIOT Barcode Scanner Serial Command, please contact our Sales!

The function of the scanning module is to scan the 1D code and 2D code QR code, and upload the scan result to the host, and the host will issue the next instruction according to the scanned data. It is generally embedded in various devices, so its form It varies according to the usage scenario.

For example, the scanning module used in the production line requires high scanning accuracy, fast scanning speed, easy installation, compatibility with various systems, secondary development, and scanning of various materials, such as wood, stone, PCB board, various For metal bearings, etc., the barcode is no longer a simple code printed by a printer, but various types of laser engraving codes and laser inkjet codes. Xingtong IOT has developed XT2010 and XT2060 for this application. Now let's talk about these two products:

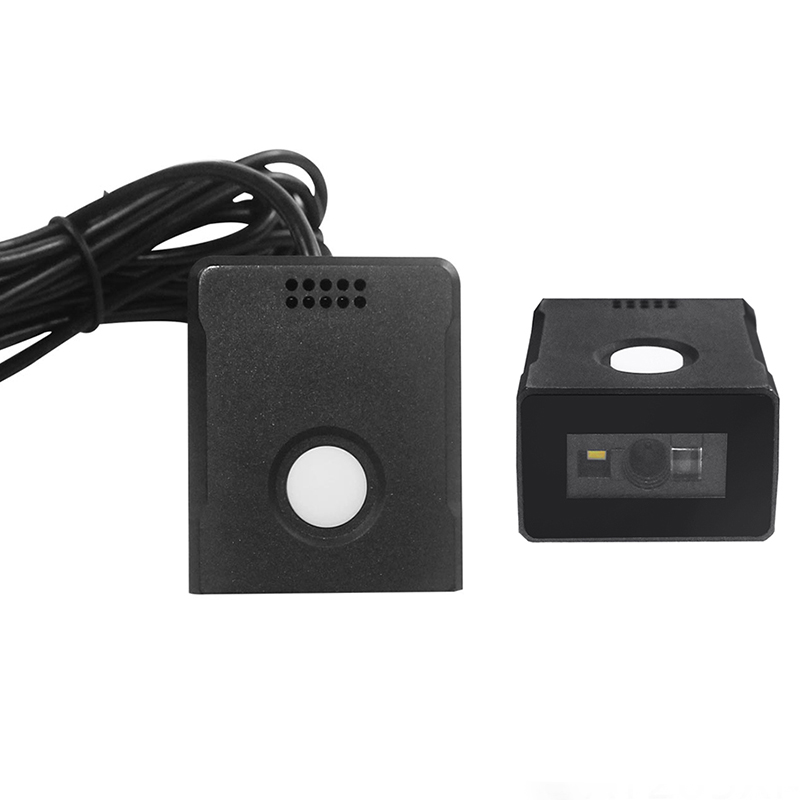

XT2010 is 640*480CMOS, the size is 41.2*24*49.2mm, which can quickly identify all kinds of 1D codes, 2D codes, DPM codes, mobile phone screen codes, stained and confused codes, all kinds of small barcodes, coated reflective codes, quick freezing Packaging code, WeChat Alipay payment code, etc., good scanning performance, compatible with a variety of systems, simple assembly, easy to use!

You can choose according to the actual usage scenario. If you have any questions, you can call the customer service of Xingtong IoT for consultation. Xingtong provides complete pre-sale, in-sale and after-sale technical support services!

The application of the turnstile is very extensive, and it is used in all kinds of office buildings, construction sites, schools, stations, etc., and the popularity of smart phones has added a function of scanning the code to the turnstile. This function of scanning the code to open the gate is internal The credit for installing the code scanning module.

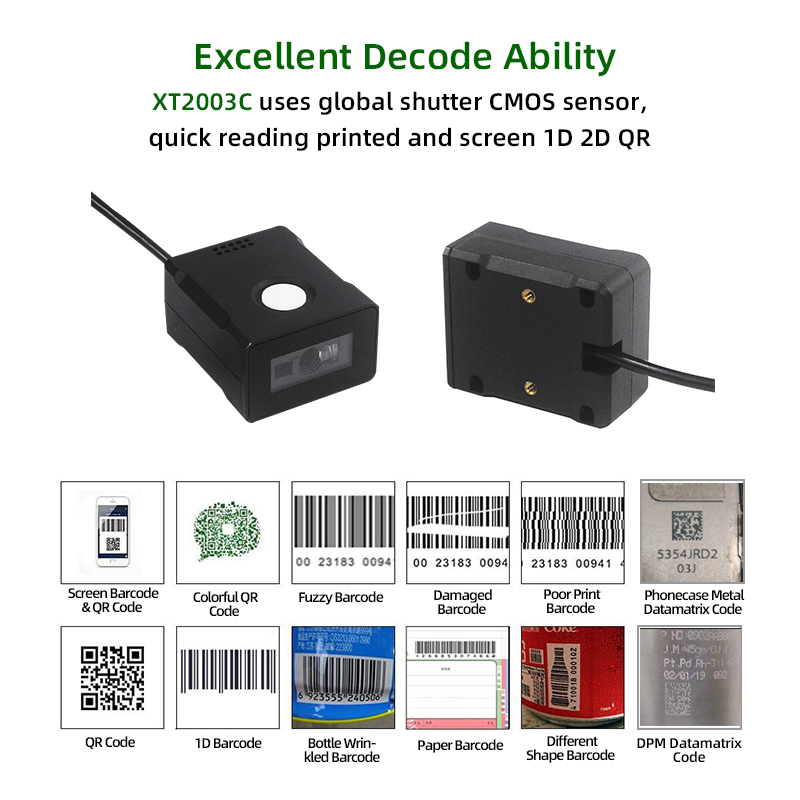

The XT2003C and XT205M2 produced by Xingtong are specially designed for all kinds of turnstiles. The XT2003C two-dimensional code scanning module adopts a new generation of decoding technology, which can quickly read various paper barcodes, mobile phone film codes, low-brightness mobile phone codes, with fast scanning speed, high recognition, sensitive scanning, and stable product performance. advantage. The fill light has the function of automatic dimming, the standby time is dark, and the code reading time is bright. And can automatically adjust the brightness of the light according to the distance of the object. Large window design, wider scanning range. Simple installation, only two screws are needed to fix it; compatible with various systems, IOSAndroidWindows, etc.; rich interfaces: USBRS232RS485TTL.

Compared with the XT2003C, the XT205M2 is smaller in size. The XT205M is an embedded QR code scanning module with a size of 65*61*28.5mm and a weight of 38g. It is specially designed for embedded machines that need to scan codes. A two-dimensional code scanning module, its surface is flat, sealed and waterproof. It uses a wide-angle lens to scan the code 360 degrees. The scanning mode has automatic induction, trigger mode, manual mode and other modes to choose from. Can scan all kinds of 1D, 2D codes, mobile payment codes; built-in buzzer, synchronous sound when scanning; simple installation, only need two screws to fix; compatible with a variety of systems; rich interfaces: USBRS232TTL.

Tobacco, as the best source of tax revenue in various countries, has always been operated by the government. The QR code scanning module specially used to scan the PDF417 code of ID documents required by tobacco control in the United States is used as the front-end hardware device for data entry. Accurately enter the identity information so that the back-end software can analyze and work in the next step.

The XT2010 produced by Shenzhen Xingtong IOT is specially designed for scanning US ID documents PDF417.

This scanning module is 640*480CMOS. The CPU adopts high-speed ARM chip, which is highly integrated and has excellent performance. Its size is compact, and the scanning head weighs only 9 grams. Small and light requirements for the design of similar scanning equipment. TTL, RS232, USB multiple interfaces, compatible with win XP, win7, win10, IOS, Android, industrial computer, server and other devices, the secondary development is simple and convenient, and it can scan PDF417 code quickly and accurately.
