As parcel lockers become increasingly popular in e-commerce, logistics, and click-and-collect services, barcode scanners have become one of the most critical components inside the locker system. A reliable barcode scanner enables users to collect parcels quickly while helping operators improve efficiency and reduce maintenance costs.

This article explains what to consider when selecting a barcode scanner for parcel lockers and why OEM scanner modules are the preferred choice for locker manufacturers.

Why Parcel Lockers Need Barcode Scanners

A parcel locker barcode scanner allows customers to retrieve packages by scanning a barcode or QR code from:

• Mobile phones

• Printed pickup slips

• Shipping labels

• Courier apps

• SMS or email pickup codes

The scanner sends the decoded information to the locker controller, which verifies the pickup code and automatically opens the correct compartment.

Key Requirements for Parcel Locker Barcode Scanners

Not all barcode scanners are suitable for unattended locker applications. A scan engine designed for parcel lockers should offer the following features.

Fast Screen Barcode Reading

Most users present pickup QR codes on smartphones.

A high-quality scanner should quickly decode:

• QR Code

• Data Matrix

• PDF417

• Code128

• EAN-13

• Code39

Fast decoding improves the customer experience and reduces waiting time.

Reliable Performance in Different Lighting Conditions

Parcel lockers are installed in many environments:

• Shopping malls

• Residential communities

• Office buildings

• Outdoor locations

• Transportation hubs

A scanner should perform consistently under:

• Bright sunlight

• Indoor lighting

• Low-light environments

• Reflective phone screens

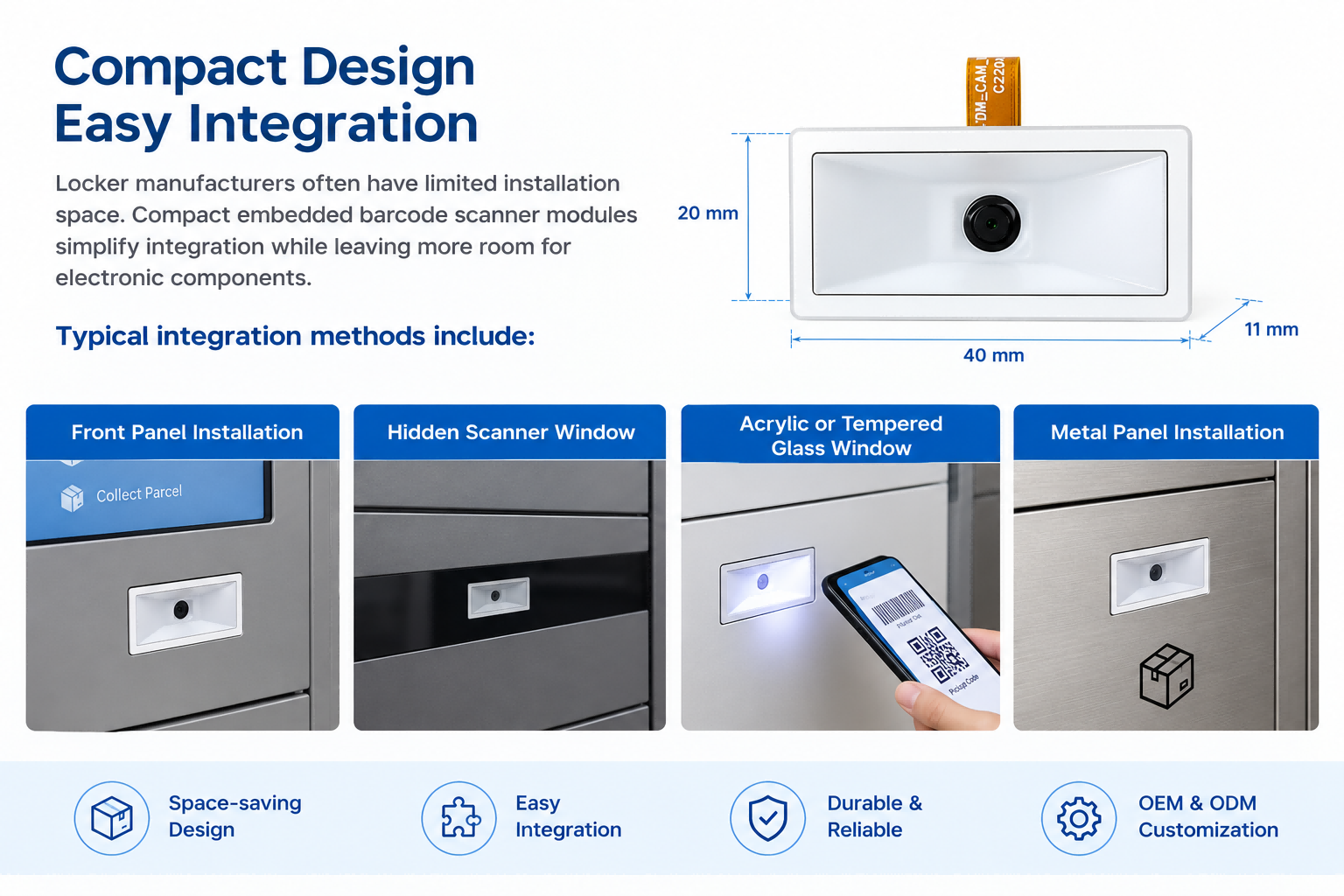

Compact Size for Easy Integration

Locker manufacturers often have limited installation space.

Compact embedded barcode scanner modules simplify integration while leaving more room for electronic components.

Typical integration methods include:

• Front panel installation

• Hidden scanner window

• Acrylic or tempered glass window

• Metal panel installation

Multiple Communication Interfaces

OEM customers typically require flexible interfaces.

Common options include:

• USB HID

• USB CDC

• RS232

• TTL UART

These interfaces allow easy communication with embedded controllers, industrial PCs, and ARM platforms.

Continuous Operation

Parcel lockers operate 24 hours a day.

A barcode scanner should provide:

• Stable long-term operation

• Low power consumption

• Fast wake-up

• Reliable decoding without frequent maintenance

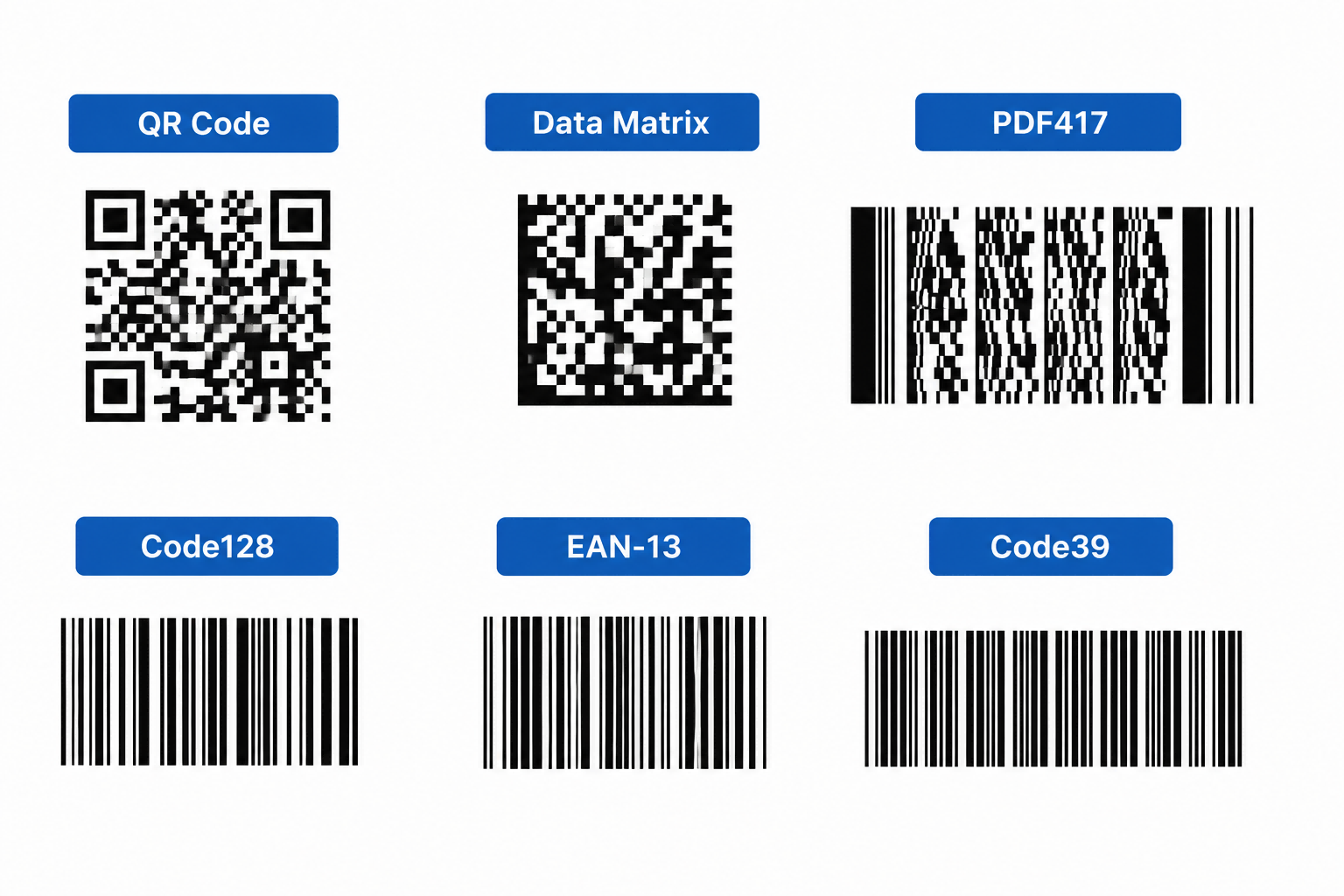

Common Barcode Types Used in Parcel Lockers

A parcel locker scanner should support a wide range of barcode formats, including:

2D Codes

• QR Code

• Data Matrix

• PDF417

• Aztec

1D Codes

• Code128

• Code39

• EAN-13

• UPC

• Codabar

• Interleaved 2 of 5

This compatibility allows the locker system to work with different courier companies worldwide.

OEM Customization for Parcel Locker Manufacturers

Every locker manufacturer has unique hardware requirements.

OEM customization may include:

• Housing color

• Mounting structure

• Communication interface

• Trigger mode

• Firmware configuration

• Cable length

• Connector type

• Logo customization

These options help manufacturers integrate the scanner seamlessly into their locker systems.

Typical Applications

Embedded barcode scanners are widely used in:

• Smart parcel lockers

• Click-and-collect lockers

• Campus lockers

• Apartment parcel lockers

• Office parcel lockers

• Pharmacy pickup lockers

• Refrigerated lockers

• E-commerce pickup stations

Choosing the Right Barcode Scanner

When selecting an OEM barcode scanner for a parcel locker project, consider the following factors:

• Reading performance for smartphone screens

• Supported barcode symbologies

• Installation space

• Communication interface

• Operating environment

• Long-term reliability

• OEM customization capability

A properly selected scanner can improve pickup speed, reduce maintenance, and enhance the overall user experience.

XTIOT Barcode Scanner Solutions for Parcel Lockers

XTIOT provides embedded barcode scanner modules for OEM parcel locker manufacturers and system integrators.

Our solutions support:

• Fast QR code scanning

• Mobile phone screen barcode reading

• USB, RS232, and TTL communication

• Compact embedded designs

• OEM & ODM customization

• Easy integration into self-service locker systems

Whether you are developing smart parcel lockers, click-and-collect terminals, or automated pickup stations, XTIOT offers barcode scanning solutions designed for reliable 24/7 operation.
