Why Bioreagent Receiving Requires Specialized Scanning
Bioreagents (enzymes, antibodies, kits, cytokines) demand strict cold chain conditions (-20°C or -80°C). Upon arrival, laboratories must:
Scan reagent kit/vial barcode: record name, catalog number, lot number, expiry, concentration, specification, storage temperature
Verify cold chain integrity: scan temperature data logger to validate transport temperature records
Quality controls and standards: scan traceability code to link to calibration certificate
Without proper scanning: Temperature excursions go undetected → degraded reagents → invalid test results. Missing calibration certificates → audit failure.
XTIOT Scanners for Bioreagent Cold Chain Receiving

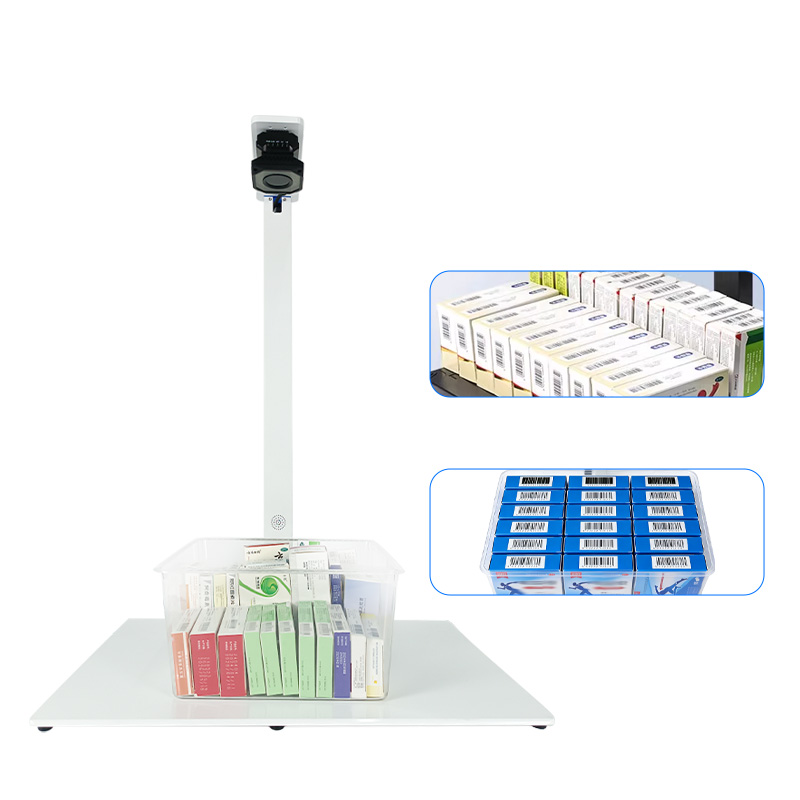

🔹 XT8601B – Batch Scanner for High-Volume Reagent Receiving
The XT8601B is an industrial fixed scanner with batch reading capability, ideal for high‑volume reagent kit receiving .
| Feature | Specification |
|---|---|
| Batch scan | Up to 100 codes per trigger |
| Read speed | 90 codes per second |
| Accuracy | 99.9% recognition rate |
| IP65 | Dustproof and waterproof |
| Interfaces | USB, Ethernet, RS232 |
Use for: Batch scanning reagent kit barcodes, pallet‑level receiving, lot number verification.

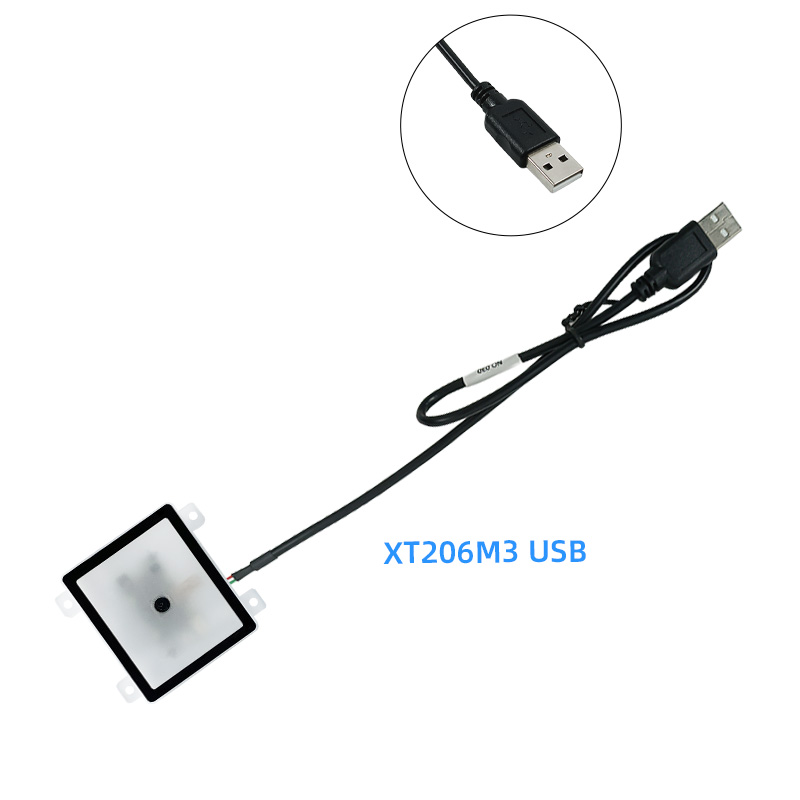

🔹 XT206M3 – Compact Scanner for Cold Chain Data Logger Reading
The XT206M3 is a compact fixed scanner optimized for reading barcodes on temperature data loggers and reagent vial labels.
| Feature | Specification |
|---|---|
| Size | 61×65×11mm |
| Sensor | 640×480 CMOS |
| Field of view | 66.4°H × 49.8°V |
| Interfaces | USB, RS232, TTL |
| Auto‑sensing | Yes – no trigger needed |
| Ambient light | 0–100,000 Lux |
Use for: Scanning temperature recorder barcodes, small vial labels, freezer storage zone codes.

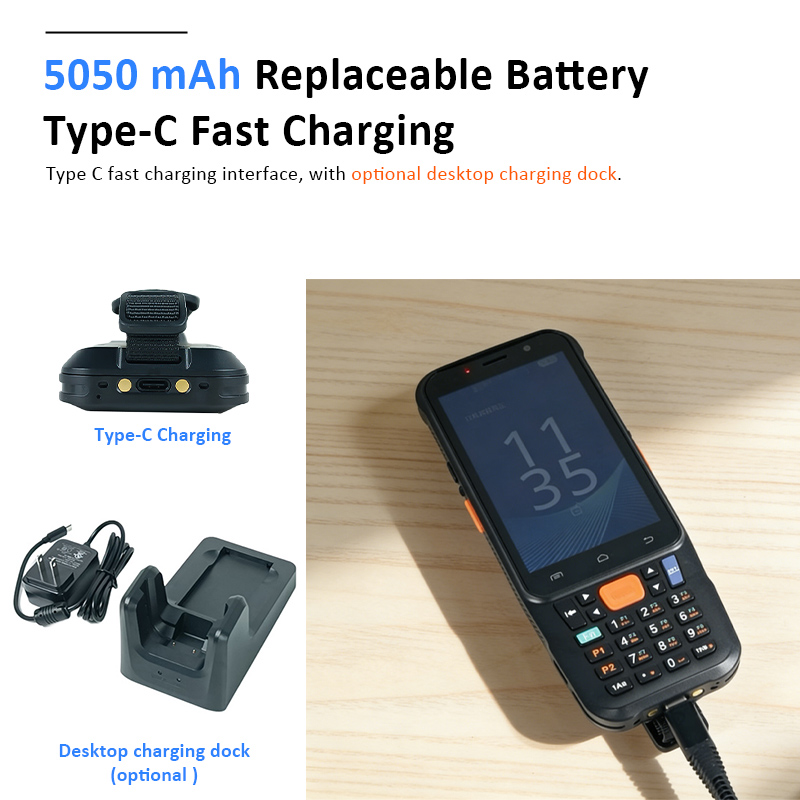

🔹 XT8001D – Lightweight PDA for Calibration Certificate Binding
The XT8001D is a compact Android PDA (288g) with 4G/WiFi, ideal for scanning quality control standards and linking to certificates .
| Feature | Specification |
|---|---|
| OS | Android 15.0 |
| Weight | 288g |
| Screen | 4.0" HD + 24-key keyboard |
| Barcode reading | 1D + 2D (Data Matrix, QR, PDF417) |
| Camera | 5MP front + 5MP rear |
| 4G/WiFi | Real-time database sync |
| Battery | 5050mAh – 12+ hours |
Use for: Scanning QC standard traceability codes, linking to calibration certificates, recording receiving technician and storage temperature zone.
Bioreagent Cold Chain Receiving Workflow
Step 1 – Batch Reagent Code Scanning
Reagent shipment arrives on temperature logger
↓
XT8601B batch scans all reagent kit barcodes (100 codes/trigger)
↓
System records: name, catalog number, lot number, expiry, concentration, specification
Step 2 – Cold Chain Verification
XT206M3 scans temperature data logger barcode
↓
System retrieves temperature record: min/max during transport
↓
If temperature within range (-20°C or -80°C) → approve for freezer storage
If temperature excursion → flag for quality review, reject shipment
Step 3 – QC Standard & Calibration Certificate Link
XT8001D scans traceability code on QC standard or control vial
↓
System retrieves calibration certificate from database
↓
Certificate linked to standard lot number
↓
Technician records: receiving date, assigned freezer location
Efficiency Gains
| Task | Manual Process | With XTIOT | Time Saved |
|---|---|---|---|
| Receive 100 reagent kits | Type each lot number (30+ min) | Batch scan (2 min) | 93% faster |
| Temperature log verification | Manual lookup (5 min) | Scan data logger (10 sec) | 97% faster |
| Calibration certificate lookup | Search paper files (5 min) | Scan code (5 sec) | 98% faster |
Recommended Setup
| Application | Recommended Scanner |
|---|---|
| High‑volume reagent kit receiving | XT8601B batch scanner |
| Temperature data logger scanning | XT206M3 fixed scanner |
| QC standard & certificate binding | XT8001D PDA |
Need a bioreagent cold chain inbound receiving solution? Contact XTIOT for the right recommendation.
