🥚 The Problem: Eggs Without a Digital Passport
Most eggs reach consumers with only a stamped pack date or farm code. If a salmonella outbreak occurs, tracing the affected eggs back to the specific hen house, lay date, and grading shift is nearly impossible.
Regulators and retailers increasingly demand egg‑to‑pallet traceability – every individual egg traceable to its source .
🚀 How One‑Code‑Per‑Item Works
| Step | Action | XTIOT Hardware |
|---|---|---|
| 1 | Egg graded, printed with unique ink‑jet code (lay date, farm ID, batch) | Domino / SANOVO inkjet integrator |
| 2 | Carton packing – scan individual eggs as they enter cartons | XT2010 fixed scanner module |
| 3 | Carton code application – print GS1‑128 or QR on each carton | Thermal printer |
| 4 | Box‑egg binding – scan carton barcode + scan all egg codes inside | XTS03 verification system |
| 5 | Palletizing – scan every carton on pallet | XT8601B batch scanner |
| 6 | Warehouse outbound – scan pallet label, update inventory | XT8002B PDA |
| 7 | Consumer – scans QR code on carton → sees farm, lay date, nutrition, safety certs |
"The code serves as the egg’s ‘passport’, enabling full traceability from the point of sale right back to the place of production." – Grupo CAC, Domino case study
🛠️ XTIOT Scanner Lineup for Egg Production
🔹 XT8601B – Batch Scanner for High‑Speed Grading Lines
6MP industrial sensor, reads 90 codes/sec, up to 100 codes per trigger
| Feature | Why It Matters for Eggs |
|---|---|
| 6MP high resolution | Reads tiny ink‑jet codes on curved eggshells |
| 90 codes/sec | No line slowdown – matches 50‑80 packs/min graders |
| Batch scan 100 codes | Scan entire egg tray in one trigger |
| Deep learning AI | Handles smudged, low‑contrast, or partially missing codes |
| IP67, –20°C to +50°C | Works in cold grading rooms |
| PROFINET, Ethernet/IP | Direct integration with Moba, SANOVO graders |
Used for: Grading line exit – scan every egg as it passes. Or scan filled carton arrays before sealing.

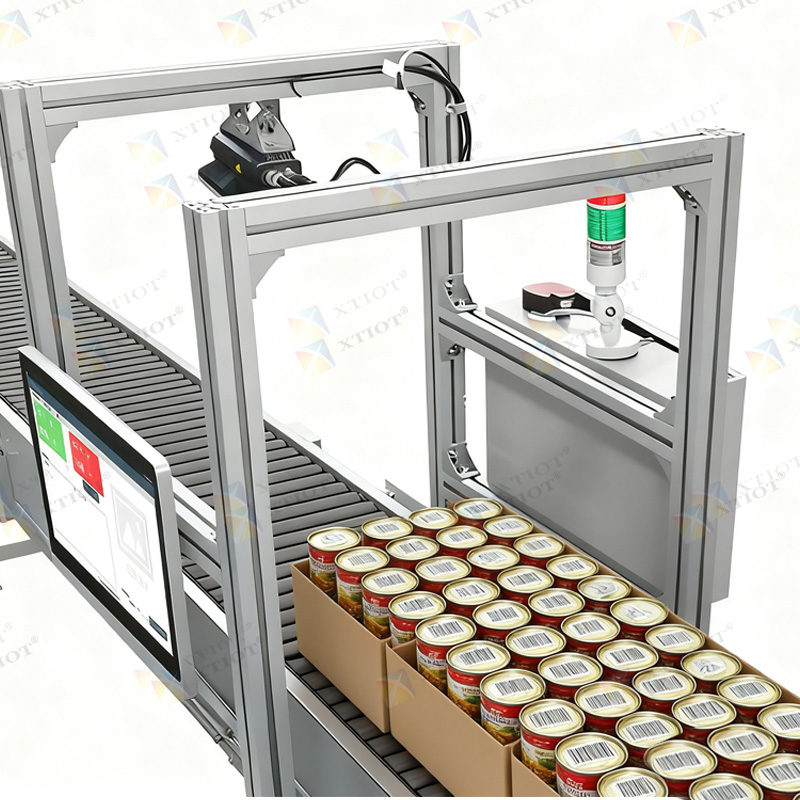

🔹 XTS03 – Box‑Egg Binding Verification System
Eliminates wrong‑egg, missing‑egg, mixed‑batch errors at carton packing
| Function | How It Prevents Recalls |
|---|---|
| Order binding | Scanned carton code auto‑linked to work order |
| Box‑SN matching | Scan carton → scan each egg inside → system verifies all belong together |
| Quantity check | Under‑pack / over‑pack / duplicate → audible alarm + workstation lock |
| Order lock | Workstation stops if cumulative eggs exceed order total |
Used for: Carton packing stations – ensures every carton contains correct grade, size, batch.
🔹 XT2010 – Fixed Scanner for Cartoning Stations
640×480 CMOS, 300 scans/sec, USB/RS232/TTL, auto‑dimming illumination
Mount at each cartoning lane: scan egg‑codes as they drop into cartons. Real‑time verification against expected batch.
🔹 XT8002B – PDA for Warehouse & Outbound
Android 10, 4GB+64GB, IP65, 7200mAh battery, reads 1D + 2D
| Task | Workflow |
|---|---|
| Receiving | Scan incoming egg pallet labels → verify against PO |
| Outbound | Scan pallet SSCC → system auto‑generates GS1‑128 shipping label |
| Recall | Enter batch number → PDA shows exactly which pallets shipped where |

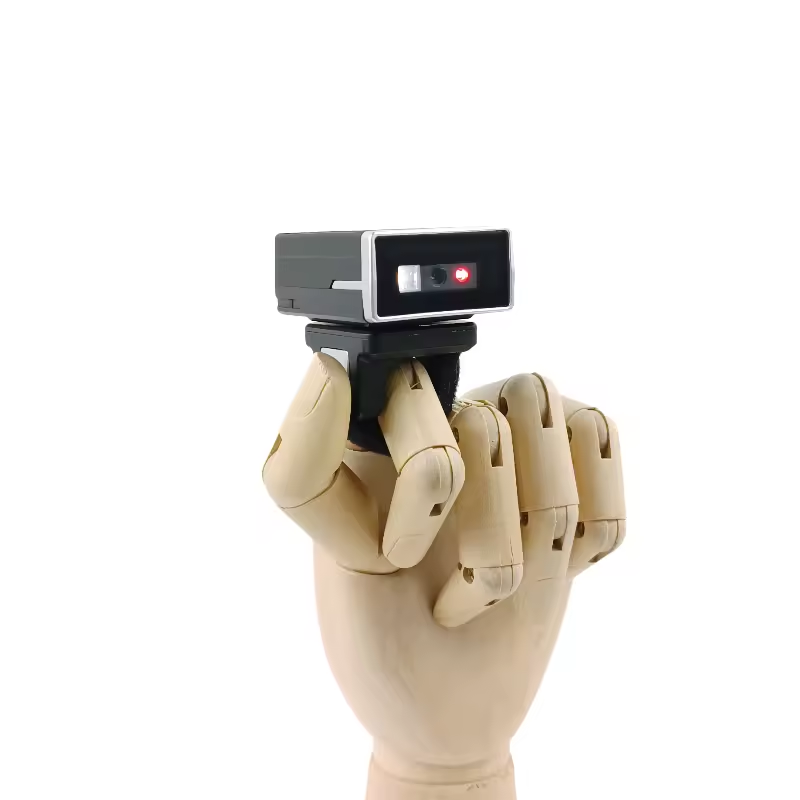

🔹 XT3001BHD – Hands‑Free Ring Scanner for Warehouses
36g, 130k barcode storage, 2.4G/BT/USB, 8+ hour battery
Wear it while stacking pallets or loading trucks – keep both hands for egg cartons.
📦 End‑to‑End Traceability Workflow
Grading Line Exit
→ XT8601B scans eggs at 90 codes/sec
→ Each egg gets unique code + batch ID
↓
Cartoning Station
→ XTS03 verifies: carton barcode + all egg codes inside match order
→ Quantity mismatch? → alarm + lock
↓
Palletizing
→ XT8601B batch scans all cartons on pallet (100 codes/trigger)
→ Pallet SSCC generated, linked to every carton and every egg
↓
Cold Storage
→ XT8002B PDA scans pallet labels → real‑time inventory, FIFO pick
↓
Outbound Truck
→ Scan pallet SSCC → shipping manifest auto‑generated
→ Consumer QR code printed on carton (retail)
Result: 1 scan at retail QR code = full history: farm, lay date, grade, packing time, storage temp,运输路线 .
Ready to give your eggs a digital passport?
