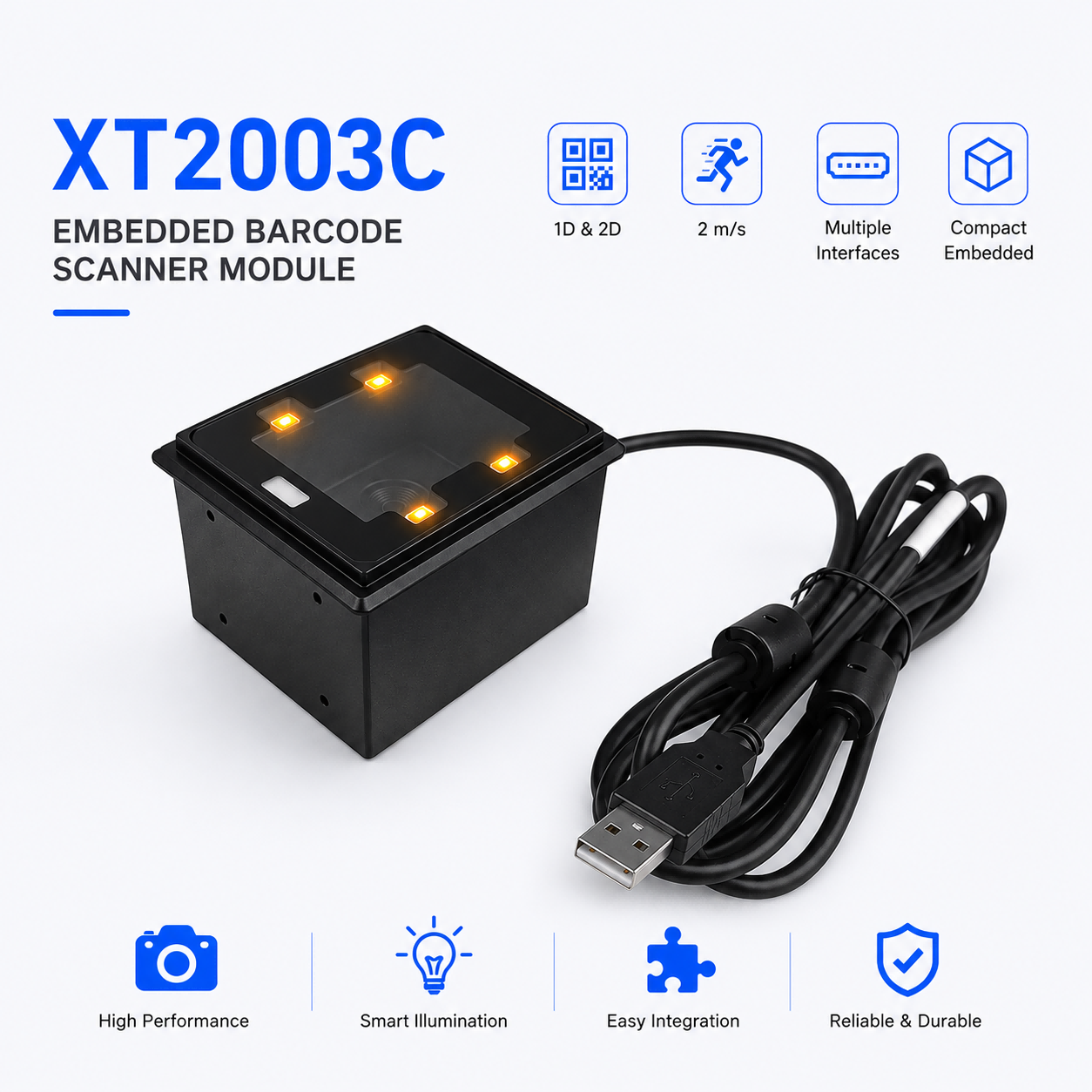

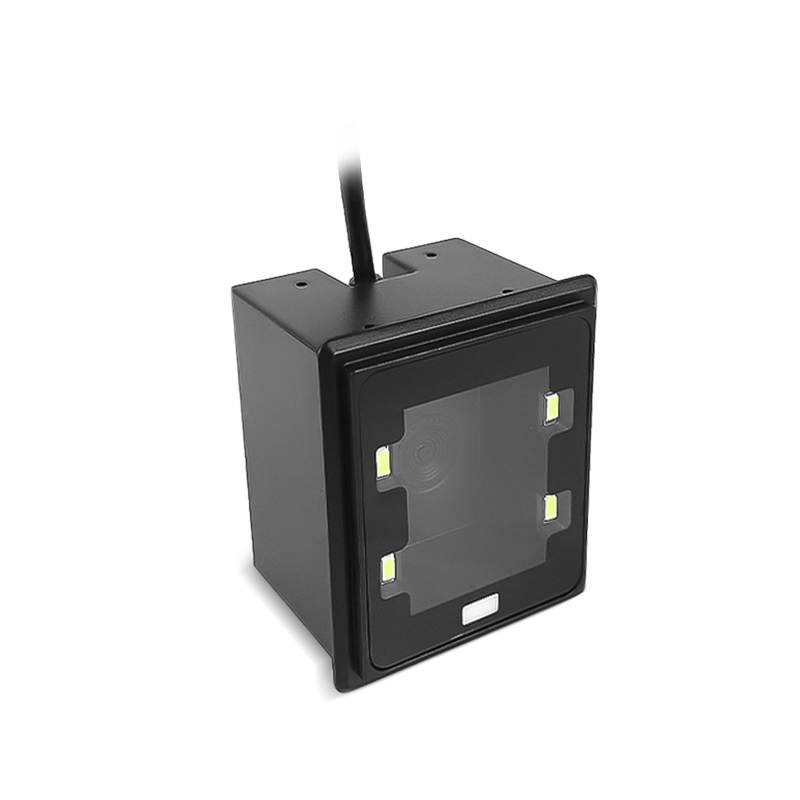

XT2003C Fixed Mount Barcode Scanner
Fixed Mount Barcode Scanner
XT2003C is fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL/RS485
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control
Get in touch with us to learn more.
Fixed Mount Barcode Scanner
XT2003C is fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL/RS485
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control
Get in touch with us to learn more.
Technical Specifications
| Image Sensor | CMOS |
| DPI(W*H) | 640px*480px |
| Floodlight | White LED |
| Focusing Lamp | 625nm Red LED |
| 1D | EAN-8, EAN-13, UPC-E, UPC-A,ISBN, ISSN, Code128, UCC/EAN-128, AIM-128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS-Limited,RSS-Expand) |
| 2D | PDF417, Data Matrix, QR, Micro QR |
| Accuracy | ≥3mil |
| Contrast Ratio | ≥20% |
| 1D EAN13 | 5mil 25-70mm 13mil 10-110mm |
| 2D QR Code | 15mil 10-80mm 30mil 10-180mm |
| Tilt | ±60° |
| Rotate | 360° |
| Deflection | ±60° |
| Field of View Angle | Horizontal：68° Vertical：51° Diagonal： 84.8° |
| Prompt Mode | BEEP, LED |
| Read Mode | Induction mode, Continuous mode, Command trigger |
| Data Editing | Support |
| Data Interface | USB KBW, USB CDC, USB HID POS, RS232, RS485, TTL 232 |
| Working Voltage | 5V±3% |
| Working Electric Current | 330mA |
| Standby Electric Current | 234mA |
| Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95%(RH) |

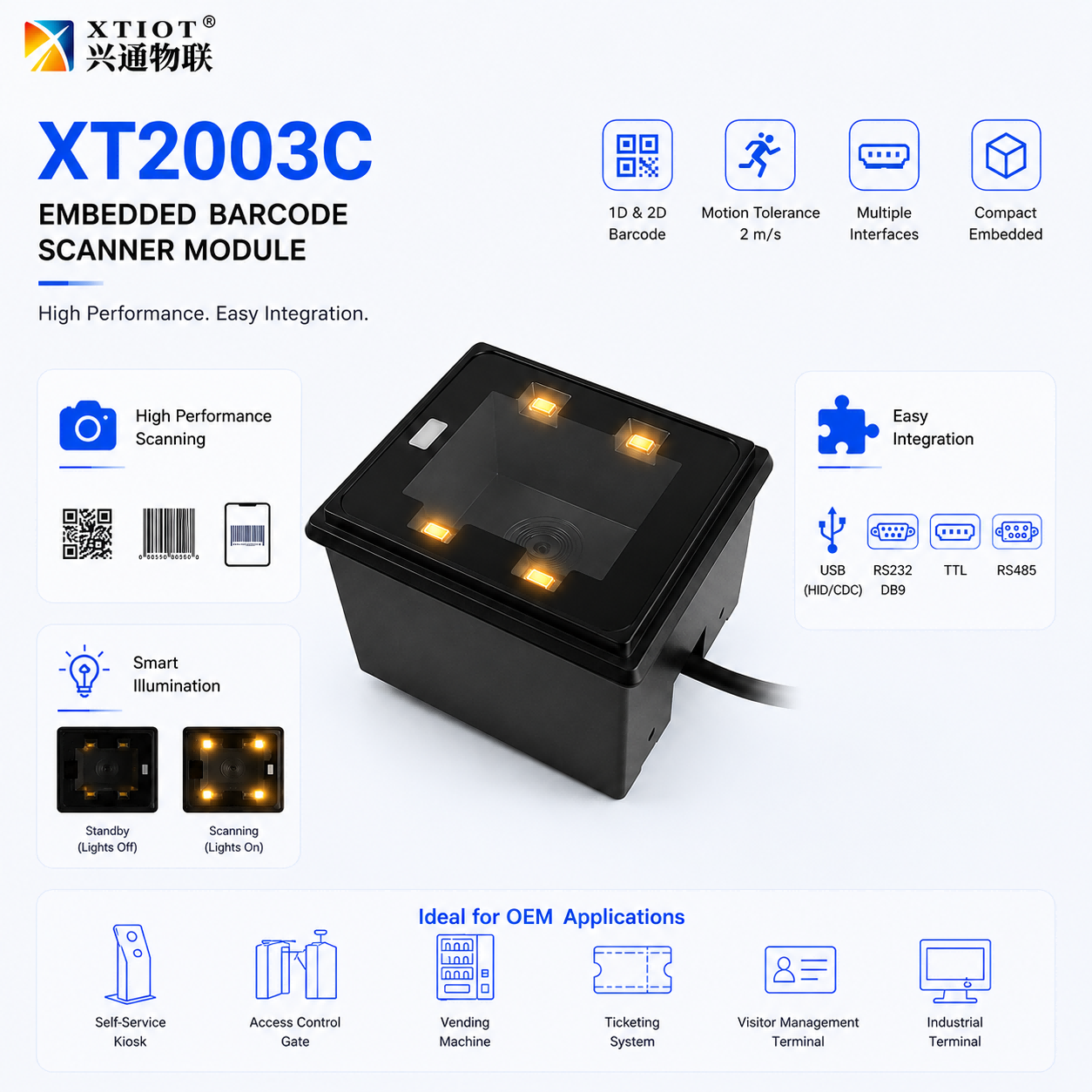

Easy Integration for OEM Projects
Compact design with USB, TTL and RS232 interfaces, making XT2003C easy to integrate into various self-service and embedded devices.Suitable for kiosk manufacturers, solution providers and OEM customers requiring reliable barcode scanning hardware.
Supports barcode decoding from paper labels as well as LCD screens, enabling flexible deployment in retail and self-service applications.
Automatic Induction Scanning
Supports presentation mode and automatic sensing for hands-free operation and improved user experience.
Supports:
USB HID
USB COM
TTL

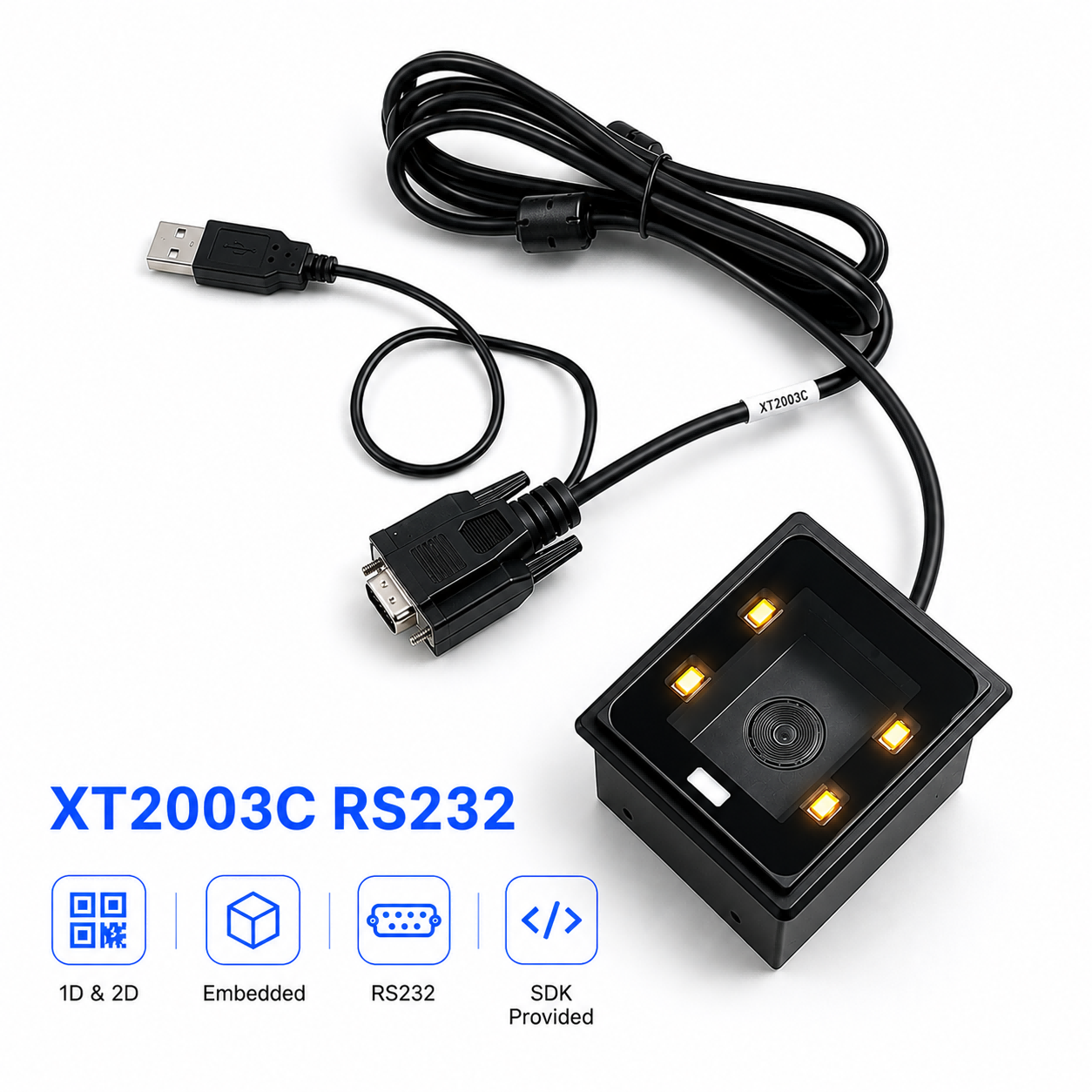

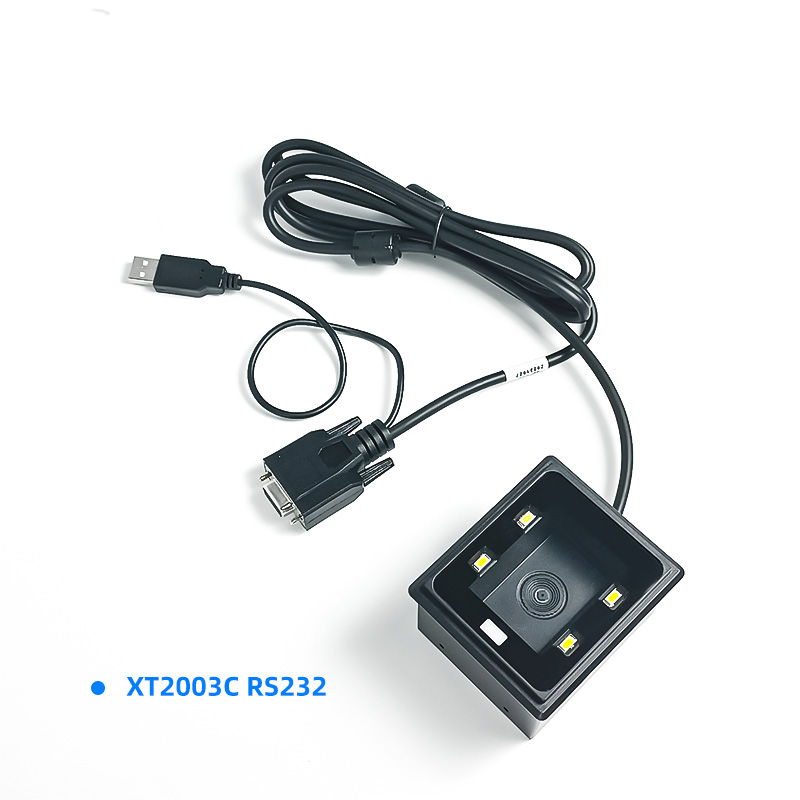

RS232

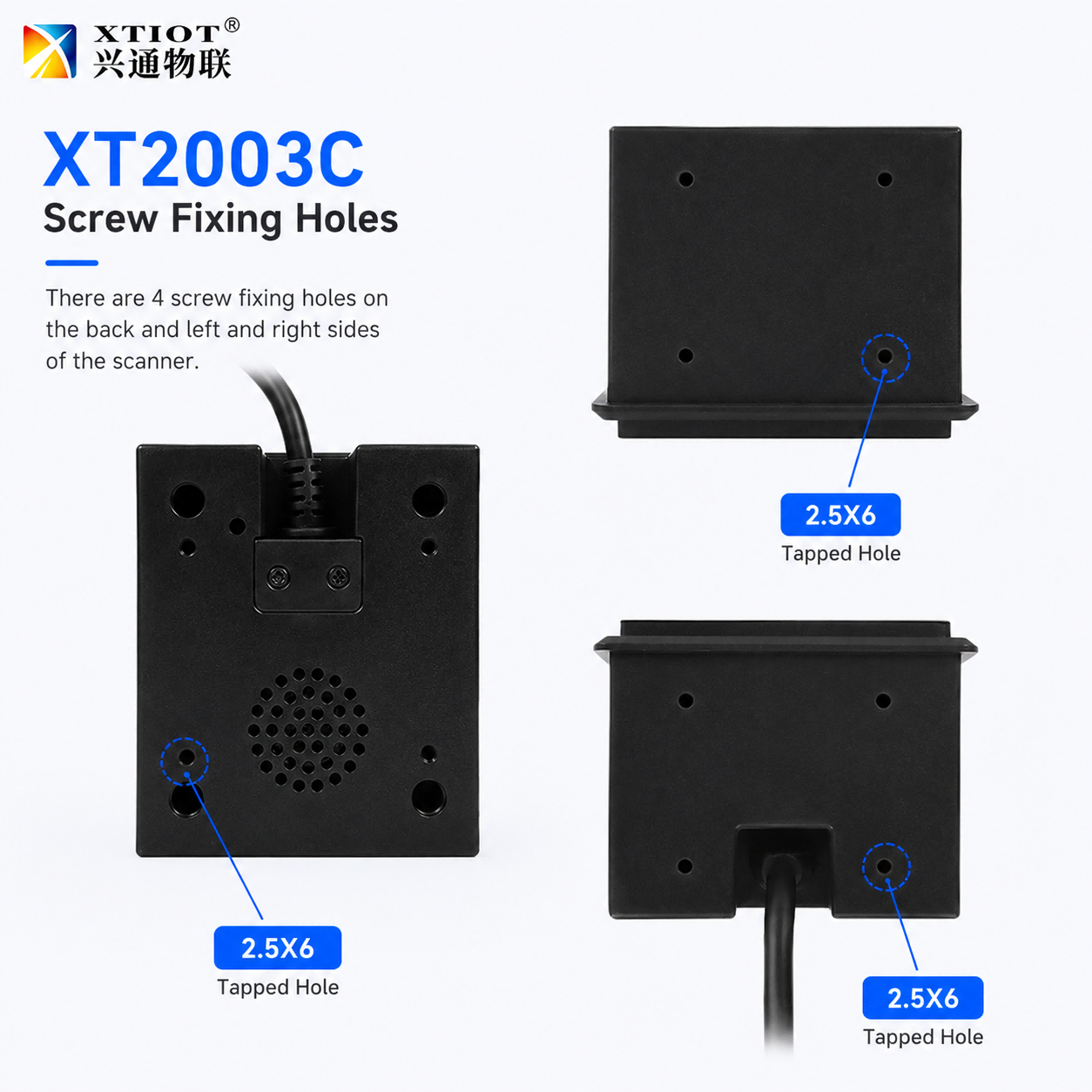

Small form factor helps save installation space and simplifies mechanical design.

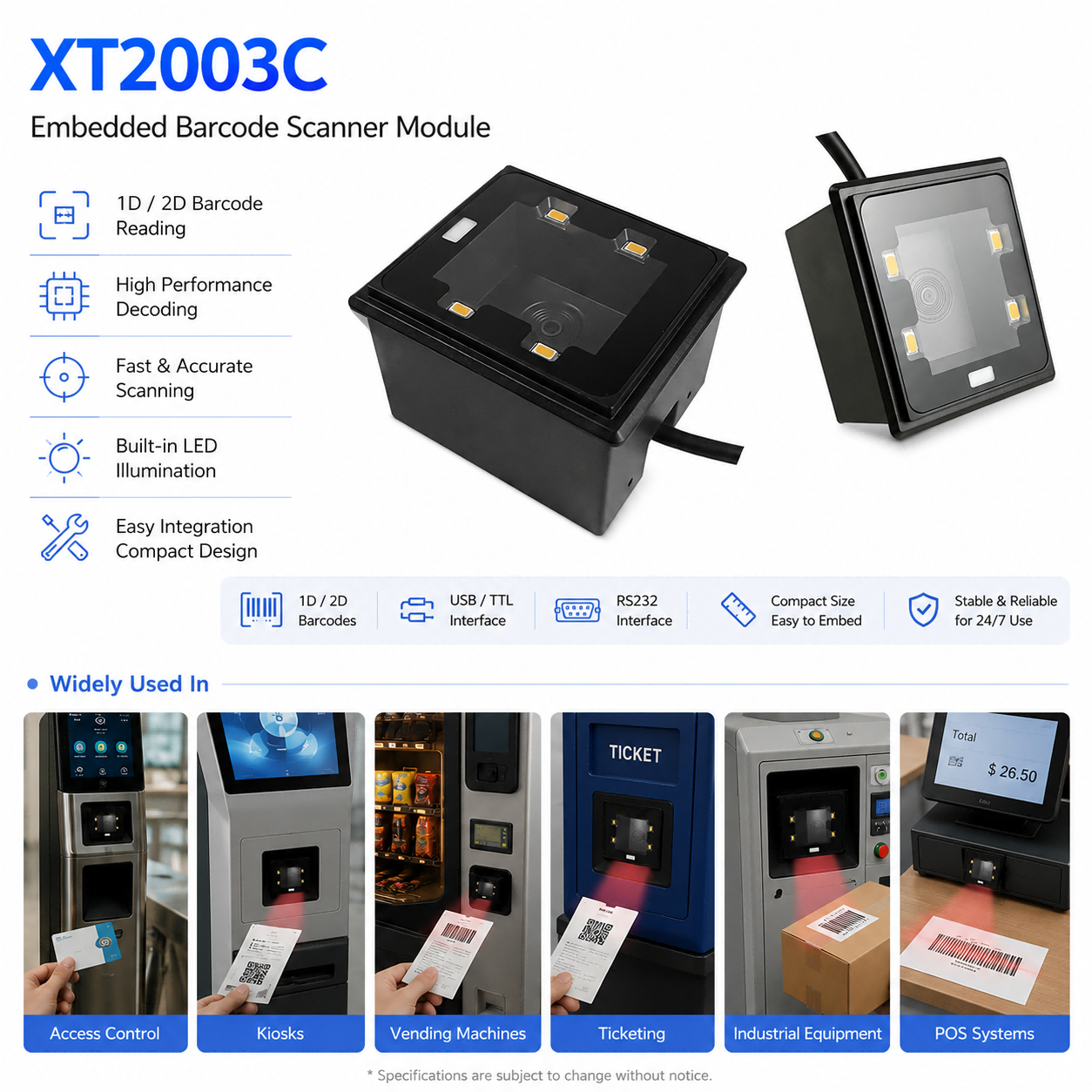

Kiosks
Vending machines
POS terminals
Access control devices
Smart lockers
Long-Term Supply for Industrial Projects
Communication protocols are provided for easy integration with customer software and platforms.
Designed for continuous operation in commercial and industrial environments.
Supports mainstream 1D and 2D barcodes including:
QR Code
Data Matrix
PDF417
Code128
Code39
EAN-13
UPC
