XT3003 Ring Scanner (Discontinued)

XT3003 Ring Scanner (Discontinued)

Quick Details

  • Products Status:

  • Stock

  • Type:

  • Barcode Scanner

  • Scan Element Type:

  • CMOS

  • Colour Depth:

  • 32 Bit

  • Interface Type:

  • USB, RS-232, USB, Bluetooth 4.0

  • Max Paper Size:

  • A4 Size, 600*600mm

  • Optical Resolution:

  • 640*480

  • Scan Speed:

  • 300 Scans/sec

  • Brand Name:

  • XTIOT

  • Place of Origin:

  • Guangdong, China (Mainland)

  • Color:

  • Black

  • Name:

  • Wireless wearable Laser Bluetooth barcode scanner

  • Resolution:

  • ≥4mil

  • Light source:

  • 650nm Laser

  • Weight:

  • 213g

  • Model Number:

  • XTH3003

  • Bit error rate:

  • 1/5 million

  • Anti-knock:

  • 1.5m fall to cement




    0.00
    0.00

    商品描述

    Quick Details

    • Products Status:

    • Stock

    • Type:

    • Barcode Scanner

    • Scan Element Type:

    • CMOS

    • Colour Depth:

    • 32 Bit

    • Interface Type:

    • USB, RS-232, USB, Bluetooth 4.0

    • Max Paper Size:

    • A4 Size, 600*600mm

    • Optical Resolution:

    • 640*480

    • Scan Speed:

    • 300 Scans/sec

    • Brand Name:

    • XTIOT

    • Place of Origin:

    • Guangdong, China (Mainland)

    • Color:

    • Black

    • Name:

    • Wireless wearable Laser Bluetooth barcode scanner

    • Resolution:

    • ≥4mil

    • Light source:

    • 650nm Laser

    • Weight:

    • 213g

    • Model Number:

    • XTH3003

    • Bit error rate:

    • 1/5 million

    • Anti-knock:

    • 1.5m fall to cement





      Performance
       Light source
       650nm High intensity laser diode
      Ambient light intensity
      0~100000 Lux
      Reading code system
       1D
      UPC/EAN with supplementals, Code 39, Code 39 Full ASCII,  Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128,  Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5,  Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32
      2D
      Airline 2 of 5, Aztec Code , Data Matrix, Grid Matrix Code, GS1 Composite Codes,Maxi Code, PDF417, QR Code
      Resolution
      ≥4mil
      Typical Depth of Field
      QR CODE( 30MIL) 0-15CM           CODE 128 (10MIL) 0-12CM
      Scan Angle
      Pitch
      Pitch ±60°@ 0°Roll and 0° Skew
      Roll
      360°@ 0°Pitch and 0° Skew
      Skew
      ±55°@ 0°Roll and 0° Pitch
      Symbol Contrast
      ≥30%
      Interface
      USB/RS232/virtual serial port
      Physical
      Dimensions
      50*30*45(L*W*H)
      Weight
      213g
      LED indicator light
      Boot: full color; standby: green; decoding: red; set state: blue; edit state: purple.
      Current
      Operating
      240mA
       Standby
      190mA
      Environmental
      Operating Temperature
      -20℃~+50℃ (-4°F~122°F)
      Storage Temperature
      -40℃~+80℃ (-40°F~176°F)
       Humidity
      5%~95%(non-condensing)

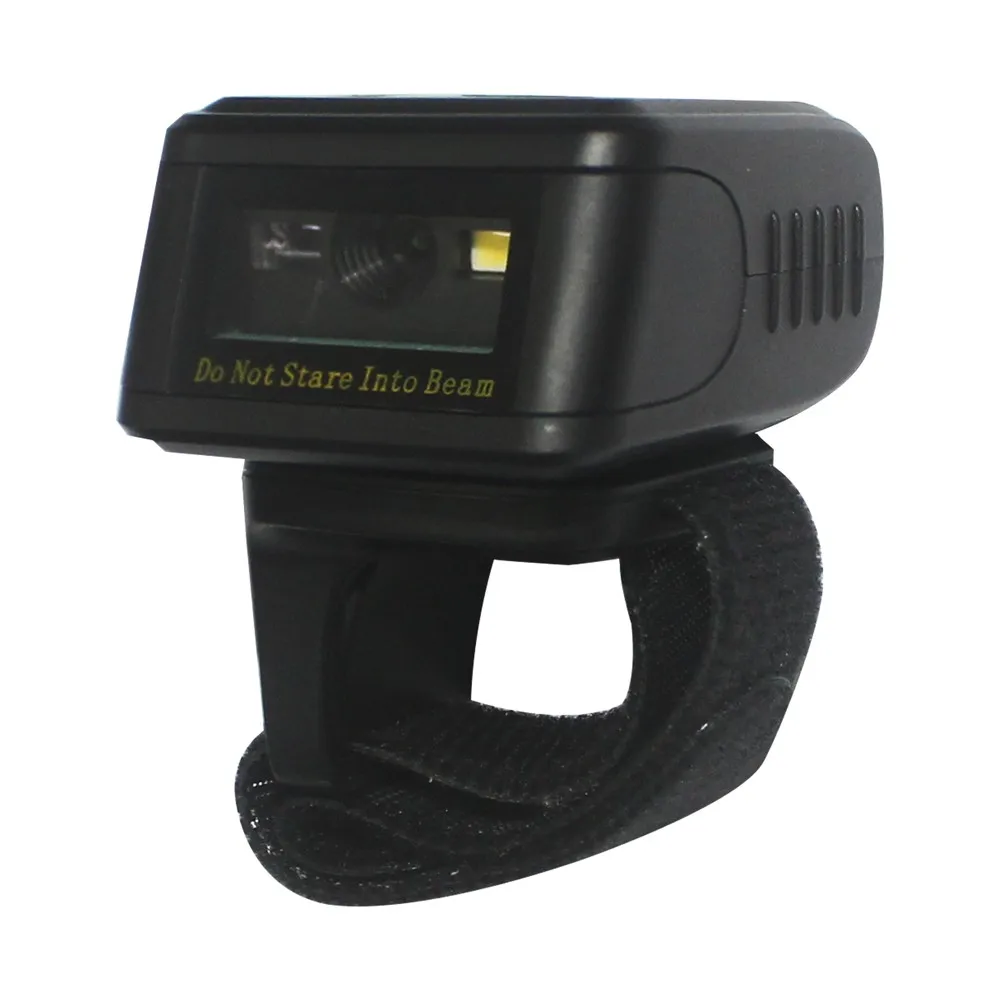

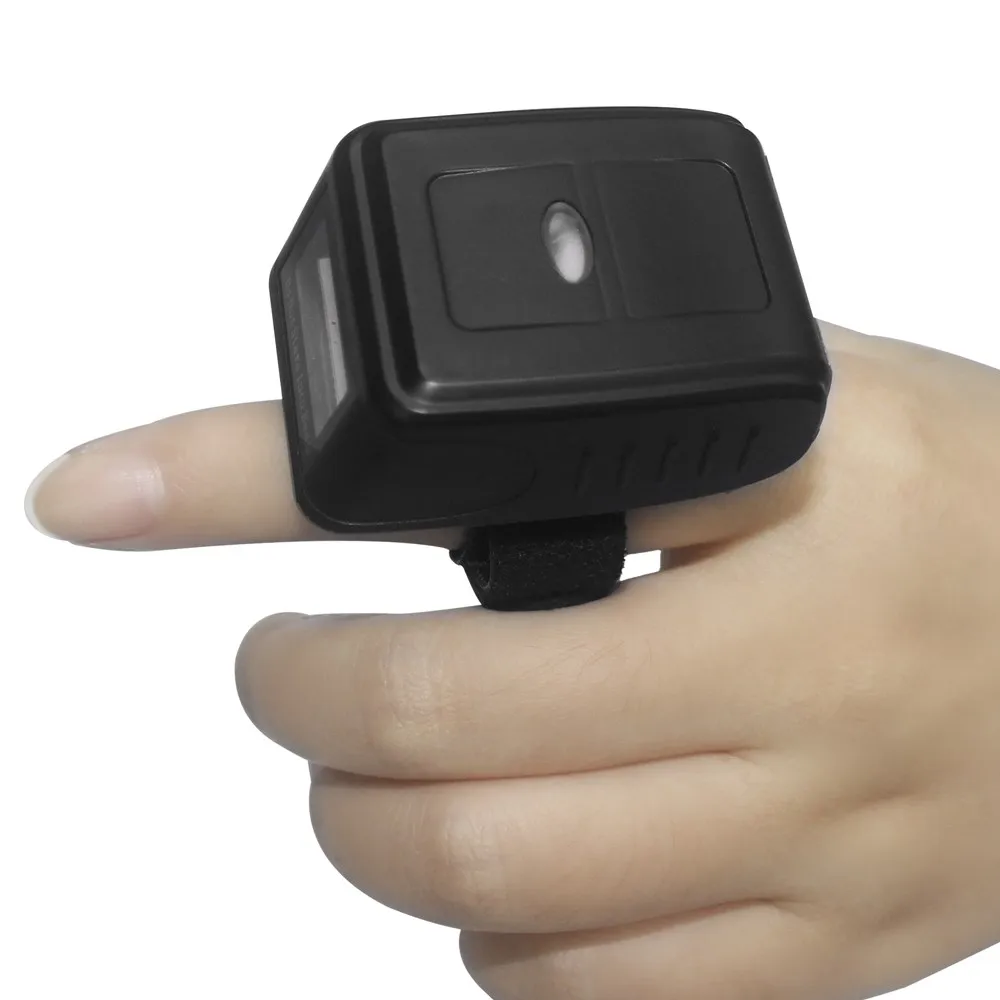

      Detailed Images
      Applications
