XT802D 8inch Price Scanner

XT802D 8inch Price Scanner

Android/Linux/Debian Micro KIOSK

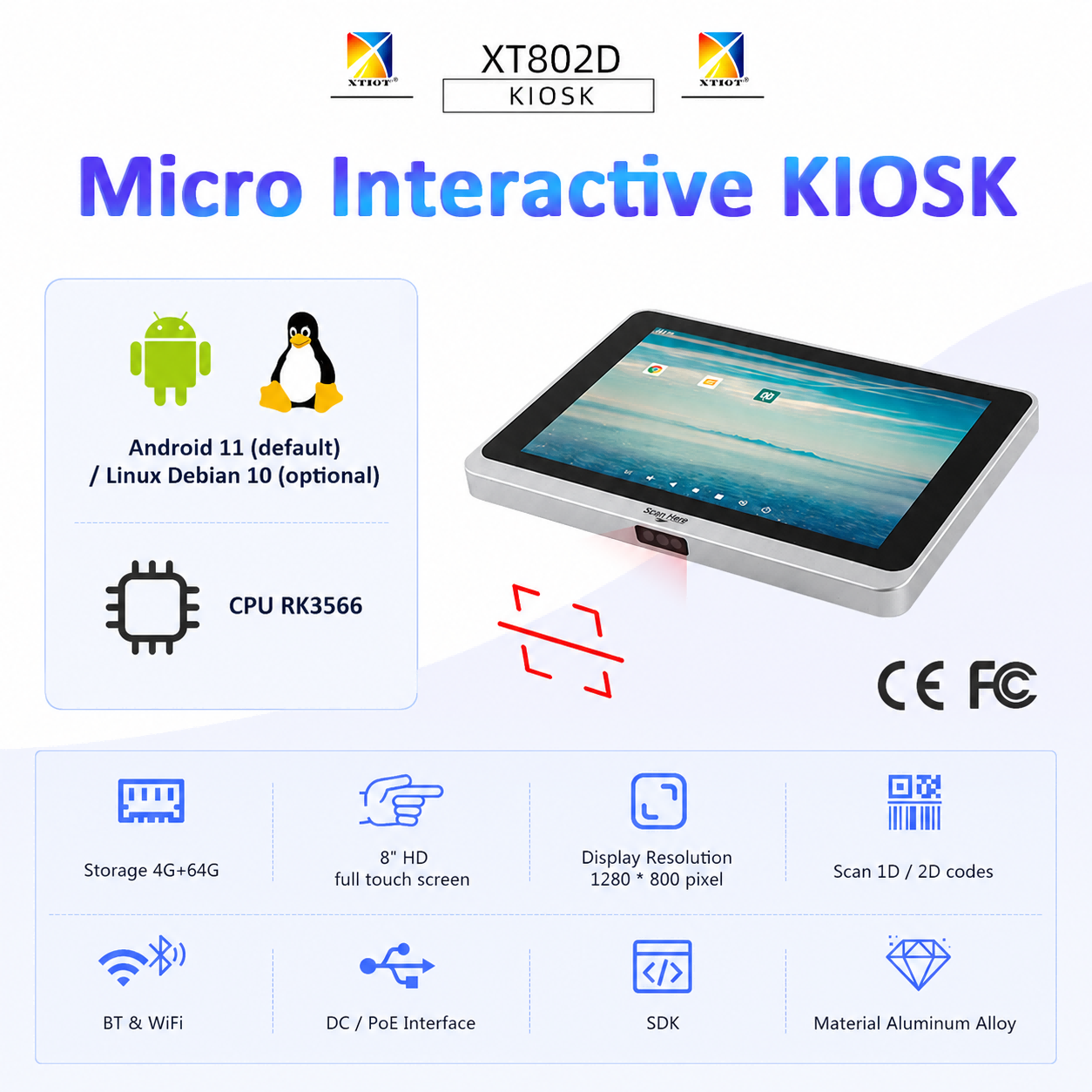

The XT802D is 8'' wall-mounted price checker which can install Android operating system or Linux operating system.
  OS: Android 11 / Linux 4.19 / Debian 10 / Ubuntu
Screen: 8'' HD
Storage: 4G+64G
Network: WiFi, Ethernet LAN
Bluetooth: Bluetooth 4.0
Barcode Scanner: 2D
USB: USB port * 4
POE: 48V POE port * 1 (optional)

Get in touch with us to learn more.

0.00
0.00

商品描述

Android/Linux/Debian Micro KIOSK

The XT802D is 8'' wall-mounted price checker which can install Android operating system or Linux operating system.
  OS: Android 11 / Linux 4.19 / Debian 10 / Ubuntu
Screen: 8'' HD
Storage: 4G+64G
Network: WiFi, Ethernet LAN
Bluetooth: Bluetooth 4.0
Barcode Scanner: 2D
USB: USB port * 4
POE: 48V POE port * 1 (optional)

Get in touch with us to learn more.

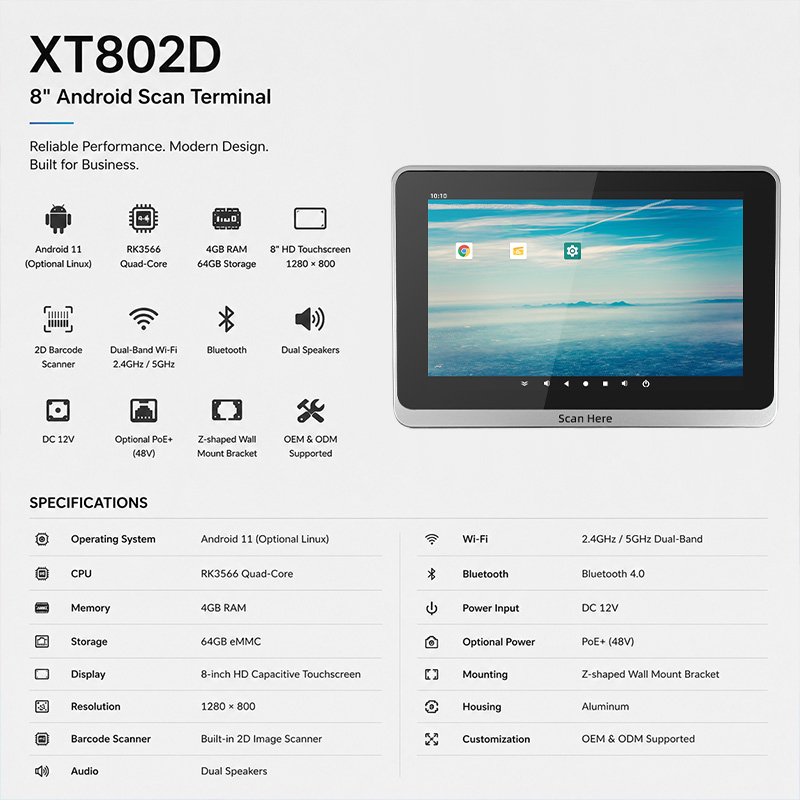

Model
XT802D
CPU
RK3566
Operate System
Android 11
Storage
4G+64G
Screen
8'' HD full touch screen
Display Resolution
1280 * 800 pixel

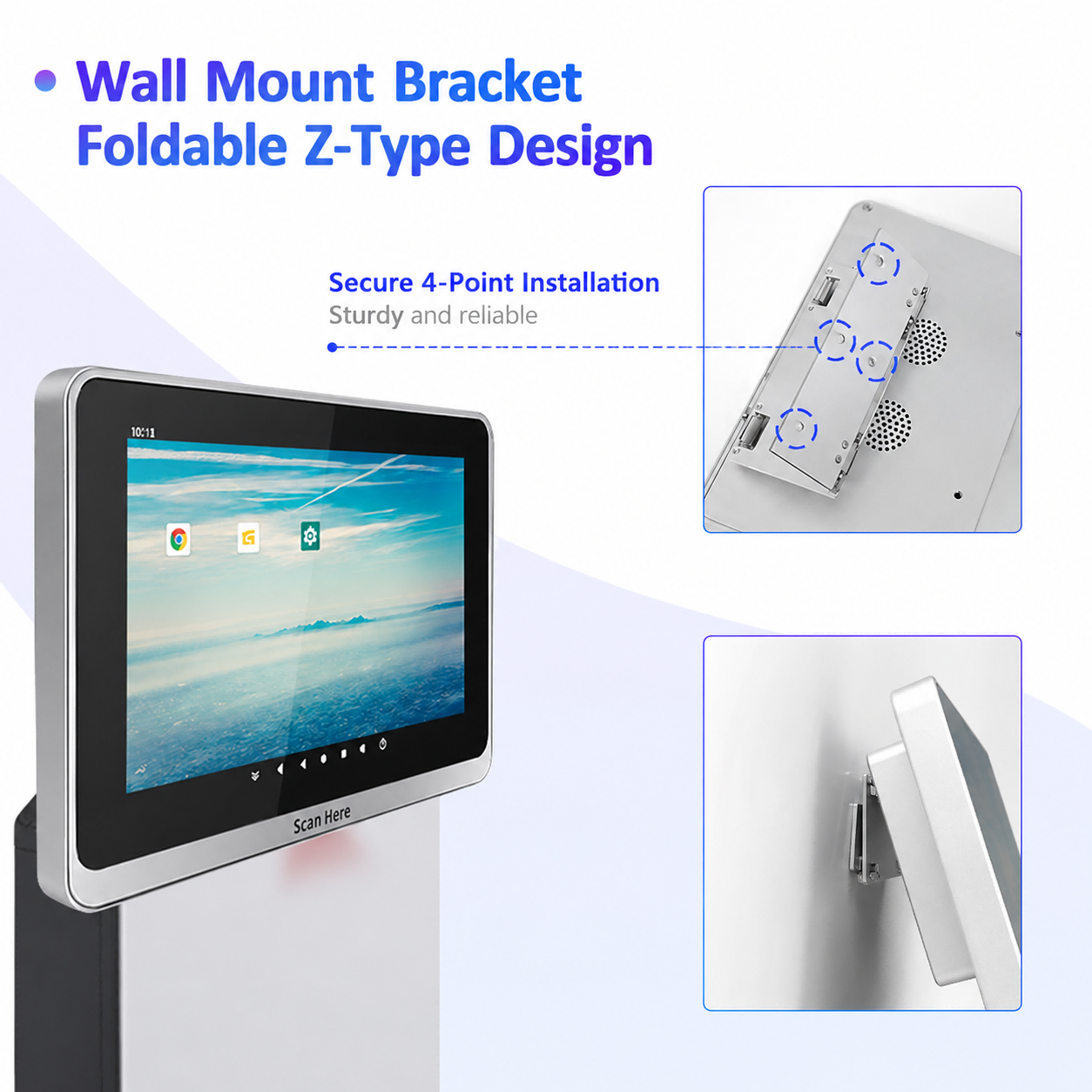

Wall Mount Bracket
Folding Z-shaped bracket

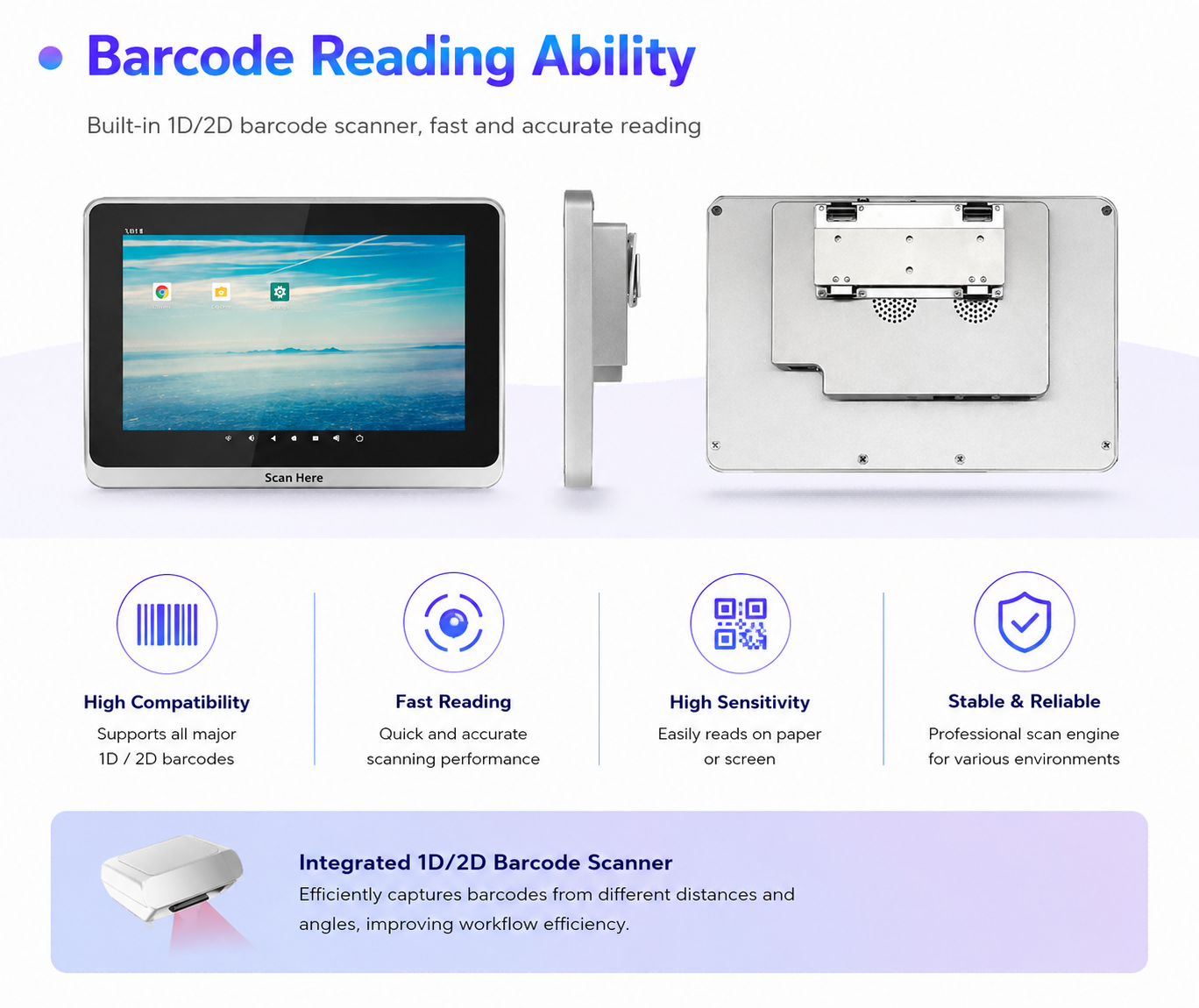

Barcode Reading Ability
1D: Code 128, EAN 13, EAN 8, Code 32, Code 39, UPC-A, UPC-E, GS1 Codabar, etc.
2D: QR code, Data Matrix, PDF417, Aztec, etc.
SDK
Yes, for barcode scanner
Speaker
2PCS
WiFi
Yes
Bluetooth
Yes
Ethernet
Yes

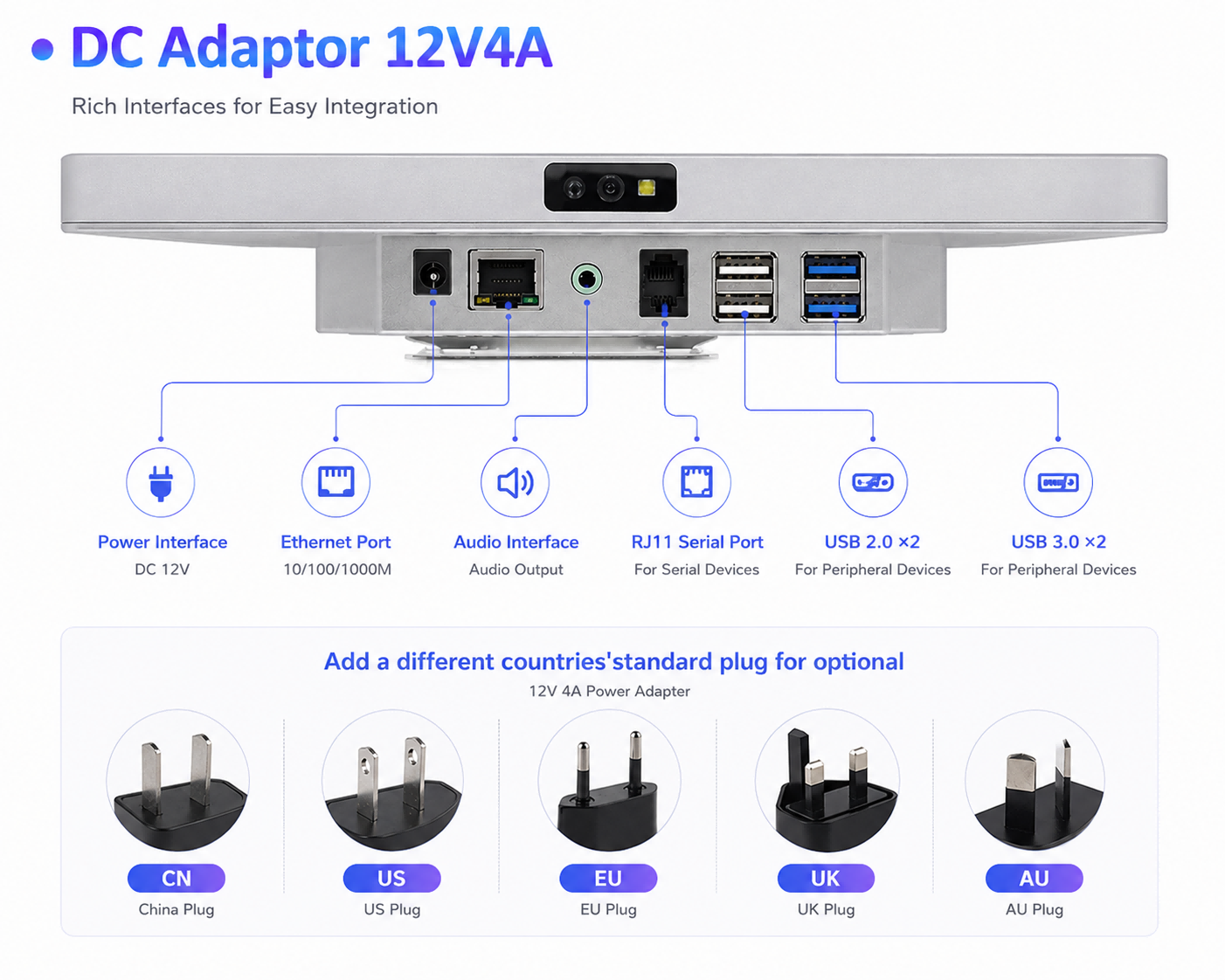

DC Adaptor
12V4A (US/UK/AU/CN/EU/JP standard, etc.)

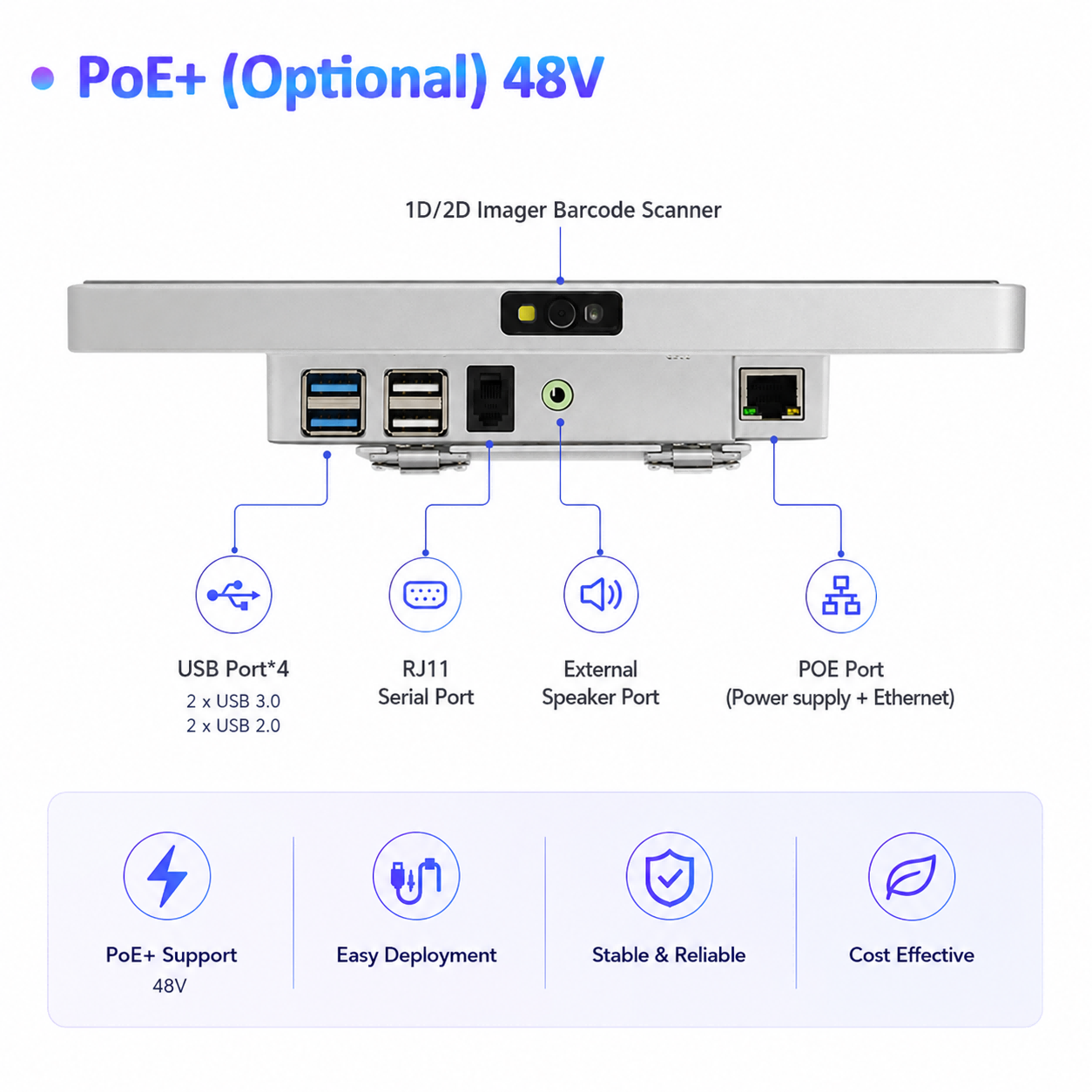

PoE+ (Optional)
48V
Material
Aluminum Alloy

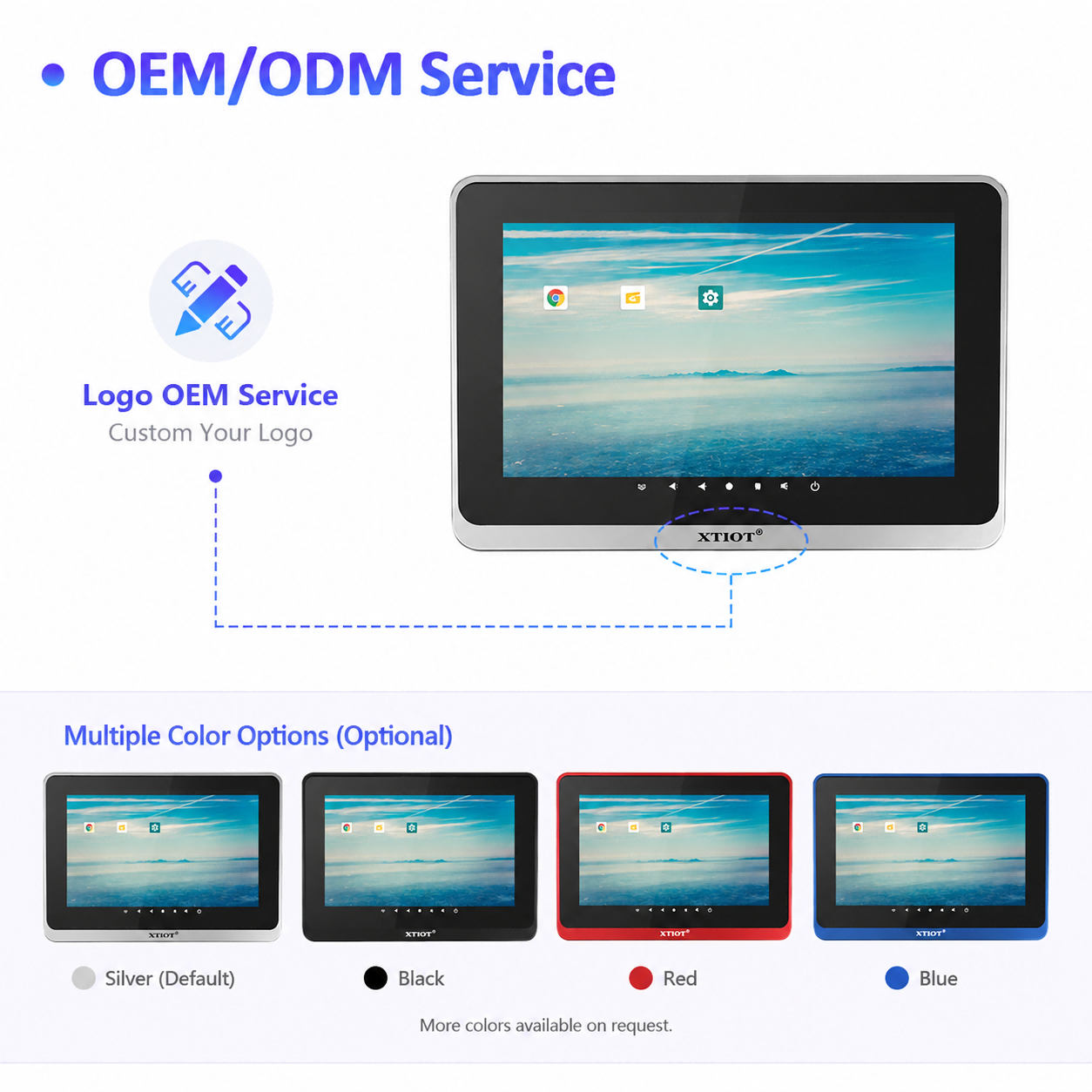

Logo
OEM service
Color
Silver (default) /
Black, red, blue, orange, green, etc. (optional)
Warranty
1 Year
Certificate
CE, FCC
More Details
Please contact our Sales


FAQ


Q: What is the XT802D?

A: An 8-inch Android touch screen device with a built-in 2D barcode scanner. One unit replaces a monitor + separate barcode scanner.
Q: What can it be used for?
A: Three main uses:
Price checker – Customer scans product barcode, screen shows price and discount.
Visitor kiosk – Scan QR invitation code to verify entry.
Production line terminal – Scan job barcode, display work instructions, record completion.
Q: What are the key specs?
A: 8-inch HD touch screen, Android 11, RK3566 quad-core, 4GB RAM + 64GB storage, built-in 2D scanner (640×480 CMOS).
Q: What barcodes can it read?
A: 1D (EAN-13, UPC, Code 128, Code 39) and 2D (QR, Data Matrix, PDF417, Aztec). Reads from paper labels and phone screens.
Q: How does it connect?
A: WiFi (2.4G/5G), Ethernet, Bluetooth 4.0, 4x USB ports. Optional PoE support for single cable power + network.
Q: How is it mounted?
A: Z-shaped wall bracket. Mount on wall, pillar, shelf, or desk. Ultra-thin design under 2cm.
Q: Is it durable?
A: Aluminum alloy housing. Built for public use in stores, lobbies, and factories.
Q: Does it work with my existing software?
A: Yes. USB-HID keyboard mode – no driver needed. SDK also available for custom integration.
