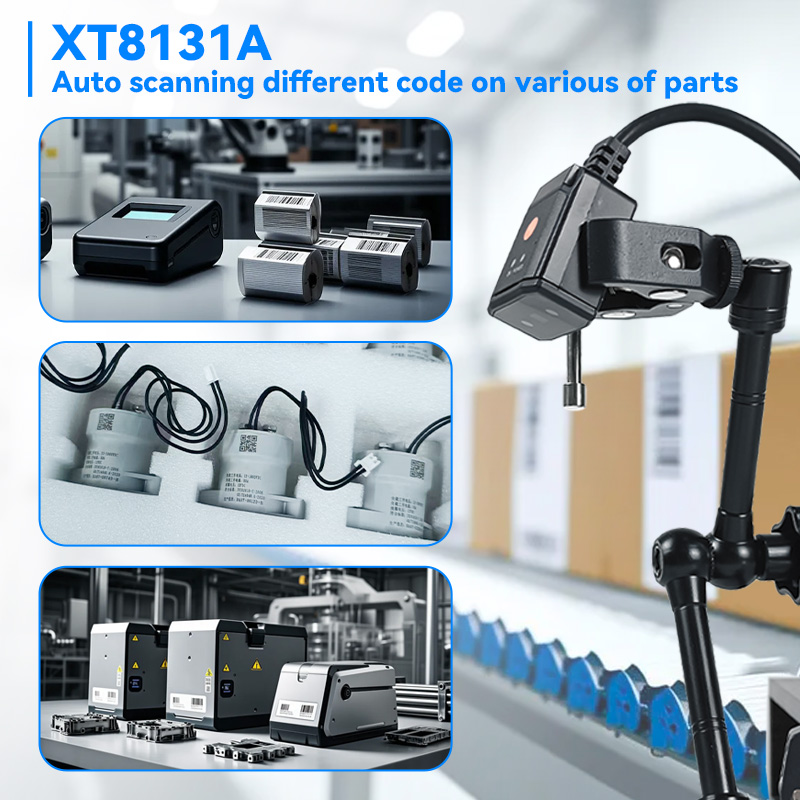

XT8131A Industrial Barcode Scanner
Industrial CMOS Barcode Scanner
Industrial code scanners can also be used in warehousing management, logistics and transportation, medical health and other fields.
In warehousing management, industrial code scanners can be used to quickly identify information about goods and achieve rapid sorting and delivery of goods.
In logistics and transportation, industrial code scanners can be used to quickly identify the location and quantity of goods, improving the efficiency and accuracy of logistics and transportation.
In the medical and health field, industrial code scanners can be used to quickly identify patients’ identities and medical record information, improving the efficiency and quality of medical services.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232+LAN
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280 x 1024 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control
Get in touch with us to learn more.
Industrial CMOS Barcode Scanner
Industrial code scanners can also be used in warehousing management, logistics and transportation, medical health and other fields.
In warehousing management, industrial code scanners can be used to quickly identify information about goods and achieve rapid sorting and delivery of goods.
In logistics and transportation, industrial code scanners can be used to quickly identify the location and quantity of goods, improving the efficiency and accuracy of logistics and transportation.
In the medical and health field, industrial code scanners can be used to quickly identify patients’ identities and medical record information, improving the efficiency and quality of medical services.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232+LAN
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280 x 1024 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control
Get in touch with us to learn more.
XTIOT XT8131A Fixed Mount Barcode Scanner Specification | ||||||||
Performance | ||||||||
Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE | |||||||
2-dimensional codes: QR Code, Data Matrix | ||||||||
Max. Frame Rate | 50 fps | |||||||
Max. Reading Speed | 30 codes/sec | |||||||
Sensor Type | CMOS, Global Shutter | |||||||
Pixel Size | 2.7 µm × 2.7 µm | |||||||
Sensor Size | 1/4" | |||||||
Resolution | 1280 × 1024 | |||||||
Exposure Time | 60 μs to 6000 μs | |||||||
Gain | 1 dB to 28 dB | |||||||
Mono/Color | Mono | |||||||
Communication Protocol | Device with network interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP | |||||||
Device with USB interface: SmartSDK, USB (HID, CDC) | ||||||||
Depth of Field* | Code 39 (5 mil): 75 mm to 215 mm Code 128 (10 mil): 50 mm to 400 mm EAN 13 (13 mil): 60 mm to 420 mm Data Matrix (10 mil): 50 mm to 240 mm QR Code (15 mil): 40 mm to 290 mm | |||||||
Optics | ||||||||
Focal Length | 4.7 mm (0.2") | |||||||
Working Distance | 120 mm (4.7") | |||||||
Ambient illumination | 900 lux@120 mm | |||||||
Light Source | Red | White (polarized) | Red | Red | ||||
Aiming System | Green LED | |||||||
Electrical Feature | ||||||||
Data Interface | Device with network interface: Fast Ethernet | |||||||
Device with USB interface: USB2.0 | ||||||||
Digital I/O | Device with network interface: DB15 connector provides power and I/O, including none-isolated input × 2 (LineIn 0/1), none-isolated output × 2 (LineOut 2/3), RS-232 × 1. Device trigger via pressing trigger button supported. | |||||||
Device with USB interface: DB15 connector provides data transmission. Device trigger via pressing trigger button supported. | ||||||||
Power Supply | Device with network interface: 12 VDC to 24 VDC | |||||||
Device with USB interface: 5 VDC (USB2.0 provides power supply) | ||||||||
Max. Power Consumption | Device with network interface: 3.5 W@12 VDC | |||||||
Device with USB interface: 2.5 W@5 VDC (USB2.0 provides power supply) | ||||||||
Mechanical | ||||||||
Lens Mount | M5.8-mount | |||||||
Indicator | Power indicator (POWER), status indicator (OK/NG) | |||||||
Dimension | 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") | |||||||
Weight | Approx. 68.5 g (0.15 lb.) | |||||||
Ingress Protection | IP54 | |||||||
Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |||||||
Humidity | 20% to 95% RH, non-condensing | |||||||
