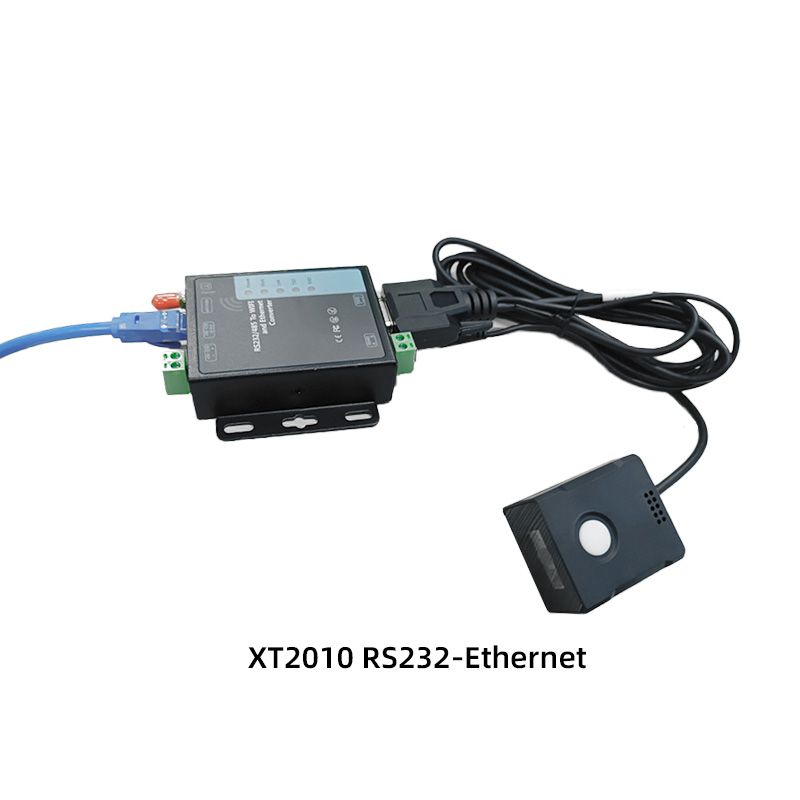

XT2010 Seires RS232-WiFi/Ethernet Module

Fixed Mount Barcode Scanner

XT2010 series of barcode scanner module is fixed mount barcode scanner which supports Ethernet/WiFi connection.
Communication: RS232-WiFi/RS232-Ethernet
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS
Decoding Ability: 1D, 2D

Get in touch with us to learn more.

市场价： 0.00

价格： 0.00

Technical Specification

商品描述

Fixed Mount Barcode Scanner

XT2010 series of barcode scanner module is fixed mount barcode scanner which supports Ethernet/WiFi connection.
Communication: RS232-WiFi/RS232-Ethernet
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS
Decoding Ability: 1D, 2D

Get in touch with us to learn more.

Technical Specifications

Image Sensor	CMOS
DPI(W*H)	640px480px/1280px800px
Floodlight	White LED
Focusing lamp	625nm Red LED
1D	EAN-8, EAN-13, UPC-E, UPC-A,ISBN, ISSN, Code128, UCC/EAN-128, AIM-128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS-Limited, RSS-Expand)
2D	PDF417, Data Matrix, QR, Micro QR
Accuracy	≥3mil
Contrast Ratio	≥20%
1D EAN13	5mil 50-160mm 13mil 50-260mm
2D QR Code	15mil 30-170mm 30mil 50-270mm
Field of View Angle	Horizontal: 42° Vertical: 31.5° Diagonal: 52.5°
Prompt Mode	BEEP, LED
Read Mode	Manual mode, Induction mode, Continuous mode, Command trigger
Update	-
Data Editing	Support
Data Interface	USB KBW, USB CDC, USB HID POS, RS232, TTL 232
Working Voltage	5V±3%
Working Electric Current	218mA
Standby Electric Current	70mA
Working Temperature	-20℃ ~ +60℃
Storage Temperature	-40℃ ~ +70℃
Relative Humidity	5% ~ 95%(RH)
Cable Standards	USB, RS 232, TTL 232
Product Size	41.2(W)49.2(D)24(H)(m m)
