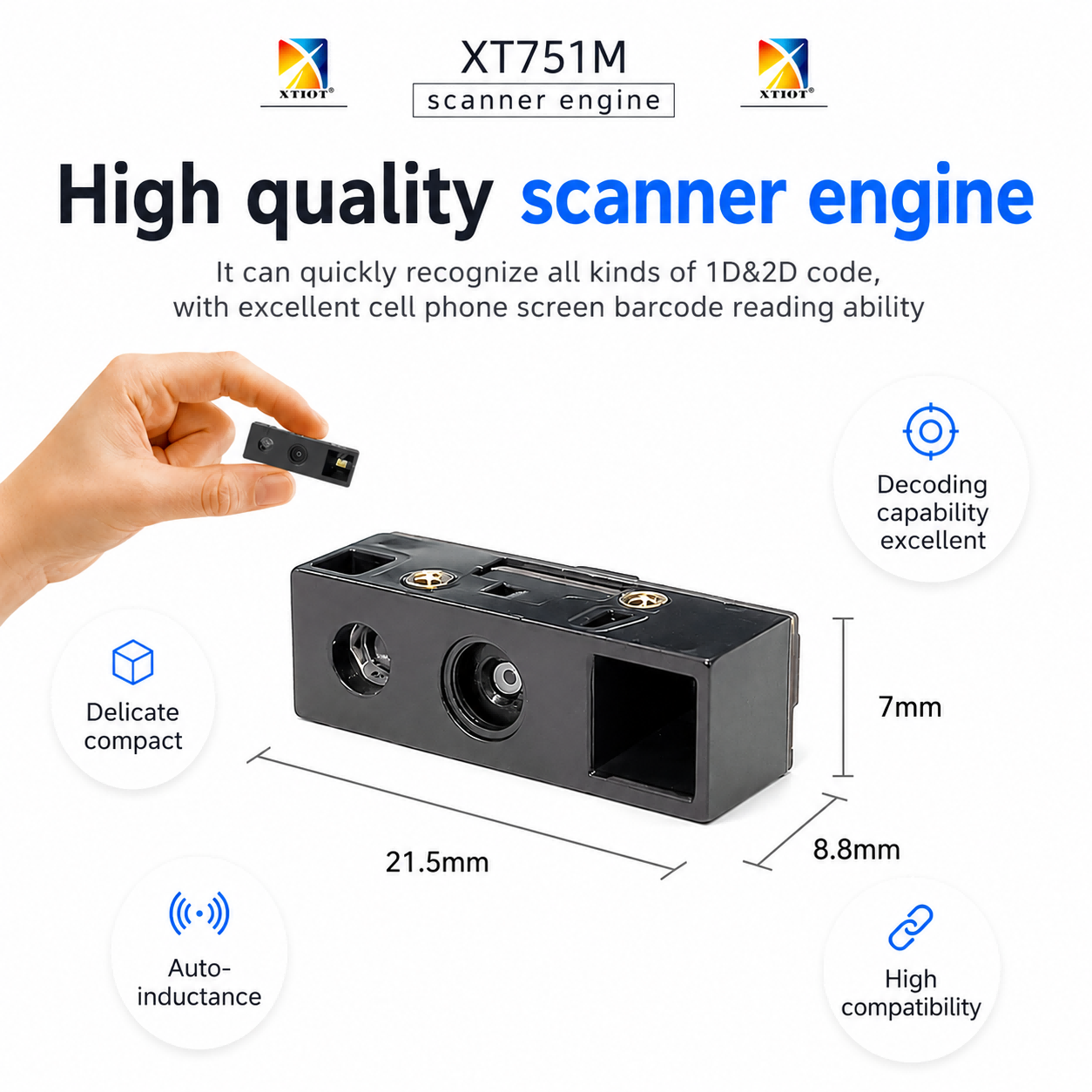

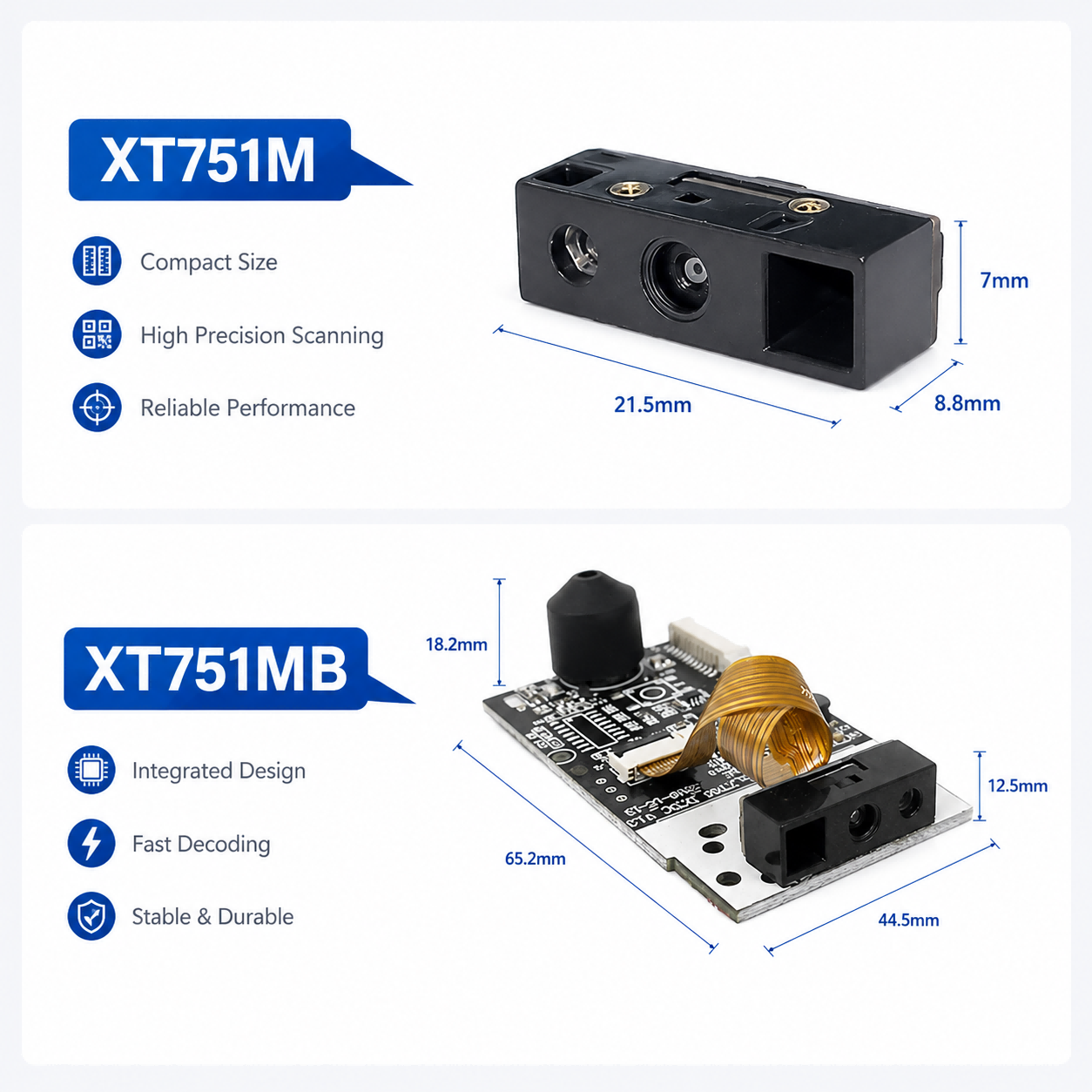

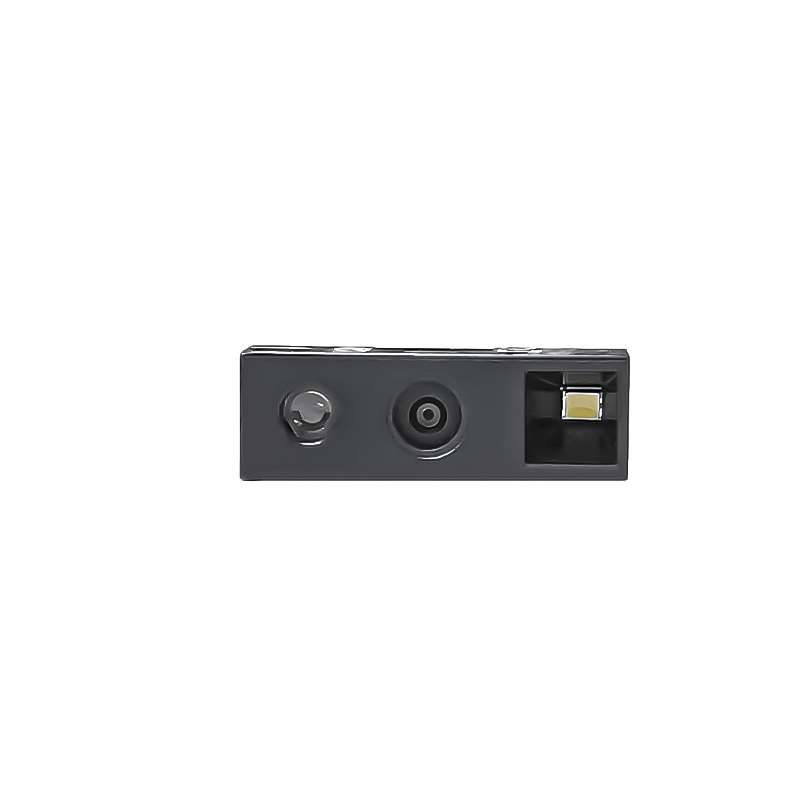

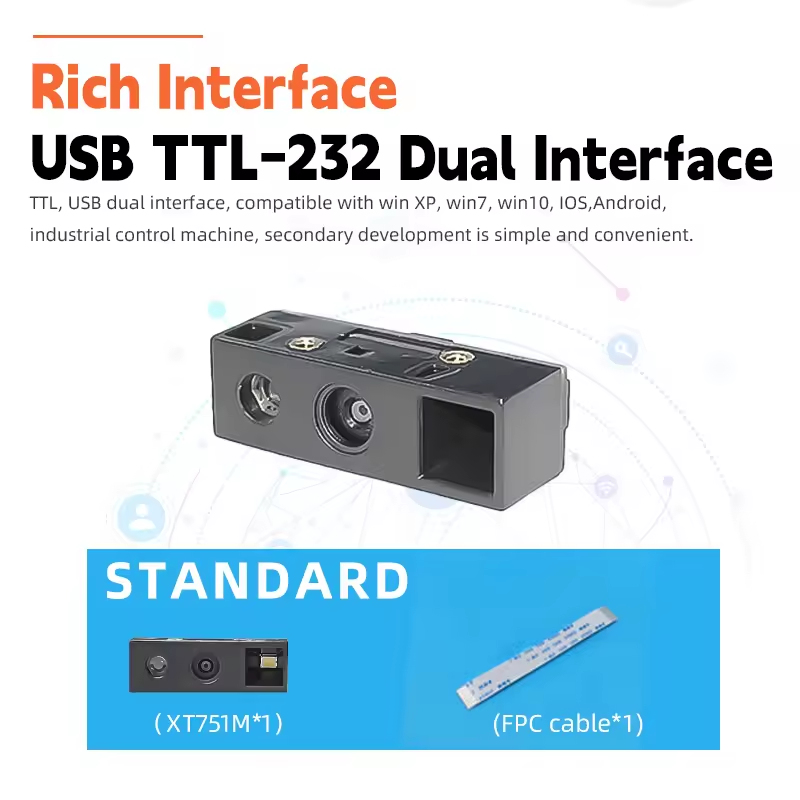

XT751M TTL USB OEM Scanner Engine

Fixed Mount Barcode Scanner

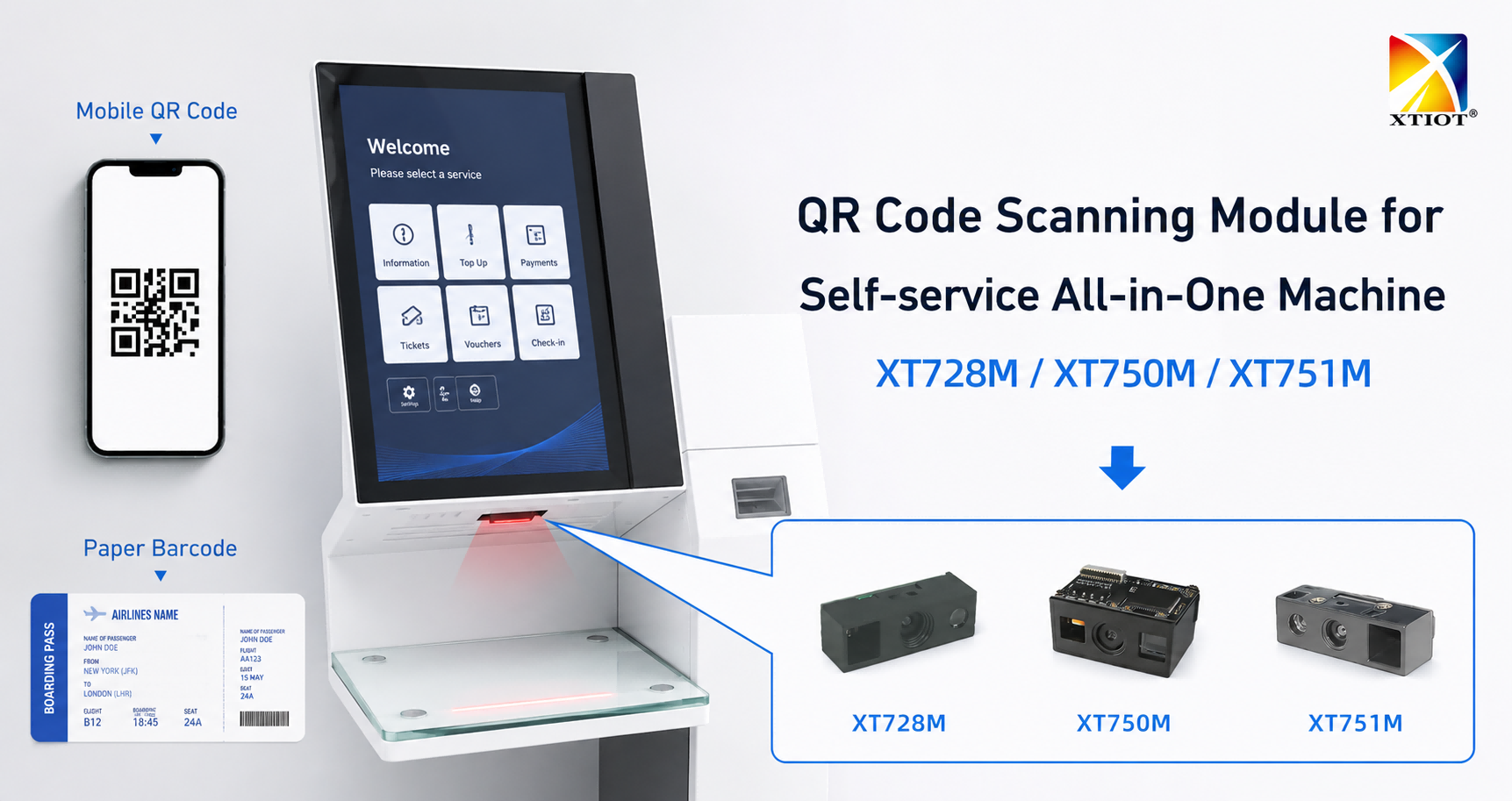

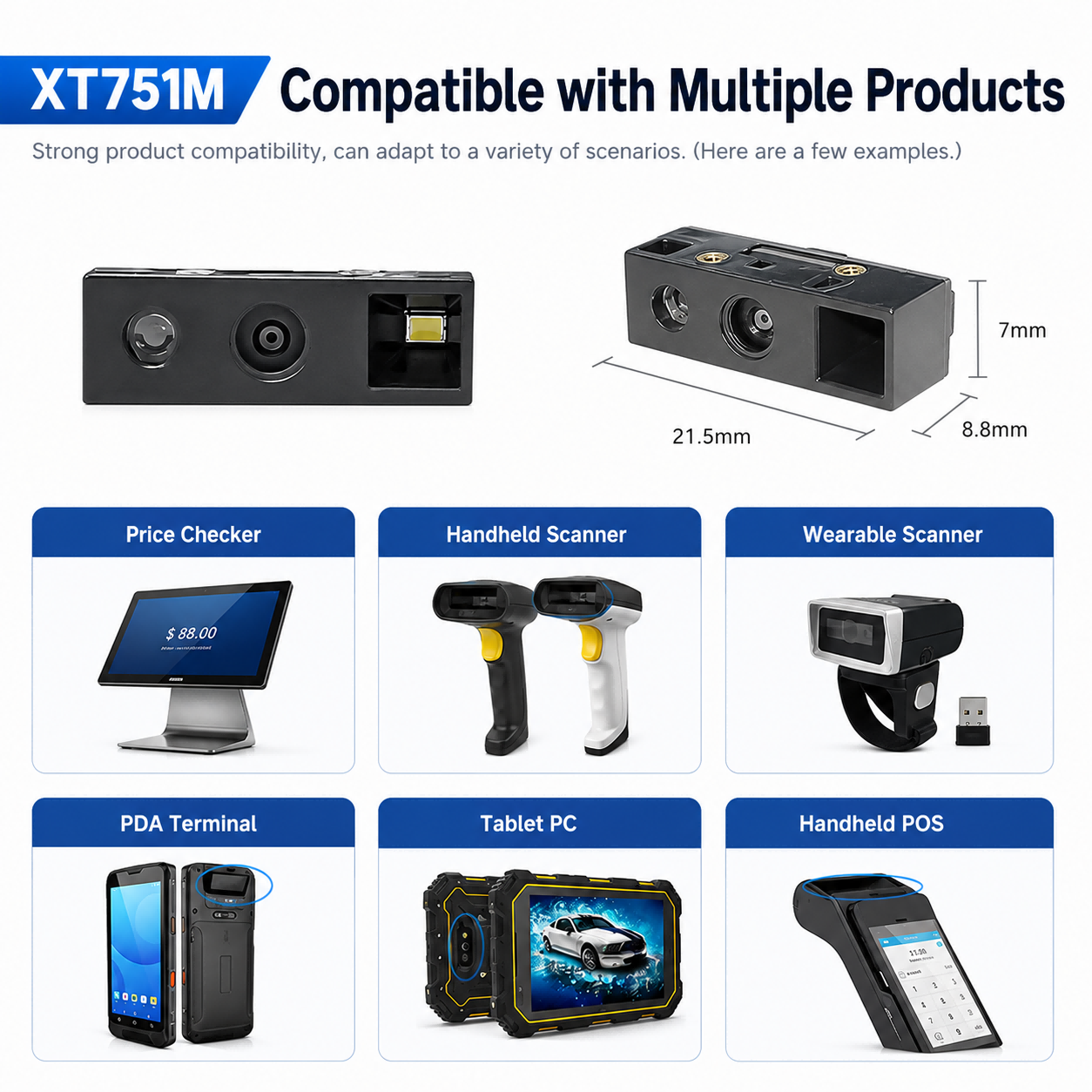

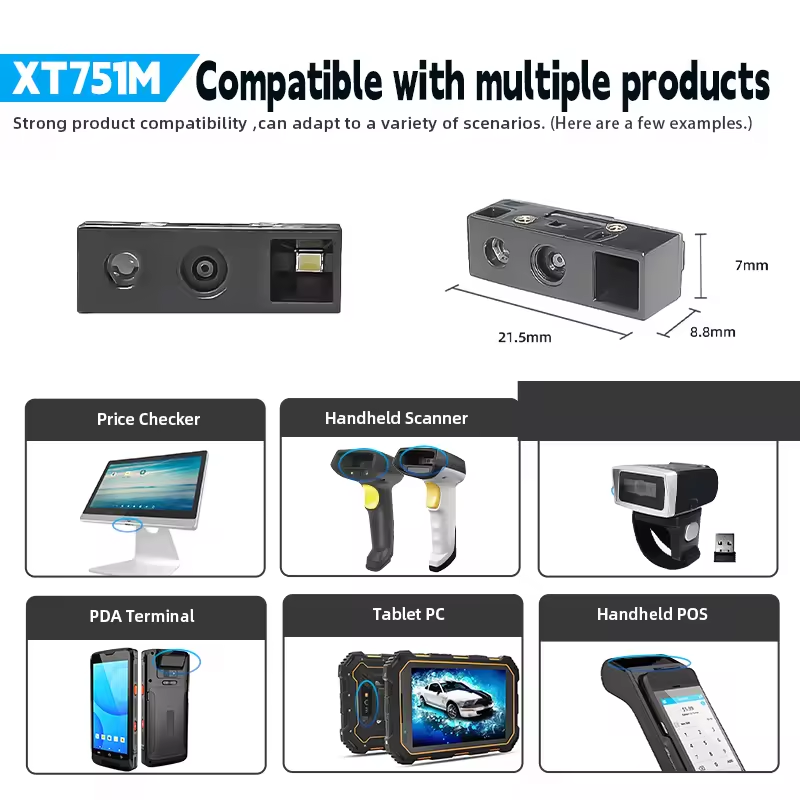

XT751M is 2D barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480
Decoding Ability: 1D, 2D
Resolution: ≥5mil

Get in touch with us to learn more.


0.00
0.00

商品描述

Fixed Mount Barcode Scanner

XT751M is 2D barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480
Decoding Ability: 1D, 2D
Resolution: ≥5mil

Get in touch with us to learn more.




Technical Specifications


Image sensorCMOS
DPI(W*H)680px*480px
FloodlightWhite LED
Focusing LampRed LED
1DEAN-8, EAN-13, UPC-E, UPC-A,ISBN, ISSN, Code128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Plessey, MSI-Plessey
2DQR Code, Micro QR, Data Matrix, PDF417
Accuracy≥5mil
Contrast Ratio≥20%
1D EAN13

5mil    45-130mm

13mil  45-230mm

2D QR Code

15mil  30-100mm

30mil  30-260mm

Field of View Angle

Horizontal: 36°

Vertical: 27°

Prompt ModeBEEP, LED

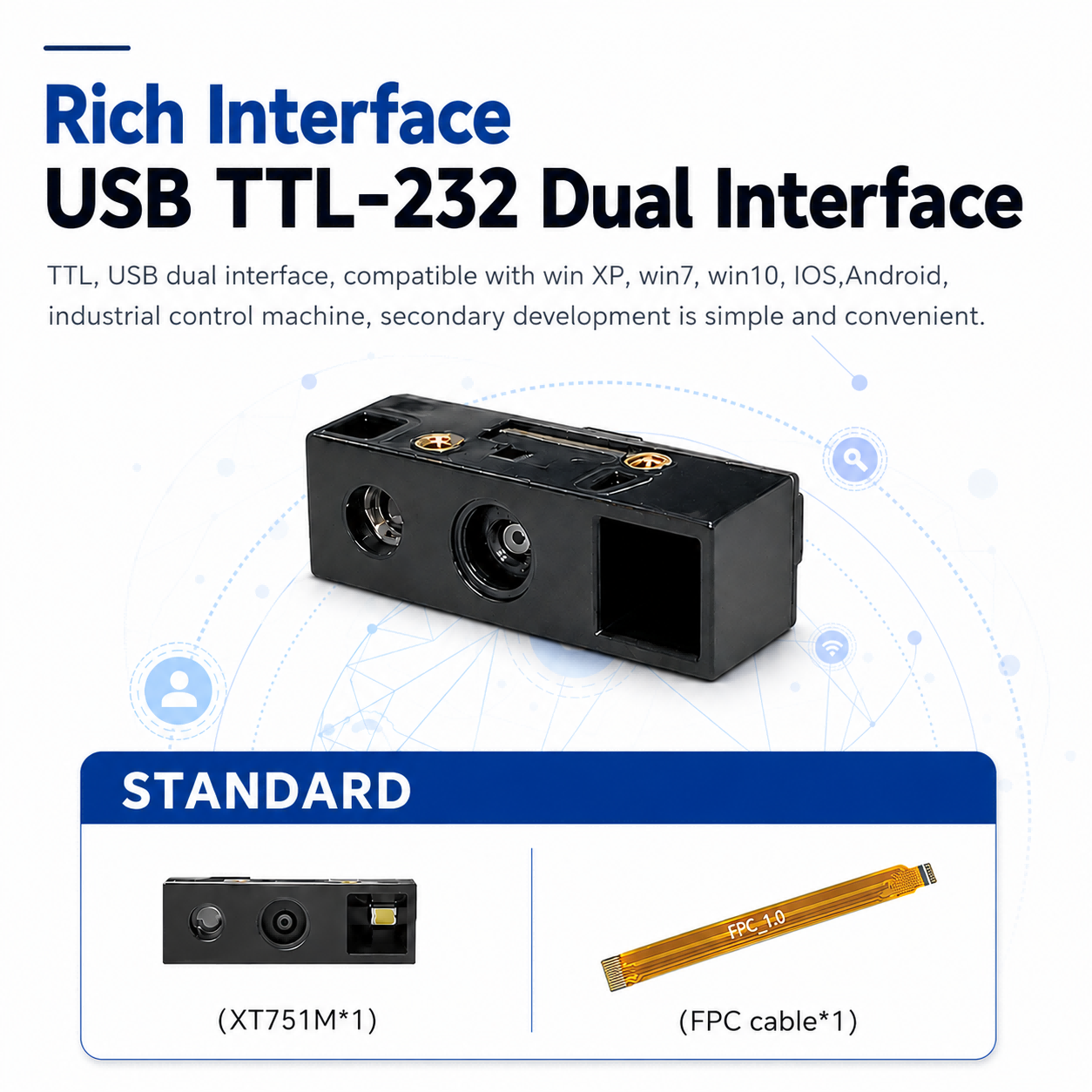

Data interfaceUSB HID KBW, USB HID CDC, TTL 232
Working voltage5V±3%
Working Electric Current150mA
Working Temperature0℃ ~ +60℃
