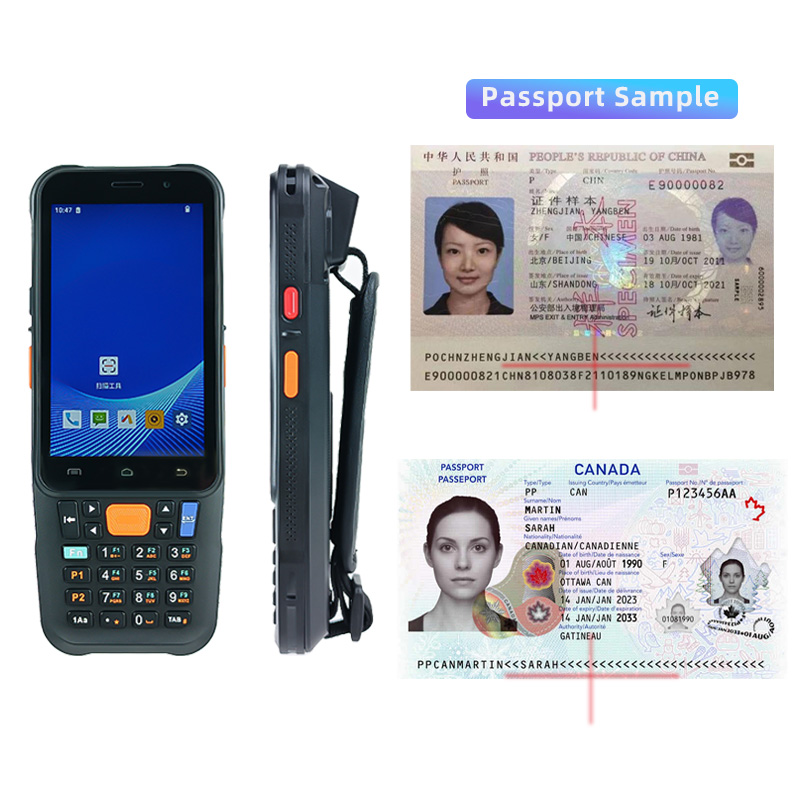

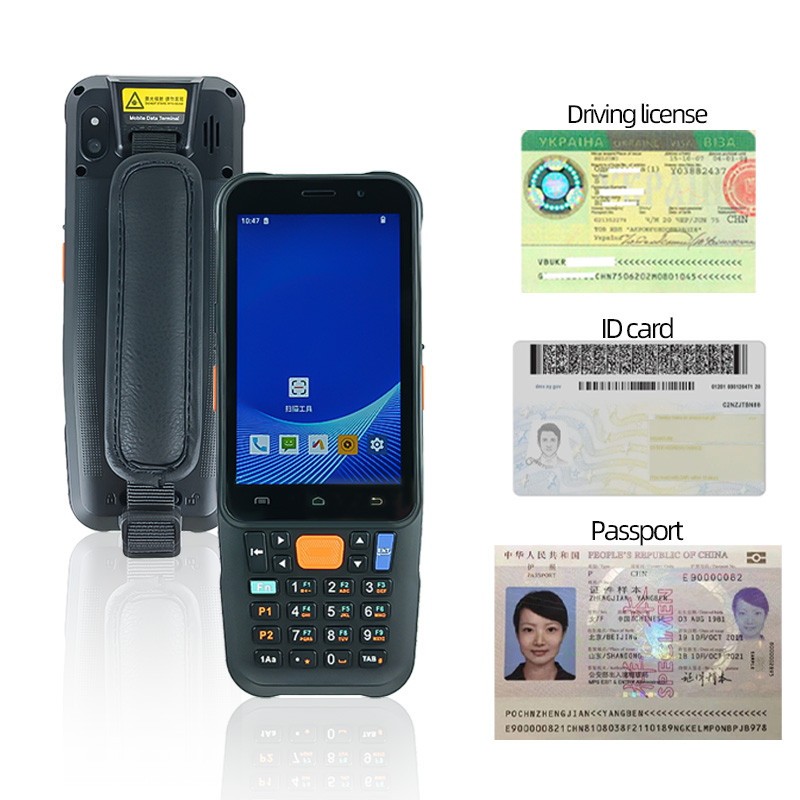

XT8001D Android 15 Passport Handheld Terminal PDA
Rugged Industrial Handheld Terminal
XT8001D is Android PDA with barcode scanner which suitable for Warehouse, Animal Tracking, Logistics, etc.
OS: Android 15.0
Storage: 4G + 64G
Screen: 4''
Barcode Reading: 1D + 2D ( including OCB-B MRZ code)
Communication: WiFi, Bluetooth 4.0 (5.0 is optional), 4G, 3G, 2G, etc.
Get in touch with us to learn more.
Rugged Industrial Handheld Terminal
XT8001D is Android PDA with barcode scanner which suitable for Warehouse, Animal Tracking, Logistics, etc.
OS: Android 15.0
Storage: 4G + 64G
Screen: 4''
Barcode Reading: 1D + 2D ( including OCB-B MRZ code)
Communication: WiFi, Bluetooth 4.0 (5.0 is optional), 4G, 3G, 2G, etc.
Get in touch with us to learn more.
Operating system | Android 15.0 |
Processor | 8-core CPU |
Memory | Standard: 4G+64G |
Expanding memory | MicroSD card, can support up to 256G |
Expansion slot | Nano-SIMx1, MicroSDx1, optional eSIMx1 |
Display screen | 4 - inch IPS high - definition screen, resolution 480 * 800 |
Touch screen | Supports multi - point touch with capacitive pen |
Camera | 5 - megapixel front - facing (optional), 5 - megapixel rear - facing (standard), 13 - megapixel rear - facing (optional), with flash and auto - focus function |
Indicator light | Charging indicator light |
Keyboard | Numeric keypad / function keys / scan keys / direction keys |
Flashlight | Low - power LED light for illumination, for emergency use |
Battery capacity | 5050mAh lithium - polymer battery |
Charging Time | No more than 4 hours |
Working time | More than 12 hours (when fully charged once) |
Standby time | Can stand by for 360 hours when wireless communication and other functions are turned off |
Scan code engine | 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,Code 11,Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI- Plessey |
2D: PDF417, Data Matrix, QR, Micro QR | |
Communication interface | Type - c data interface |
Communication | 4G, 3G, 2G full network |
WIFI | 2.4 G / 5 G dual-band, IEEE802.11a/b/g/n/ac |
Bluetooth | BT5.1 |
GPS | GPS + Beidou dual - navigation system with an error range of ±5m |
Operating temperature | -20℃ ~ +50℃ |
Class of protection | Host IP67 |
FAQ
Can XT8001D run custom Android applications?
XT8001D runs Android 15 with GMS and allows customers to deploy their own applications for enterprise and industrial projects.
What barcode symbologies are supported?
XT8001D supports a wide range of 1D and 2D barcodes, including:
QR Code
Data Matrix
PDF417
Code128
Code39
EAN-13
UPC
GS1 DataBar
Suitable for logistics, manufacturing, retail and pharmaceutical traceability.
Can customers deploy their own software?
Customers can install and run their own Android applications according to project requirements.
Is OEM and private label service available?
Available customization options include:
OEM logo
Private label
Customized packaging
User manual customization
Suitable for OEM projects and branded solutions.
Is long-term supply available?
XT8001D is designed for industrial and enterprise applications and supports long-term project requirements.
Is XT8001D suitable for system integrators and project-based deployment?
XT8001D is designed for:
System integrators
Software companies
Solution providers
OEM manufacturers
Industrial automation companies
Government and enterprise projects
What makes XT8001D suitable for OEM projects?
XT8001D combines Android 15, industrial-grade design and flexible communication options, making it suitable for long-term deployments and customized enterprise solutions. It is widely used by system integrators, software providers and OEM customers requiring reliable hardware platforms.
