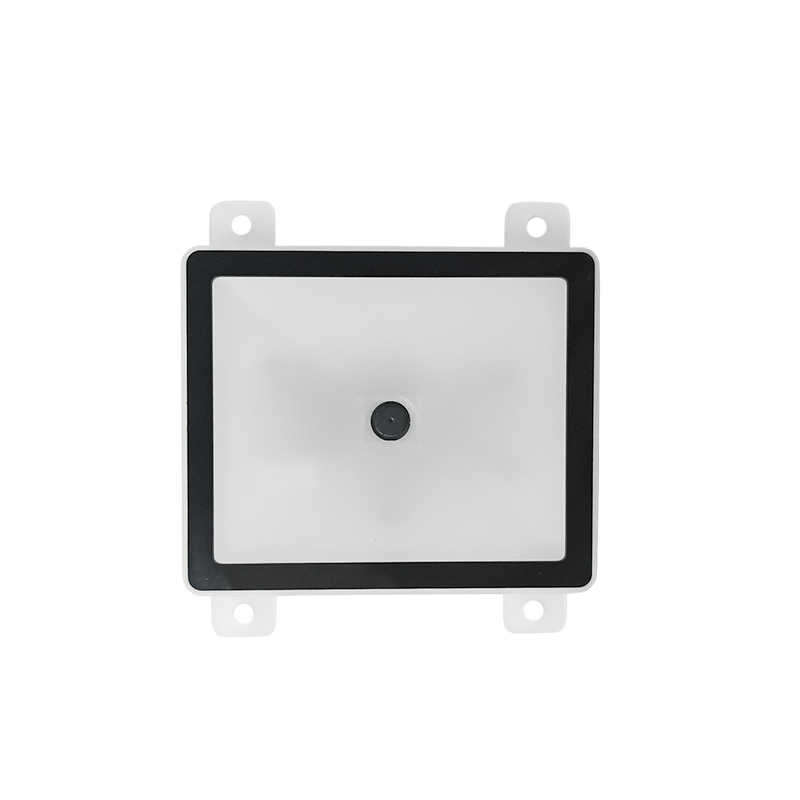

XT206H3 1200*800px All QR Code Scanner

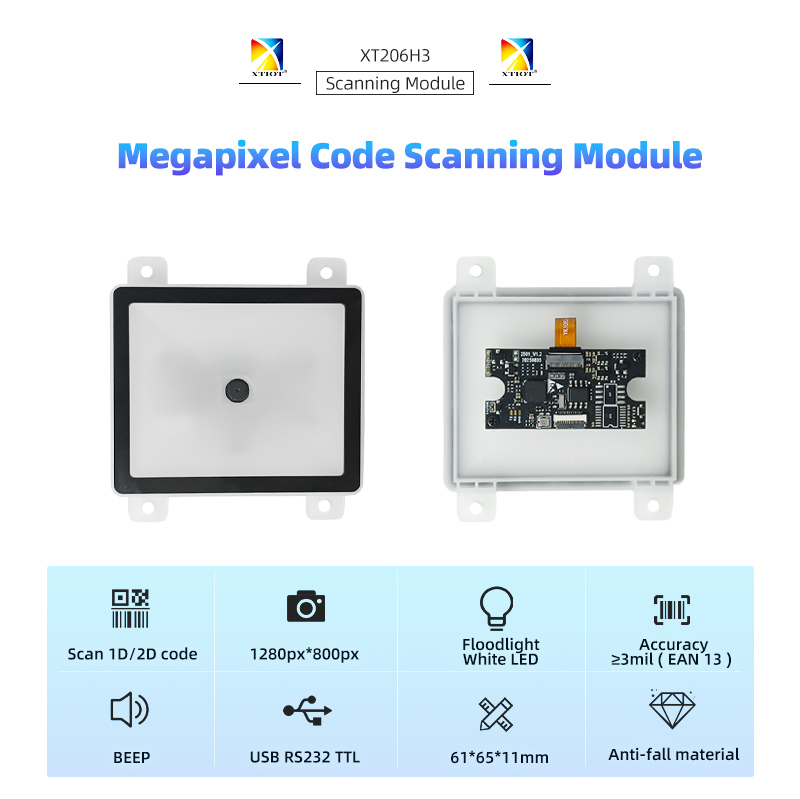

XT206H3 is megapixel barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, door access control, etc.
Communication:
5V USB: USB-HID, USB VCOM, USB-HID POS
UART: RS232/TTL
3.3V: 12PIN Connetor
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280*800px
Barcode Decoding Ability: 1D and 2D (Code128, EAN13, EAN8, UPCA, UPCE, QR Code, Data Matrix, PDF417, etc.)
Resolution: ≥3mil
Support: serial commands control
Get in touch with us to learn more.
XT206H3 is megapixel barcode scanner engine which suitable for KIOSK, vending machine, wash machine, POS device, door access control, etc.
Communication:
5V USB: USB-HID, USB VCOM, USB-HID POS
UART: RS232/TTL
3.3V: 12PIN Connetor
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280*800px
Barcode Decoding Ability: 1D and 2D (Code128, EAN13, EAN8, UPCA, UPCE, QR Code, Data Matrix, PDF417, etc.)
Resolution: ≥3mil
Support: serial commands control
Get in touch with us to learn more.
A: The XT206H3 supports a wide range of barcode symbologies, including 1D (e.g., Code 39, Code 128, EAN/UPC) and 2D (e.g., QR Code, Data Matrix, PDF417). It is optimized for environments requiring reliable decoding from both printed and digital displays.
A: The XT206H3 features a high-resolution 1280 × 800 imaging sensor.
A: The XT206H3 delivers high-speed and high-accuracy QR code reading from smartphone screens and other digital displays, even under varying brightness and angle conditions, making it ideal for payment, ticketing, and self-service applications.

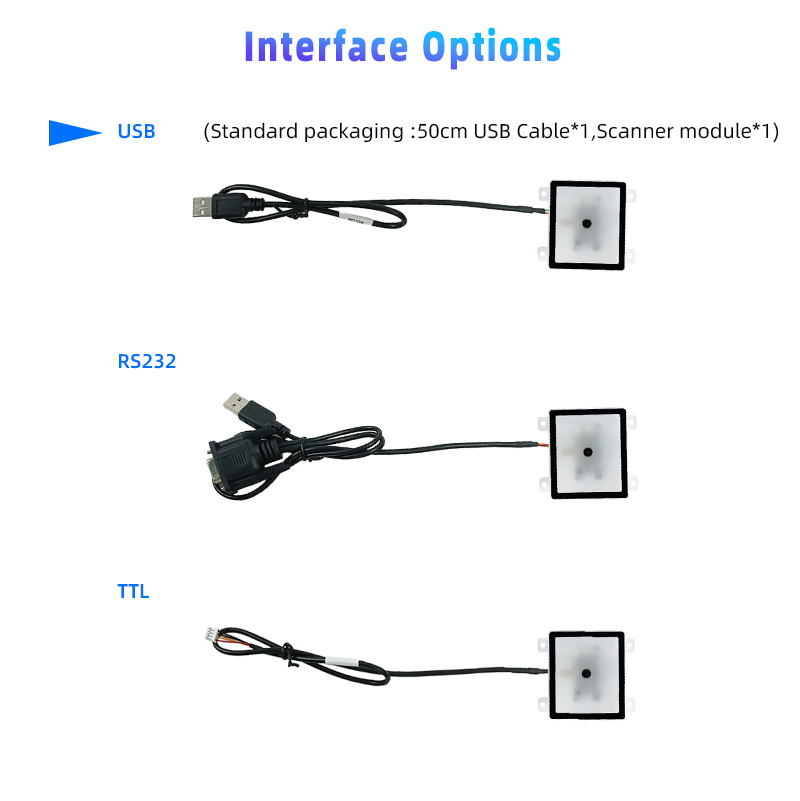

A: The XT206H3 supports multiple industry-standard interfaces, including USB, UART (TTL), and RS232.
A: Yes. The compact and robust XT206H3 module is engineered for seamless integration into self-service kiosks, ticketing machines, payment terminals, and point-of-sale systems that require reliable QR/2D scanning.
A: The XT206H3 offers a versatile scanning range, suitable for close-range scanning up to moderate distances. The exact range depends on barcode density, size, and environmental conditions; detailed specifications can be provided upon request.
A: Yes. The XT206H3 supports firmware upgrades via USB or host connection, enabling improved decoding performance, feature enhancements, and protocol updates over time.
A: Yes. We provide a complete software development kit (SDK).
A: We provide a standard 12-month warranty. Technical support, firmware maintenance, and integration assistance.
