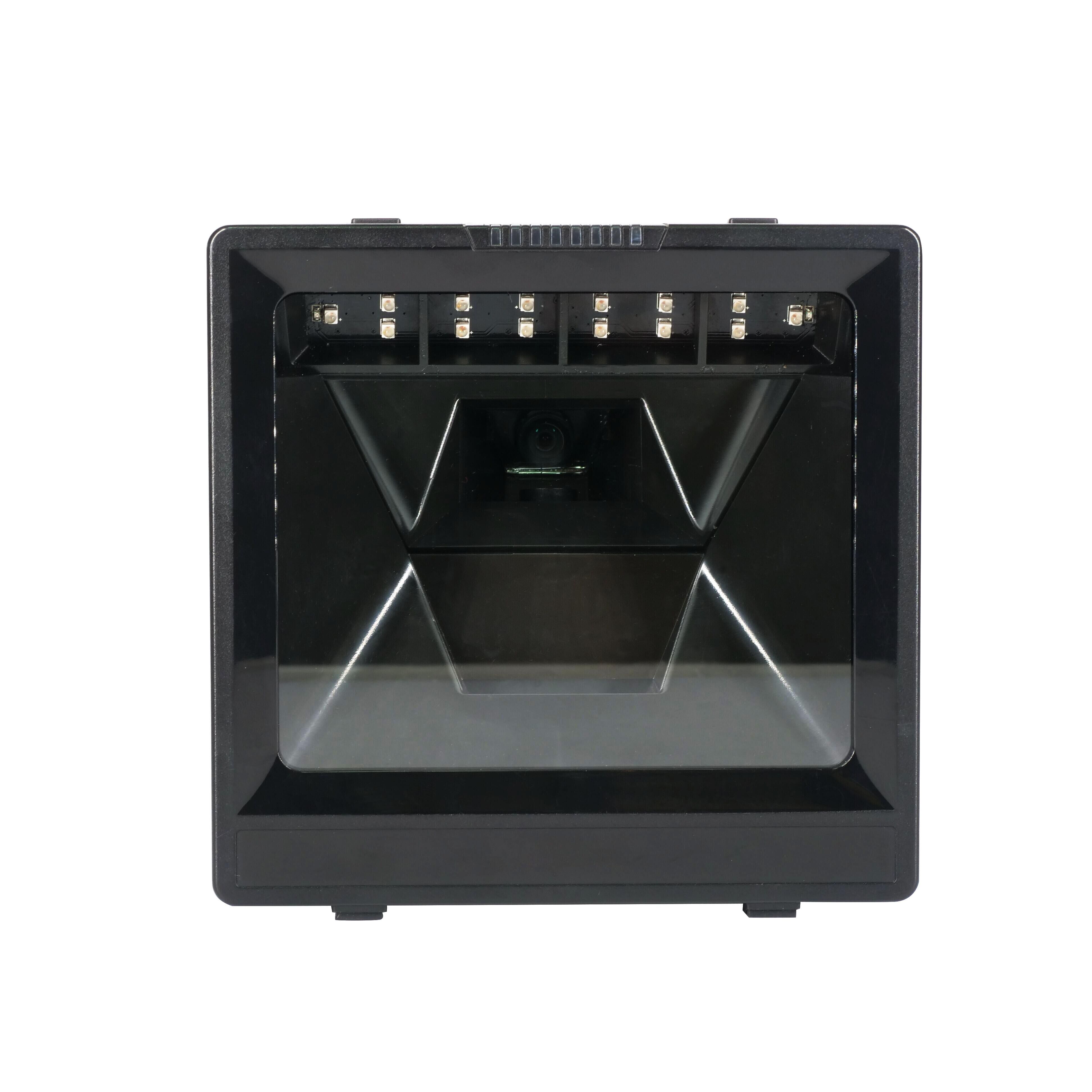

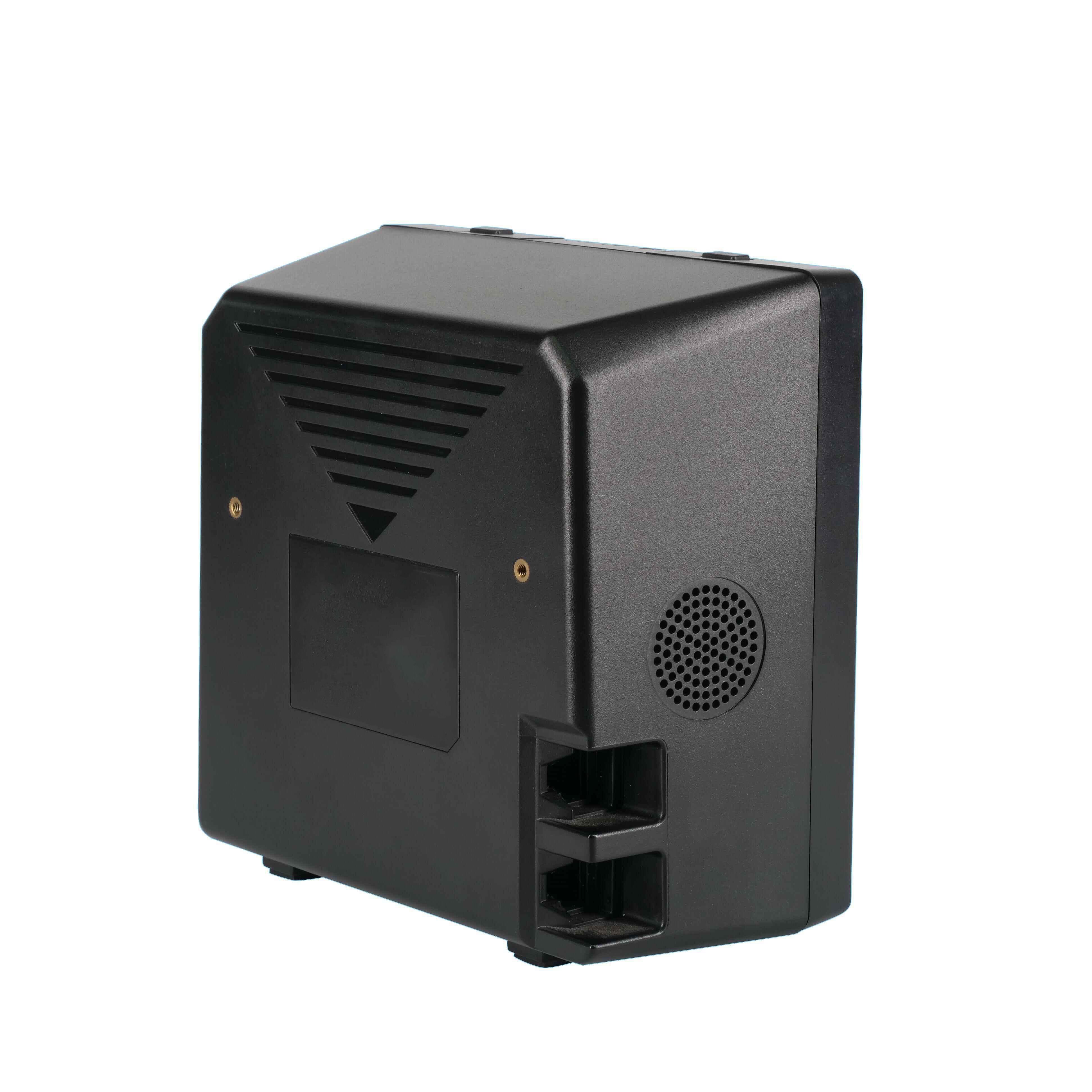

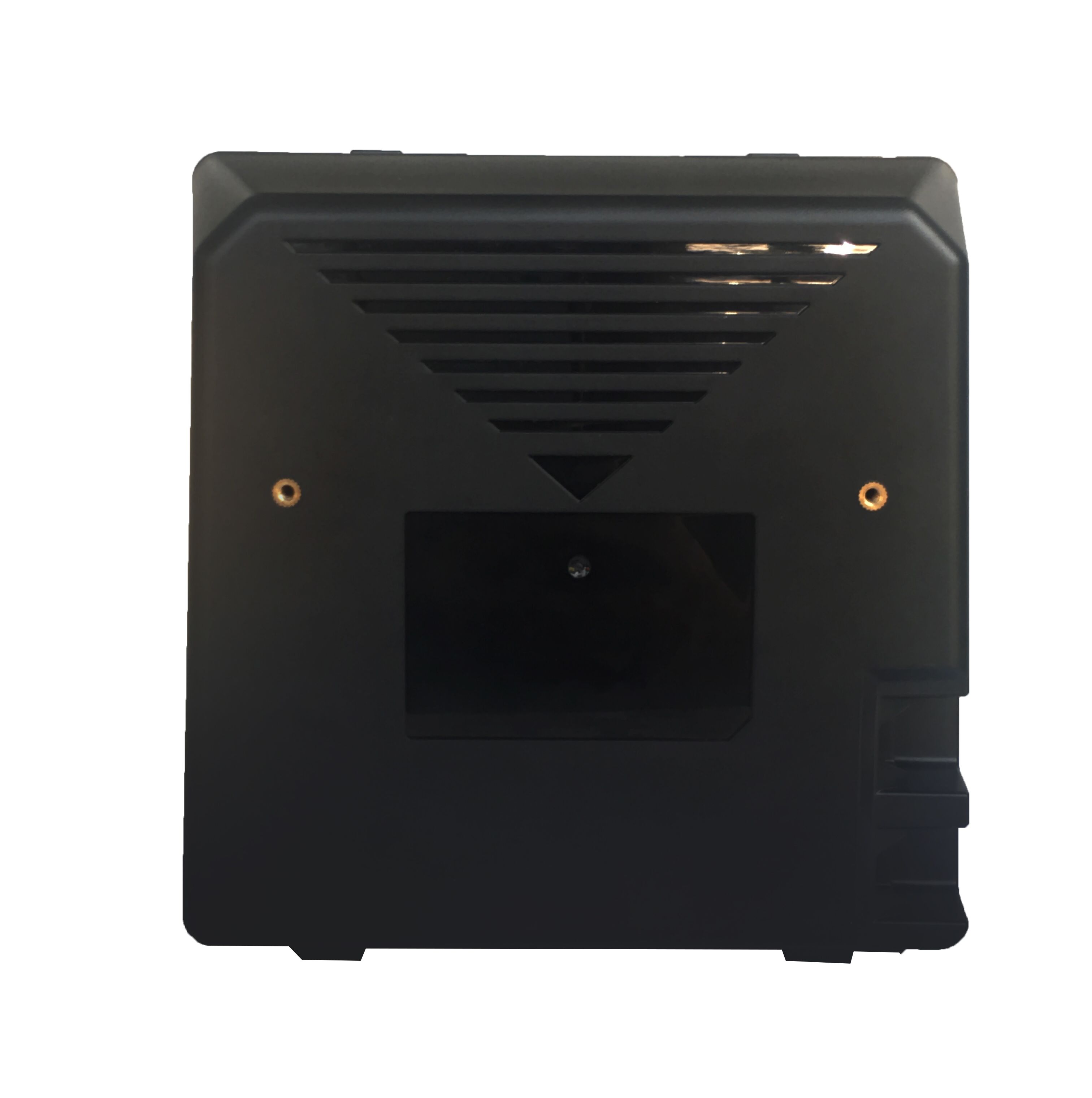

XT7590A

Desktop Fixed Mount Barcode Scanner

XT7590A is desktop fixed mount barcode scanner which suitable for POS device, checkout counter, etc.
Communication: USB, RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x1024 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil

Get in touch with us to learn more.

市场价： 0.00

价格： 0.00

商品描述

Desktop Fixed Mount Barcode Scanner

XT7590A is desktop fixed mount barcode scanner which suitable for POS device, checkout counter, etc.
Communication: USB, RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x1024 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil

Get in touch with us to learn more.

Technical Specifications

Image Sensor	CMOS sensor
DPI(W*H)	1280px * 1024px
Professor	32-bit ARM MCU + DSP
Light Source	RED LED
1D	Interleaved 2 of 5, Standard 2 of 5, Matri 2 of 5, Code39-Regular, Code39-Full ASCII, Code32 Code93-Regular, Code93-Full ASCII, Code128, EAN/GSL/UCC-128, Codabar, MSI, EAN/JAN-13, UPC-A, EAN/JAN-8, Code11, UPC-E0/E1
2D	PDF417, Data Matrix, QR, Micro QR, AZTEC
Accuracy	≥4mil
Contrast Ratio	≥30%
Code39	5mil 10-140mm
UPC-A	13mil 20-340mm
Data Matrix	10mil 10-100mm
Data Matrix	15mil 10-200mm
Motion Tolerance	3.82m/sec
Bit Error Rate	1/5000000
Prompt Mode	Buzzer, Indicator Light（LED）
Data Interface	USB HID KBW, USB HID CDC, RS 232
System Supported	Linux, Android, Windows XP/7/8/10, MAC
Power Supply	DC 5V 2A
Power Consumption	1.71W (working), 0.87W (standby), 2.45W (maximum)
Working Temperature	0 to 50℃
Storage Temperature	0 to 50℃
Relative Humidity	20% to 85% (No Condensation)
ESD Protection	15KV air discharge
Shock Resistance	1.5m free fall on concrete surface
Cable Standards	USB, RS232
Size	151.5 * 75.8 * 146.9 mm

Specification PDF Download

User Manual Download
