XT2010CHD XTIOT 2D Passport Scanner ID Cards of France Germany Greece Hungary Ireland Italy

XT2010CHD XTIOT 2D Passport Scanner ID Cards of France Germany Greece Hungary Ireland Italy

Fixed Mount Barcode Scanner

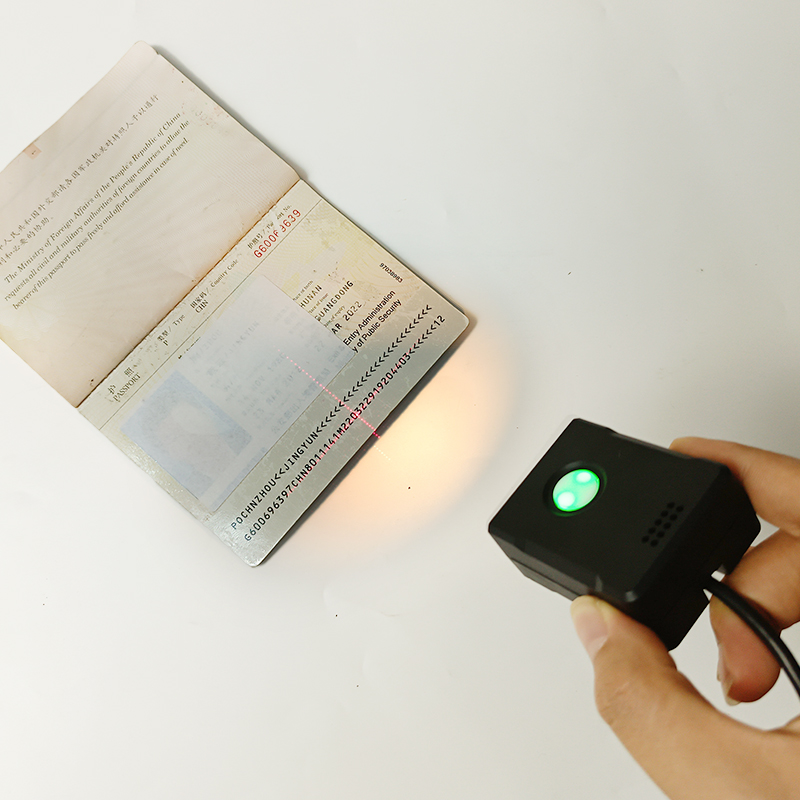

XT2010CHD is fixed mount barcode scanner which can read passport MRZ and ID card MRZ code.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil
Support: serial commands control

Get in touch with us to learn more.



0.00
0.00

商品描述

Fixed Mount Barcode Scanner

XT2010CHD is fixed mount barcode scanner which can read passport MRZ and ID card MRZ code.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 global shutter image sensor
Decoding Ability: 1D, 2D
Resolution: ≥3mil
Support: serial commands control

Get in touch with us to learn more.




Technical Specifications


Image SensorCMOS
DPI(W*H)1280px*800px
FloodlightWhite LED
Focusing lamp625nm Red LED
1DEAN-8, EAN-13, UPC-E, UPC-A,ISBN, ISSN, Code128, UCC/EAN-128, AIM-128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS-Limited, RSS-Expand)
2DPDF417, Data Matrix, QR, Micro QR
Accuracy≥3mil
Contrast Ratio≥20%
1D EAN13

5mil    50-160mm

13mil  50-260mm

2D QR Code

15mil  30-170mm

30mil  50-270mm

Field of View Angle

Horizontal: 42°

Vertical: 31.5°

Diagonal: 52.5°

Prompt ModeBEEP, LED
Read ModeManual mode, Induction mode, Continuous mode, Command trigger
UpdateUSB/ serial connection online
Data EditingSupport
Data InterfaceUSB KBW, USB CDC, USB HID POS, RS232, TTL 232
Working Voltage5V±3%
Working Electric Current218mA
Standby Electric Current70mA
Working Temperature-20℃ ~ +60℃
Storage Temperature-40℃ ~ +70℃
Relative Humidity5% ~ 95%(RH)
Cable StandardsUSB, RS 232, TTL 232
Product Size41.2(W)*49.2(D)*24(H)(m m)
