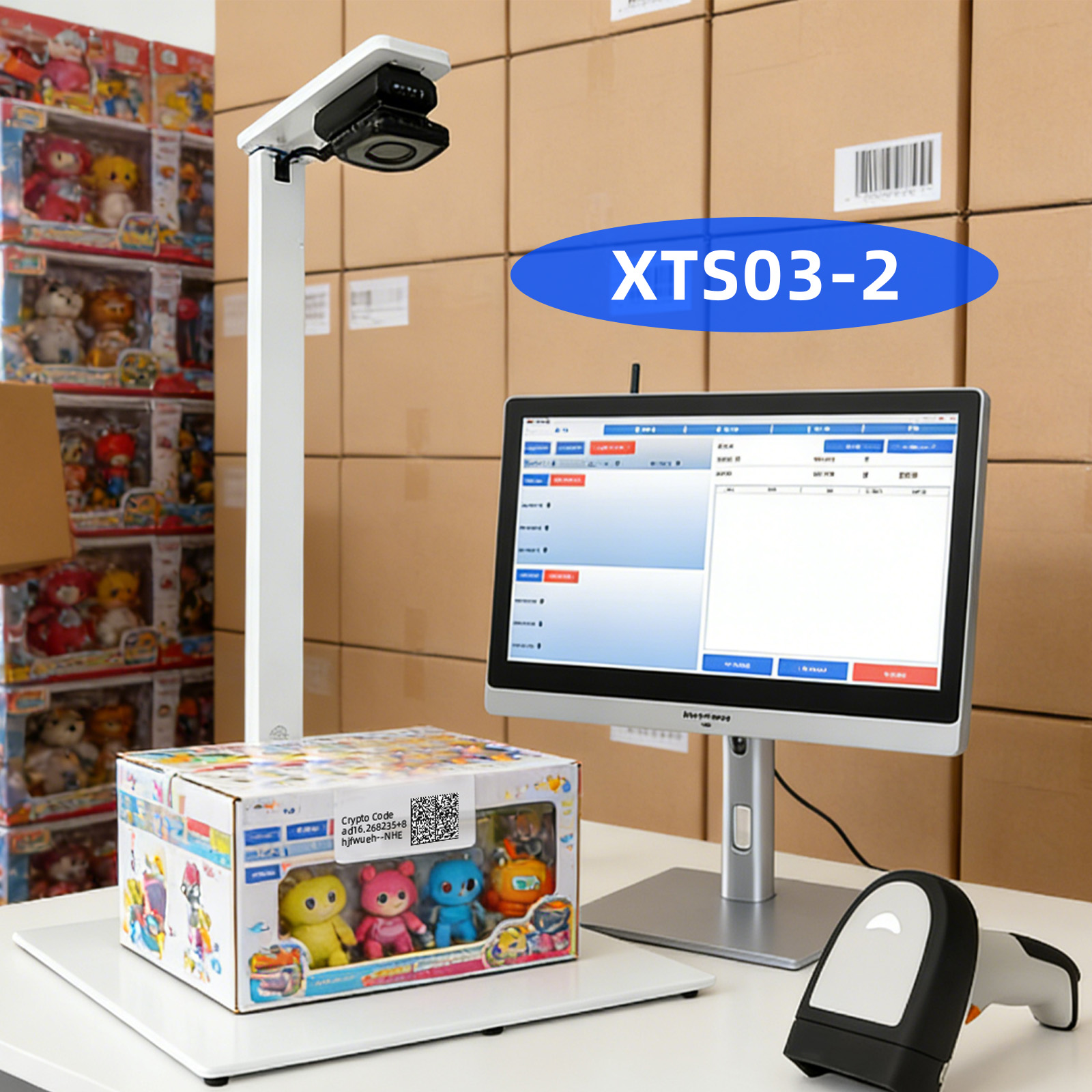

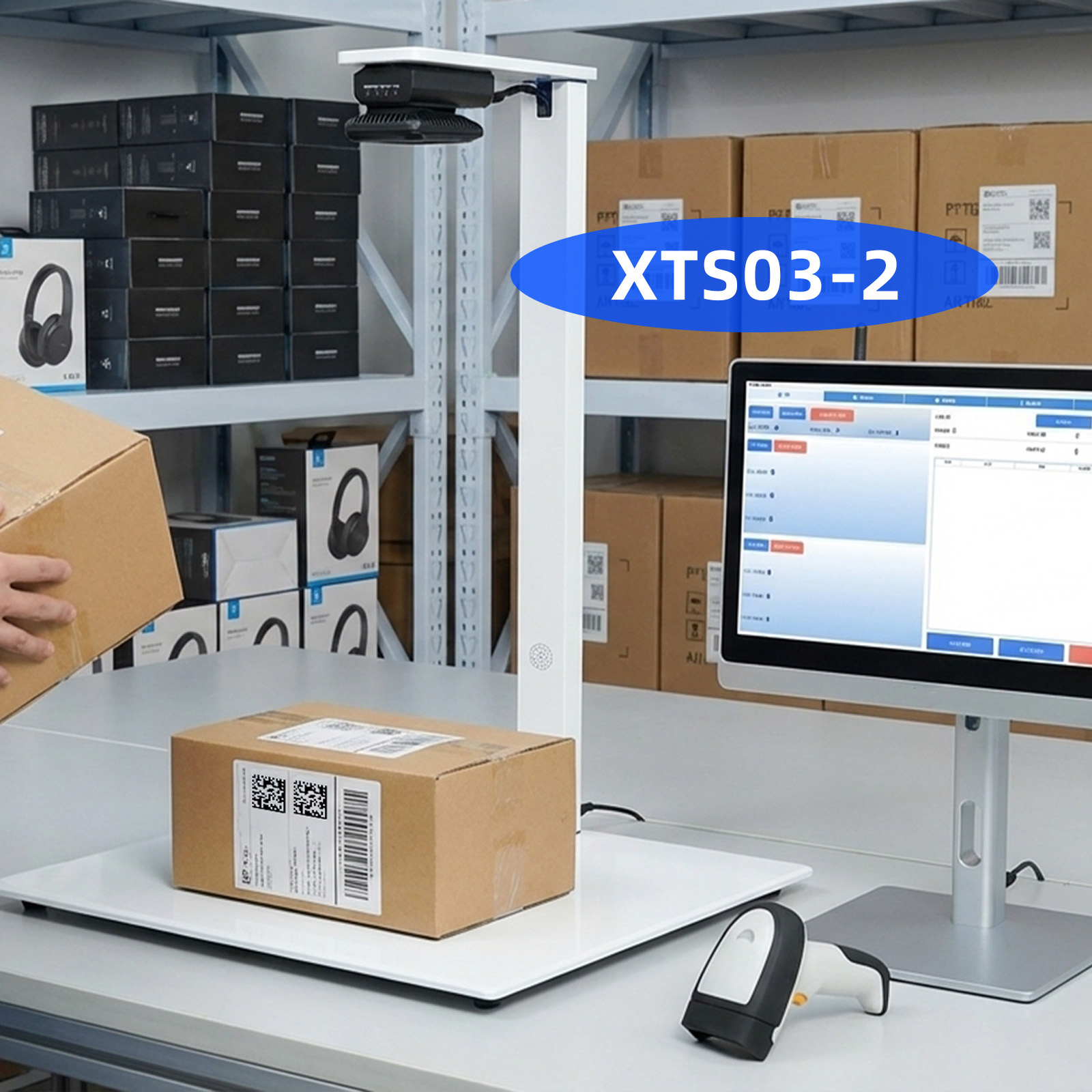

XTS03-2 Networked Barcode Error-Proofing System

XTS03-2 Networked Barcode Error-Proofing System

XTS03-2 is the networked enterprise-grade model of XTIOT’s XTS03 series barcode verification & poka-yoke system, designed for multi-workstation production lines, standardized assembly workshops and factory-level quality data management.

Supporting stable local area network (LAN) and cloud connection, this system realizes real-time data synchronization and collaborative control across multiple workstations, with unified storage of all scanning records, verification logs and production data on the server for centralized management. It retains full-featured barcode matching, anti-error alarm and anti-duplicate scanning functions, and supports customized data export, historical record query, quality statistics and targeted report generation.

Equipped with standard docking interfaces, it can be seamlessly connected with factory MES, ERP and other production management systems, realizing data intercommunication between quality inspection and production scheduling.

With strong stability, high compatibility and expandable functions, it is suitable for medium and large-scale batch production lines, automated assembly workshops and standardized manufacturing scenarios requiring full-process quality traceability.




Get in touch with us to learn more.



0.00
0.00

商品描述

XTS03-2 is the networked enterprise-grade model of XTIOT’s XTS03 series barcode verification & poka-yoke system, designed for multi-workstation production lines, standardized assembly workshops and factory-level quality data management.

Supporting stable local area network (LAN) and cloud connection, this system realizes real-time data synchronization and collaborative control across multiple workstations, with unified storage of all scanning records, verification logs and production data on the server for centralized management. It retains full-featured barcode matching, anti-error alarm and anti-duplicate scanning functions, and supports customized data export, historical record query, quality statistics and targeted report generation.

Equipped with standard docking interfaces, it can be seamlessly connected with factory MES, ERP and other production management systems, realizing data intercommunication between quality inspection and production scheduling.

With strong stability, high compatibility and expandable functions, it is suitable for medium and large-scale batch production lines, automated assembly workshops and standardized manufacturing scenarios requiring full-process quality traceability.




Get in touch with us to learn more.




ModelOperating ModeCore Application ScenariosKey Functional Features
XTS03-1Standalone OfflineSingle workstation, small-batch manual production, offline quality inspectionNo network required, plug-and-play, independent operation, local data storage, basic verification and alarm functions, low deployment cost
XTS03-2Networked Enterprise VersionMulti-workstation production line, standardized workshop, factory-level quality managementNetwork synchronization, multi-station collaborative control, centralized data management, MES/ERP docking, full traceability, statistical report export



Hardware Configuration – XTS03-2


  1. Industrial HostFanless industrial mini PC, pre-installed Windows 10 IoT.8GB memory + 128GB SSD, built-in Gigabit Ethernet for network connection.

  2. Barcode ScannerIndustrial 2D wired scanner, supports all mainstream 1D/2D barcodes, Data Matrix and DPM codes.

  3. Touch DisplayIndustrial touch monitor, easy operation for production staff.

  4. Alarm IndicatorThree-color tower light with buzzer, sound and light alarm for error reminding.

  5. Standard AccessoriesKeyboard, mouse, power adapter and installation bracket.



1. XTS03: How is three-level code aggregation implemented?

- Unit Scan:
XTS03 industrial scanner scans DMC unit codes, verifying format and uniqueness in real time.

- Case Aggregation:
When preset quantity (e.g., 12 units/case) is reached, system auto-generates SSCC case code, binding all unit codes (parent-child).

- Pallet Aggregation:
When preset quantity (e.g., 40 cases/pallet) is reached, generates SSCC pallet code, binding all case codes.

- Upload & Verify (Required manufacturer provide API):
Aggregated data auto-syncs to Chestny ZNAK platform, receives feedback, and blocks anomalies (duplicate/misbound codes).

2. What is the core value proposition for Russian manufacturers—or those exporting to Russia?

**Compliance & Customs Clearance:**

Fulfill the mandatory requirements of Russia’s *Chestny ZNAK* system to mitigate customs clearance risks.


**Efficiency Enhancement:**

Boost scanning efficiency on production lines and in warehouses by over 10x, thereby reducing labor costs.


**Quality Control:**

Implement robust error prevention (guarding against duplicates and omissions) to enhance packaging accuracy and traceability quality.


**Data Visualization:**

Access real-time dashboards featuring aggregated data across three levels of serialization codes, ensuring full transparency in inventory and logistics.


**Cost Reduction & Efficiency Gains:**

Minimize costs associated with manual labor, error correction, and product returns; achieve a Return on Investment (ROI) within 6 to 12 months.
