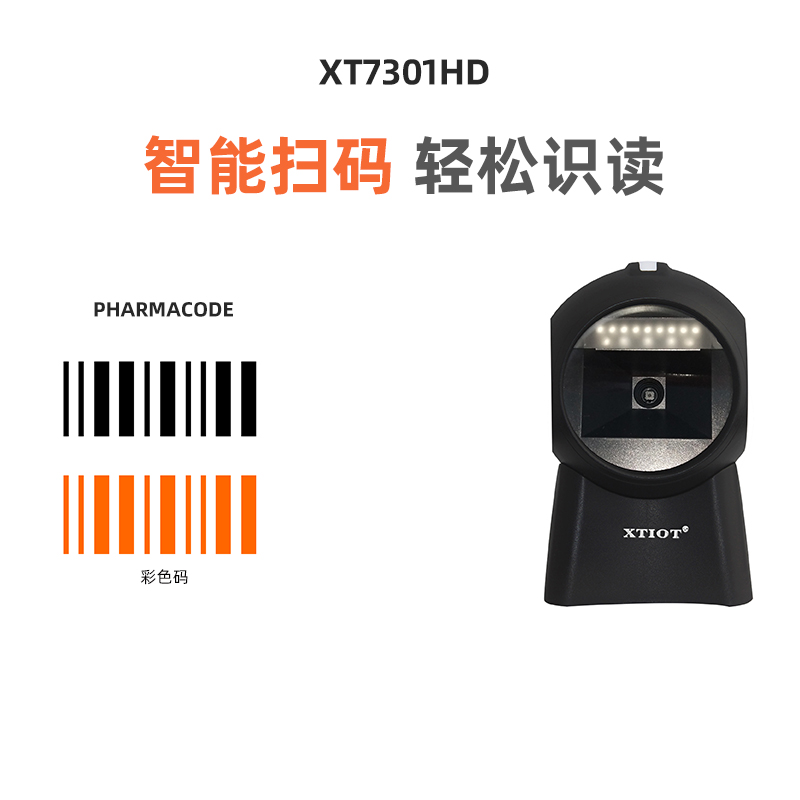

XT7301HD (Discontinued)
2D Desktop Presentation Barcode Scanner
XT7301HD is 1280*800 megapixel desktop barcode scanner which suitable for supermarkets, pharmacy, chain stores, shopping malls, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 global shutter image sensor
Barcode Decoding Ability: 1D, 2D
Resolution: ≥3mil
Get in touch with us to learn more.
2D Desktop Presentation Barcode Scanner
XT7301HD is 1280*800 megapixel desktop barcode scanner which suitable for supermarkets, pharmacy, chain stores, shopping malls, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 1280x800 global shutter image sensor
Barcode Decoding Ability: 1D, 2D
Resolution: ≥3mil
Get in touch with us to learn more.
Technical Specifications
| Image Sensor | CMOS |
| DPI(W*H) | 1280px*800px |
| Floodlight | Red LED |
| 1D | UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Codabar , Plessey , MSI, Interleaved 2 of 5, Pharmacode |
| 2D | PDF 417, Micro PDF 417, Data Matrix , QR Code , Micro QR, Aztec, DotCode |
| Accuracy | 1D≥3mil 2D≥9mil |
| Lowest Contrast | ≥30% |
| 1D EAN 13 | 5mil 0-90mm 13mil 0-200mm |
| 2D QR Code | 10mil 0-90mm 15mil 0-150mm |
| Tilt | ±60° |
| Rotate | 360° |
| Deflection | ±60° |
| Field of View Angle | Horizontal: 58° Vertical: 45° |
| Prompt Mode | BEEP, LED |
| Data Interface | USB KBW, USB CDC, USB HID POS, RS232, TTL 232 |
| Working Voltage | 5V±3% |
| Working Electric Current | 200mA |
| Standby Electric Current | 120mA |
| Working Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (RH) |
| Ambient Lighting | 0~86,000Lux |
