What Is Professional RFID Antenna Design?

RFID antenna design directly determines a device's reading performance, including signal stability, coverage range, and anti-interference capability. A professionally designed antenna ensures that RFID tags can be reliably read regardless of orientation, distance, or environmental challenges such as metal reflections, tag density, or electromagnetic interference. For warehouse and logistics applications, poor antenna design results in unstable reads, reduced coverage, and increased missed tags—making this a critical factor in device selection.

XTIOT PDA Products with Professional RFID Antenna Design

XTIOT offers rugged Android PDAs engineered with optimized antenna configurations for reliable UHF RFID reading across demanding industrial environments.

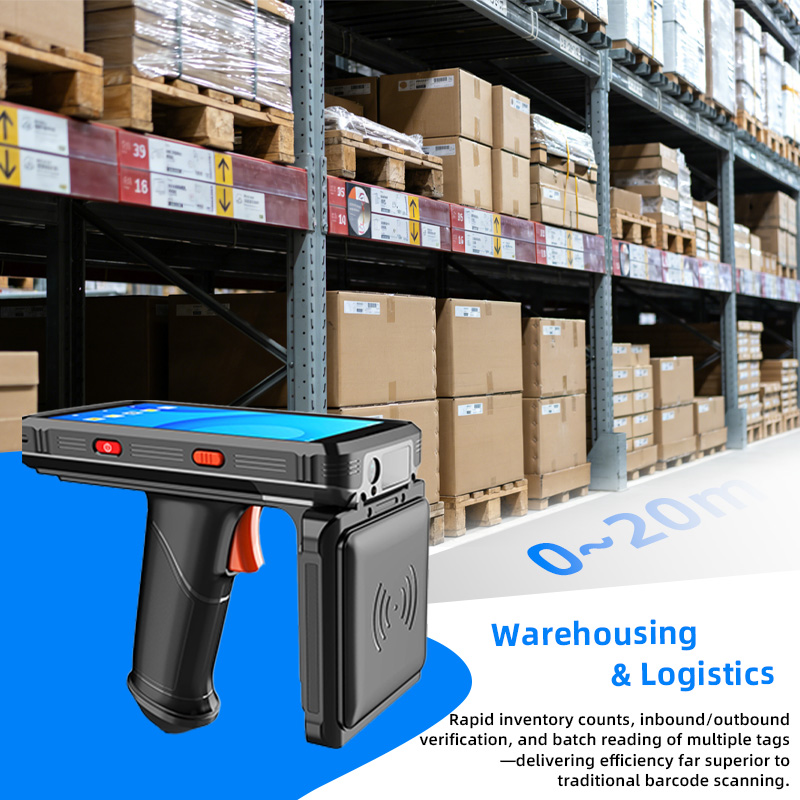

XT8002B Rugged Android PDA – Optimized Antenna for Warehouse and Logistics

The XT8002B is a high-performance handheld terminal designed for warehouse management, logistics, inventory counting, and asset tracking. It integrates multiple data capture functions including 1D/2D barcode scanning and optional UHF RFID reading in a single rugged device .

Key antenna design features:

• Professional RF antenna integration – optimized placement for maximum reading coverage

• IP65 protection – sealed antenna housing protects against dust and moisture interference

• Optional UHF RFID module – professionally designed antenna configuration for batch reading

• Wide operating temperature: -20°C to +60°C – stable antenna performance across temperature extremes

• High-performance ARM processor – complements antenna design for rapid tag processing

• 4GB RAM + 64GB storage – handles large volumes of tag data from extended reading ranges

Antenna performance benefits:

• Stable signal – consistent reads even in challenging warehouse environments

• Extended coverage – reliable reading across warehouse aisles and loading docks

• Anti-interference capability – handles metal reflections and high tag density

Perfect for:

• Warehouse inventory counting – stable antenna signal across large storage areas

• Logistics distribution centers – reliable coverage for dock door processing

• Cold chain operations – consistent antenna performance in refrigerated environments

• Outdoor yard management – IP65 protection ensures antenna integrity in dust and rain

XT8501 Inspection UHF Handheld RFID Reader – Integrated Antenna for Asset and Supply Chain Applications

The XT8501 is a UHF handheld RFID reader terminal featuring Android 13 operating system with 4GB RAM + 64GB ROM memory configuration. It supports both 1D/2D barcode scanning and UHF RFID reading in a single integrated device, with professionally designed antenna architecture for consistent performance.

Key antenna design features:

• Integrated UHF antenna – optimized for balanced coverage and sensitivity

• Private mold design – exclusive antenna configuration ensures consistent quality

• Android 13 OS – supports advanced antenna tuning and calibration

• OEM customization available – tailored antenna configurations for specific application requirements

Antenna performance benefits:

• Reliable signal stability – consistent reads for asset management rounds

• Balanced coverage – optimized for both close-range and distance reading

• Interference resistance – designed for environments with mixed tag types

Perfect for:

• Inspection and maintenance systems – stable antenna signal for equipment tag reading

• Supply chain traceability – consistent coverage for product anti-counterfeiting

• Livestock management – reliable antenna performance in farm environments

How Antenna Design Affects RFID Reading Performance

1. Signal Stability

Challenge: Inconsistent antenna performance leads to intermittent reads, causing missed tags during inventory counts.

XTIOT Solution: The XT8002B's professionally integrated antenna delivers stable signal output, ensuring consistent reads across multiple scanning passes. The high-performance ARM processor works in harmony with the antenna design to maintain signal integrity .

2. Coverage Range

Challenge: Poor antenna design limits reading distance, requiring workers to approach each tag individually.

XTIOT Solution: The XT8002B's antenna configuration supports extended reading range, enabling efficient scanning from forklift height and across warehouse aisles. UHF RFID module option provides additional coverage flexibility.

3. Anti-Interference Capability

Challenge: Metal shelving, tag density, and electromagnetic noise can disrupt RFID signals, causing unreliable reads.

XTIOT Solution: The XT8002B's antenna is optimized for challenging environments with metal infrastructure and high tag density. IP65 protection ensures the antenna remains unaffected by dust and moisture that could otherwise degrade signal quality .

Critical Applications Requiring Professional Antenna Design

How XTIOT Ensures Professional Antenna Design

Integrated Antenna Architecture

XTIOT PDAs feature professionally designed integrated antennas that balance coverage range with signal sensitivity. The antenna placement is optimized for both close-range and distance reading, ensuring consistent performance across varied use cases.

Sealed Housing Protection

With IP65 protection, the antenna components are sealed against dust and moisture ingress—factors that can degrade antenna performance in industrial environments .

Wide Operating Temperature Tolerance

The XT8002B operates reliably from -20°C to +60°C, ensuring antenna performance remains stable in cold storage facilities, outdoor loading docks, and unconditioned warehouse spaces .

Complementary Processing Power

The high-performance ARM processor works in tandem with the antenna design, ensuring that signals captured by the antenna are processed rapidly without creating bottlenecks .

Rugged Construction

Designed for demanding environments, the XT8002B's robust housing protects the antenna assembly from physical damage that could affect reading performance .

Why Professional Antenna Design Matters for RFID Operations

Without professionally designed antennas, organizations face:

• Signal instability – intermittent reads cause incomplete inventory data

• Limited coverage – workers must position tags precisely for successful reads

• Interference susceptibility – metal shelving and high tag density cause missed tags

• Performance degradation – dust and moisture compromise antenna efficiency over time

• Inconsistent results – varying read success across different operators or positions

XTIOT delivers this capability with rugged PDAs featuring professionally designed integrated antennas, sealed IP65 protection, and wide operating temperature tolerance—ensuring signal stability, extended coverage, and reliable anti-interference performance for your warehouse, logistics, and asset management operations.
