What Is Ingress Protection Rating?

IP (Ingress Protection) rating defines a device's resistance to dust and moisture ingress. The first digit indicates solid particle protection (dust), the second digit indicates liquid ingress protection (water). For example, IP54 offers limited dust protection and water splash resistance, while IP65 provides complete dust protection and water jet resistance, and IP67 offers full dust protection and temporary immersion protection up to 1 meter. These ratings determine whether a scanner is suitable for outdoor installations, commercial kitchens, food processing facilities, or cold storage environments where moisture, washdowns, or dust are present.

XTIOT Barcode Scanner Products with IP Protection Ratings

XTIOT offers scanning modules and terminals with various IP ratings engineered for demanding environmental conditions.

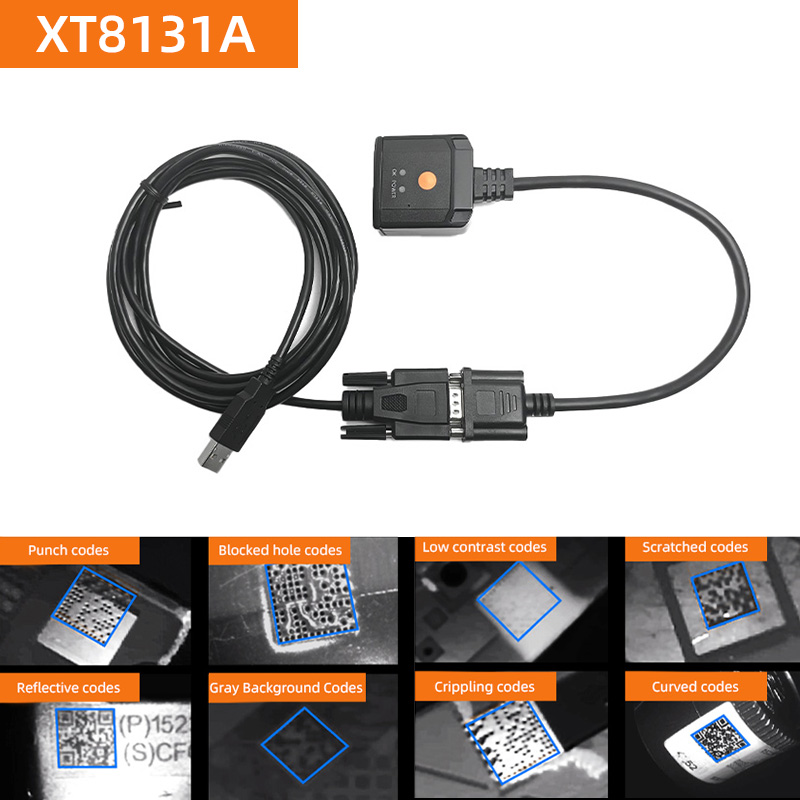

XT8131A Industrial Fixed-Mount Scanner – IP65 Rated

The XT8131A is built with an IP65-rated casing specifically designed for industrial environments, providing complete dust protection and resistance to low-pressure water jets from any direction . This makes it ideal for manufacturing floors where dust accumulation is common and occasional cleaning or splashing occurs. The durable plastic housing ensures longevity and resistance to wear and tear .

Perfect for:

• Food processing plants – withstands washdown procedures and flour dust

• Automotive manufacturing – resists oil mist and metal particulate

• Warehouse receiving docks – protects against rain ingress during door-open operations

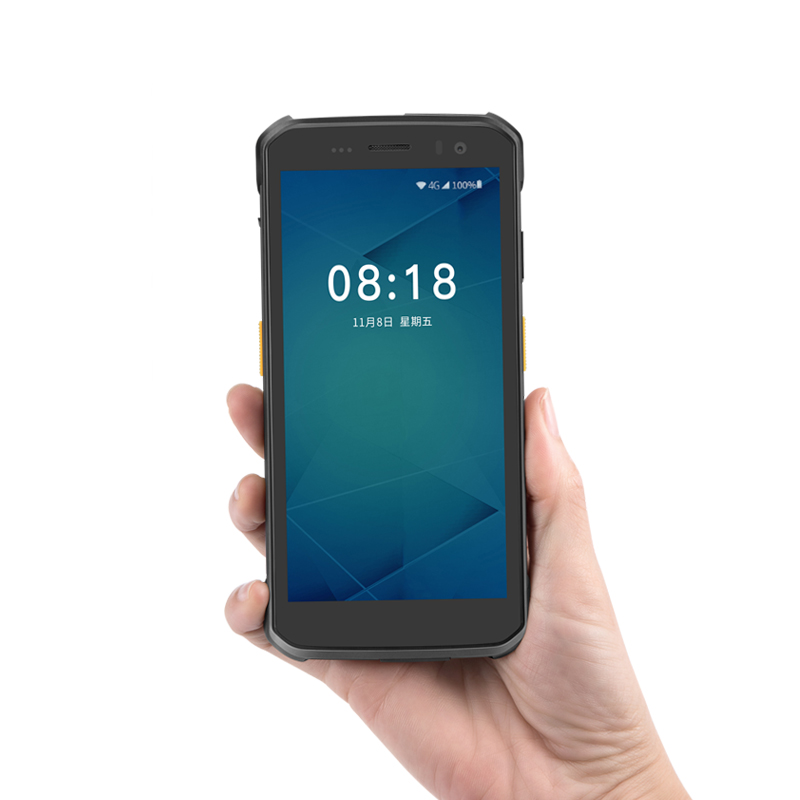

XT8002 Android PDA – IP67 Rated

The XT8002 is a rugged handheld PDA featuring an IP67 industrial protection rating, offering complete dust-tight protection and the ability to withstand immersion in water up to 1 meter for 30 minutes . This rugged design makes it suitable for the most demanding field environments where exposure to rain, mud, and accidental submersion is possible.

Perfect for:

• Outdoor field service – reliable operation in rain, snow, and wet conditions

• Cold storage facilities – withstands condensation from temperature cycling

• Agriculture and livestock – operates in muddy, wet environments

• Maritime logistics – resistant to salt spray and splashing

XT216MP Waterproof Scanner Module – High-Durability Design

The XT216MP features a compact, rugged design suitable for long-term use in outdoor and industrial applications . While the product page highlights its small and compact design for space-constrained devices, it is specifically marketed as a waterproof solution for outdoor self-service terminals. With ±65° tilt, 360° rotation, and ±55° deflection, it maintains scanning performance even in challenging outdoor conditions .

Perfect for:

• Parking lot automatic toll collection – exposed to rain, dust, and temperature extremes

• Industrial vehicle management – withstands outdoor entry gate conditions

• Outdoor self-service kiosks – continuous operation in all weather conditions

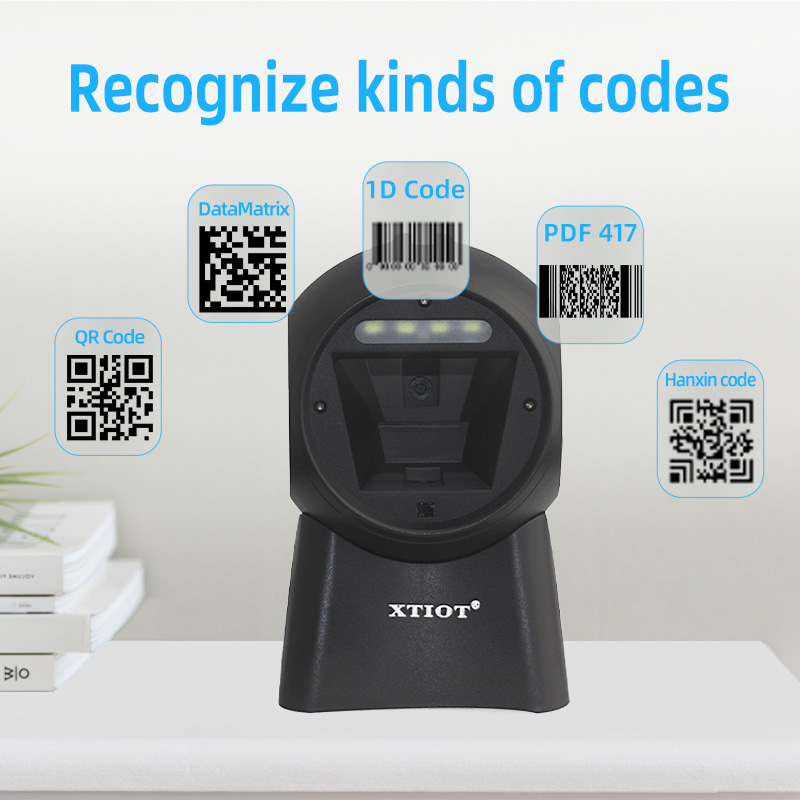

XT7301P Desktop Scanner – IP54 or Higher

The XT7301P offers a protection level of IP54 or higher, providing limited dust protection (dust ingress that does not interfere with operation) and protection against water splashes from any direction . This rating makes it suitable for indoor commercial environments where occasional spills or splashes may occur, such as retail counters and restaurant service areas.

Perfect for:

• Supermarket checkout counters – resists spills from beverages or cleaning sprays

• Restaurant kitchens and service areas – withstands light splashes and food residue

• Hospital registration desks – easy to clean with sanitizing wipes

XT2010 Fixed-Mount Scanner – No IP Rating, Indoor Use Recommended

The XT2010 is designed primarily for indoor applications and does not feature a specific IP rating. For outdoor use, the manufacturer recommends adding a protective cover to shield the scanner from rain and moisture . This makes it suitable for controlled indoor environments such as ordering kiosks, logistics sorting stations, and pharmaceutical packaging lines where moisture exposure is minimal.

Perfect for:

• Ordering kiosks in indoor food courts – protected environment

• Pharmaceutical packaging lines – clean, dry production areas

• Logistics sorting stations – indoor warehouse operations

XT738M Compact Scan Module – Indoor Use with Protective Cover

The XT738M is a compact scan module designed for integration into PIN terminals and medical devices. It can work under sunlight but is not waterproof; for outdoor use, a protective cover is recommended . This makes it ideal for indoor medical and retail applications where moisture exposure is minimal.

Perfect for:

• PIN terminals indoors – controlled environment

• Medical diagnostic equipment – clean, dry clinical settings

• Self-service kiosks indoors – shopping malls and retail stores

IP Rating Specifications Overview

Critical Applications Requiring IP Protection

How XTIOT Achieves IP Protection

Sealed Enclosures

IP-rated XTIOT scanners feature gasketed housings and sealed optical windows that prevent dust and moisture ingress while maintaining scanning performance.

Industrial-Grade Materials

IP65 and IP67 models utilize durable plastic or metal casings that resist corrosion, impact, and chemical exposure common in industrial environments .

Protective Cover Compatibility

For models without built-in IP ratings, XTIOT offers guidance on adding protective covers to enable safe outdoor deployment .

Connector Sealing

Waterproof models feature sealed cable connectors that prevent moisture wicking into the device through interface ports.

Why Ingress Protection Matters

Without adequate IP protection, scanners deployed in demanding environments may experience:

• Premature failure – dust accumulation causes overheating or mechanical interference

• Water damage – moisture ingress leads to corrosion, short circuits, or optical fogging

• Sanitation issues – inability to properly clean scanners in food or medical settings

• Costly replacements – frequent failures increase total cost of ownership

• Operational downtime – equipment failures disrupt production or customer service

XTIOT delivers this capability with scanners rated from IP54 for splash resistance to IP67 for complete dust-tight protection and temporary immersion, ensuring reliable operation whether deployed in food processing plants, outdoor toll booths, or rain-soaked field service environments.

Choose the right IP protection for your environment. Contact XTIOT today for ingress protection guidance and product selection support.
