What Is Operating Temperature Range?

Operating temperature range refers to the minimum and maximum ambient temperatures at which a scanning module can function reliably—such as -20°C to +60°C. This specification determines whether the scanner can withstand cold storage environments (freezers, refrigerated warehouses) or high-temperature workshop conditions (foundries, manufacturing lines, outdoor installations) without performance degradation or component failure.

XTIOT Barcode Scanner Products with Wide Operating Temperature Ranges

XTIOT offers scanning modules and fixed-mount scanners engineered to operate reliably across extreme temperature conditions, ensuring consistent performance in demanding environments.

XT206M3 Fixed-Mount Barcode Scanner

The XT206M3 features an operating temperature range of -20°C to +50°C . This wide range enables deployment in cold storage warehouses where temperatures hover near freezing, as well as outdoor self-service kiosks exposed to summer heat. With storage temperature of -40°C to +70°C, the module can survive extreme transport conditions without damage.

Perfect for:

• Cold chain logistics – operates reliably in refrigerated warehouses at 0°C to 4°C

• Outdoor vending machines – withstands summer heat and winter freeze cycles

• Pharmacy cold storage – scanning in temperature-controlled medication storage areas

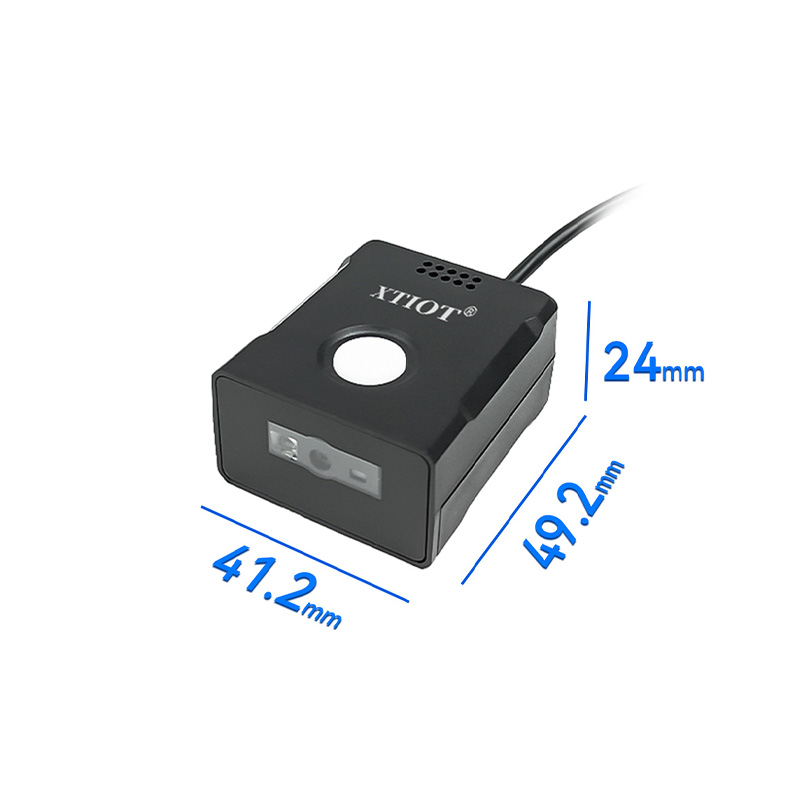

XT2010 Fixed-Mount Barcode Scanner Module

The XT2010 offers operating temperature from -20°C to +60°C , making it suitable for both cold environments and high-heat industrial settings. Its -40°C to +70°C storage temperature ensures reliability during transport through extreme climate zones. With humidity tolerance of 5% to 95% non-condensing, it performs well in cold storage with condensation risks.

Perfect for:

• Frozen food distribution centers – scans barcodes on pallets in -20°C freezers

• Automotive parts manufacturing – operates in non-climate-controlled workshops

• Pharmaceutical cold chain – temperature tracking in vaccine storage facilities

XT216MP Waterproof Scanner Module

The XT216MP is designed with wide temperature tolerance for outdoor and industrial applications. Its robust construction supports operation in environments where temperature fluctuations are common, from freezing winter conditions to hot summer days. IP68 waterproof rating combined with wide temperature range makes it ideal for exposed installations.

Perfect for:

• Parking lot automatic toll collection – operates in all weather conditions year-round

• Industrial vehicle management – withstands temperature extremes at facility entry gates

• Outdoor self-service terminals – reliable scanning in direct sunlight or freezing rain

XT8601B Industrial Batch Scanner

The XT8601B features operating temperature from -20°C to +50°C , designed for demanding industrial environments. With IP65/IP67 protection and an all-metal body, it excels in food processing facilities requiring washdowns, cold storage warehouses, and manufacturing plants with temperature variations.

Perfect for:

• Cold storage inventory management – scans pallet codes in -20°C freezer environments

• Food processing lines – withstands washdown cycles and temperature fluctuations

• Pharmaceutical manufacturing – reliable operation in temperature-controlled production areas

XT7301P Omnidirectional Desktop Scanner

The XT7301P offers operating temperature from -20°C to +50°C with storage temperature from -40°C to +70°C . While designed primarily for indoor retail environments, its temperature range supports deployment in store entrances exposed to drafts, warehouse receiving areas, and hospital loading docks where temperatures vary seasonally.

Perfect for:

• Grocery store entrances – scanning customer loyalty cards in all seasons

• Restaurant kitchens – withstands heat from cooking equipment

• Hotel outdoor check-in – seasonal outdoor deployment for valet services

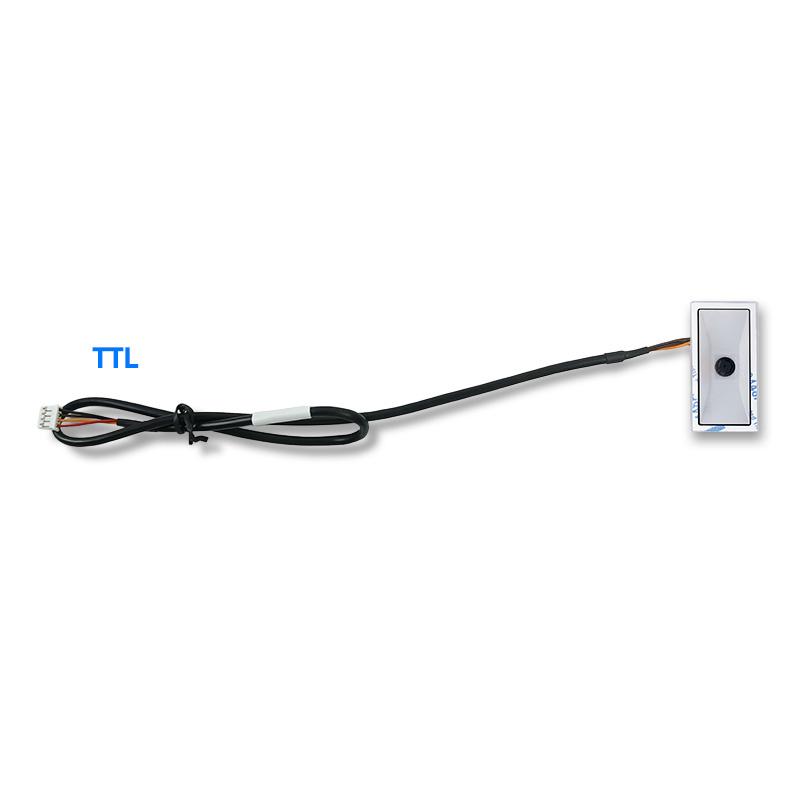

XT206M1 Mini Barcode Scanner Engine

The XT206M1 operates in 0°C to +50°C with storage temperature from -20°C to +70°C . While its operating range is narrower than industrial models, it remains suitable for indoor commercial environments including retail, hospitality, and office settings where temperature is controlled.

Perfect for:

• Smart shopping cart tablets – operates in climate-controlled grocery stores

• Payment terminals – reliable in indoor retail and restaurant environments

• Office access control – standard indoor temperature operation

Operating Temperature Specifications Overview

Critical Applications Requiring Wide Temperature Range

Why Operating Temperature Range Matters

Cold Storage Environments

In frozen food warehouses and pharmaceutical cold chain facilities, temperatures often drop to -20°C or lower. Scanners without cold-rated components may experience:

• LCD display freezing – slow or unresponsive operation

• Battery failure – reduced capacity or complete shutdown

• Mechanical issues – stiff triggers, slow mechanisms

• Condensation damage – moisture ingress from temperature cycling

XTIOT cold-rated scanners maintain reliable operation at sub-zero temperatures, ensuring continuous traceability in cold chain applications.

High-Temperature Industrial Environments

In foundries, automotive plants, and outdoor summer installations, temperatures can exceed +50°C. Scanners without high-temperature tolerance may suffer:

• Component overheating – shortened lifespan or failure

• Optical degradation – reduced scanning performance

• Housing warping – physical damage to mounting points

XTIOT industrial scanners with wide operating ranges withstand extreme heat while maintaining scanning accuracy.

Condensation and Humidity

When scanners move between cold storage and ambient environments, condensation forms on internal components. XTIOT scanners with IP65/IP67 protection and 5%-95% humidity tolerance resist moisture ingress, preventing corrosion and electrical shorts.

How XTIOT Achieves Wide Temperature Performance

Industrial-Grade Components

XTIOT selects industrial-grade electronic components rated for extended temperature ranges, ensuring consistent operation from -20°C to +60°C.

IP-Rated Protection

Modules like XT8601B (IP65/IP67) and XT216MP (IP68) feature sealed housings that protect against moisture, dust, and condensation—critical for environments with temperature cycling.

Thermal Management

Low power consumption (70mA to 250mA typical) minimizes internal heat generation, allowing scanners to maintain performance in high-temperature environments without active cooling.

Rigorous Testing

XTIOT subjects products to 72-hour aging tests and temperature cycling validation before shipment, ensuring reliability across the specified operating range .

Why XTIOT Scanners Excel in Extreme Temperatures

XTIOT delivers this capability with scanners designed for the full spectrum of industrial and commercial environments—from -20°C cold storage facilities to +60°C manufacturing floors. Whether you need to scan pallets in a frozen warehouse, verify medications in a pharmaceutical cold chain, or operate outdoor kiosks year-round, XTIOT has a scanner engineered to perform reliably in your environment.

Deploy XTIOT scanners with confidence in any environment. Contact XTIOT today for temperature-rated scanning solutions tailored to your application.
