What Are Module Dimensions?
Module dimensions refer to the specific length, width, and height of a scanning module. This specification determines whether the module can fit into existing device internal spaces without requiring structural redesign. Compact dimensions are critical for OEM projects where space is limited and every millimeter counts.
XTIOT Products with Compact Dimensions
XTIOT offers a range of scanning modules with ultra-compact designs engineered for seamless integration into space-constrained devices.

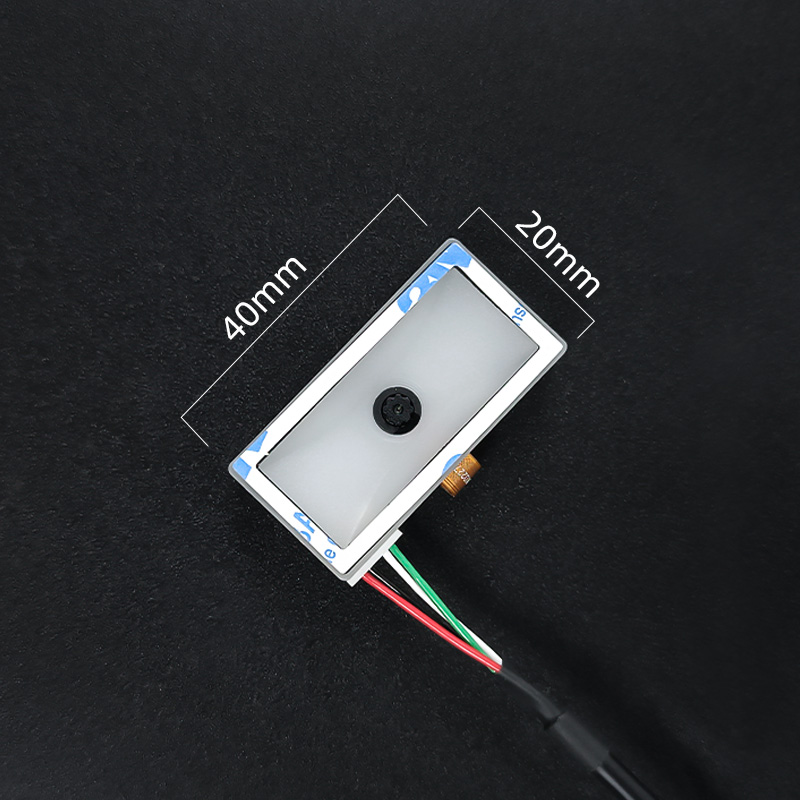

XT206M1 Ultra-Compact Embedded Module
The XT206M1 measures approximately 40 × 20 × 11 mm, making it ideal for embedding into tight device spaces . Its compact footprint enables slimmer, sleeker device designs without requiring major structural changes.
Perfect for:
Self-service kiosks and vending machines – tiny scanner engine embedded directly into the kiosk frame
3D printers and smart machines – minimal redesign needed to add scanning capability
Payment terminals and ticketing devices – fits into handheld or countertop form factors
OEM device manufacturing – skip the housing and integrate just the core engine

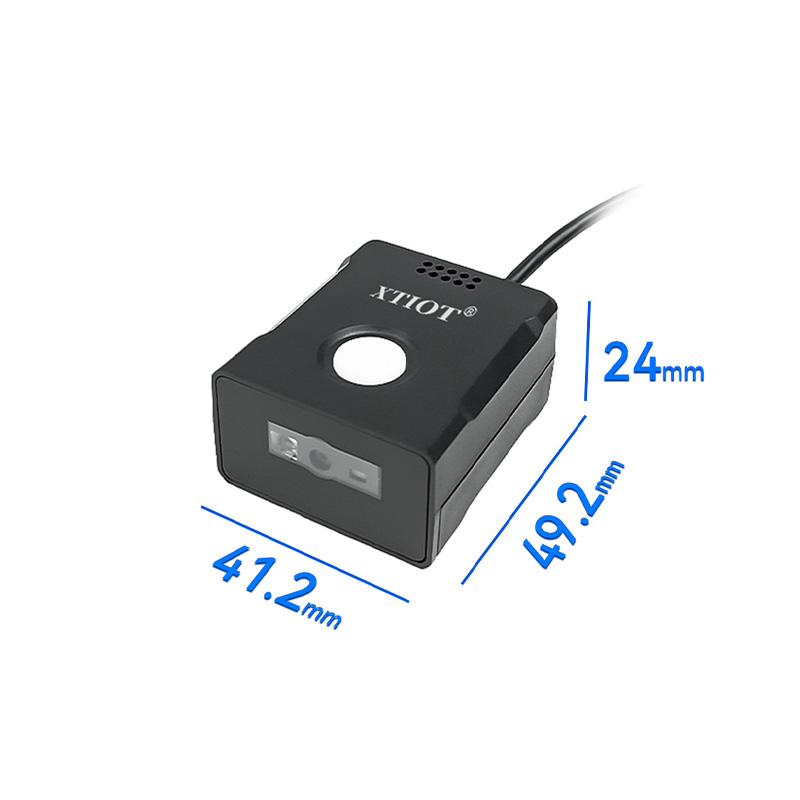

XT2010 Fixed Mount Scanner Module
The XT2010 features compact dimensions of 41.2(W) × 49.2(D) × 24(H) mm with a weight of only 68g . Its space-efficient design makes it suitable for integration into logistics terminals, ordering kiosks, and fixed installations where space is at a premium.
Perfect for:
Logistics sorting stations – fits into conveyor-mounted scanning positions
Self-service ordering kiosks – embeds into restaurant or retail terminals
Hospital registration kiosks – integrates into patient check-in devices
XT750MB Scan Engine Module
The XT750MB has dimensions of 43.4 × 37 × 17 mm and weighs just 11g . This lightweight, compact module is designed for core sensor systems and embedded applications where both size and weight matter .
Perfect for:
Core sensor systems – integrates into industrial automation equipment
Handheld device manufacturing – adds scanning capability without bulk
Embedded control systems – fits into existing board layouts

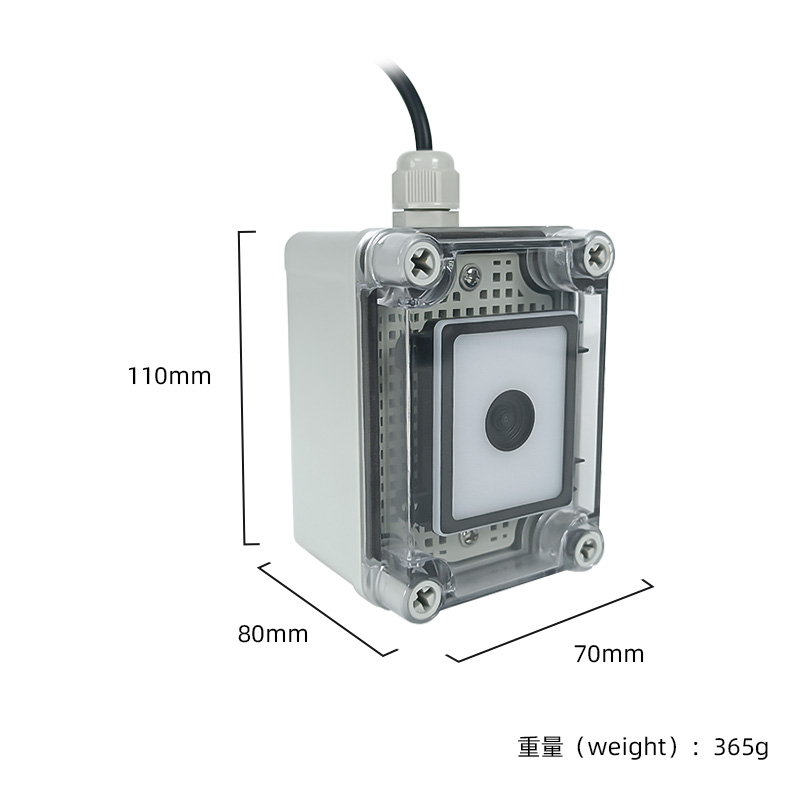

XT216MP Waterproof Scanner Module
The XT216MP features a compact design specifically engineered for integration into devices with limited space while maintaining IP-rated waterproof protection . Its small footprint enables outdoor and harsh-environment applications without sacrificing durability.
Perfect for:
Parking toll collection systems – installs at entrance/exit gates in tight spaces
Outdoor self-service terminals – fits into weatherproof kiosk enclosures
Industrial outdoor equipment – withstands exposure while occupying minimal space

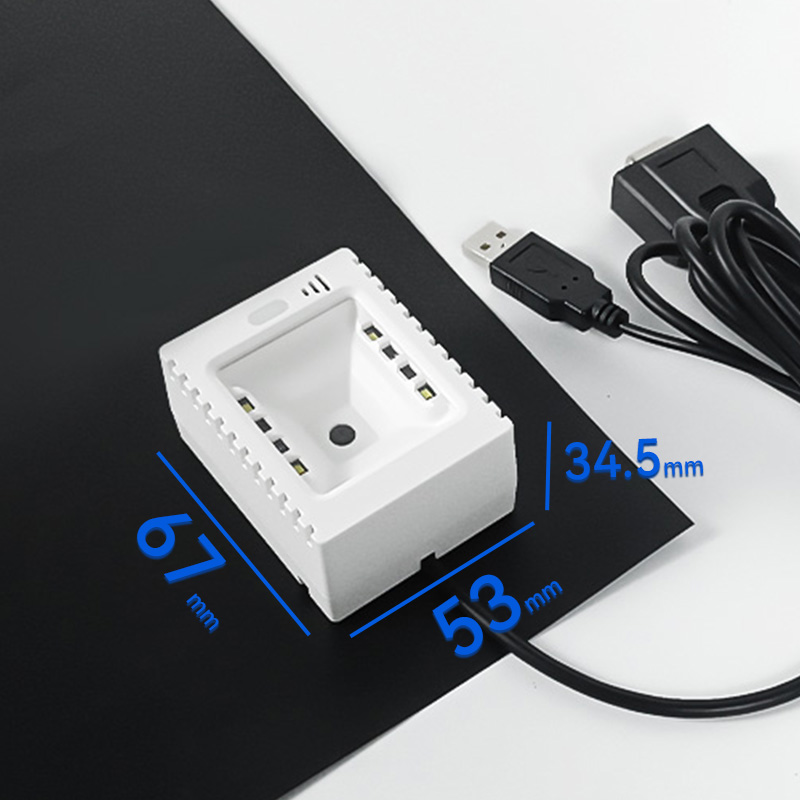

XT2002D Payment Scanner Module
The XT2002D is designed for kiosk and vending machine integration with dimensions optimized for payment terminal form factors . Its compact size allows easy embedding into countertop and wall-mounted devices.
Perfect for:
Vending machine payment systems – integrates into cashless payment interfaces
Kiosk terminals – fits into information and ticketing kiosks
Self-service checkouts – embeds into retail payment stations

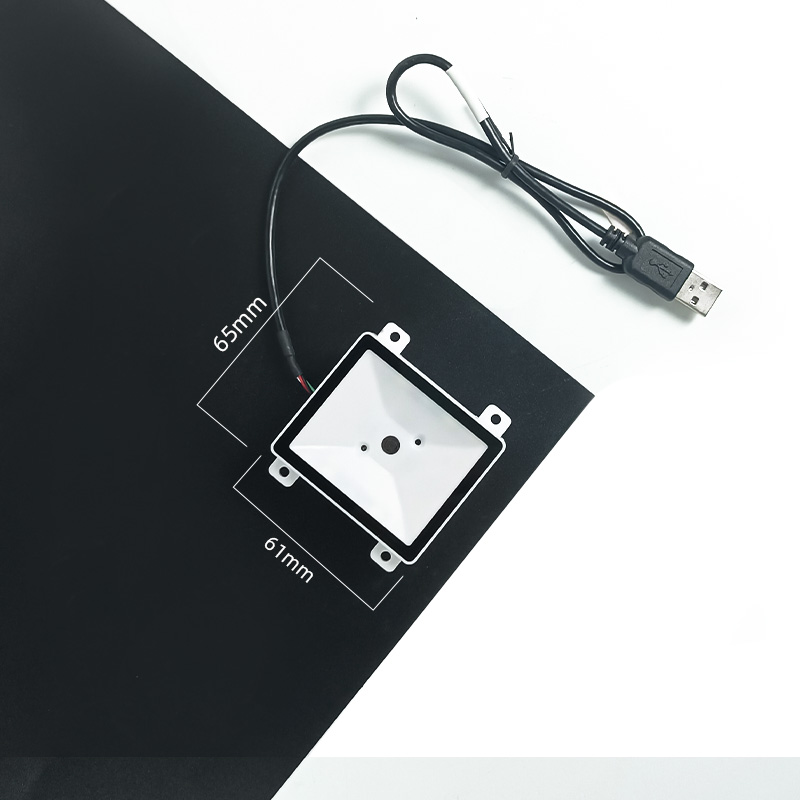

XT205M5 Visitor Management Module
The XT205M5 is a lightweight module weighing only 9g, designed for visitor management and access control applications . Its minimal footprint enables integration into turnstiles, entry gates, and registration kiosks.
Perfect for:
Access control turnstiles – embeds into entry gates without structural changes
Visitor management kiosks – fits into lobby registration devices
Public transportation gates – integrates into ticket validation systems
Critical Applications Requiring Compact Module Dimensions
| Application | Space Constraint | XTIOT Solution |
|---|---|---|
| Self-Service Kiosks | Limited internal space for components | XT206M1 at 40×20×11mm fits in any kiosk frame |
| 3D Printer Integration | Minimal redesign capacity | XT206M1 with ultra-compact footprint |
| Payment Terminals | Slim, handheld form factors | XT2002D optimized for POS devices |
| Parking Toll Systems | Gate installation space limits | XT216MP compact waterproof design |
| Visitor Management | Turnstile and gate integration | XT205M5 at only 9g weight |
| Logistics Stations | Conveyor-mounted space | XT2010 with 41.2×49.2×24mm size |
How XTIOT Supports Integration
2D and 3D Drawings Available
XTIOT provides 2D drawings and 3D files containing all dimensions of their scanners, enabling engineers to validate fit before ordering .
Multiple Interface Options
Modules offer USB, TTL, RS232, and RS485 interfaces, allowing flexible connection to existing control boards without redesign .
OEM Customization
XTIOT supports custom cable length, cable PIN assignments, and logo placement, ensuring the module fits your specific device layout .
Wide Operating Temperature
Modules operate in -20°C to +60°C environments, suitable for both indoor and outdoor installations .
Why Module Dimensions Matter for Integration
When selecting a scanning module, precise dimensions determine whether you can:
Avoid structural redesign – match existing device internal cavities
Maintain product aesthetics – keep devices slim and sleek
Reduce development costs – use existing tooling and enclosures
Accelerate time to market – integrate quickly without custom engineering
Maximize internal space – leave room for other components
XTIOT scanners deliver this capability with ultra-compact dimensions, comprehensive CAD documentation, and OEM customization options that ensure seamless integration into your existing device designs.
Ensure your scanning module fits your device perfectly. Contact XTIOT today for 2D drawings, 3D files, and integration support tailored to your project.
