Solution Overview:

The intelligent parking lot long-distance charging solution launched by Xingtong IoT XTIOT integrates QR code automatic identification, scanner code payment technology and Internet technology means, and simply upgrades the original parking lot intelligent terminal equipment , that is, the long-distance QR code scanner module is embedded in the host in an embedded and integrated manner to form a QR code scanner port, which is connected to the Alipay Apple payment system, so that the parking fee can be automatically paid by showing the mobile phone payment code at a distance. , this aspect is very effective in solving the problems of difficult parking, long queue time, and inflexible cash payment only.

Today, with the continuous in-depth development of the concept of smart parking and the increasing usage of Alipay and Apple Pay in public transportation for scanner QR codes, payment codes can be used to complete convenient payments on buses and subways, not to mention parking applications? With the advancement of this boom, parking lots across the country have gradually entered the era of cashless smart parking. In this regard, the ever-accelerating upgrading and transformation of parking lot equipment based on the integration of the Internet of Things and the mobile Internet will be urgent.

Solution

Hardware Requirements

Mobile payment core hardware XT2010ER long-distance QR code scanner head or XT2030 long-distance QR code scanner.

It is fixed and embedded into the parking lot intelligent terminal in an integrated way, giving full play to the payment code automatic identification, collection and data transmission performance of the scanner module, through the USB port or RS232 window, etc. The general communication protocol is used to transmit and communicate with the background, and the charging amount is defined by the software system and connected to the Alipay Apple payment interface, thereby expanding the payment function of swiping the mobile phone electronic wallet payment code.

Software Requirements

The parking lot scanner code charging system, Alipay Apple Pay and other payment software interfaces.

Upgrade the corresponding parking lot scanner code charging system, and accept the data collected and decoded from the XT2010ER QR code scanner module or XT2030 long-distance QR code scanner. The amount of deduction is defined by the software, and the decoding board receives the deduction. After the instruction, it will automatically connect to the payment software payment interface, so as to provide the car owner with the most convenient, safe, efficient and intelligent self-parking payment service. When paying the parking fee, the car owner only needs to call up the QR code payment code in the mobile phone e-wallet in advance, extend the car window and display it at the QR code scanner port. After a few seconds, the payment will be completed and the parking fee will be recorded. Real-time updates are saved to the database, which is very convenient.

Solution Advantages

1. Effectively relieve the pressure of queuing to pay in the parking lot

2. In comparison, it truly achieves cashless smart parking, which relieves the pressure of change supply

3. Intelligent and practical, improve the efficiency of charging, and significantly reduce the cost of parking lot management

4. Mobile payment caters to the payment preferences of the younger generation, avoids the embarrassment of forgetting to bring cash while driving, and conforms to the fact that the younger generation prefers scanner code payment

Products Recommended

XT2010ER/XT2030 long-distance QR code scanner module, the preferred secondary development scanner module for developers and integrators customers.

XT2010ER and XT2030 can quickly read barcode information on mobile phone screen and paper documents, the scanner distance can reach more than 0.8m~1.8m (scanner distance is determined according to the size of the barcode), the reading performance has reached the international advanced level, and the core functions are modular It is designed to be perfectly embedded with parking lot equipment, self-service payment machines, self-service terminals, etc.

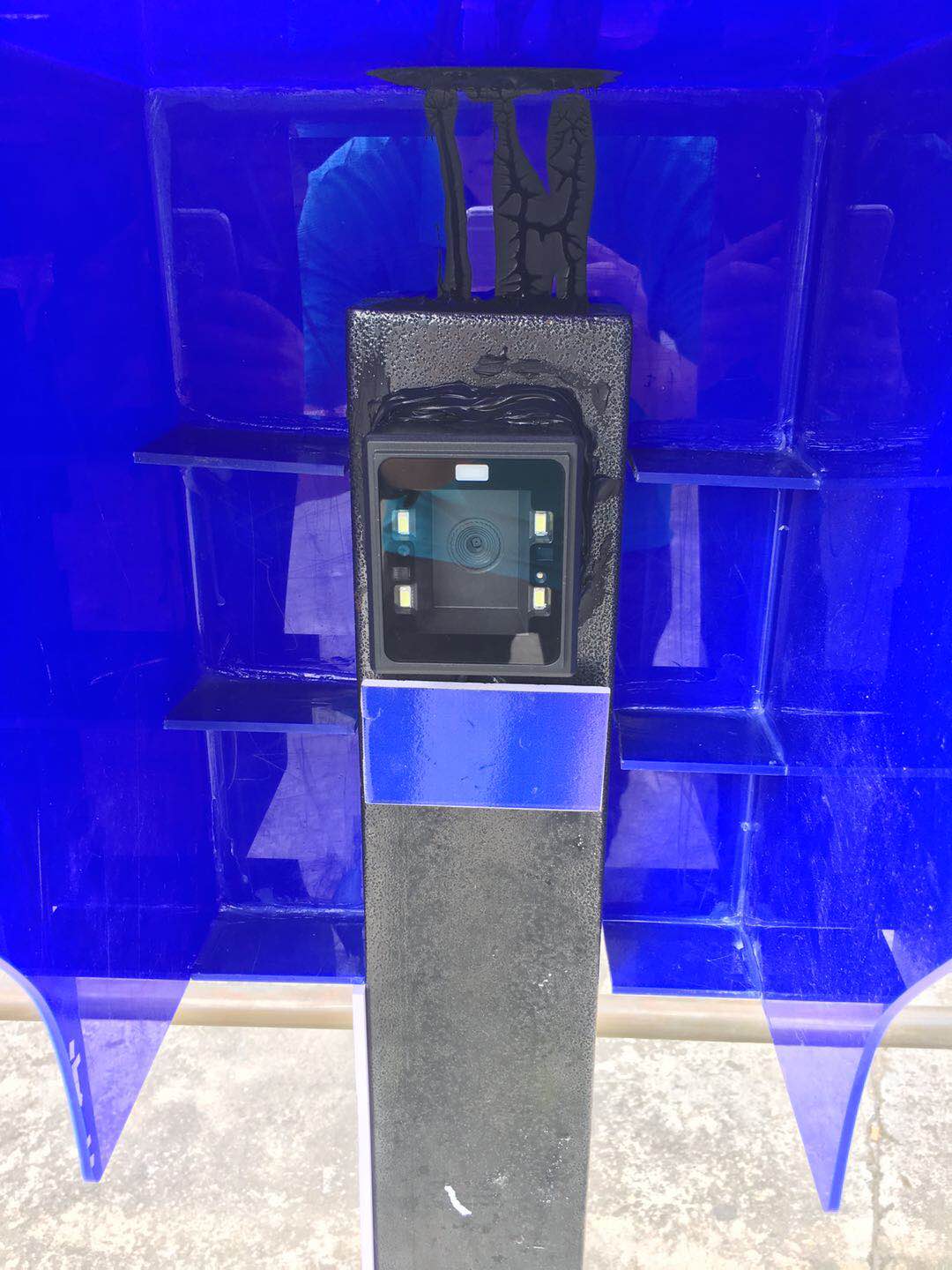

In practical applications, special technical verification is made especially for the reading of mobile phone screen codes. The scanner distance is relatively long. After extending the car window, the device can automatically sense and read the screen payment code information. For scanner different color brightness and light reflection degree The mobile phone screen code has perfect reading performance.
