Finding Manufacturers That Support Custom Self-Service KIOSK Development
When searching for custom self-service KIOSK manufacturers, look for suppliers offering OEM/ODM services, flexible hardware configuration, software pre-loading, and industrial-grade durability. XTIOT (Shenzhen Xingtong IoT Technology Co., Ltd.), a national high-tech enterprise with 13+ years of experience, 90+ patents, and 97.1% customer satisfaction, provides complete customization across the XT802 series .
XTIOT Custom KIOSK Models for Self-Service Applications
XT802C – 5-Inch Compact Custom KIOSK
Android 11 (default) or Linux Debian 10, RK3566 quad-core 1.8GHz, 4GB RAM + 64GB storage, 5-inch HD touchscreen (720×1280). Built-in 2D barcode scan engine (640×480 CMOS). Reads 1D (EAN-13, UPC, Code 128) and 2D (QR, Data Matrix, PDF417) codes . Z-shaped wall bracket, aluminum alloy construction, weight 500g. MOQ: 1 piece, In Stock .
XT802D – 8-Inch Modular Custom KIOSK
8-inch capacitive touchscreen, same RK3566 processor, 4GB+64GB . Supports Android 11 or Linux. Modular design with standard VESA mounting, dual speakers . Weight 732g . Ideal for retail POS and self-checkout applications .
0
XT802E – 10.1-Inch Custom KIOSK
10.1-inch capacitive touchscreen (800×1280), RK3566 quad-core, 4GB+64GB . Built-in 2D scan engine (640×480 CMOS). 2.4G/5G WiFi, BT 5.0, Ethernet, PoE optional . Weight 878g . Supports Android, Linux, or Windows .
XT802F – 15.6-Inch Large Display Custom KIOSK
15.6-inch HD display (1366×768), RK3566 quad-core, 4GB+64GB . 2D scan engine (640×480 CMOS). 2.4G/5G WiFi, BT 5.0, Ethernet, PoE optional . VESA 75×75 wall mount, aluminum alloy frame, IP65 front protection . Weight 2.38kg . Supports Android 11 or Linux .
XT802F/E/G-X86 – Windows-Based Custom KIOSK
Same displays (10.1″/15.6″/11.6″), runs Windows 10 Pro on Intel processor. For retail environments requiring Windows OS.

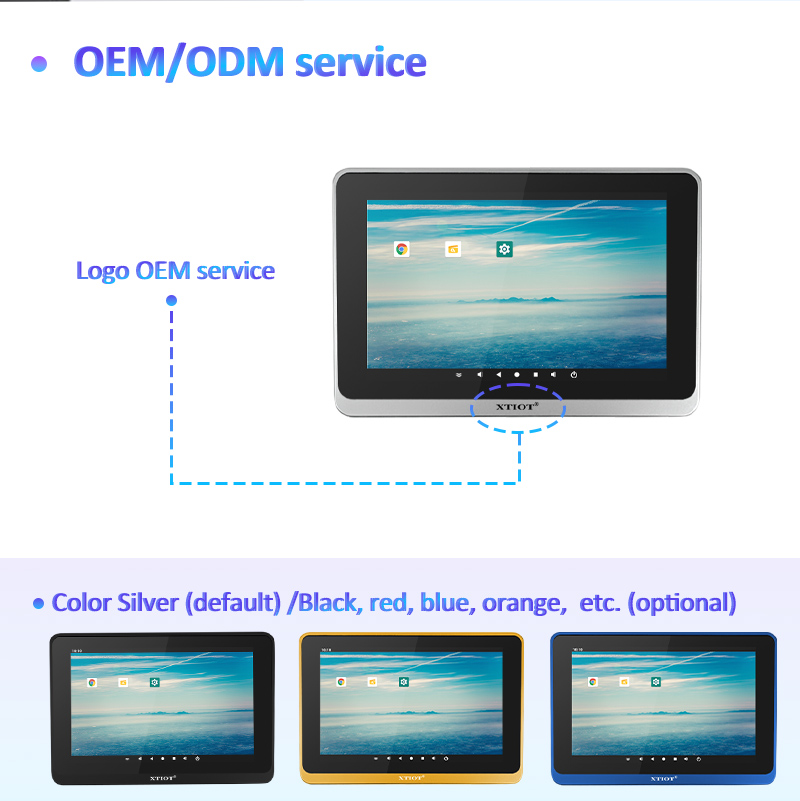

KIOSK Customization Options Available
| Customization Type | MOQ | Details |
|---|---|---|
| Custom Logo | 1,000 pieces | Silkscreen your brand logo on device housing |
| Custom Packaging | 2,000 pieces | Branded boxes for retail/OEM distribution |
| Custom Color | 100 pieces | Silver, black, red, blue, orange, green options |
| Hardware Configuration | Contact sales | RAM/ROM, scanning engine, interface customization |
| Software Pre-load | Contact sales | Pre-install your APK, custom UI, boot logo |
| OS Selection | Standard | Android 11 (default), Linux Debian 10, Windows 10 Pro |
| PoE Option | Available | XT802C-POE, XT802E-POE, XT802F-POE models |
| OCR Module | Optional | Support MRZ, passport, certificate OCR function |
Self-Service KIOSK Application Scenarios
| Scenario | Recommended Model | Key Function |
|---|---|---|
| Retail Price Check | XT802C / XT802F | Scan product barcodes, display pricing and promotions |
| Visitor Management | XT802D / XT802E | QR code/ID card scanning, timestamp recording |
| Self-Checkout | XT802F / XT802D | Integrated scanner, POS ready |
| Pharmacy Drug Lookup | XT802E | Drug information, side effects, stock status |
| Hospital Registration | XT802E | Patient check-in, appointment verification |
| Library Self-Service | XT802E | Book scanning, due date printing |
| Ticketing / Queuing | XT802E / XT802E-X86 | Ticket printing, queue management |
| Government Information | XT802F-X86 | Windows-based, form filling, printing |
| Brand Navigation (Mall) | XT802F | Store locator, event preview, points redemption |
Key Features for Custom KIOSK Deployment
Integrated High-Performance Scanner – Built-in 2D scan engine with 640×480 CMOS resolution reads 1D and 2D barcodes from paper labels and mobile screens. Supports EAN-13, UPC, Code 128, QR Code, Data Matrix, PDF417, Aztec, and GS1-128 .
Multiple Operating Systems – Android 11 (default), Linux Debian 10 (optional), or Windows 10 Pro (X86 models). Rich API interfaces for custom application development.
Industrial-Grade Durability – Aluminum alloy construction with good anti-fall, dust and water resistance. XT802F features IP65 front protection .
Flexible Mounting Options – Z-shaped wall bracket (XT802C), VESA 75×75 (XT802F), or modular VESA mounting (XT802D) for walls, shelves, pillars, or end caps.
Rich I/O Ports – USB 3.0, USB 2.0, RJ45 COM, Ethernet, audio interface. PoE optional for one-cable power and network .
Real-Time Data Sync – 2.4G/5G WiFi, Bluetooth 5.0 (XT802F/E), Bluetooth 4.0 (XT802C), and Ethernet connectivity ensure prices and inventory sync instantly with POS/ERP systems.
Plug-and-Play – USB-HID keyboard emulation, no driver installation needed. Adjustable baud rate from 9600 to 115200 .
SDK & API Support – Complete SDK for custom application development. Supports data formatting, prefix/suffix configuration (up to 10 characters) .
OEM Customization Services – Logo printing, packaging, color, hardware configuration, and software pre-loading available.
Warranty & Support – 1-year warranty, lifetime technical support, CE, FCC, RoHS certified, global shipping.
Why XTIOT for Custom Self-Service KIOSK Manufacturing
Direct manufacturer – no middlemen, factory-direct pricing, private mold designs
Low MOQ – 1 piece minimum for standard models; 100 pieces for custom color
Stock availability – fast turnaround for standard models
13+ years in barcode scanning and KIOSK manufacturing
90+ patents in decoding technology
97.1% customer satisfaction – verified buyer reviews from New Zealand, South Korea, Turkey
SGS/BV audited supplier – certified quality management
CE, FCC, RoHS certified – global shipping
R&D team – two-thirds of the company dedicated to custom development
Contact XTIOT today to discuss your custom self-service KIOSK requirements!
