Reflective metal surfaces can make DPM codes difficult to read. Glare, shallow engraving and low contrast may cause standard barcode scanners to fail.

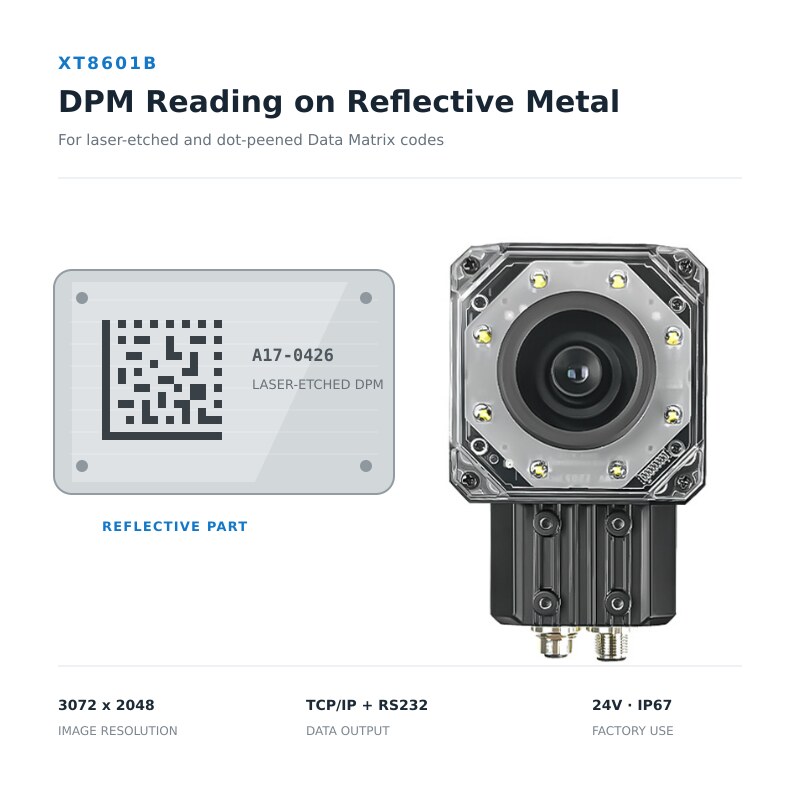

The XTIOT XT8601B is designed for reading Data Matrix and QR codes directly marked on metal parts. Its 3072 x 2048 image sensor and integrated lighting help capture laser-etched and dot-peened codes on machined components.

Main Features

• Reads laser-etched and dot-peened DPM codes

• 3072 x 2048 image resolution

• Supports Data Matrix, QR and 1D barcodes

• TCP/IP and RS232 interfaces

• 24V DC power input

• IP67-rated housing

• Fixed installation on production lines

XT8601B can send decoded barcode data to a PLC, industrial computer or MES. It is suitable for automotive parts, bearings, PCBA assemblies, tools and metal housings.

Reading performance depends on the code size, marking quality, surface finish and installation angle. Testing with the actual metal part is recommended before installation.

FAQ

Does XT8601B include traceability software?
No. It outputs decoded barcode data. The customer develops or integrates the host software.

Can it read printed labels?
Yes. It supports both DPM codes and standard printed barcodes.
