When space inside a locker door or self-service terminal is limited, scanner thickness can become more important than its overall size.

The XTIOT XT206M1 is only 11 mm thick, allowing it to fit behind narrow panels and inside compact equipment.

Small Size, Complete Scanning Function

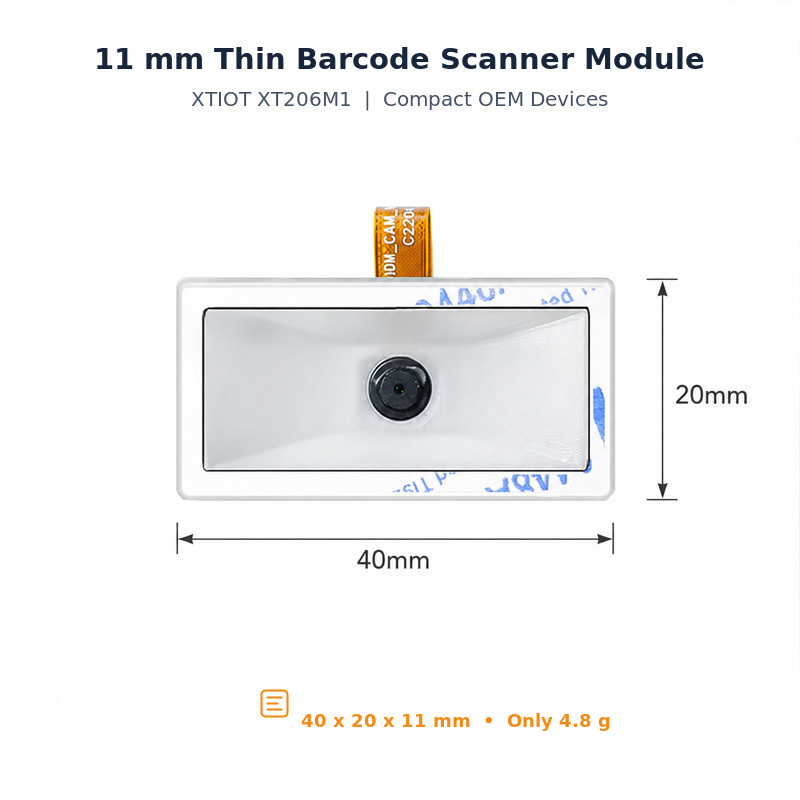

The XT206M1 measures 40 x 20 x 11 mm and weighs only 4.8 g. Although compact, it reads common 1D and 2D barcodes from both printed materials and mobile screens.

Typical scanning targets include:

• Parcel labels

• QR pickup codes

• Mobile payment codes

• Membership codes

• Paper tickets

It is suitable for parcel lockers, office storage lockers, access control terminals, vending machines and compact kiosks.

Three Standard Interface Options

The XT206M1 is available with:

• USB

• TTL

• RS232

The module uses a 5V power supply. Its TTL version uses a 3.3V logic level.

Easier Installation Behind a Panel

The scan window has pre-applied double-sided adhesive. It can be fixed directly behind a panel opening without taking up additional space with a large mounting bracket.

An FPC connection also helps keep the internal structure compact.

XT206M1 at a Glance

XTIOT manufactures embedded barcode scanner modules for lockers, kiosks, vending machines, access control terminals and other self-service equipment.

For equipment where every millimeter matters, the XT206M1 offers barcode and QR code scanning in a compact 11 mm structure.
