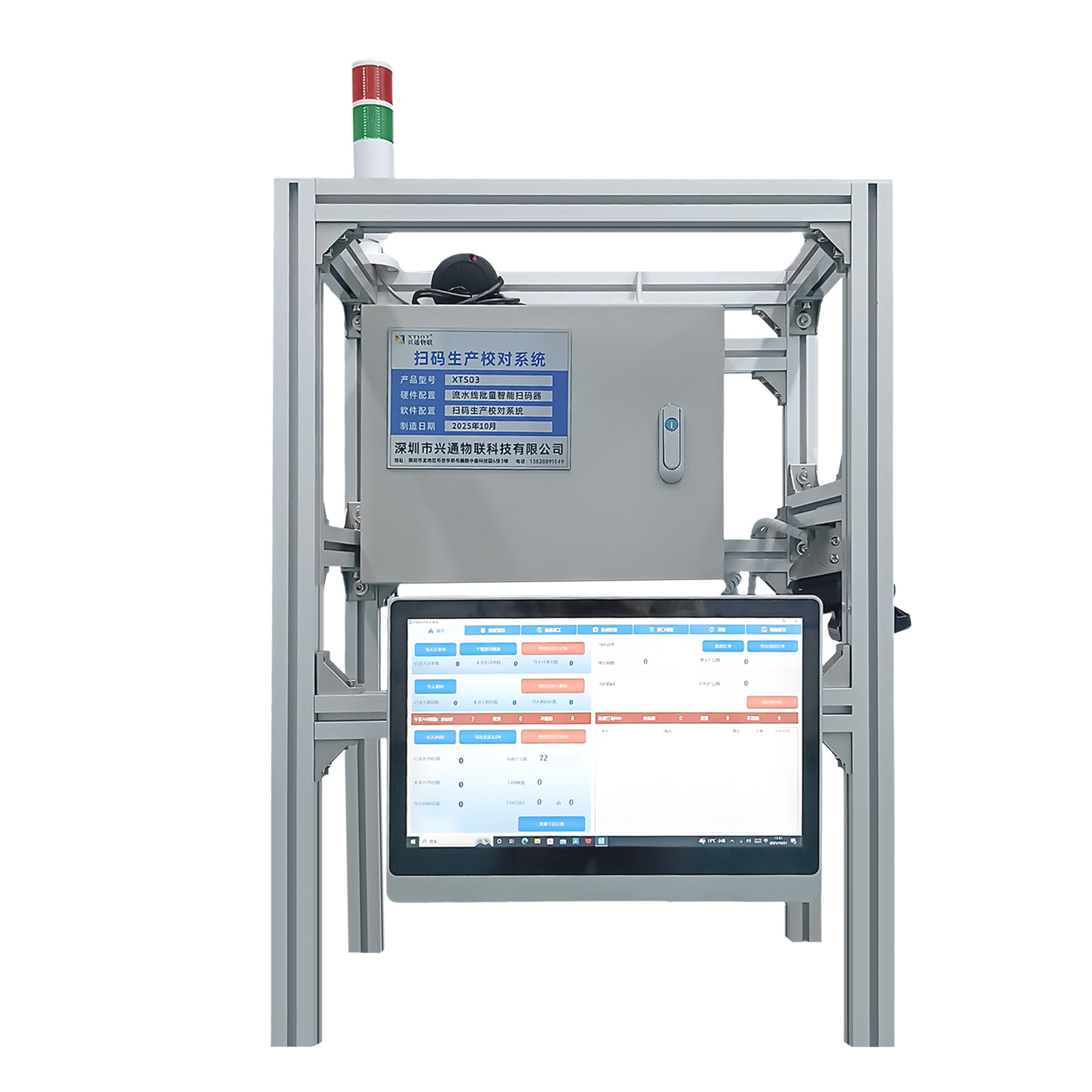

XTS03 Russian Chestny ZNAK Honest Mark Scanner Solutions
XTS03 combines barcode verification and packaging aggregation, with complete marking and labeling solutions available for factory deployment.

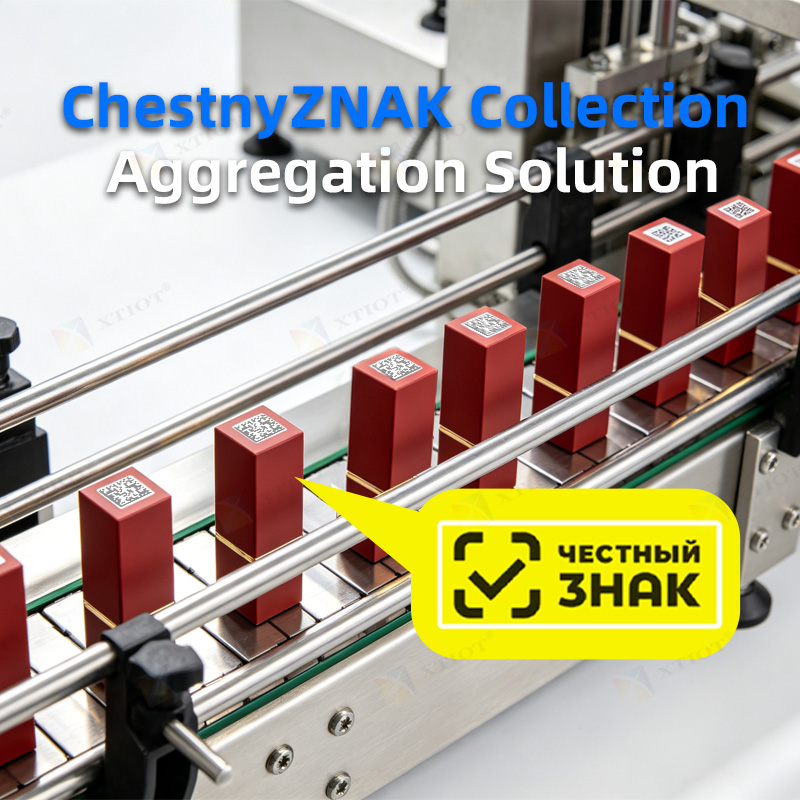

The system reads visible product codes in batches before carton sealing and links them to the outer carton code, reducing individual scanning during packing.

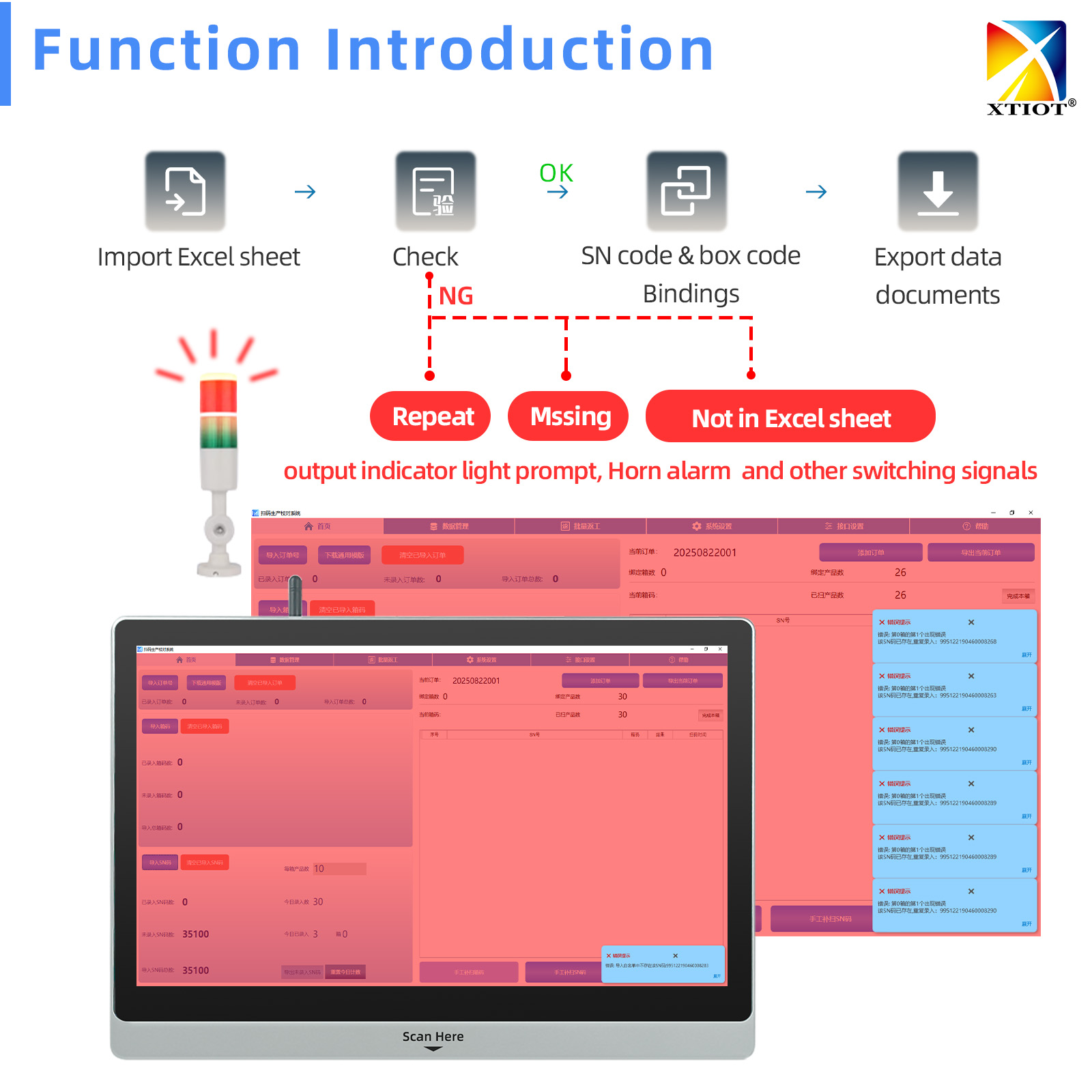

Imported code lists provide the reference for verification. Duplicate codes and codes outside the list trigger audible and visual alerts, with optional line stop or rejection control.
Configurations support GS1 DM codes only, two-level SSCC + GS1 DM aggregation, or three-level SSCC + SCF intermediate packaging + GS1 DM aggregation.
For aggregation projects, customers apply for the required codes together before production. Product and packaging codes remain separate until the XTIOT scanning system establishes their relationships during packing.

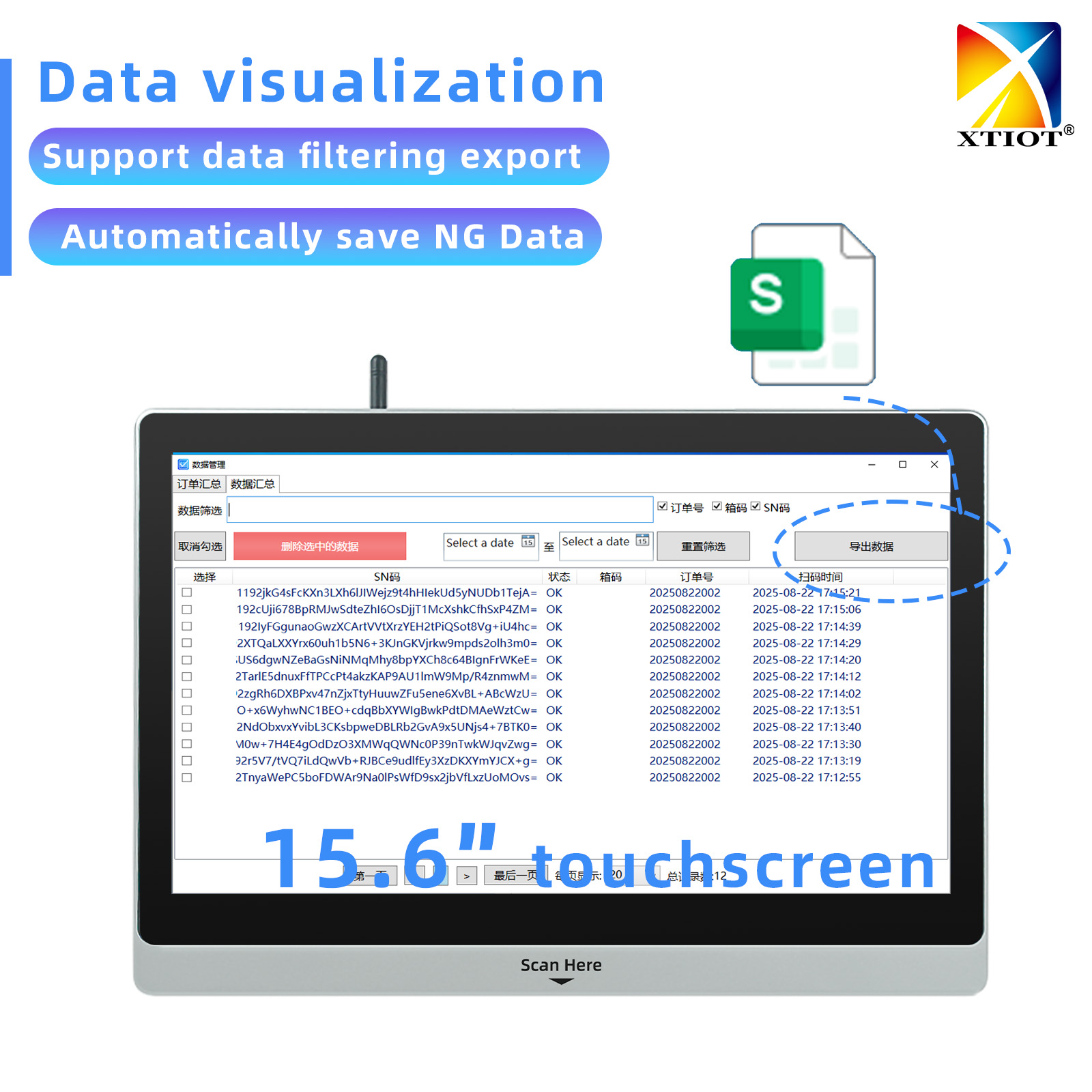

Aggregation records for an entire order can be exported in one table. For example, one file can contain 100 SSCC codes linked to 18,000 GS1 DM codes, without creating a separate file for each carton.
XTIOT also supplies complete marking and labeling solutions, including labeling equipment, industrial scanners, an industrial PC and software. Printing methods, label application and hardware configurations are confirmed for each project.
Batch scanning requires all target codes to be visible. Codes hidden inside sealed cartons or underneath other products require a different scanning arrangement.
Youtube Video: https://youtu.be/DjxloF6d2kM
Get in touch with us to learn more.
XTS03 combines barcode verification and packaging aggregation, with complete marking and labeling solutions available for factory deployment.
The system reads visible product codes in batches before carton sealing and links them to the outer carton code, reducing individual scanning during packing.
Imported code lists provide the reference for verification. Duplicate codes and codes outside the list trigger audible and visual alerts, with optional line stop or rejection control.
Configurations support GS1 DM codes only, two-level SSCC + GS1 DM aggregation, or three-level SSCC + SCF intermediate packaging + GS1 DM aggregation.
For aggregation projects, customers apply for the required codes together before production. Product and packaging codes remain separate until the XTIOT scanning system establishes their relationships during packing.
Aggregation records for an entire order can be exported in one table. For example, one file can contain 100 SSCC codes linked to 18,000 GS1 DM codes, without creating a separate file for each carton.
XTIOT also supplies complete marking and labeling solutions, including labeling equipment, industrial scanners, an industrial PC and software. Printing methods, label application and hardware configurations are confirmed for each project.
Batch scanning requires all target codes to be visible. Codes hidden inside sealed cartons or underneath other products require a different scanning arrangement.
Youtube Video: https://youtu.be/DjxloF6d2kM
Get in touch with us to learn more.
| Parameter | Specification |
|---|---|
| Model | XTS03 Series |
| Configuration | Customized to project requirements |
| System Type | Barcode Verification and Aggregation System |
| Software | Barcode scanning and verification software |
| Industrial PC | XT802F-X86 in the reference configuration |
| Scanner Options | XT8601B, XT9202B, XT8161 |
| Control Hardware | Control box and mounting brackets, configured as required |
| Data Import | Pre-import of product code data for verification |
| Code Verification | Checks scanned codes against imported data |
| Duplicate Detection | Detects repeated code scans |
| Unlisted Code Detection | Detects codes not included in the imported list |
| Error Alerts | NG warning sound and red light indication |
| Signal Output | NG signal for optional line stop or rejection control |
| Scanning Modes | Individual, batch unordered and full-tray scanning |
| Carton Aggregation | Full-carton scanning with automatic product-to-carton code binding |
| Data Export | Scanned data exported to a spreadsheet |
| Optional Controls | Line stop controller and rejection controller |
| Customization | Hardware and accessories selected for the required workflow |
Note: The specification sheet shows an XTS03-3 reference configuration. Final hardware, functions and scanning performance depend on the confirmed project configuration.
